- Distance between centers
- 1000 mm
- Taper of tailstock sleeve
- MT 3
- Travel of tailstock sleeve
- 110 mm
- Weight approx.
- 470 kg
- Center height
- 165 mm
- Swing over bed
- 330 mm
- Swing over gap*
- 430 mm
- Swing over cross slide
- 180 mm
- Spindle bore
- 38 mm
- Spindle nose fixture
- DIN 55029, D1-4
- Speed Range
- (9) 75 - 1400 rpm
- Longitudinal feed
- (40) 0,053 - 1,29 mm/rev.
- Cross feed
- (40) 0,013 - 0,31 mm/rev.
- Metric thread
- (32) 0,4 - 7 mm
- Inch thread
- (36) 4 - 60 threads/1“
- Machine dimension (W x D x H)
- 1600 x 700 x 1280 mm
- Motor power output S1 100%
- 1,5 kW / 400 V
- Motor power input S6 40%
- 2,2 kW / 400 V
- Bed width
- 180 mm

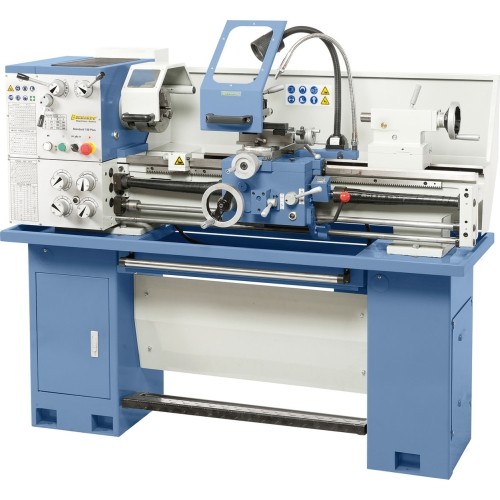

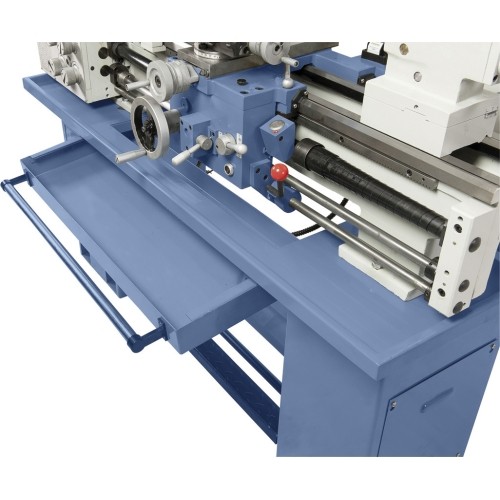

Standard 150 Plus
1092127
Price
€6,397.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 470 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 470 kg.
Description
Properties
- Practical machine with lead screw and feed rod for thread cutting and automatic feed
- Removable bridge for processing of workpieces large in diameter
- Rigid prism-shaped bed features additional reinforcements to keep vibrations to a minimum

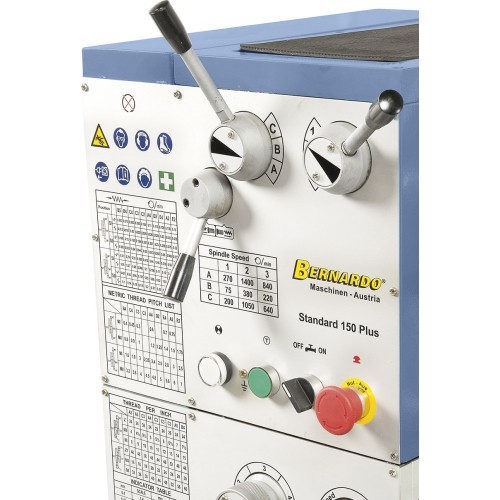

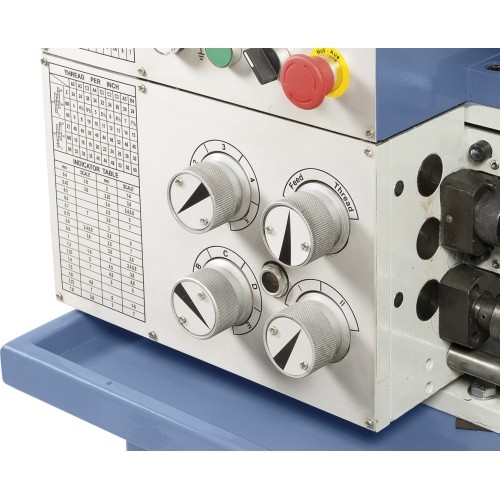

- Clearly arranged speed and feed control settings, smooth operation and accurate control
- Strongly reinforced prism-shaped machine bed features induction hardened and polished guiding
- Tailstock can be adjusted ± 10 mm to allow taper turning
- Tailstock features single lever clamping, handwheel features adjustable fine scale (0.04mm)
- Tailstock, spindle stock and all guides are re-adjustable
- Top slide with scale (0.02mm) swivels ± 45°
Standard accessories
- 3-jaw chuck DK11-160 mm / D4

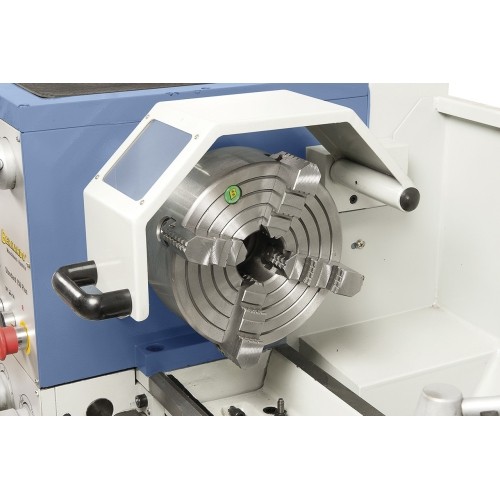

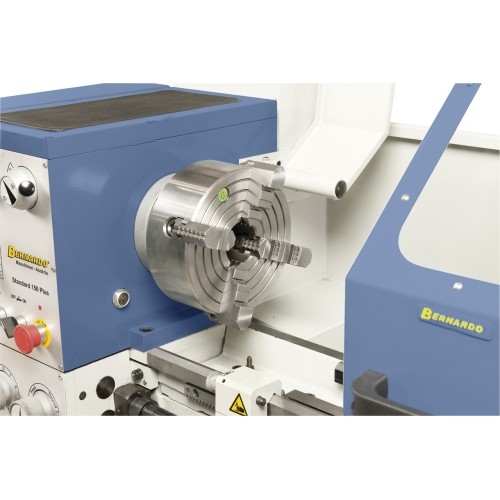

- Independent chuck K72-200 mm / D4
- Steady rest – Passage up to 60 mm
- Follow rest – Passage up to 60 mm
- Face plate 250 mm

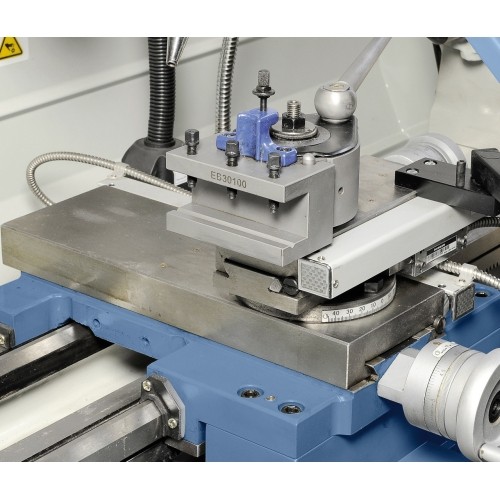

- 4-way tool post holder

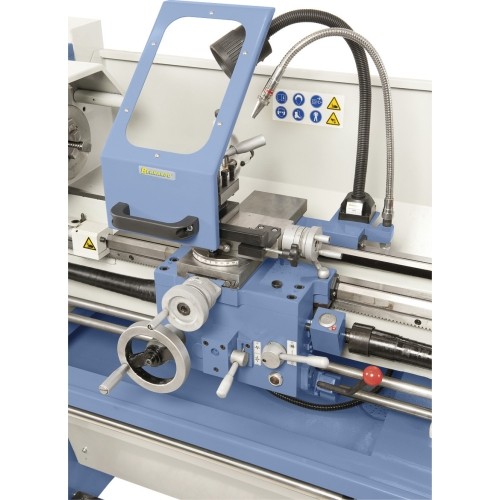

- Protective device at 4-way tool post holder
- Safety clutch
- Micrometer longitudinal fence
- Extractable chip tray
- Splash guard
- 2 dead centers
- Thread dial
- Morse taper drill sleeve
- LED machine light

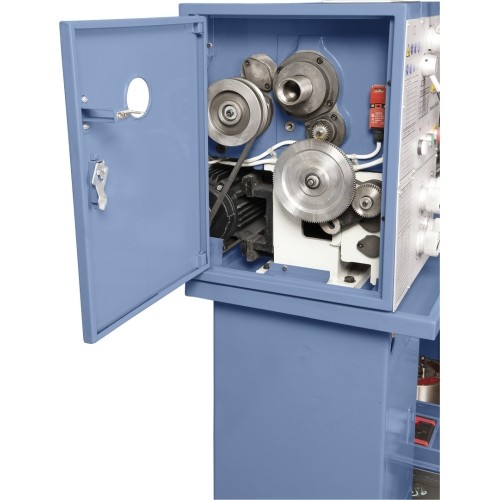

- Change gears
- Coolant device
- Motor with magnetic brake according to CE
- Foot pedal with brake function according to CE
- Stand
- Tools
