- Weight approx.
- 850 kg
- Table dimensions
- 445 x 205 mm
- T-slot quantity / width
- 1 / 13 mm
- Max. travel, longitudinal
- 560 mm
- Max. travel, cross
- 225 mm
- Max. distance spindle / table
- 440 mm
- Grinding wheel
- 200 x 13 x 31,75 mm
- Scale division on handwheel
- 0,005 mm
0,02 mm - Spindle speed
- 2850 rpm
- Motor power
- 1,5 kW
- Machine dimension (W x D x H)
- 1460 x 1200 x 1740 mm
- Permanent magnet clamping plate
- 200 x 400 mm
- Manual adjustment
- 1 mm/rev.
5 mm/rev. - Coolant device
- 55 l

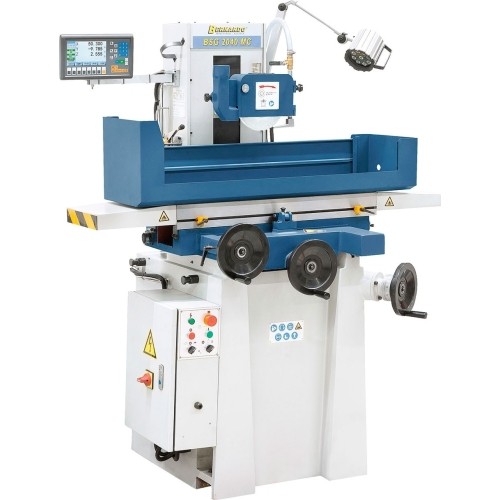

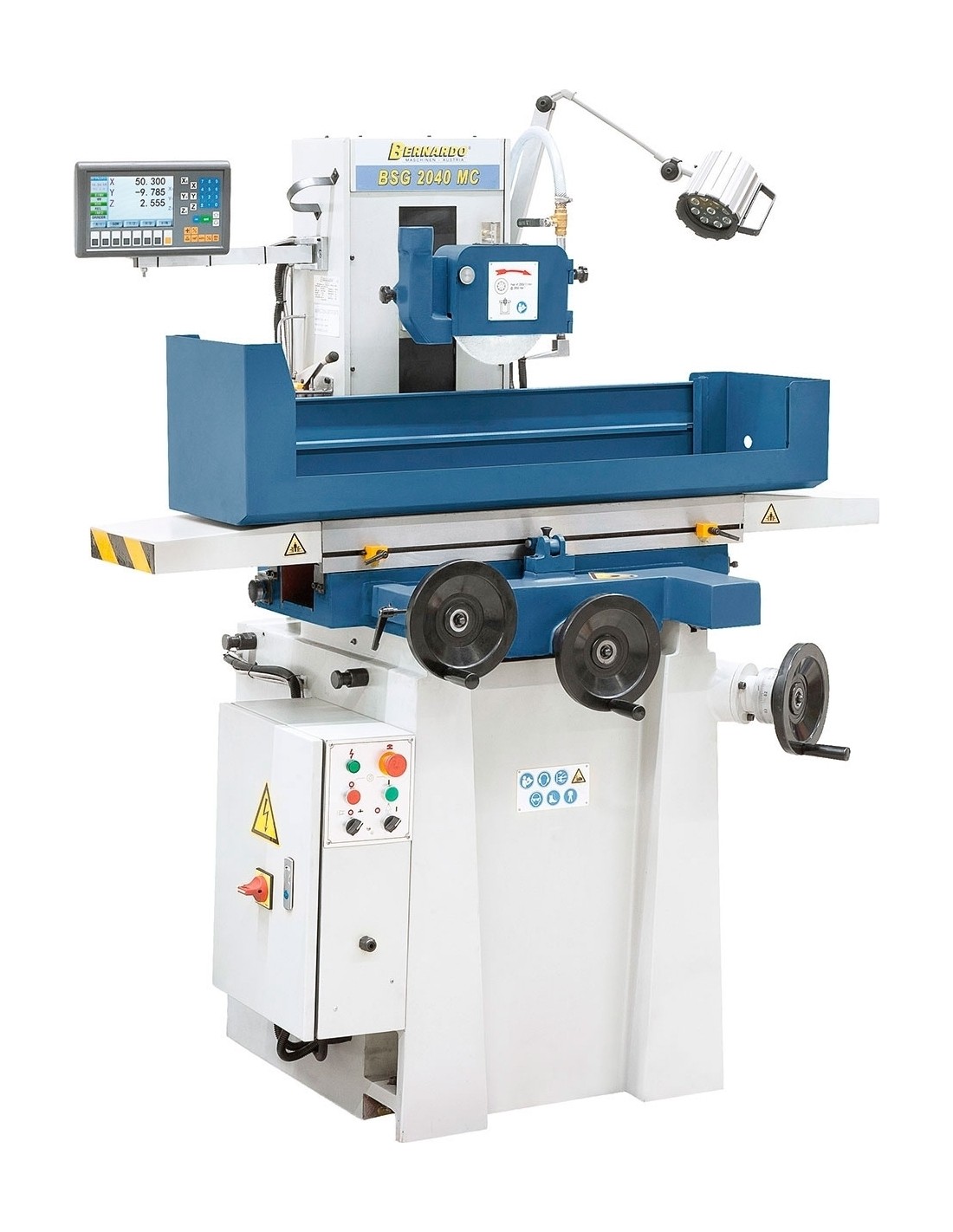

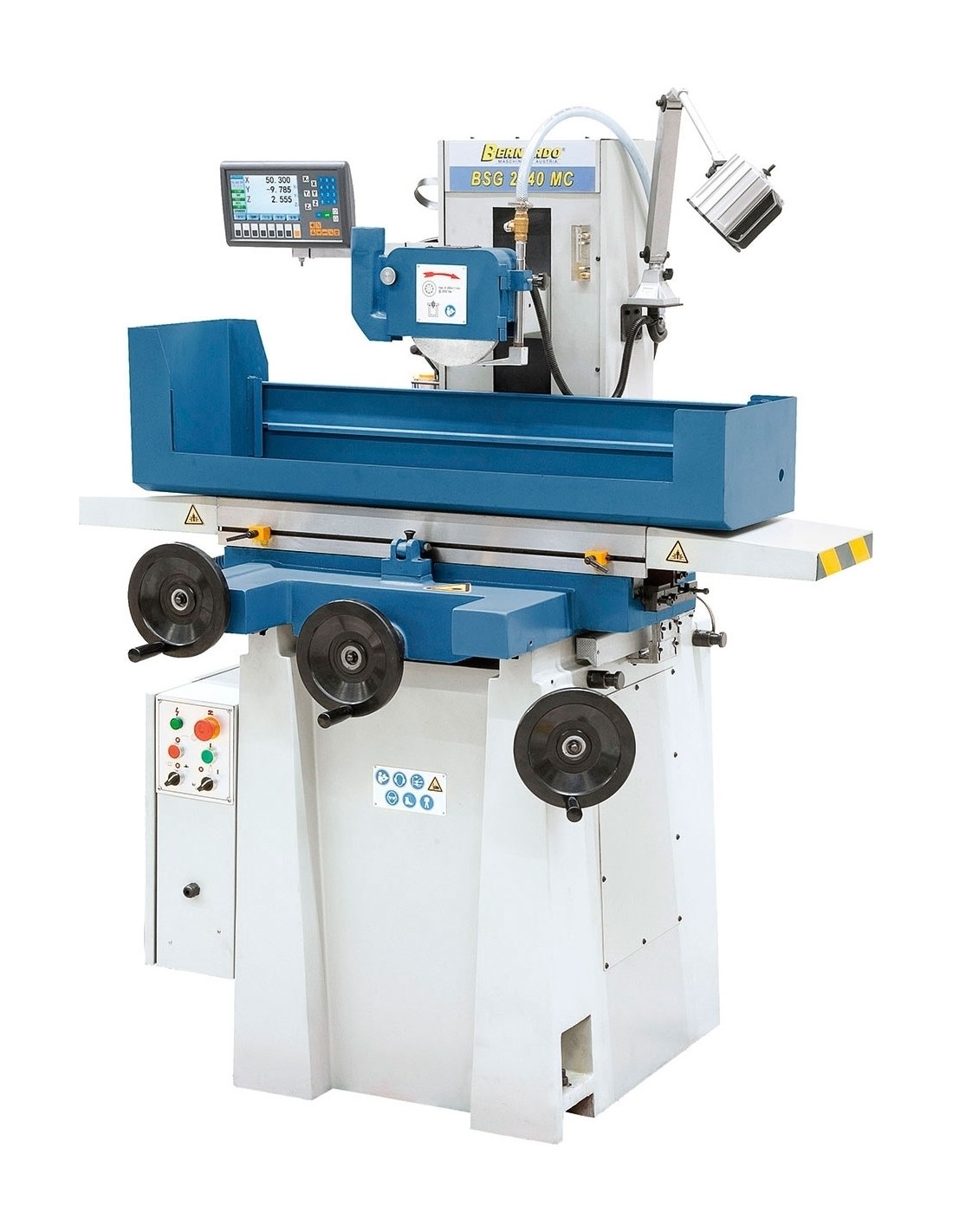

BSG 2040 MC
1092248
Price
€17,953.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 850 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 850 kg.
Description
Properties
- High quality bearings of spindle ensure vibration-free run

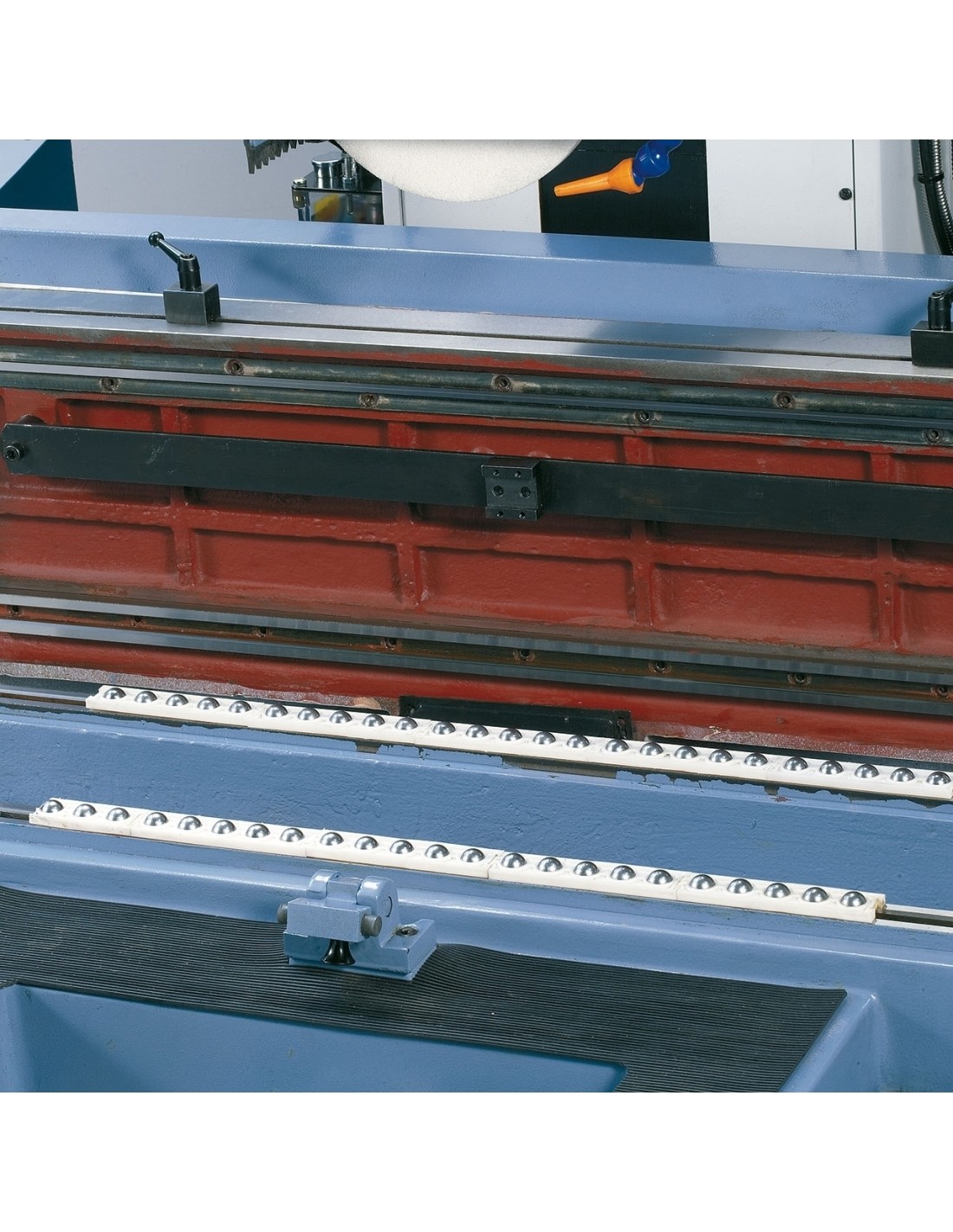

- Hardened, polished linear guiding for table longitudinal movementÂ
- Double V-guide of cross table movement
- Main parts, such as stand, base and apron made of high quality grey cast iron
- Maintenance-free, permanently lubricated spindle
- Completely equipped with 2-axis digital readout and permanently magnetic clamping plate

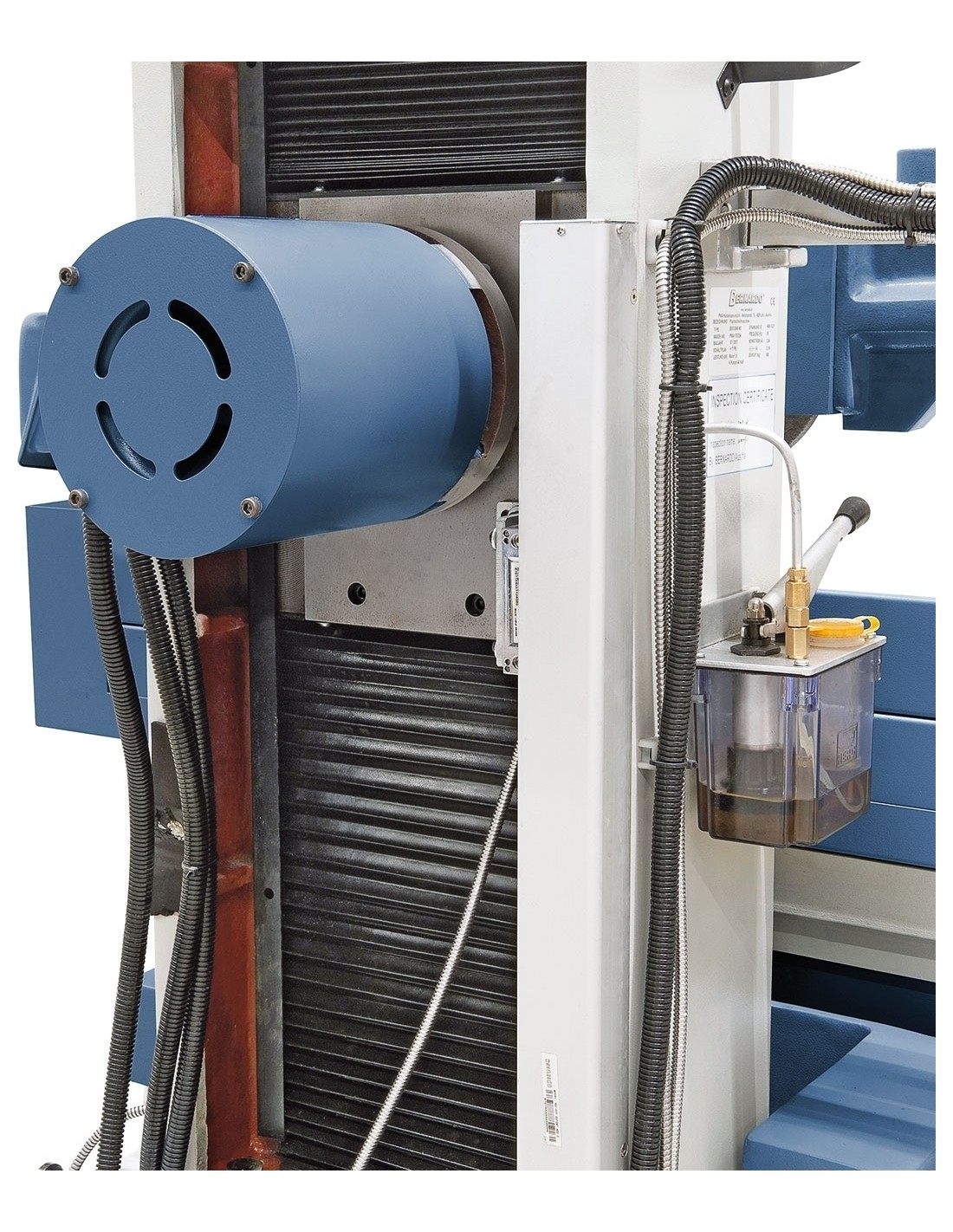

- Central lubrication of all guide rails
- Essential for grinding of small parts and fast grinding
Standard accessories

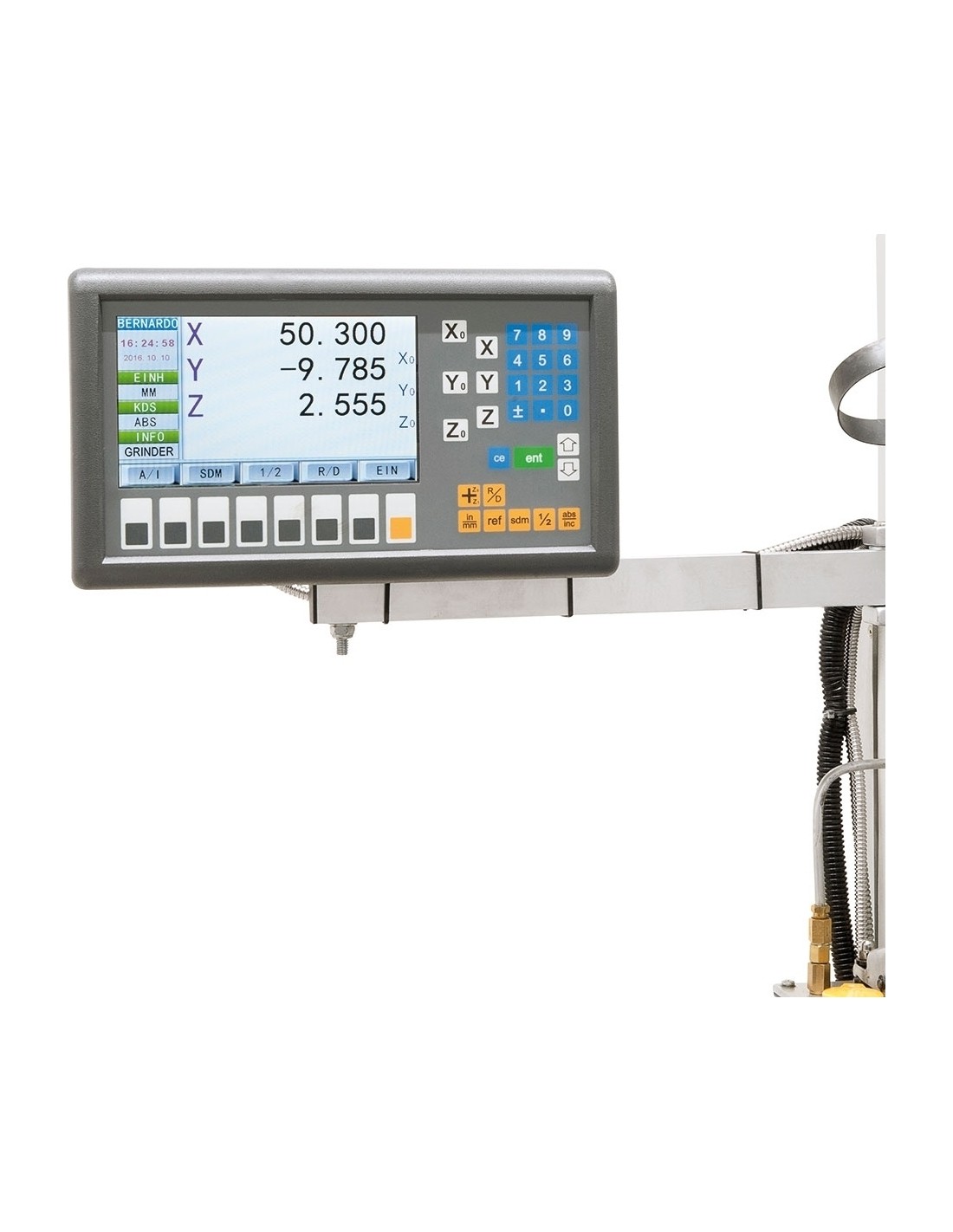

- 2-axis digital readout ES-12 H with LCD-display

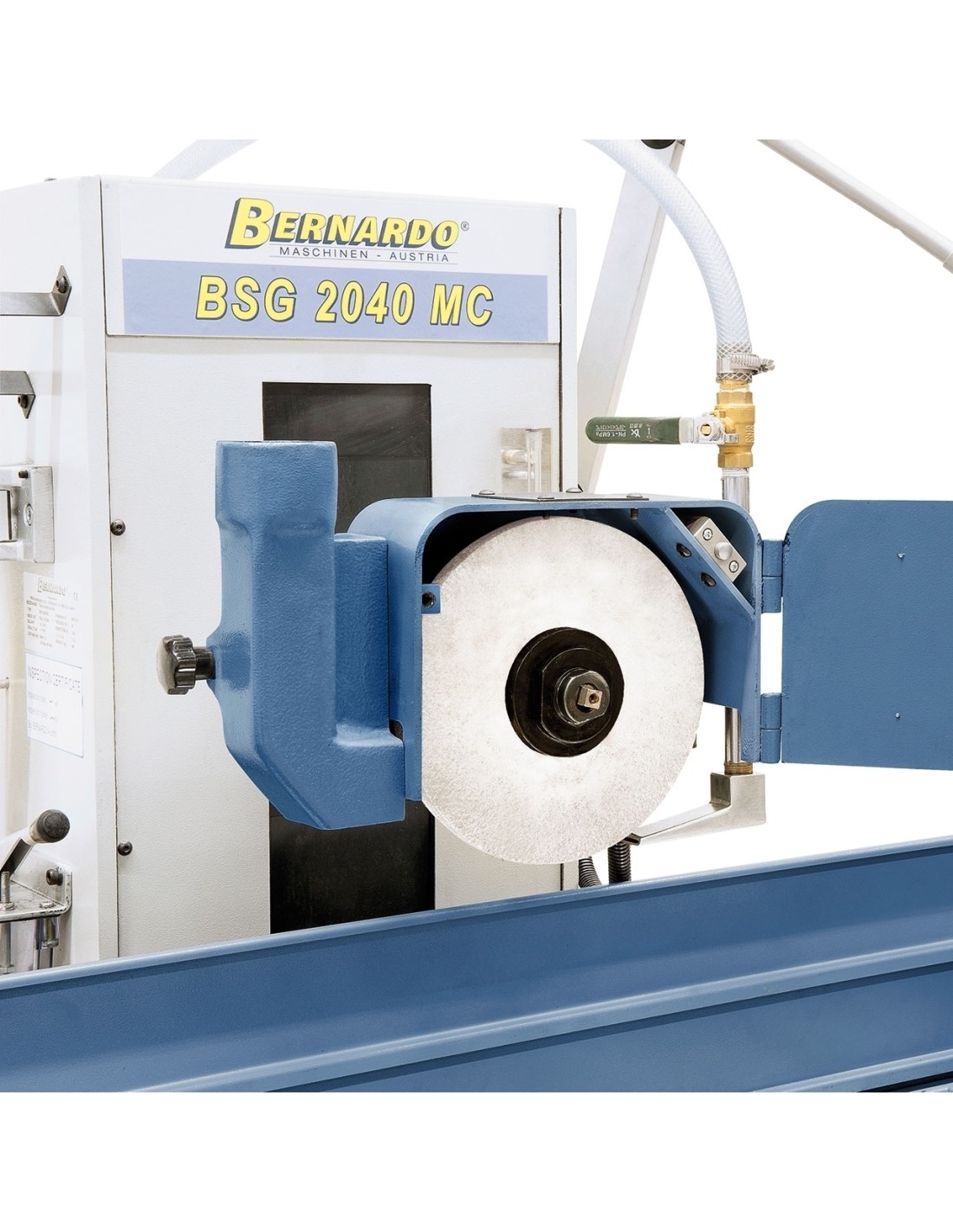

- Grinding wheel
- Flange
- Machine feet
- Coolant device
- Dressing diamond
- Balancing stand
- Balancing arbor
- Tools
- Central lubrication
- LED working light
- Protective cover
- Longitudinal and cross fence
- Splash guard
