Max. workpiece weight
150 kg
Weight approx.
1010 kg
Table dimensions
250 x 520 mm
T-slot quantity / width
1 / 14 mm
Max. travel, longitudinal
560 mm
Max. travel, cross
260 mm
Max. distance spindle / table
450 mm
Grinding wheel
200 x 20 x 31,75 mm
Table speed, hydraulic
3 – 20 m/min
Adjustment per handwheel rotation
4 mm/rev.
Scale division on handwheel
0,01 mm
Adjustment per handhwheel rotation
2 mm/rev.
Motor power of sanding spindle
1,5 kW
Spindle speed
2850 rpm
Motor power of hydraulic pump
1,5 kW
Length
1700 mm
Depth
1400 mm
Height
1750 mm
Permanent magnet clamping plate
250 x 500 mm

FSM 2550

1092246
Price €25,687.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1010 kg.

Description

Properties

  • Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
  • V-flat longitudinal table guide, double-V cross table guide
  • Spindle features axial and radial, clearance-free, pre-tensioned bearings

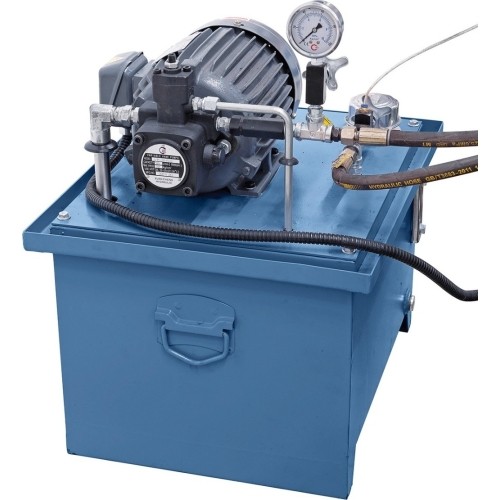

  • Seperate hydraulic unit with heat exchanger to omit vibrations and thermal load
  • Solidly constructed and well supported structure assures high stability
  • State of the art hydraulic system guarantees soft table traverse even at high work load
  • Completely equipped with 2-axis digital readout and permanently magnetic clamping plate
  • Central lubrication of all guide rails

Standard accessories

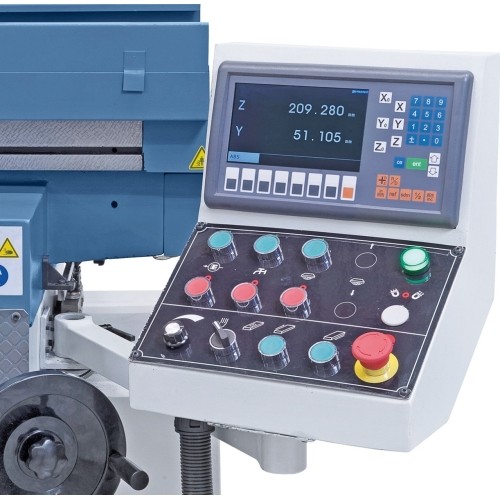

  • 2-axis digital readout ES-12 H with LCD-display
  • Grinding wheel
  • Flange
  • LED machine light
  • Permanent magnet clamping plate
  • Balancing stand
  • Balancing arbor
  • Protective covers
  • Demagnetization device

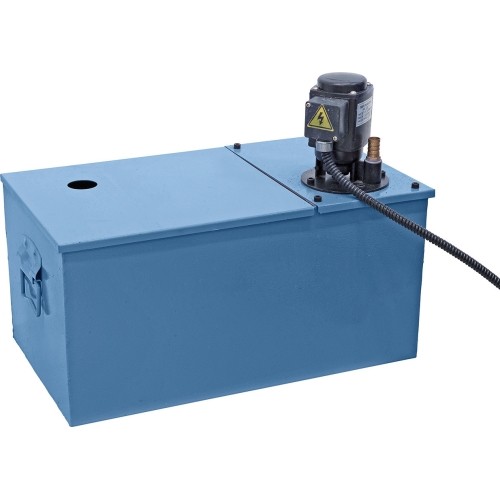

  • Coolant device
  • Dressing diamond
  • Machine feet
  • Central lubrication
  • Tools
