Max. workpiece weight
180 kg
Weight approx.
1750 kg
Table dimensions
250 x 510 mm
T-slot quantity / width
1 / 14 mm
Electric magnet clamping plate
250 x 500 mm
Max. travel, longitudinal
560 mm
Max. travel, cross
275 mm
Max. distance spindle / table
450 mm
Grinding wheel
200 x 20 x 31,75 mm
Table speed, hydraulic
5 - 25 m/min
Automatic adjustment, cross
0,5 - 8 mm/Stroke
Rapid feed, cross
990 mm/min
Adjustment per handwheel rotation
4 mm/rev.
Scale division on handwheel
0,005 mm
0,02 mm
Automatic adjustment, vertical
0,005 / 0,01 / 0,02 / 0,03 / 0,04 / 0,05 mm
Rapid feed, vertical
480 mm/min
Adjustment per handhwheel rotation
2 mm/rev.
Motor power of sanding spindle
2,2 kW
Spindle speed
2850 rpm
Motor power of hydraulic pump
0,75 kW
Motor power of vertical feed
0,5 kW
Length
1900
Depth
2050 mm
Height
1840 mm

BSG 2550 PLC

1092255
Price €32,364.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1750 kg.

Description

Properties

  • Plastic-coated counter guide in x- and y-axis assure a low slip-stick-effect
  • V-flat longitudinal table guide, double-V cross table guide
  • Spindle features axial and radial, clearance-free, pre-tensioned bearings

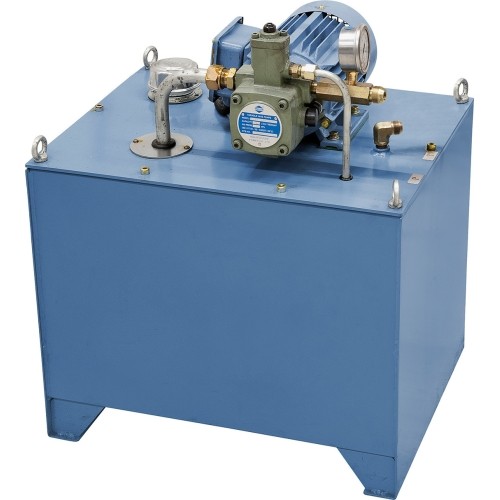

  • Special hydraulic system guarantees gentle table adjustment even at full load
  • Solidly constructed and well supported structure assures high stability
  • Digitally controlled, automatic vertical feed with servo motor
  • Infeed via rapid feed to height of workpiece, adjustable to finishing and sparking, automatic lift at program end
  • Adjustable longitudinal and cross table movement via end stops

Standard accessories

  • 2-axis digital readout ES-12 H with LCD-display

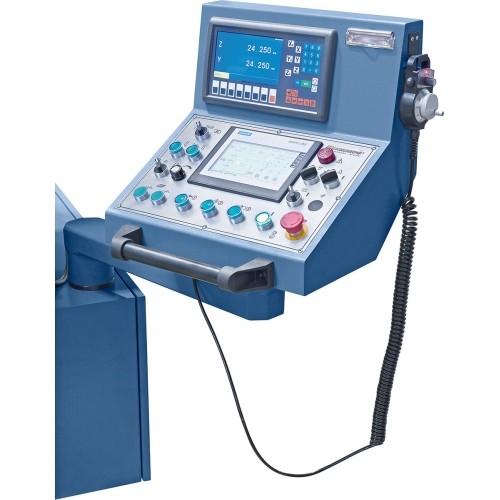

  • Siemens SMART-panel IE V3 with touch screen
  • Electronic handwheel
  • Grinding wheel
  • Flange
  • LED machine light
  • Magnetic clamping plate
  • Balancing stand
  • Balancing arbor

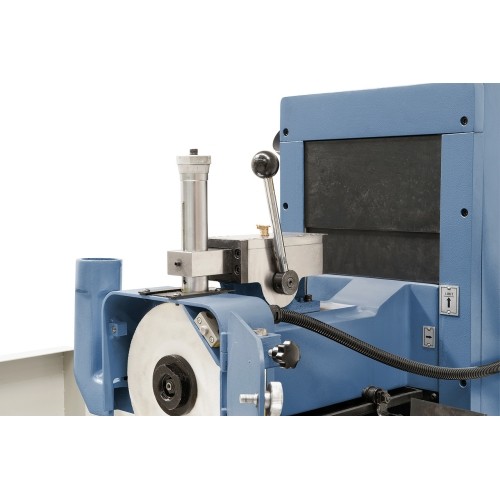

  • Parallel dresser
  • Protective covers
  • Demagnetization device
  • Coolant device
  • Dressing diamond
  • Machine feet

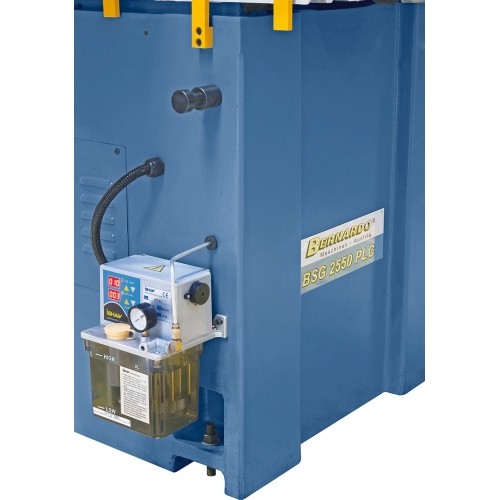

  • Central lubrication
  • Tools
