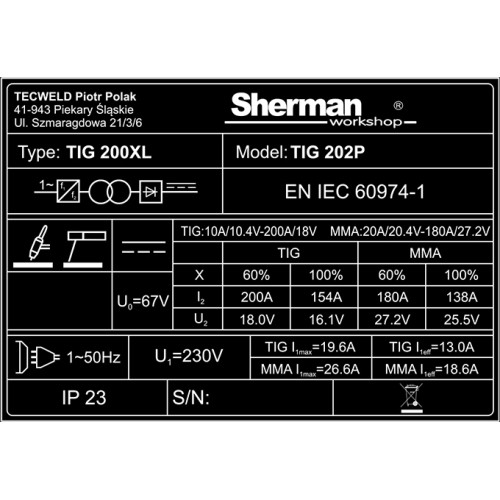

- Weight [kg]
- 11,96
- Welding/cutting/other methods
- MMA DC, TIG HF DC
- Manufacturing technology
- IGBT
- Max DC TIG welding current [A].
- 200
- MMA duty cycle [%].
- 60
- TIG duty cycle [%].
- 60
- No-load voltage [V].
- 67
- Max MMA power consumption [kVA}
- 4,3
- Max TIG power consumption [kVA].
- 3,0
- Max MMA current consumption [A].
- 26,6
- Main method
- TIG
- Features
- 2T/4T, Current drop, TIG gas flow, TIG pulse, Analog control, LED display
- Network protection [A].
- 25
- Warranty period for companies [years].
- 1
- Current drop time [s]
- 0-10
- TIG gas flow [s].
- 0 - 15
- TIG pulse frequency [Hz].
- 1,2 - 200
- Phase
- Vienfazis (230V)
- Išmatavimai mm
- 43 x 17 x 31
- Maximum current MMA [A]
- 180
- Maximum current TIG [A]
- 19,6
- Current type
- DC
- Suitable for welding
- Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel - Inverter technology
- IGBT

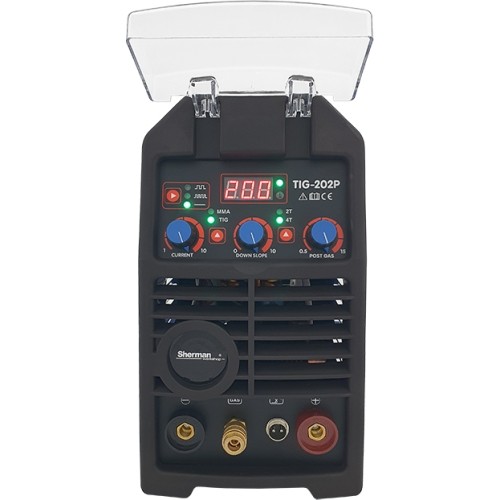

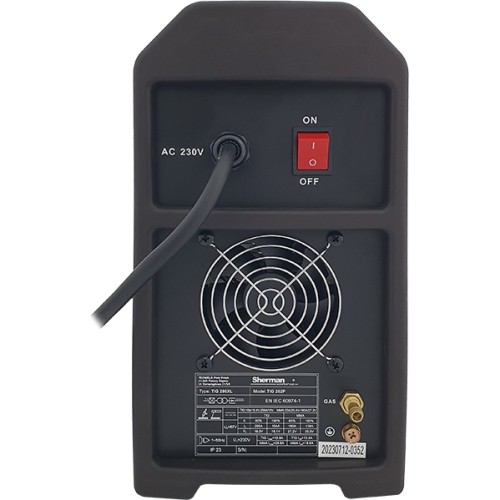

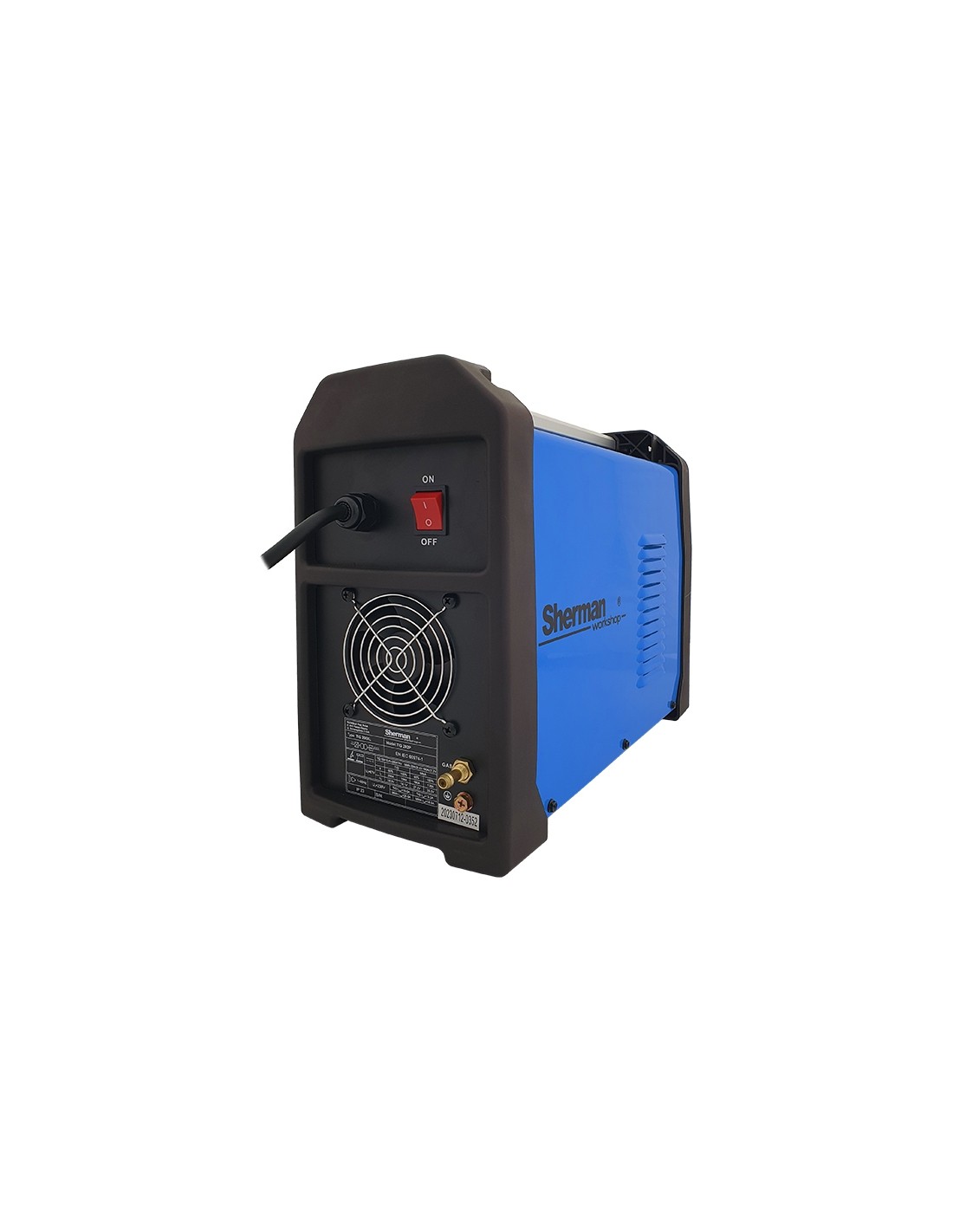

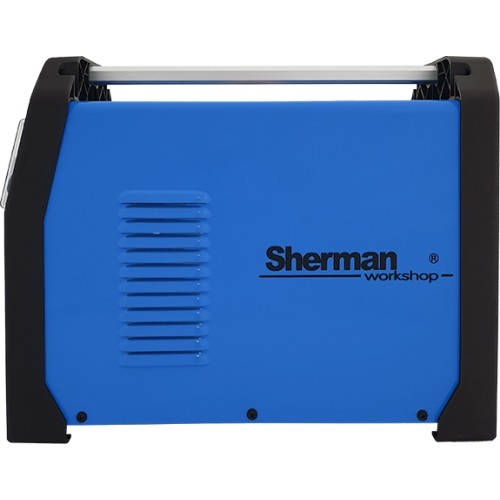

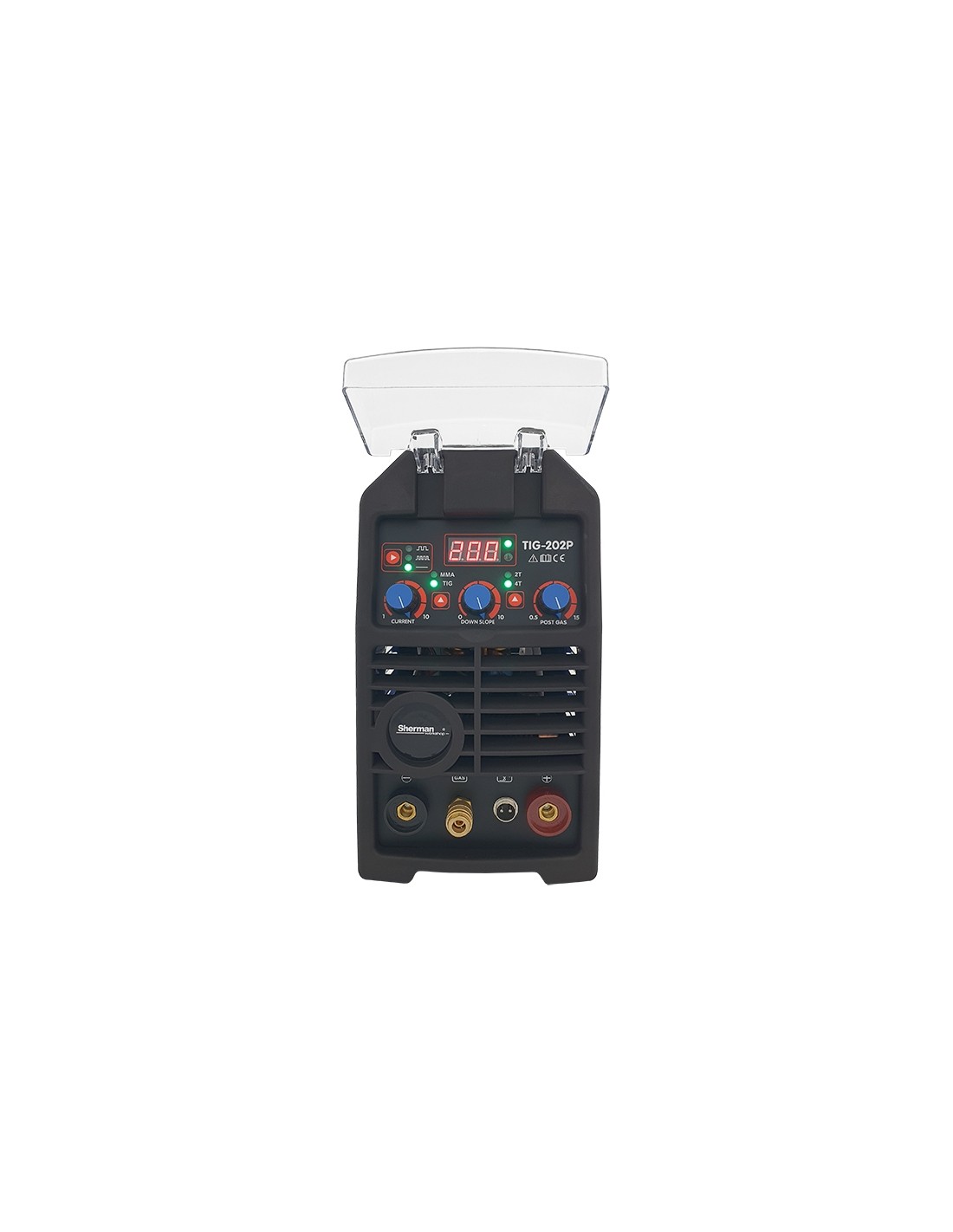

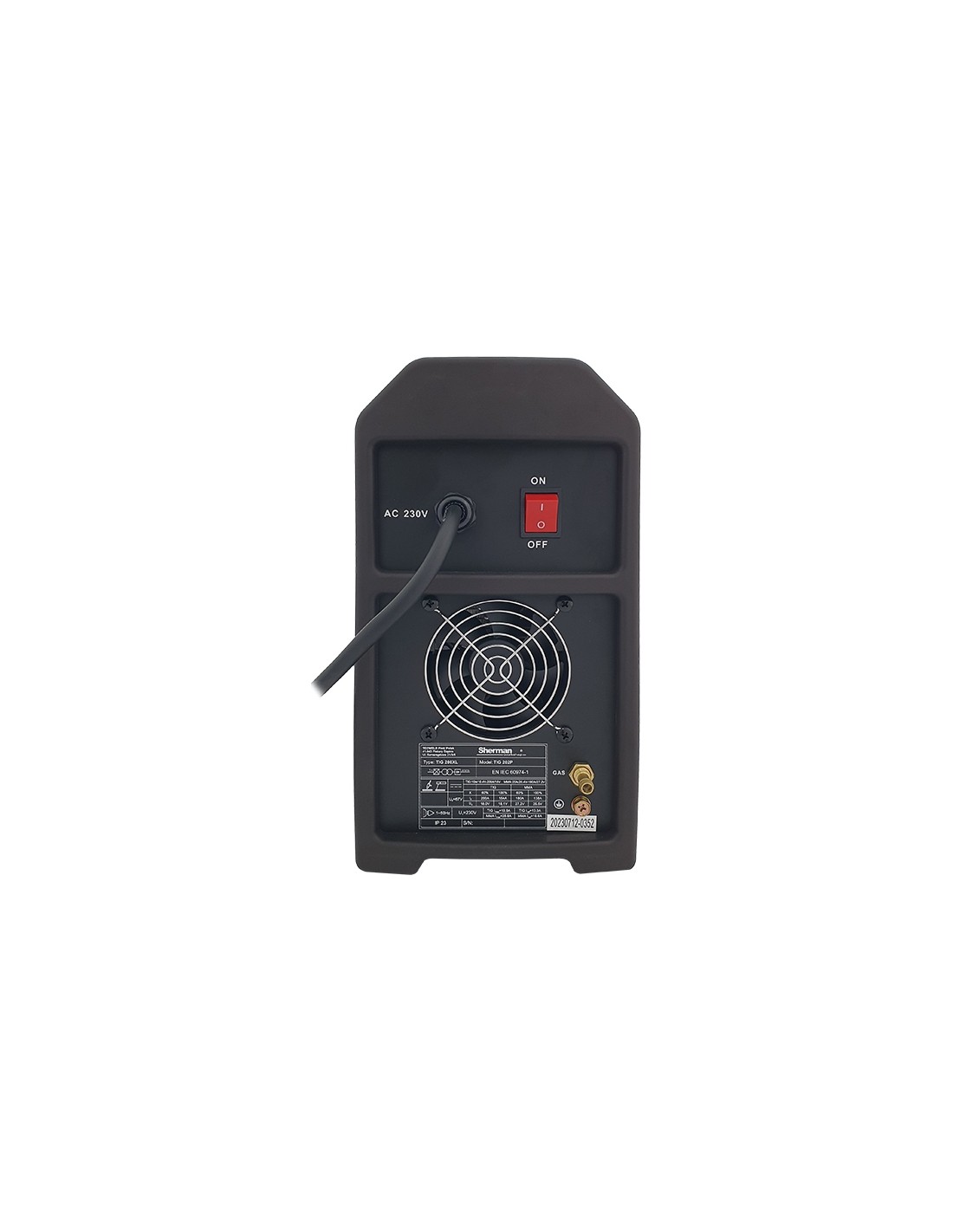

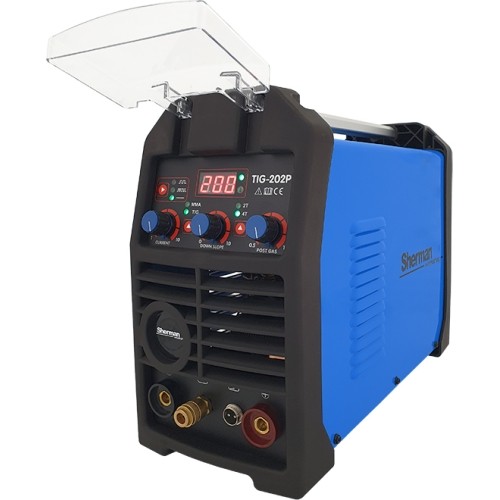

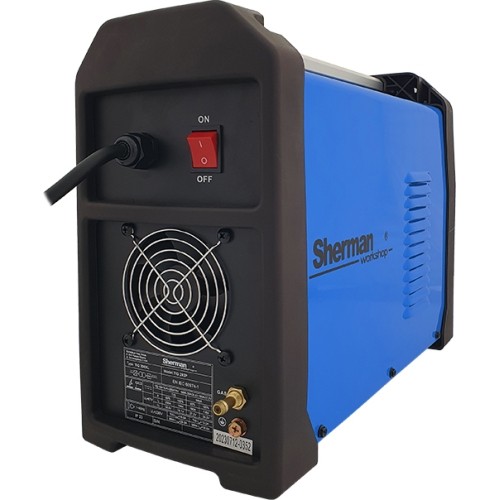

KIT TIG 202P inverter welder
1365646
Price
€425.00
VAT incl.
Instead of €438.00
Stock Quantity:
Kaunas Shop
(5 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 40 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€10.00) Weight: 40 kg.
Description
TheTIG 202P welder is used for manual welding of structural steels with covered electrodes (MMA method) and quality steels, copper and its alloys with non-fusible electrode in an inert gas shield (TIG method) with HF arc initiation. The device is designed for workshop and casual production work.

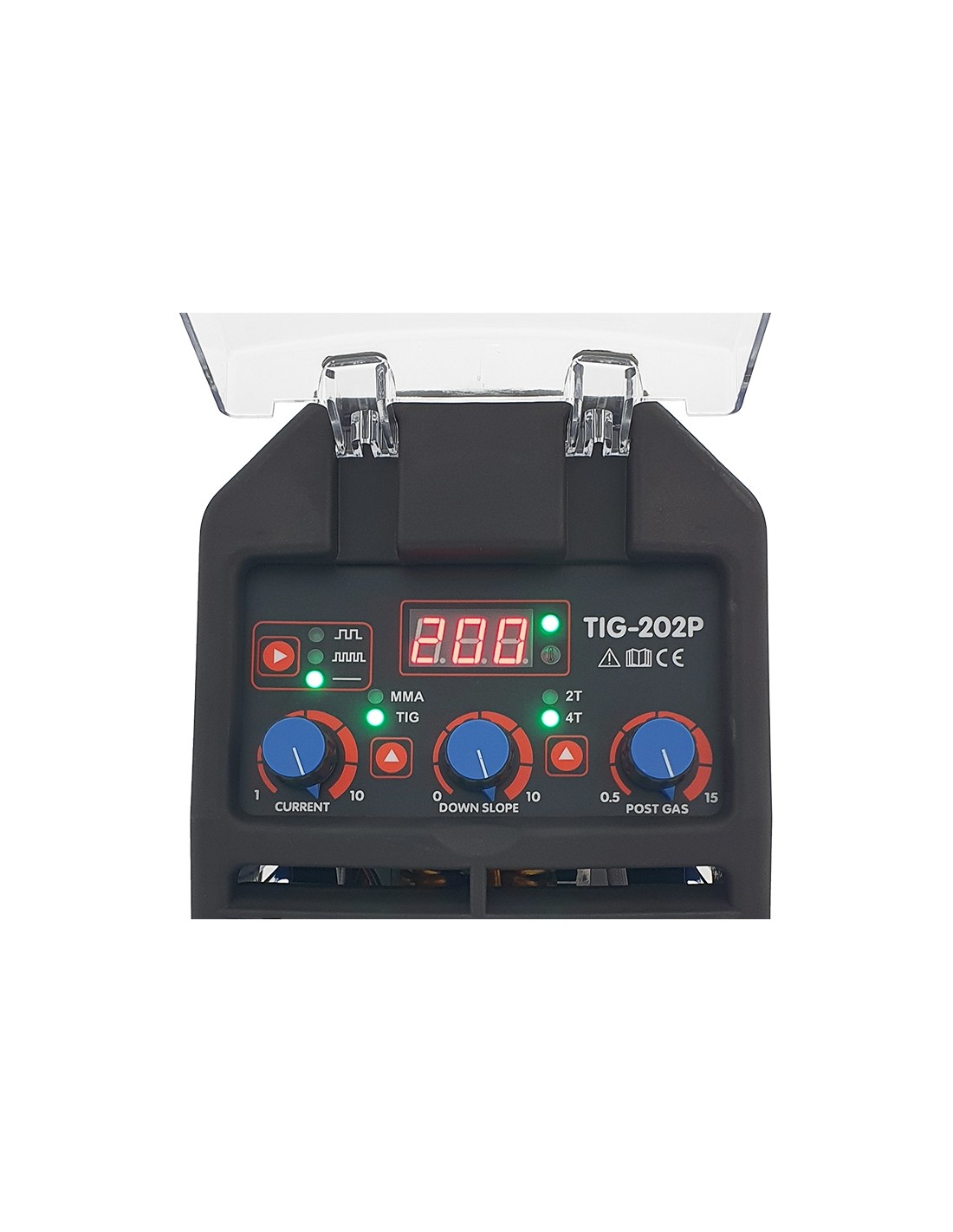

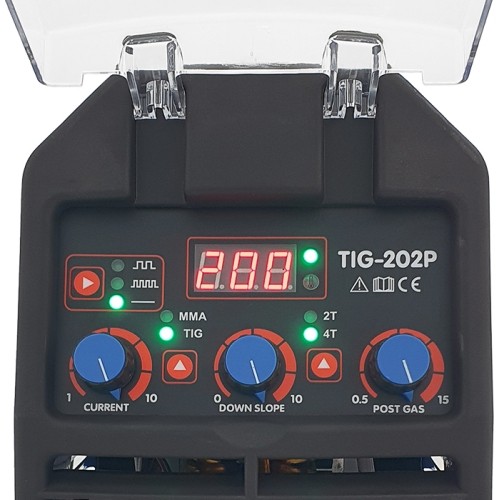

The welder has the ability to pulse weld and to adjust the current drop time and gas flow. The device operates in 2T/4T mode and has a display indicating welding parameters.

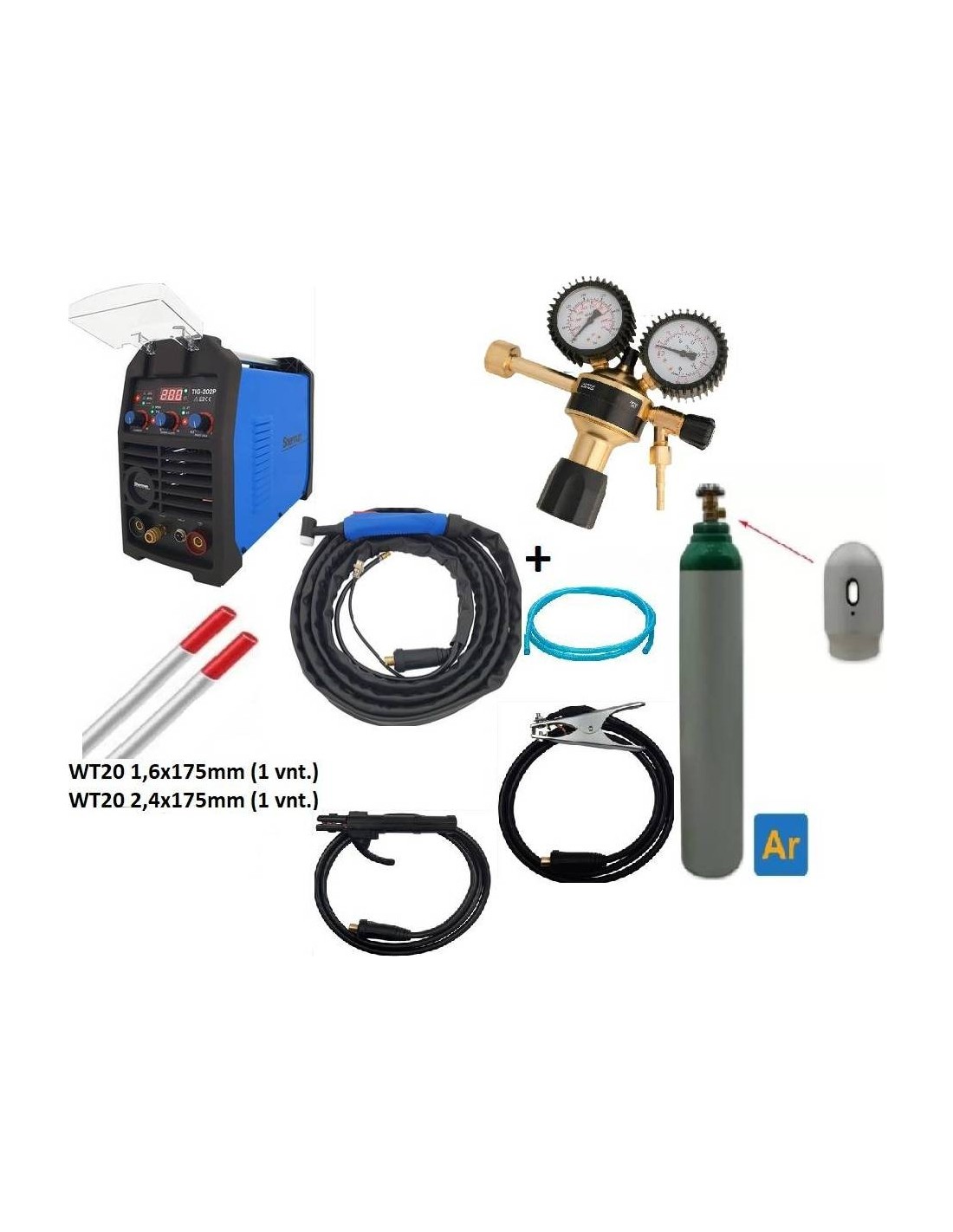

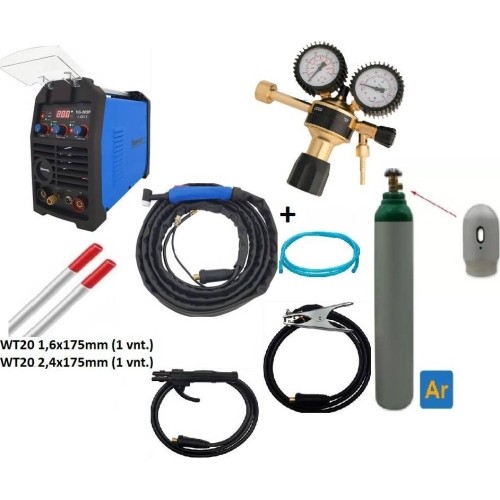

Į komplektaciją įskaičiuota:

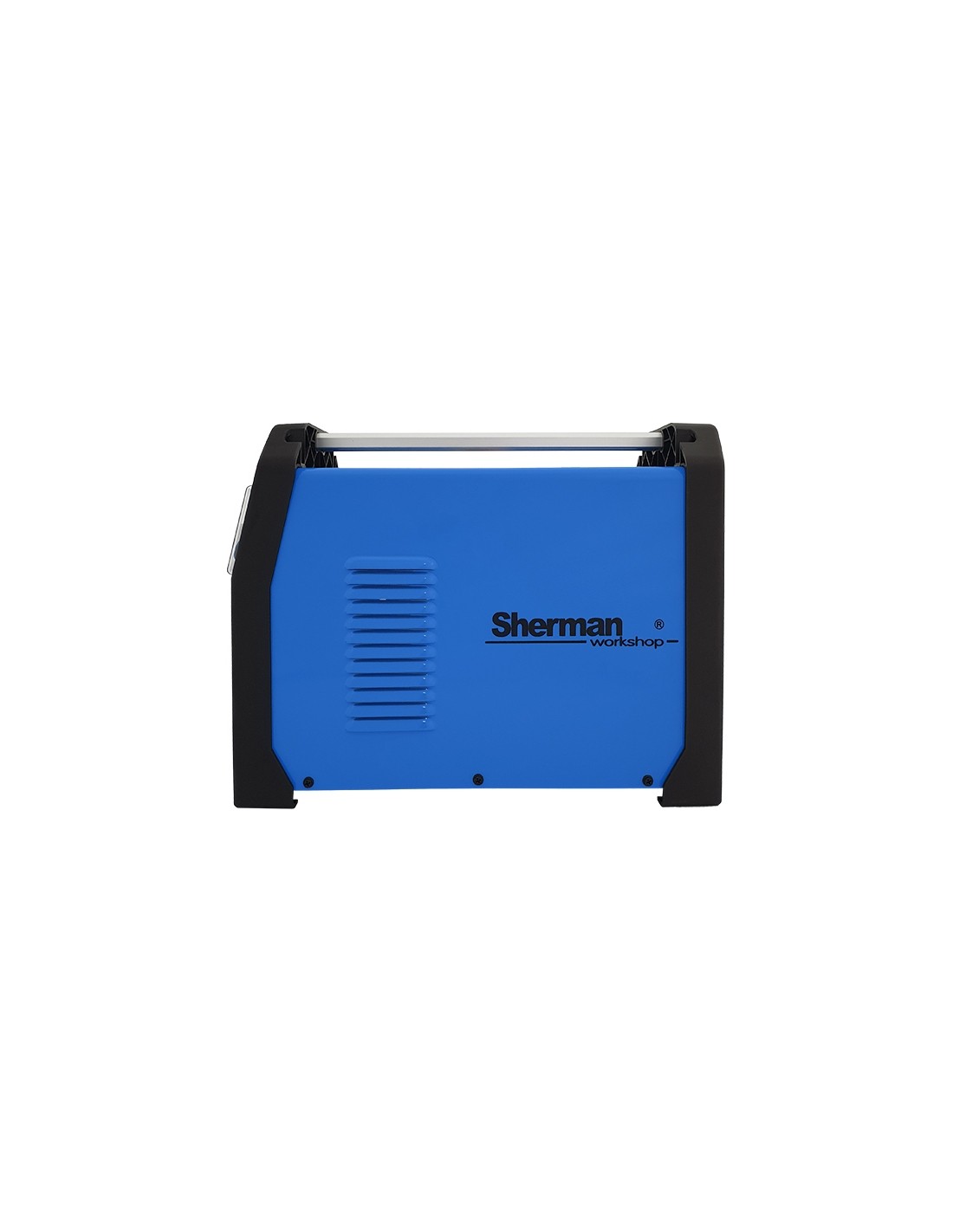

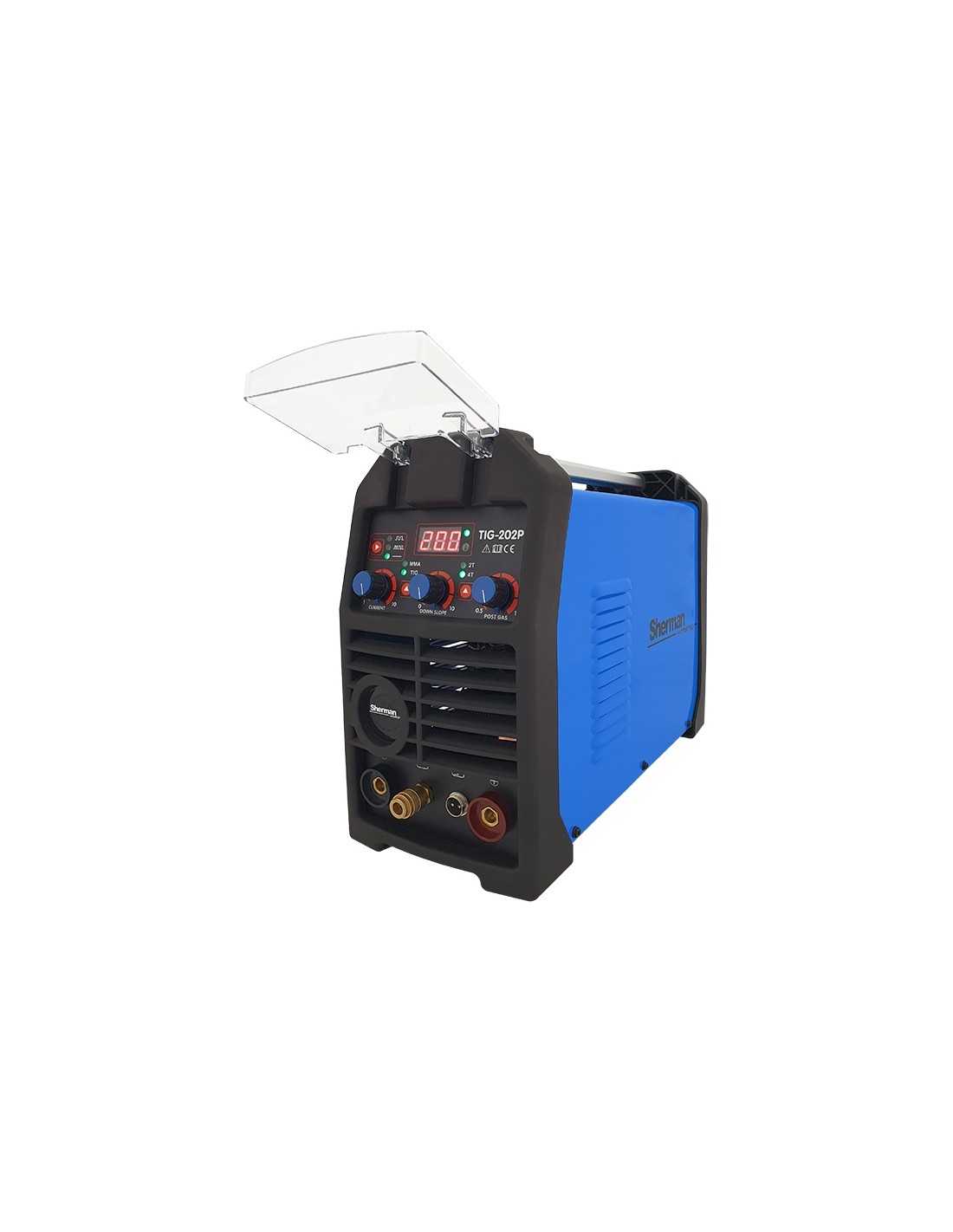

- Suvirinimo aparatas Sherman TIG 202P

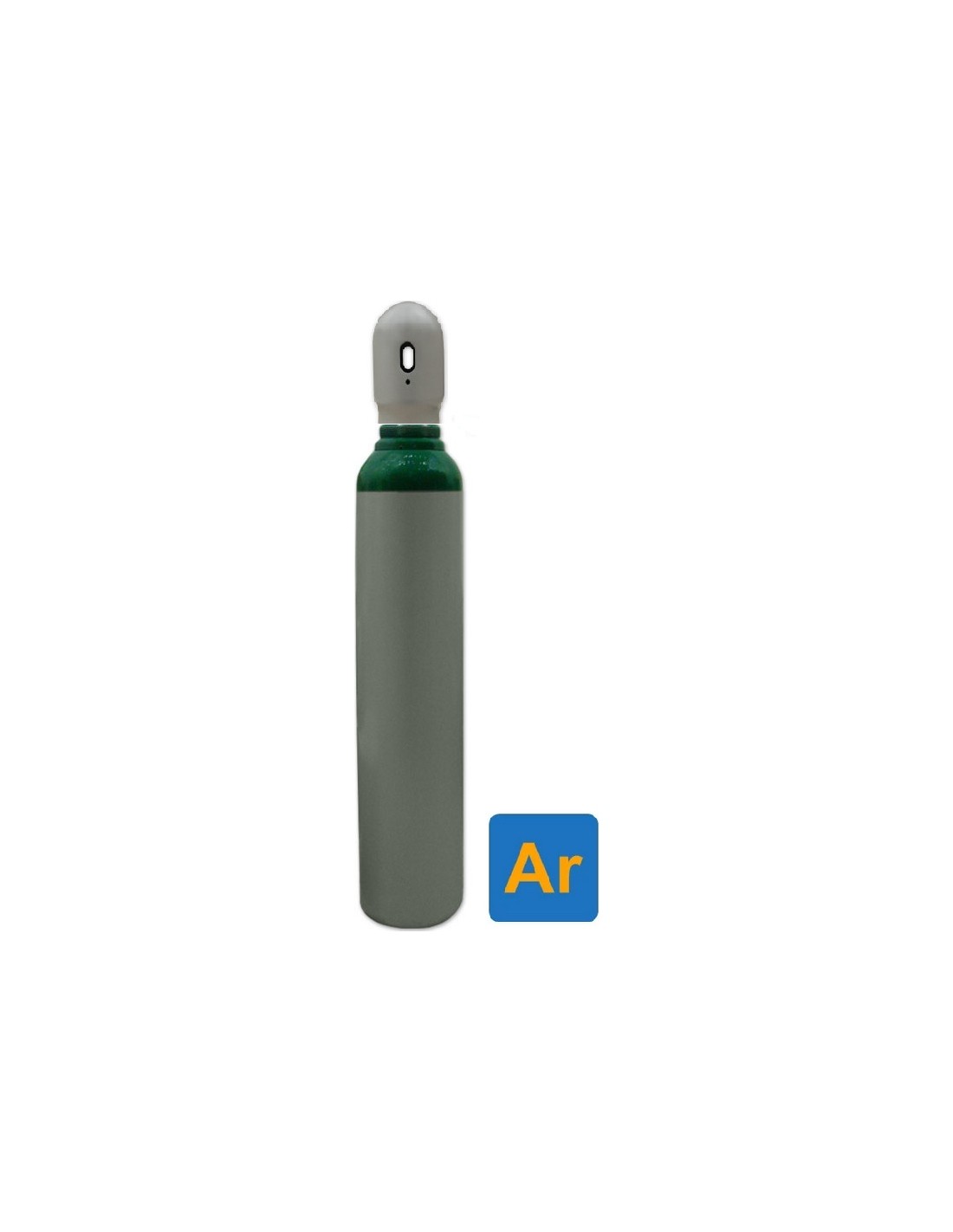

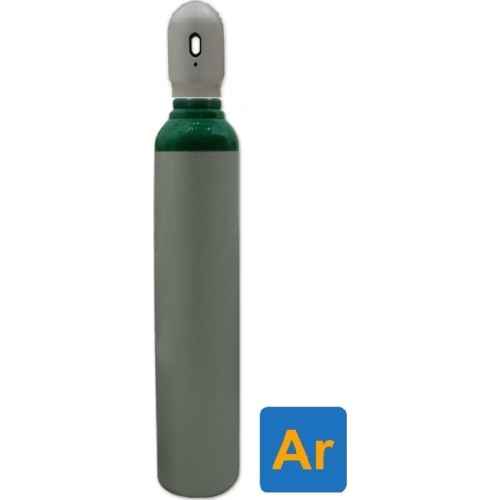

- Dujų balionas 8L Ar (užpildytas)

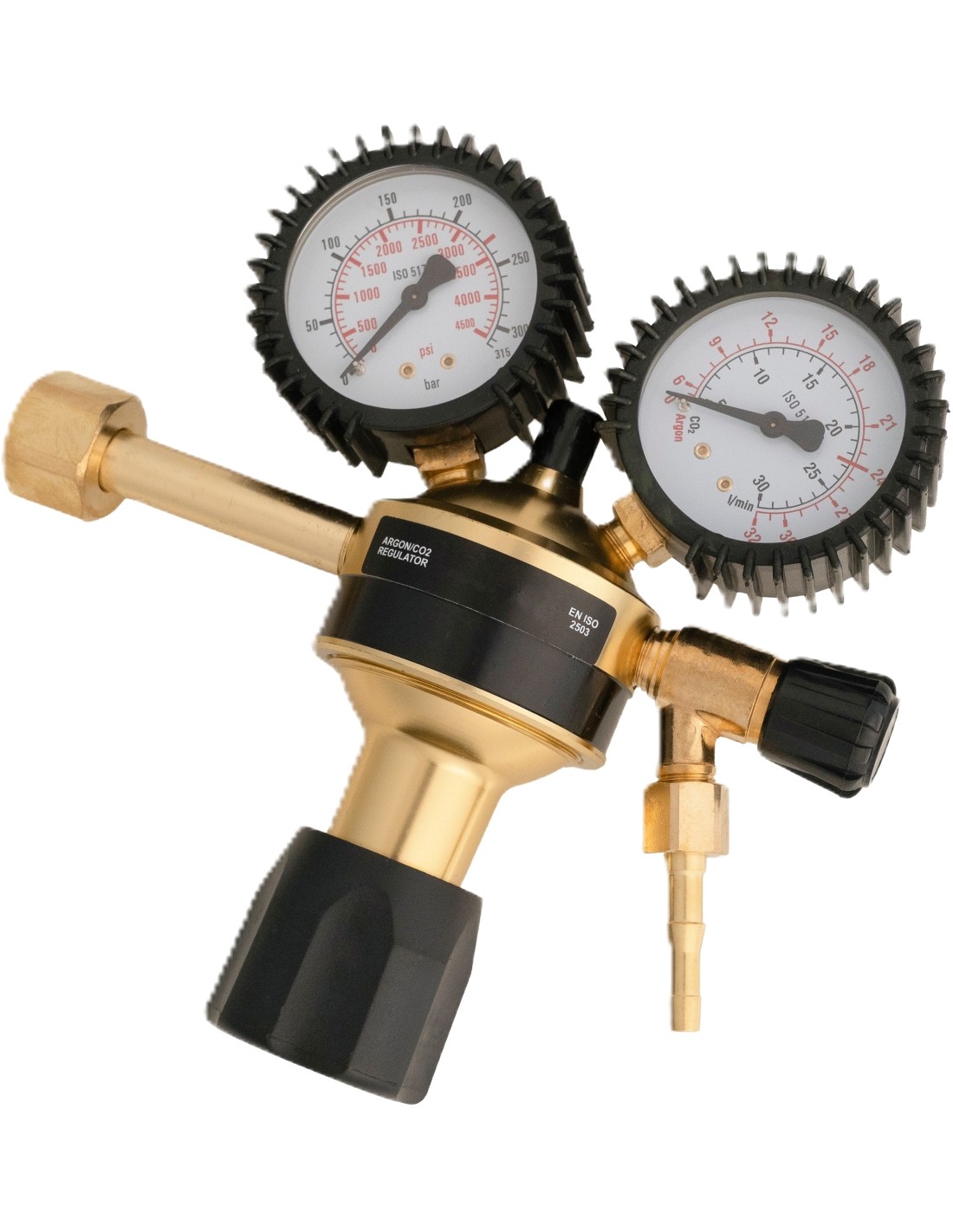

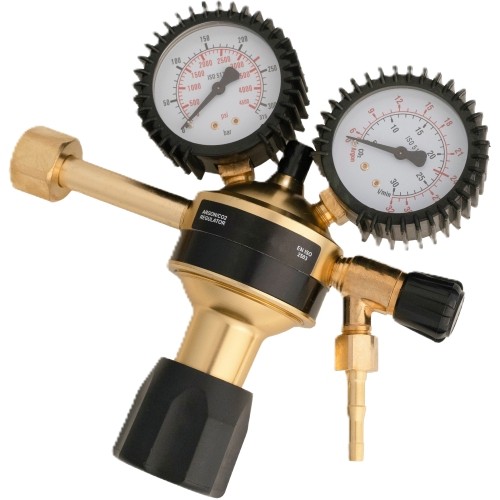

- Reduktorius Ar/CO2
- Volframo elektrodas raudomas WT20 1,6mm 2vnt
- Volframo elektrodas raudomas WT20 2,4mm 2vnt

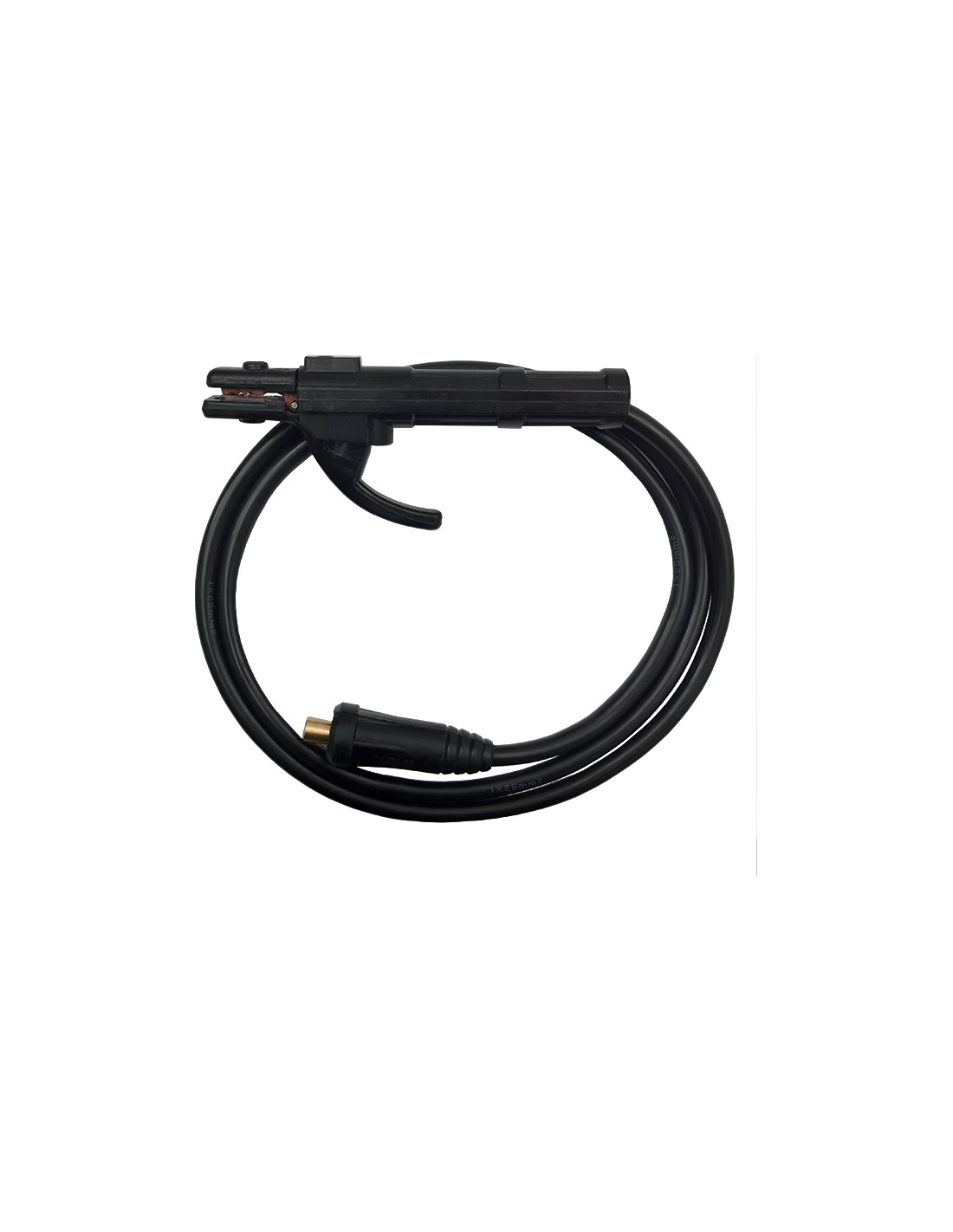

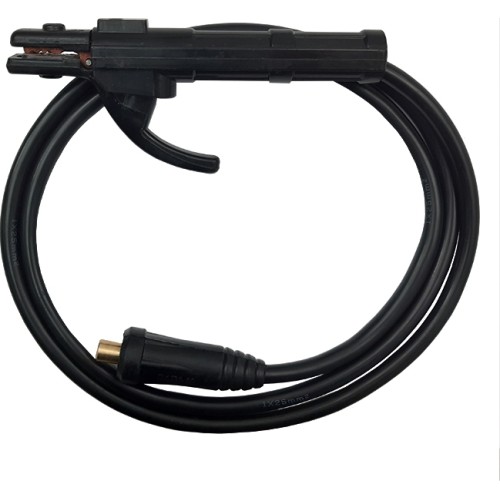

- Elektrodo kabelis

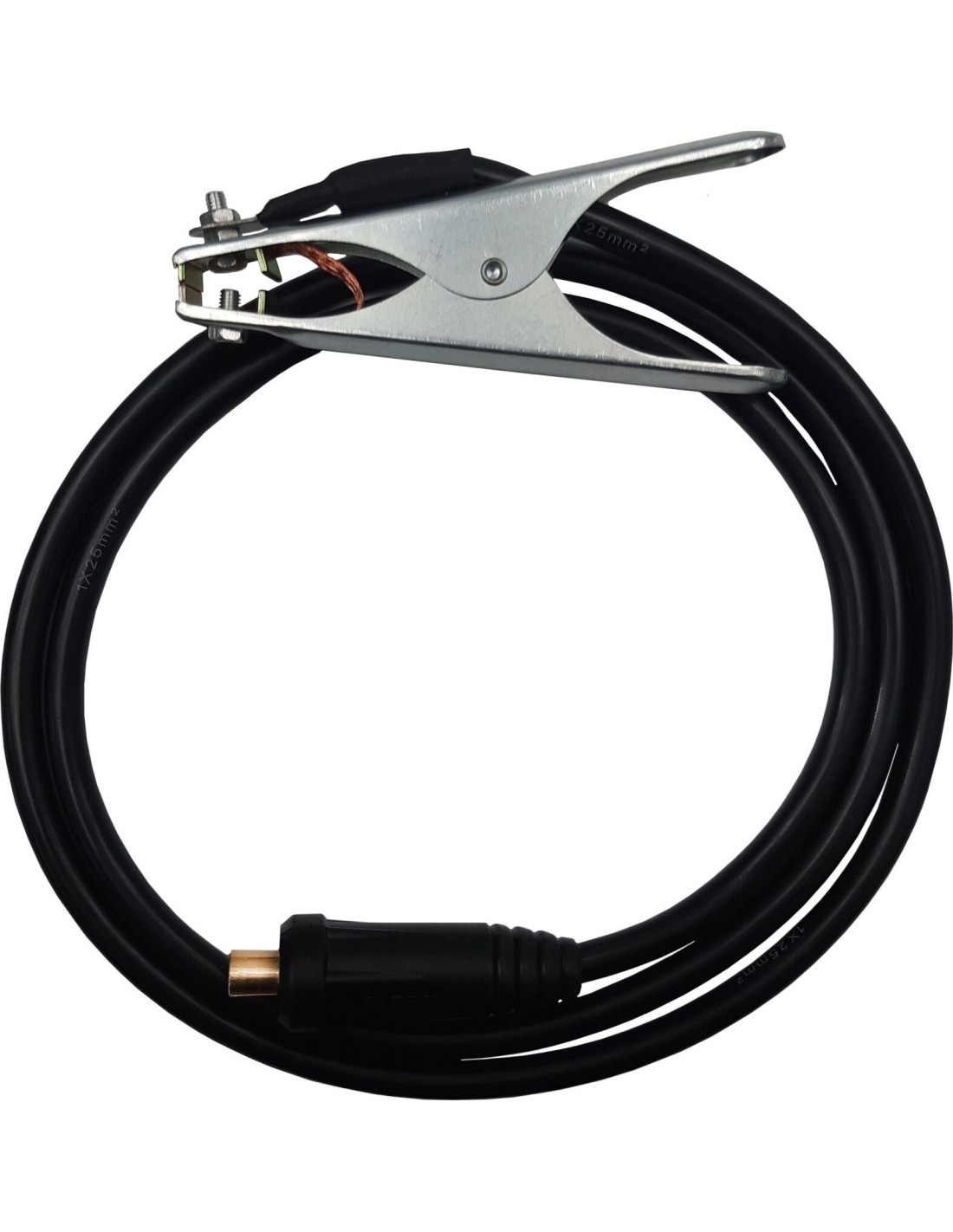

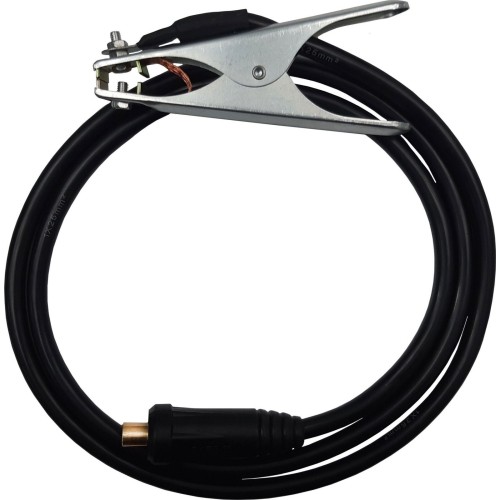

- Įžeminimo kabelis

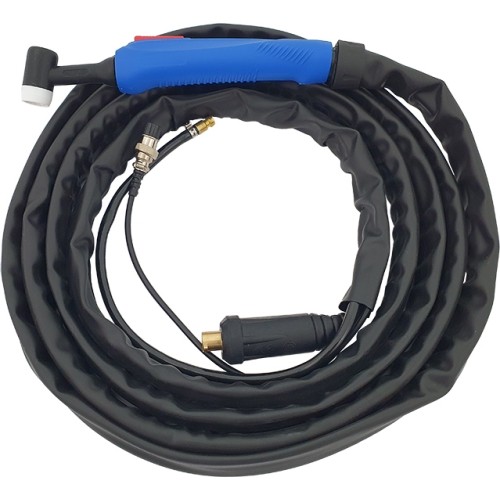

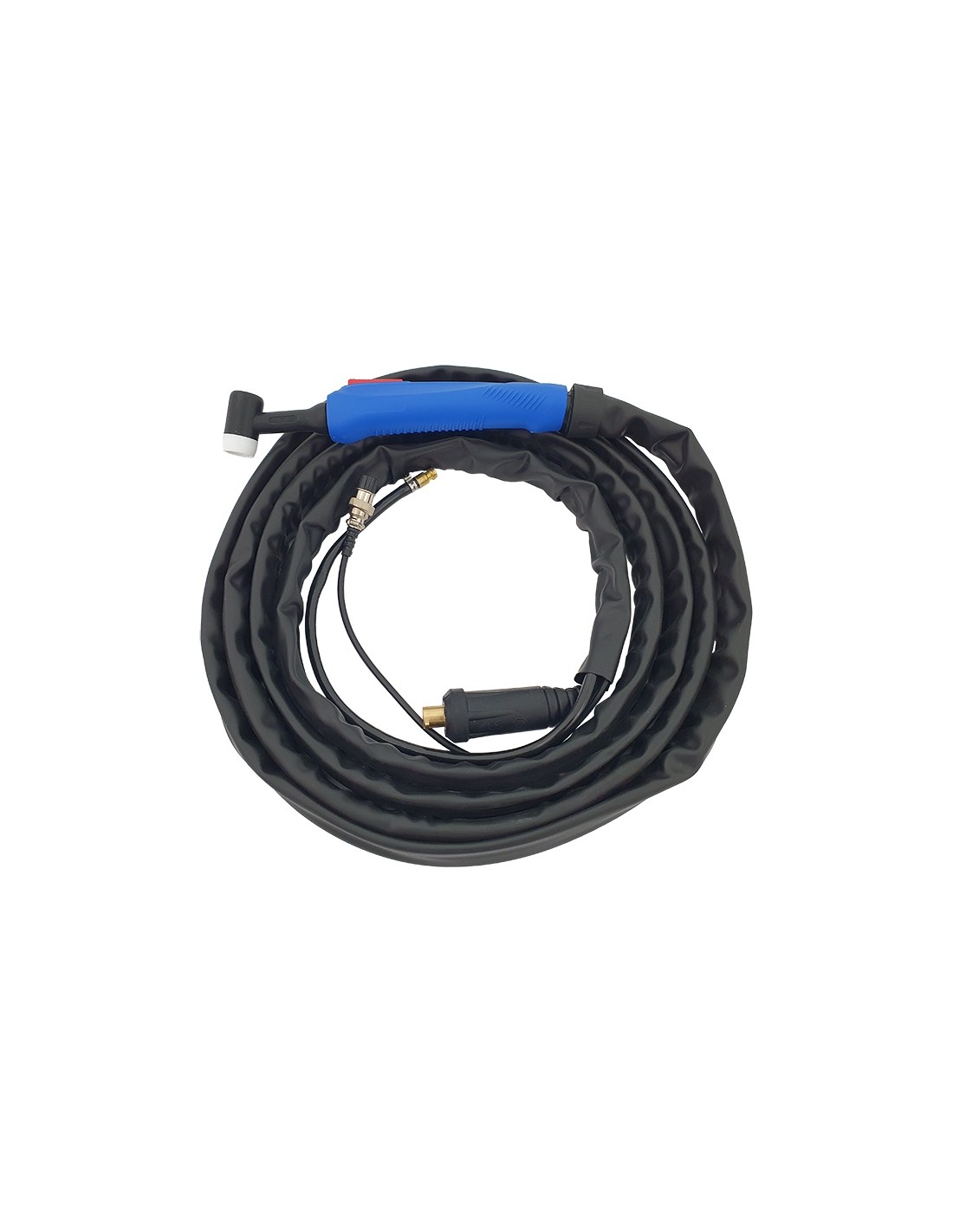

- Degiklis TIG T-26 Ergo
- Dujų žarna 2,5m
