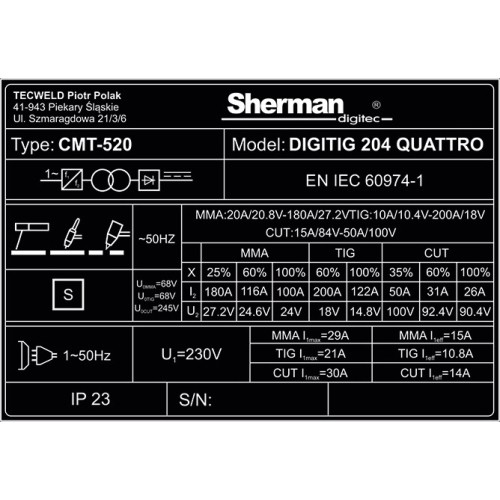

Funkcijos
2T/4T, Fan Stop, Narastanie prądu, Opadanie prądu, Powypływ gazu TIG, Przedwypływ gazu, Puls MMA, Puls TIG, Sterowanie cyfrowe, VRD, Wyświetlacz LED, Cold TIG
Phase
Vienfazis (230V)
Weight, kg
8,5
Suvirinimas / pjaustymas / kiti metodai
MMA DC, TIG HF DC, COLD TIG, NO HF plazminis pjovimas.
IÅ¡matavimai mm
43 x 17 x 31
PFC function
No
Gamybos technologija
IGBT
Maximum current MMA [A]
180
Maximum current TIG [A]
200
MMA darbo ciklas [%].
25
TIG darbo ciklas [%].
60
Įtampa be apkrovos [V].
68
Maksimalus MMA suvartojamos galios kiekis [kVA}
5,8
Maksimalus TIG sunaudojamas galingumas [kVA].
4,3
Maksimalus MMA srovÄ—s suvartojimas [A].
29
Maksimalus TIG srovÄ—s suvartojimas [A].
21
Pagrindinis metodas
TIG
Tinklo apsauga [A].
16
Įmonių garantijos laikotarpis [metai].
1
SrovÄ—s kilimo laikas [s]
0 - 15
PradinÄ— srovÄ— [A].
10-200
BazinÄ— srovÄ— [A].
10-200
Dabartinis kritimo laikas [s]
0-15
Kraterio srovÄ— [A].
10-200
Išankstinis dujų srautas [s].
0 - 2
TIG dujų srautas [s].
1 - 15
TIG impulsų dažnis [Hz].
0,5 - 200
TIG impulsų plotis [%].
10-90
Maximum separation (cut) thickness [mm].
12
Maximum cutting current [A]
30
50
Maksimalus plazmos galios suvartojimas [kVA].
5,3
Oro srautas [m³/min]
0,2
Plazminio pjovimo darbo ciklas [%].
35
Current type
DC
Suitable for welding
Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel
Inverter technology
IGBT

Welding machine Sherman DIGITIG 204 QUATTRO with plasma cutting function

1098067
Price €456.00 VAT incl.

Stock Quantity:
Kaunas Shop
(2 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak (€4.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas) (€3.50)

Description

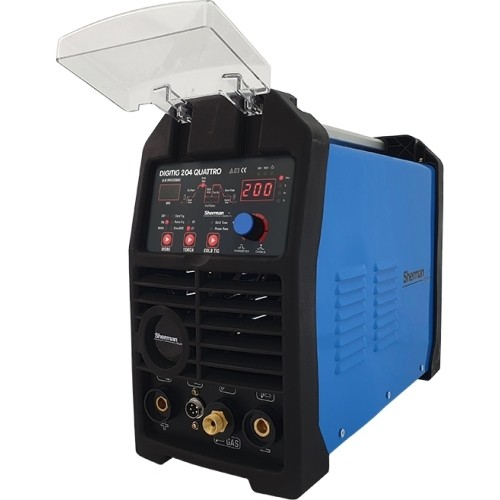

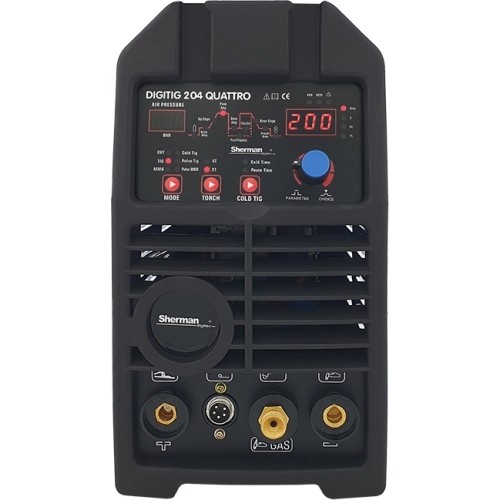

The DIGITIG 204 QUATTRO welder is designed for manual welding with TIG HF and MMA (stick) of steel and non‑ferrous metals in DC, with the option to use current pulse. It also enables plasma cutting of steel, aluminium, and copper sheets and components. The built‑in Cold TIG function allows joining thin parts thanks to very low heat input in the joint area.

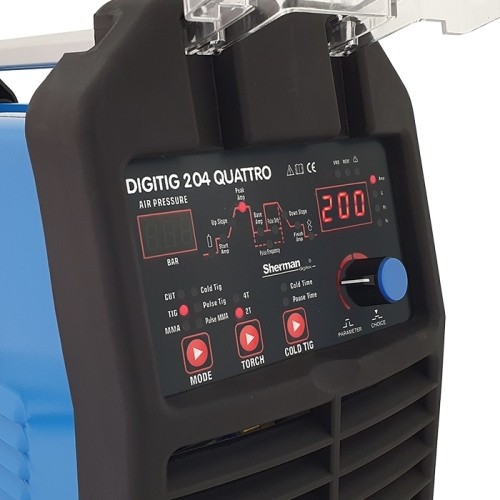

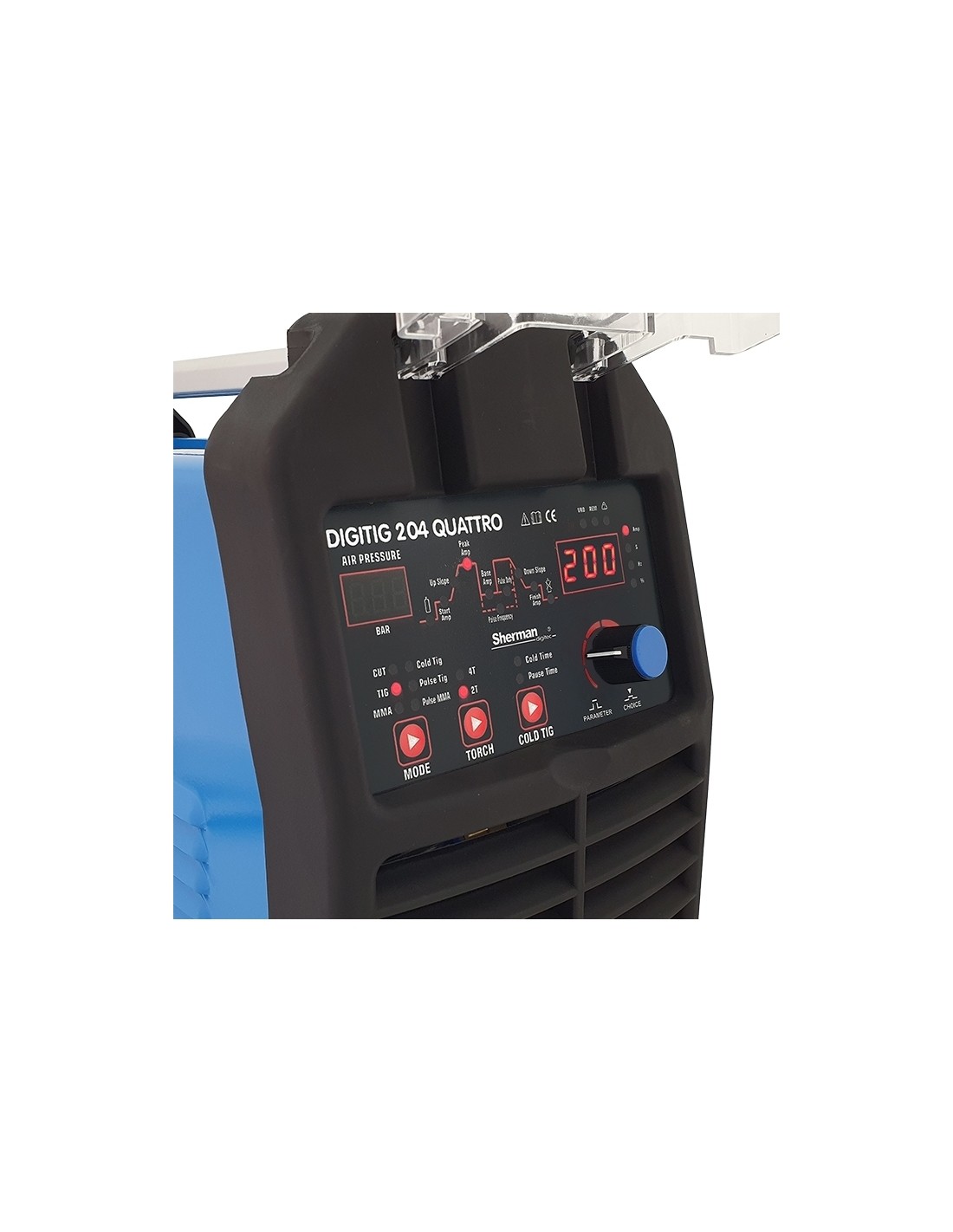

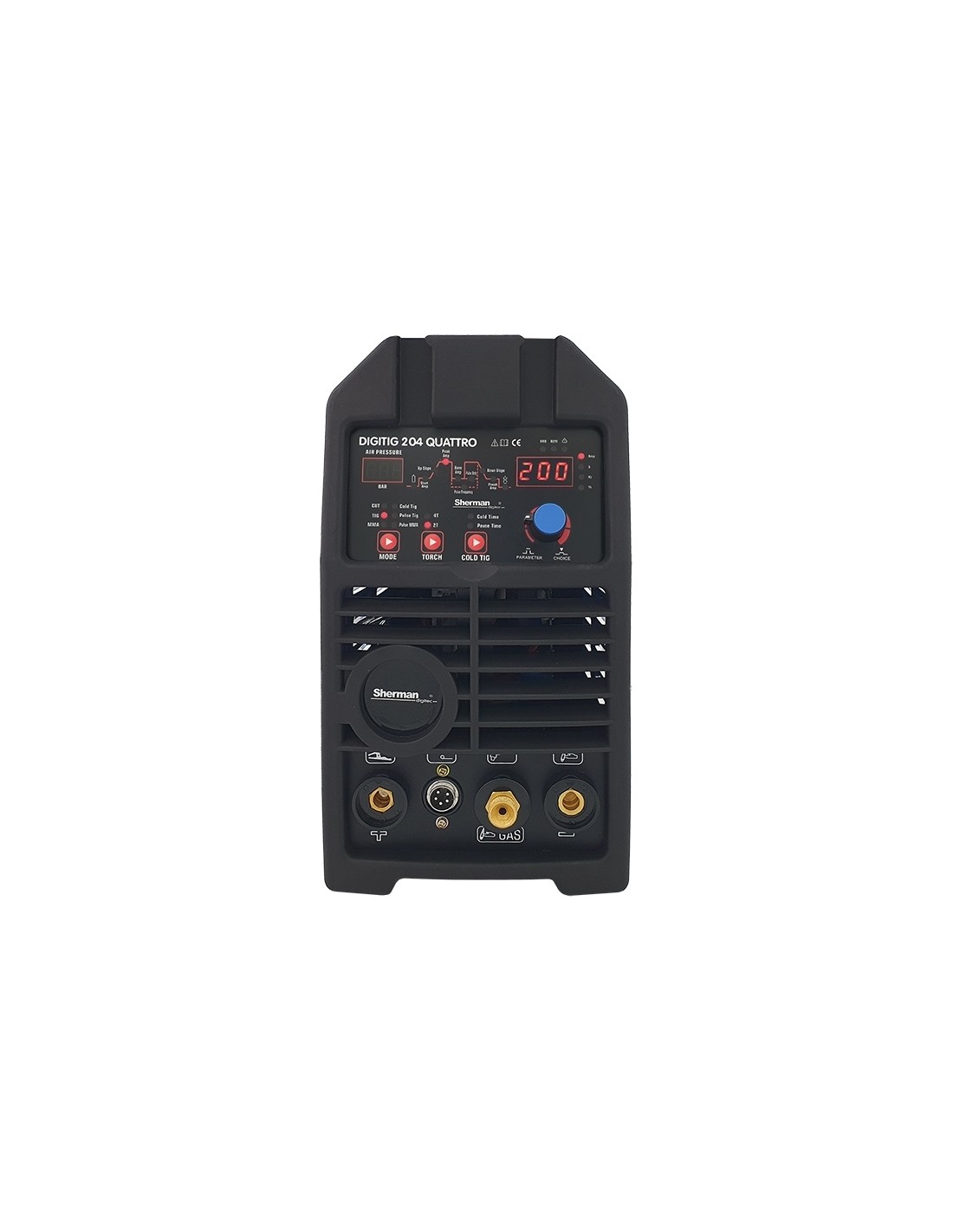

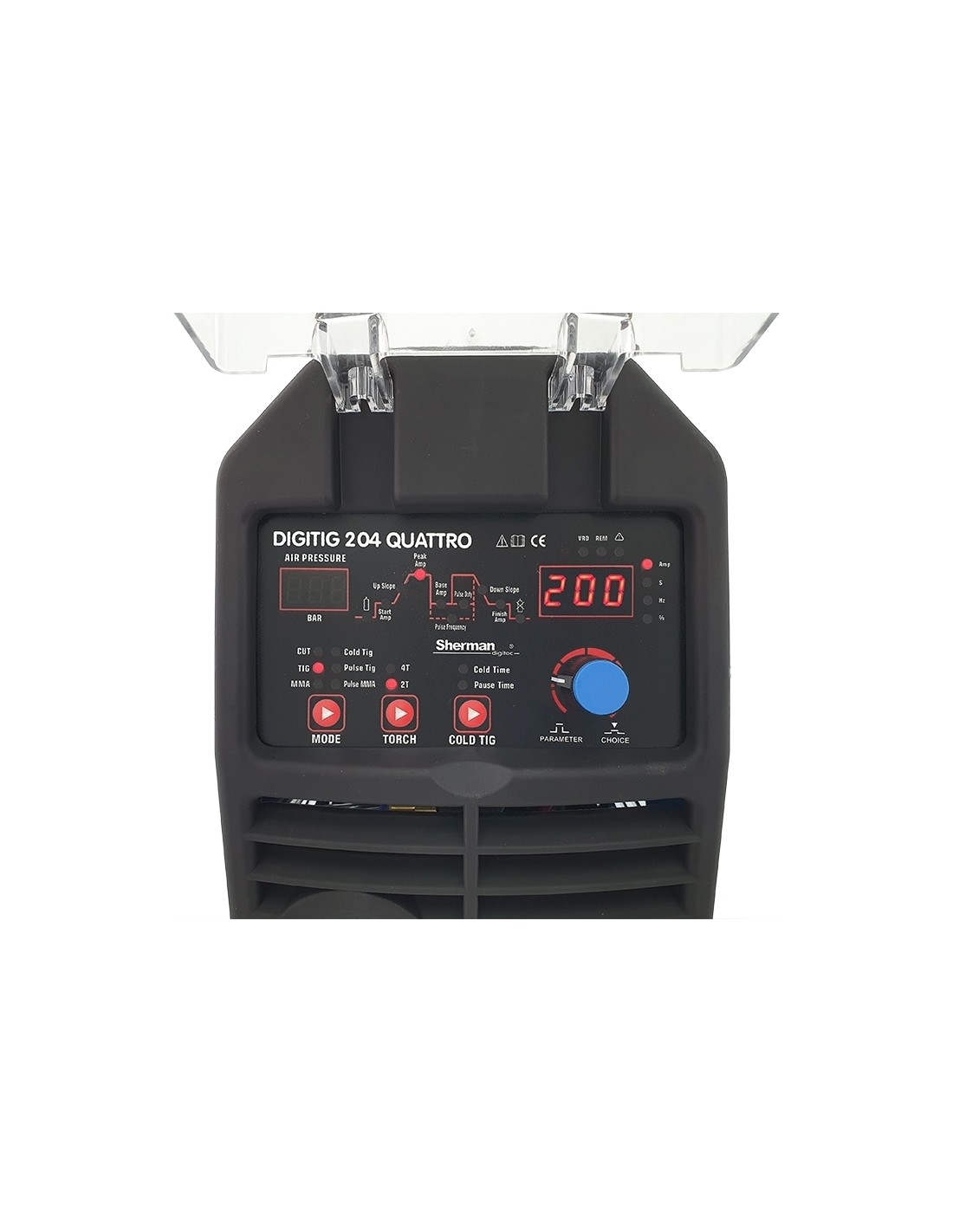

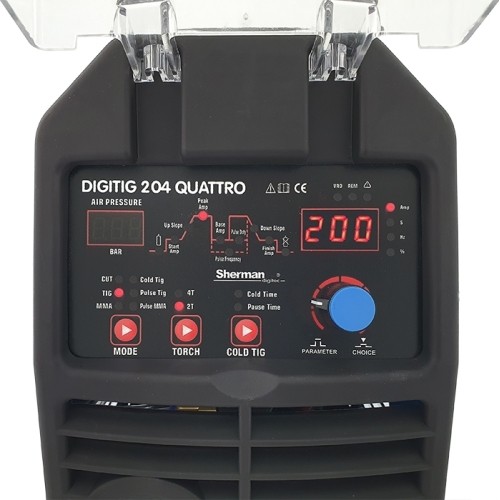

Digital control provides full adjustment of welding parameters, arc characteristics, and pulse settings. The Fan Stop function switches the fan off at low load to significantly reduce noise. The inverter uses IGBT technology and offers a wide current range (TIG up to 200 A, MMA up to 180 A) with efficient duty cycles (TIG up to 60%, MMA up to 25%), supporting precise work on thin and thicker materials alike. Practical features such as 2T/4T, adjustable gas pre/post‑flow, pulse in TIG and MMA, VRD, and an easy‑to‑read LED display improve comfort and safety. Compact dimensions (approx. 43 × 17 × 31 cm) and a weight of about 8.5 kg make it convenient to transport.

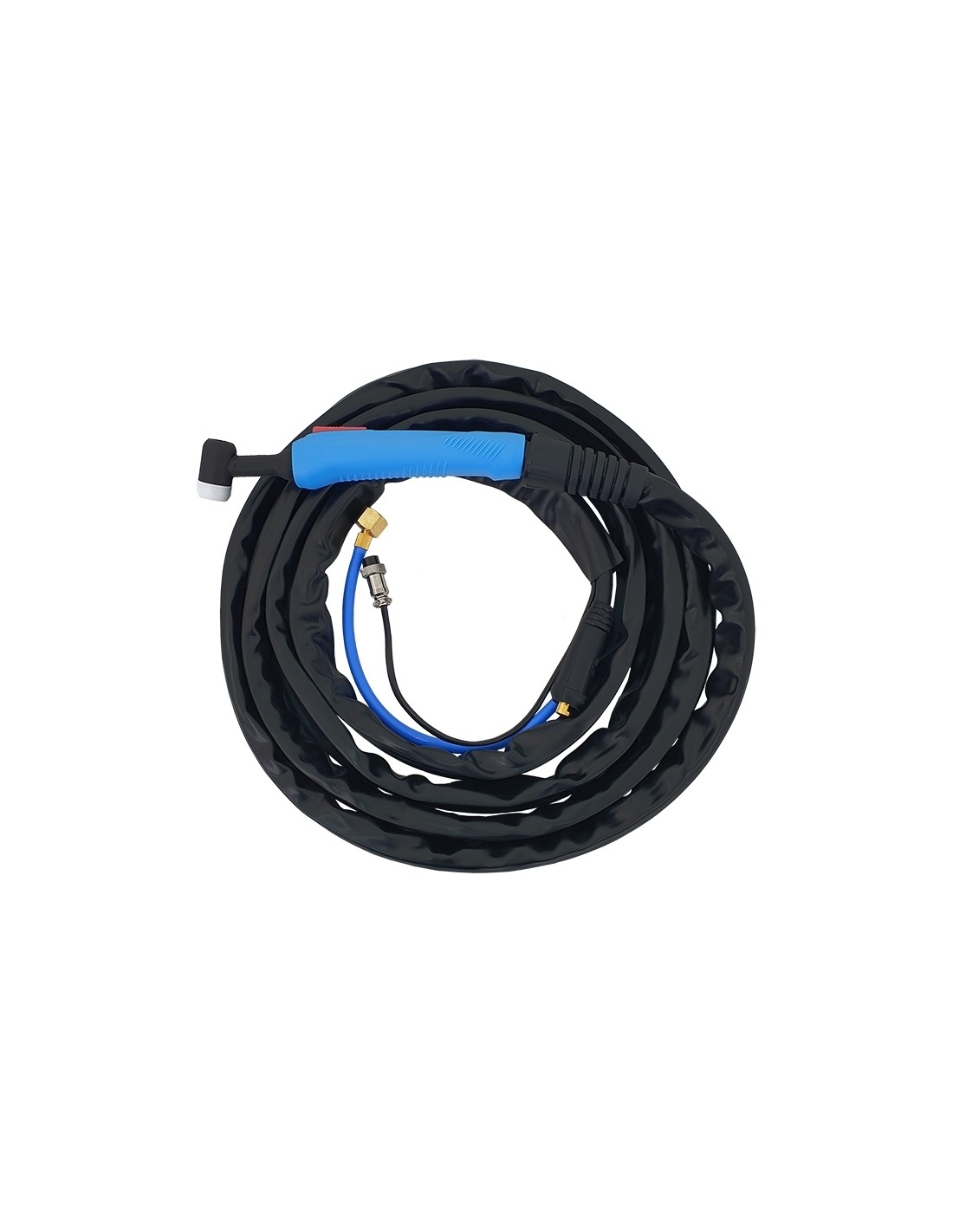

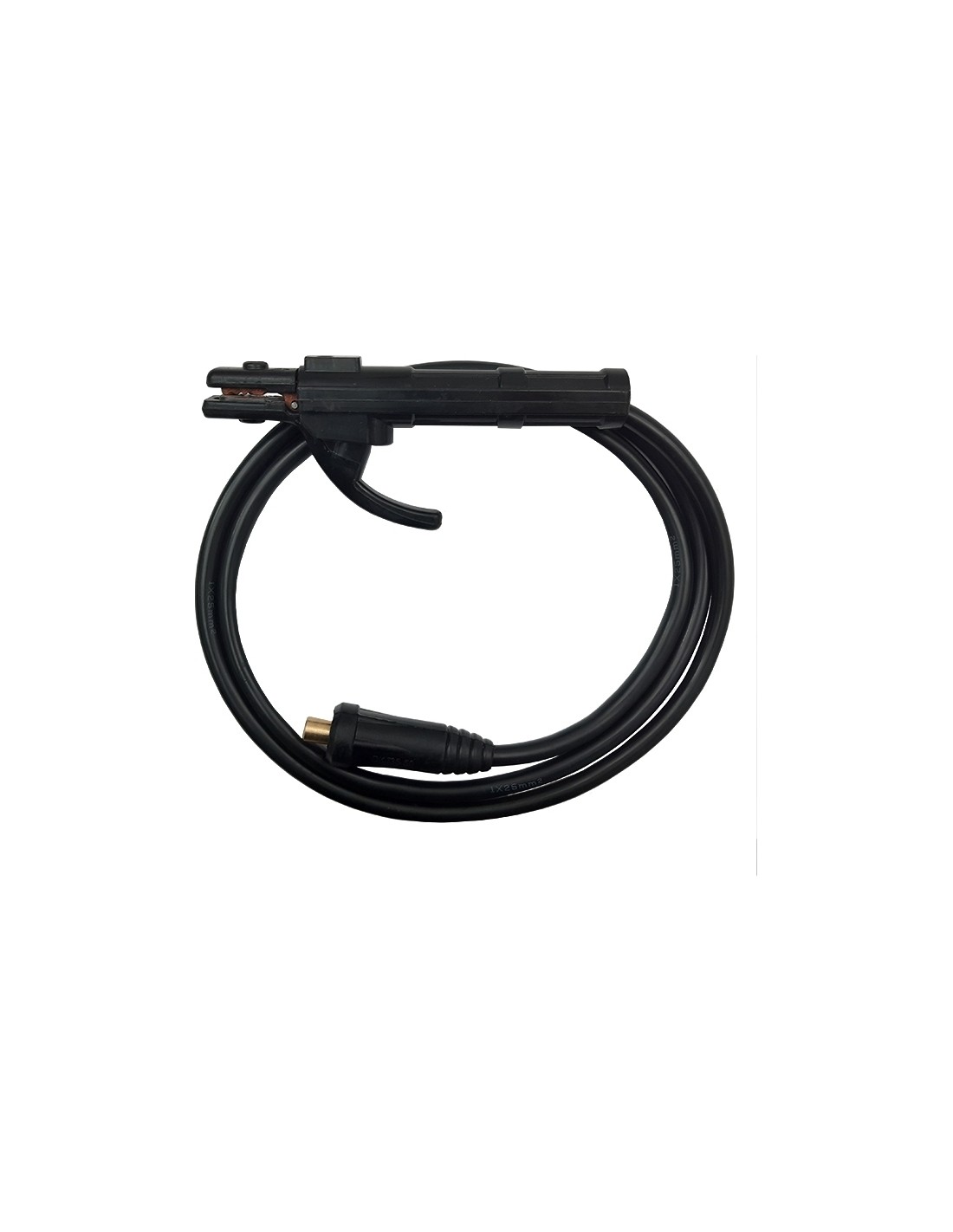

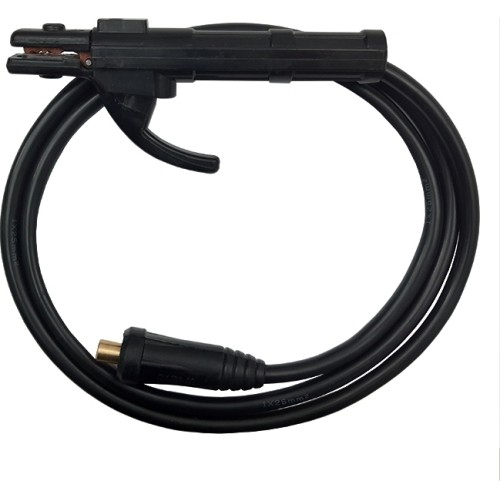

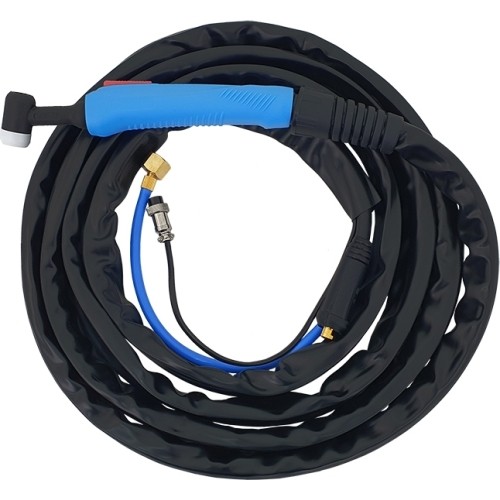

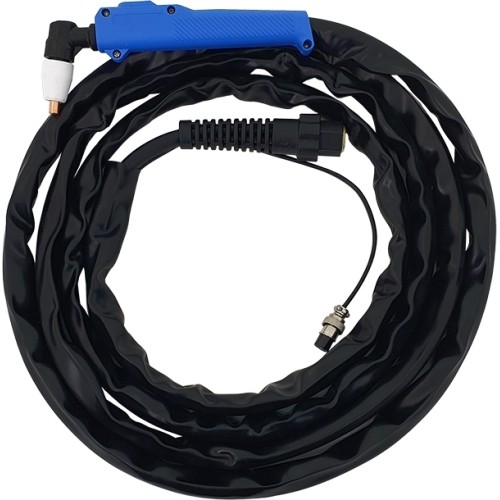

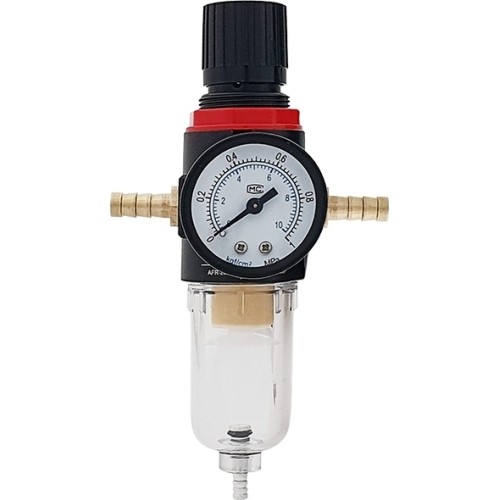

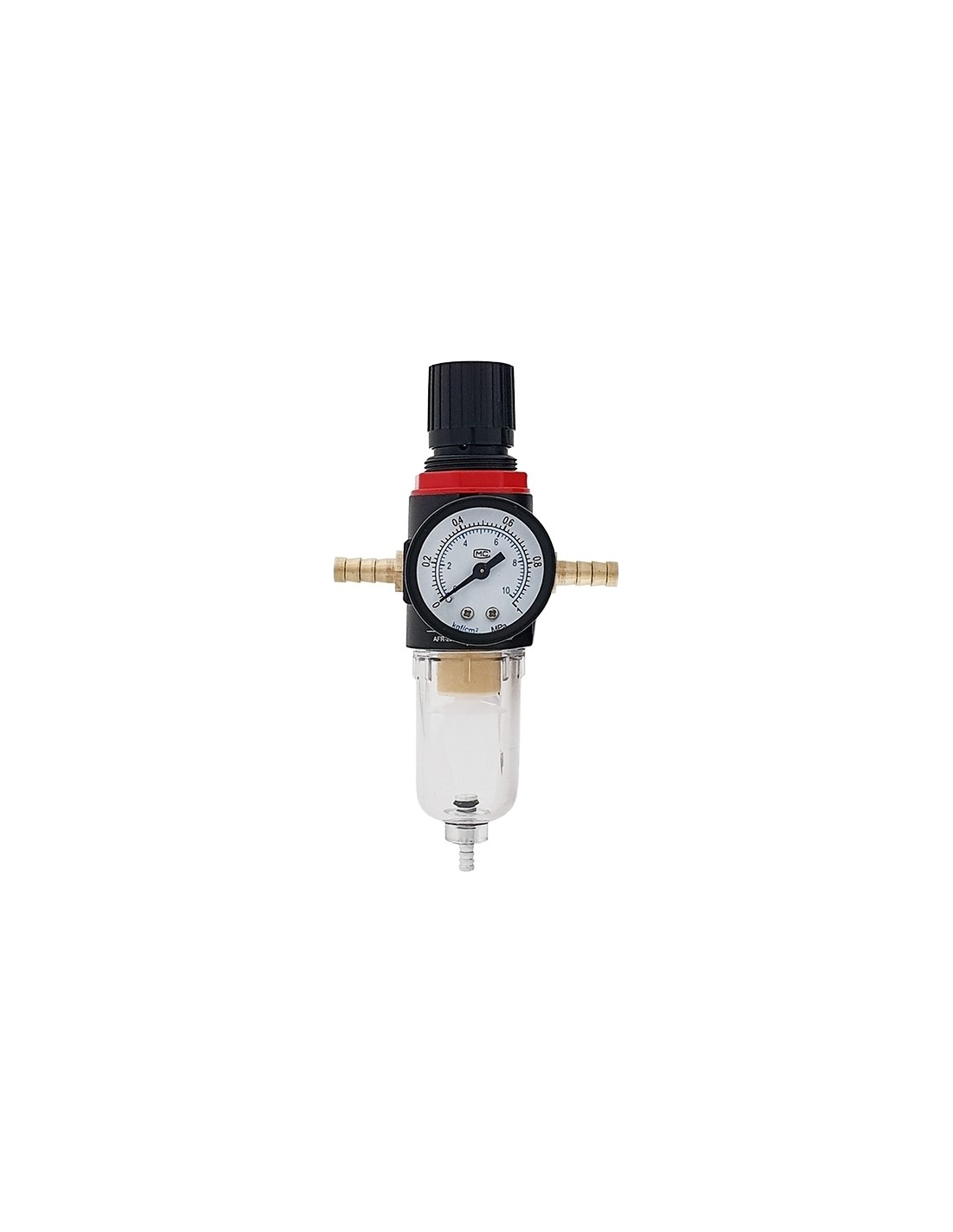

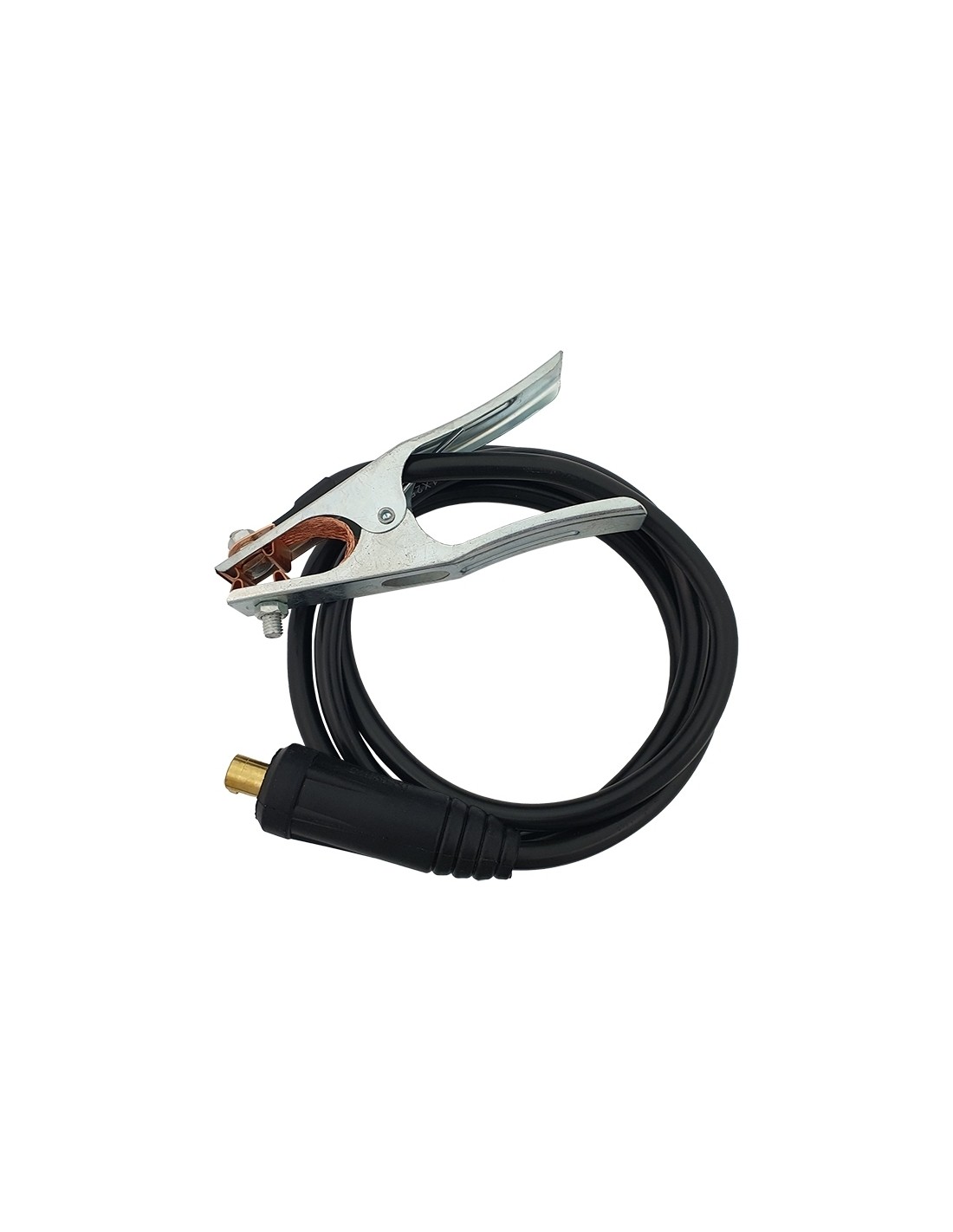

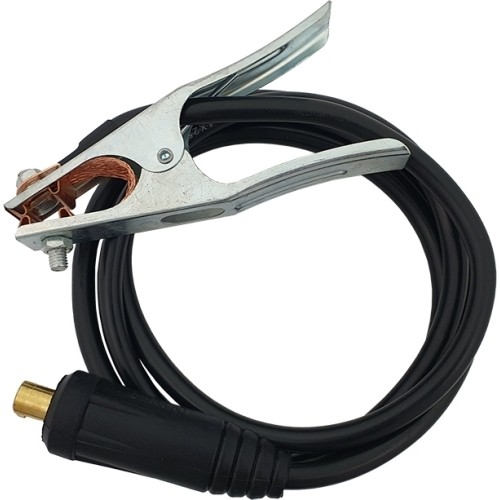

The set includes a TIG welding torch, a PT‑31 plasma cutting torch, an electrode holder lead, a work clamp lead, and an external air preparation unit for plasma cutting.
