- Spindle taper
- ISO 40
- Weight approx.
- 1010 kg
- Distance spindle to column
- 225 - 650 mm
- Spindle stroke
- 125 mm
- T-slot size
- 14 mm
- Table size
- 1000 x 240 mm
- Machine dimensions (W x D x H)
- 1600 x 1500 x 2100 mm
- Table tiltable
- -45° to +45°
- Distance spindle to table
- 55 - 375 mm
- Travel longitudinal (x)
- 590 mm
- Travel cross (y)
- 175 mm
- Travel vertical (z)
- 320 mm
- Spindle speed horizontal
- (9) 60 - 1350 rpm
- Spindle head tilting range
- -90° to +90°
- Feed range longitudinal
- (8) 32 – 700 mm/min
- Motor power vertical
- 2,2 kW
- Motor power horizontal
- 1,5 kW
- Spindle speed vertical, stepless
- 75 - 600 / 250 - 2000 rpm

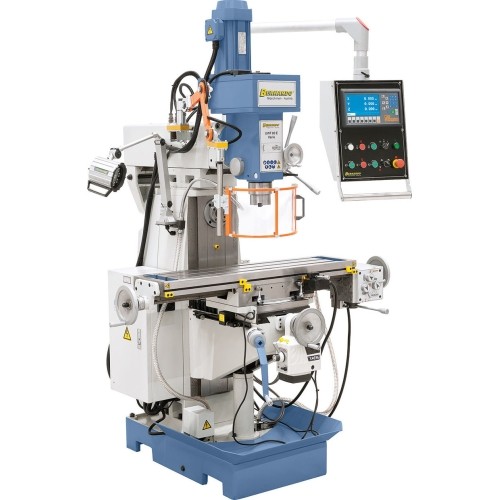

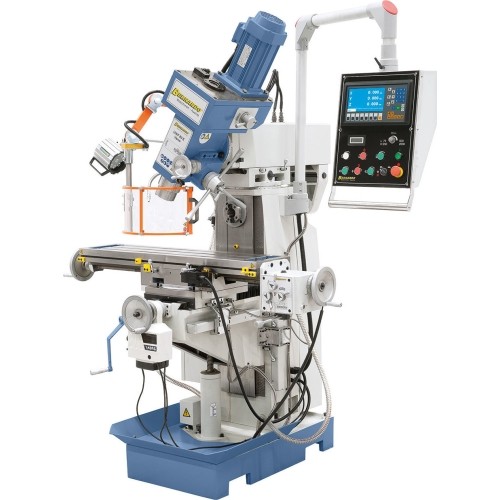

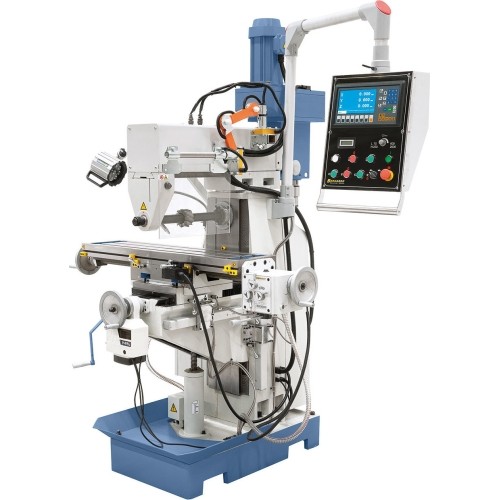

Universalios frezavimo staklės Bernardo UWF 80 E Vario
1055643
Price
€18,159.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1010 kg.
Description
Properties
- Variable speed setting (vertical spindle) via Delta-Frequency inverter with ideal torque
- Automatic table feed with rapid feed allows for quick table adjustment in x- and y-axis
- Wide range of applications, such as slotting, face milling, reboring
- Tiltable milling table -45° to +45° increases range of applications significantly
- Complete with position display in all 3 axis raises productivity
- Precision bearings ensure high concentricity of spindle (0.015 mm)

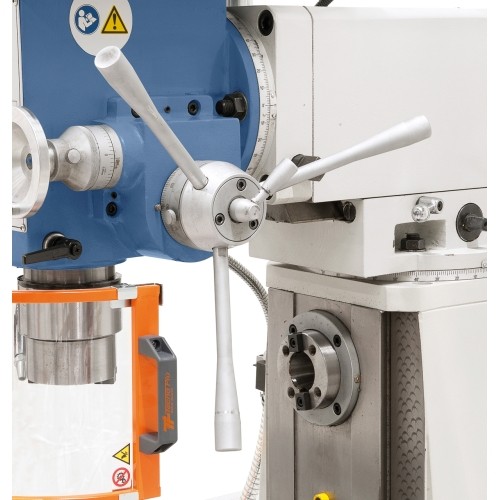

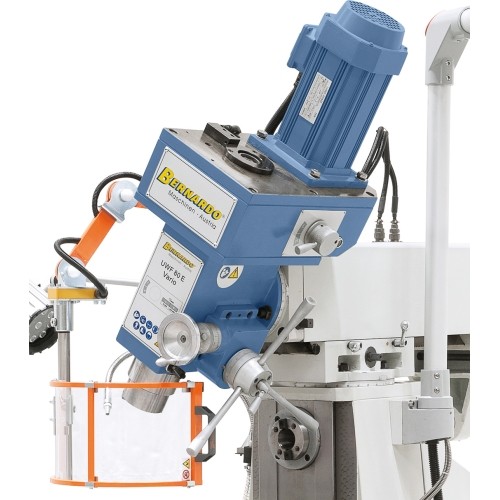

- Milling head tilts to both sides for angular boring, milling of chamfers etc.
- Smooth running, powerful drive motor with frequency inverter

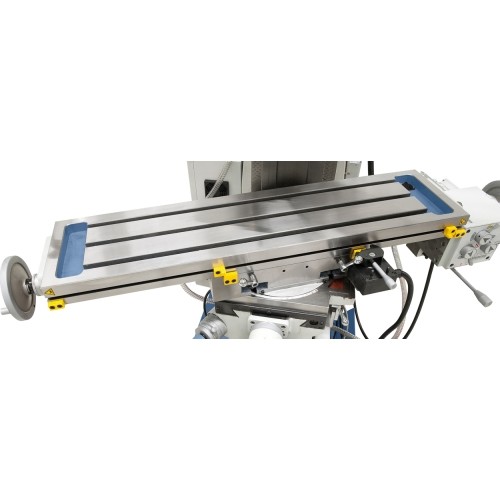

- Oversize cross table (1000 x 240 mm) features T-slots
Standard accessories

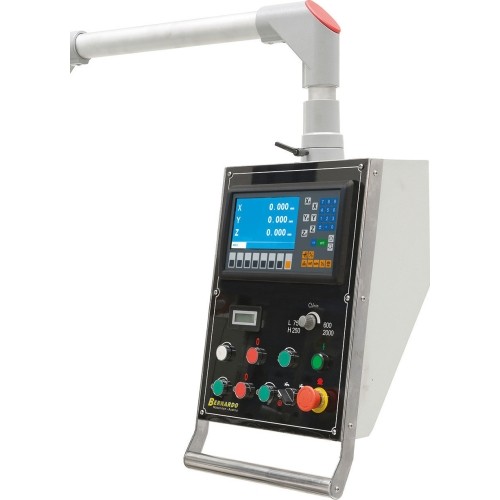

- 3-axis digital readout ES-12 H with LCD-display
- Drawbar M 16
- LED machine light
- Coolant device
- Frequency inverter

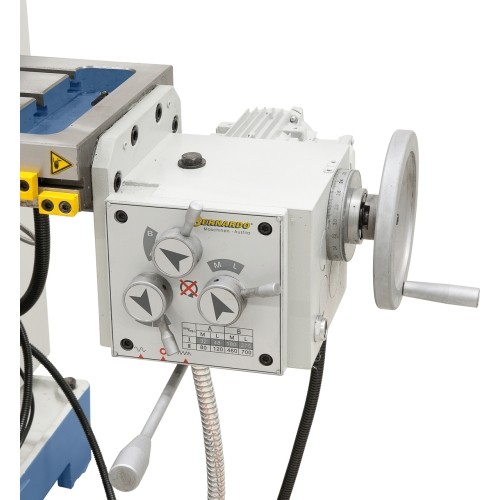

- Power feed for x-axis

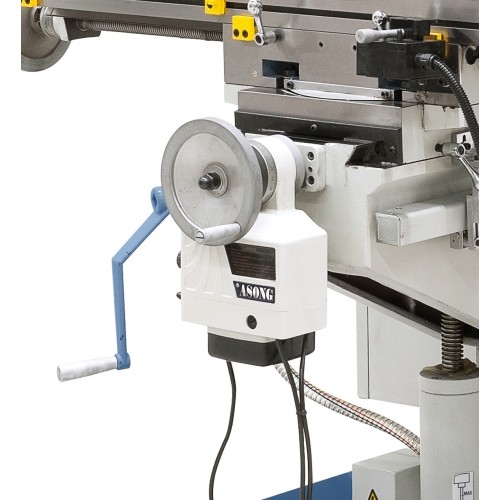

- Power feed for y-axis
- Adapter ISO 40 / MT 3
- Adapter ISO 40 / B 18
- Morse taper drill sleeve MT 3/2
- Long milling arbor ISO 40 / 27 mm
- Adjustable protective device

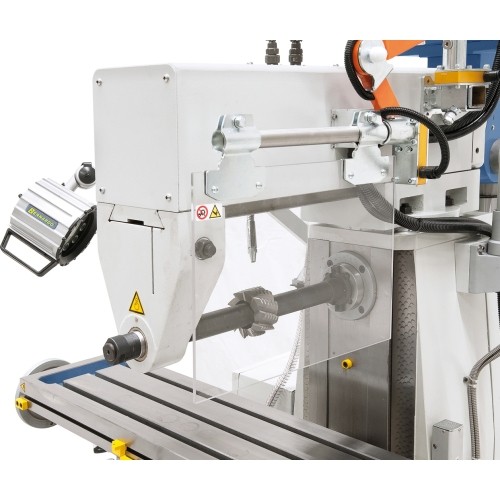

- Protective cover for horizontal milling
- Counter bearing
