- Spindle taper
- ISO 40
- Weight approx.
- 1310 kg
- Machine dimension (W x D x H)
- 1750 x 1500 x 2200 mm
- Distance spindle to column
- 240 – 740 mm
- Spindle stroke
- 120 mm
- T-slot size
- 14 mm
- Table size
- 1270 x 280 mm
- Table tiltable
- -45° to +45°
- Distance spindle to table
- 125 – 425 mm
- Travel longitudinal (x)
- 750 mm*
- Travel cross (y)
- 230 mm
- Travel vertical (z)
- 300 mm
- Spindle speed vertical
- (8) 90 – 2000 rpm
- Spindle speed horizontal
- (12) 40 – 1300 rpm
- Spindle head tilting range
- -90° to +90°
- Feed range longitudinal
- (8) 32 – 700 mm/min
- Motor power vertical
- 2,2 kW
- Motor power horizontal
- 2,2 kW
- Rapid feed z-axis
- 660 mm/min
- Pinolenvorschub
- 0,08 / 0,15 / 0,25 mm/rev.

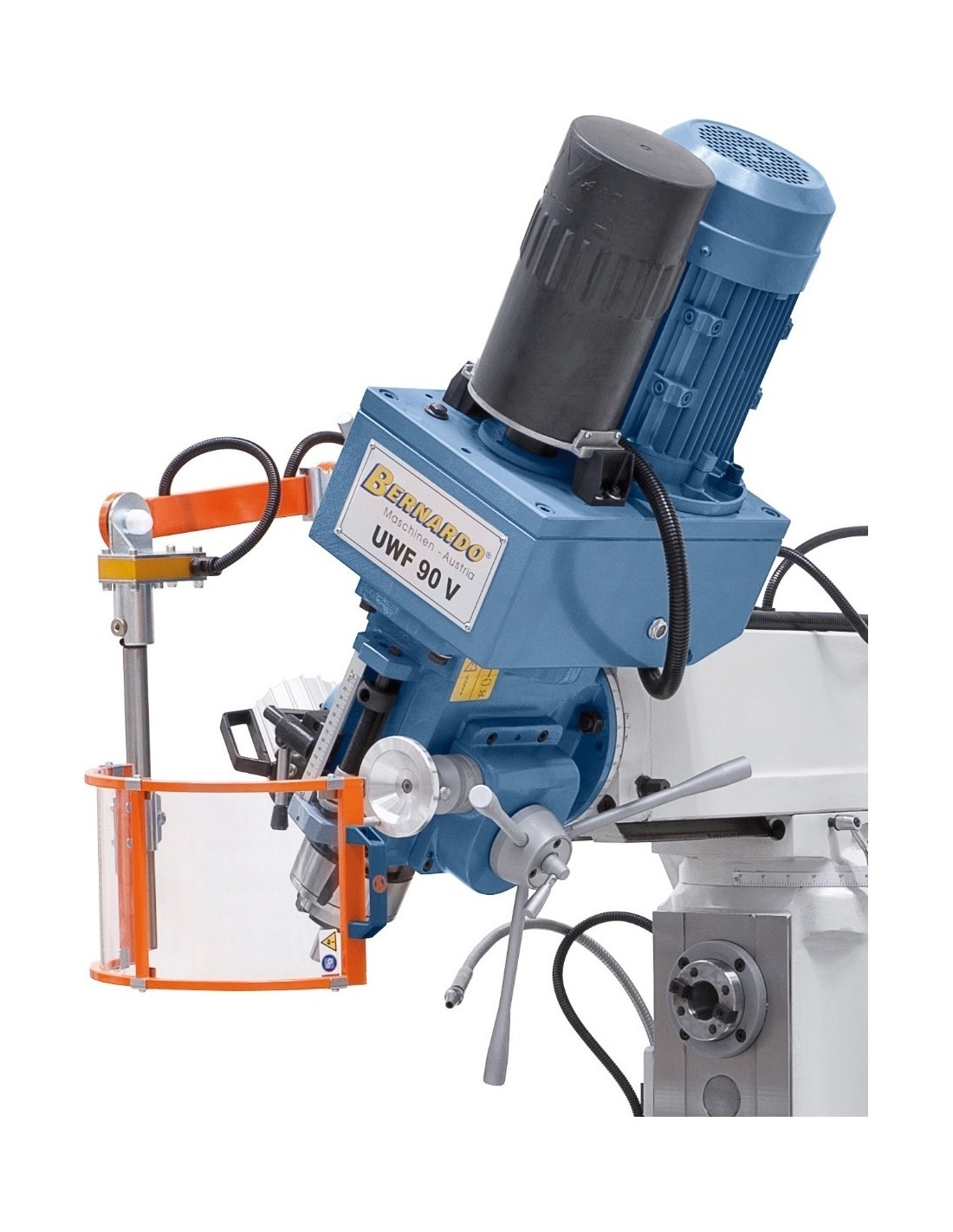

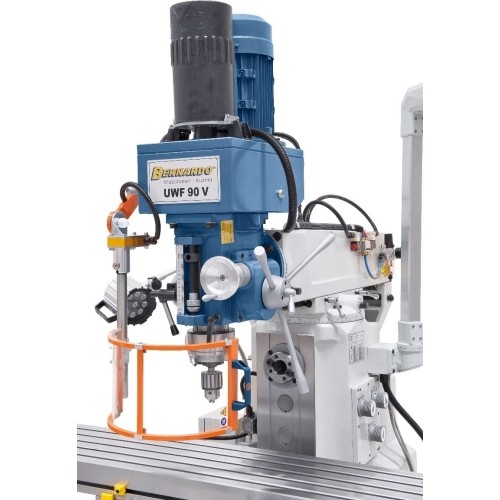

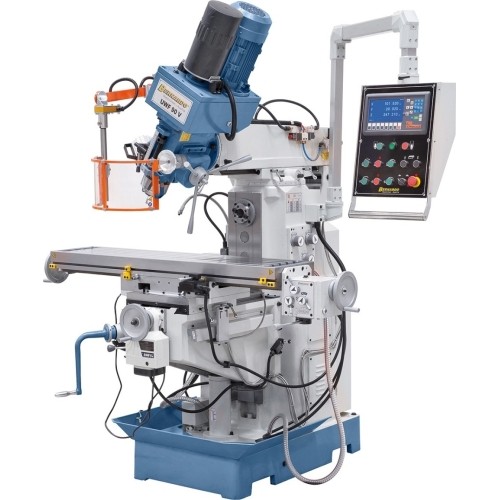

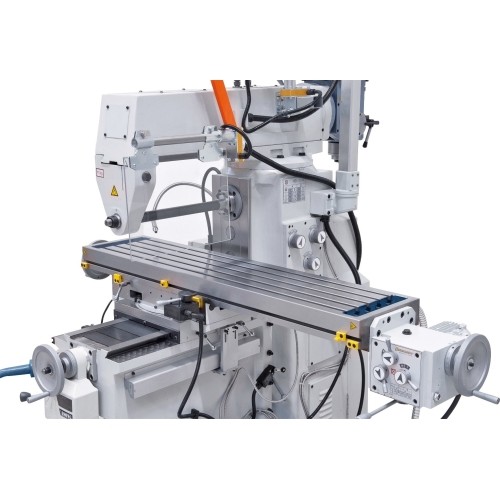

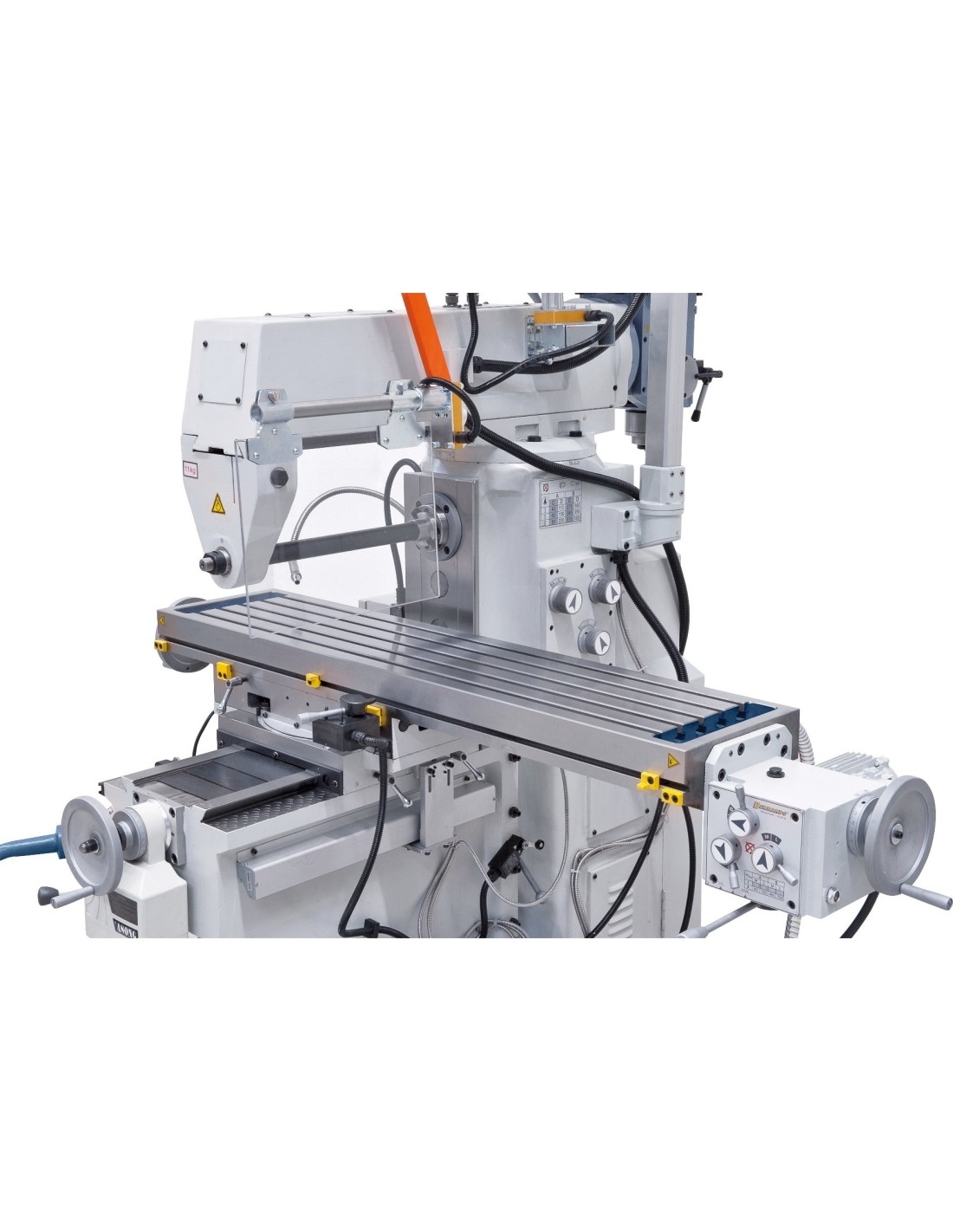

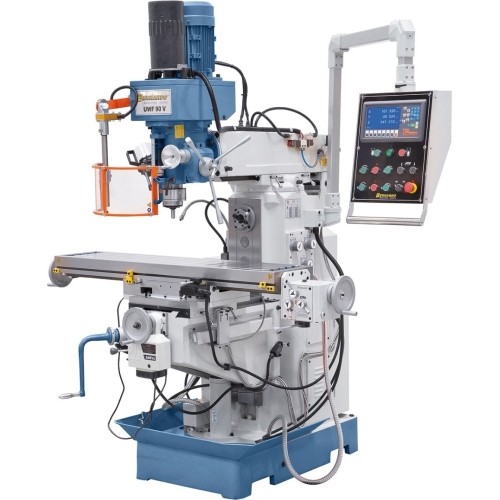

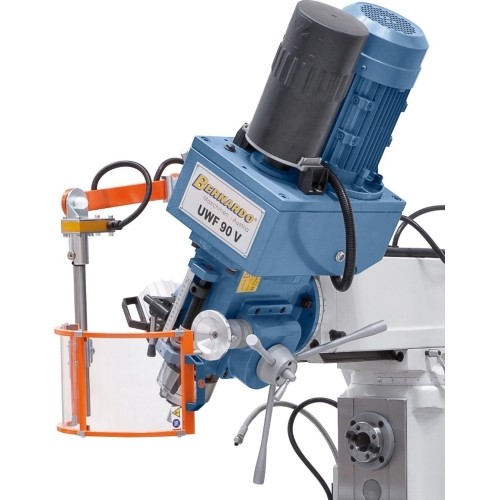

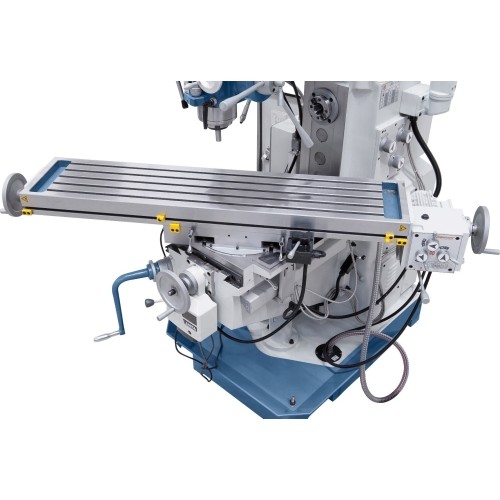

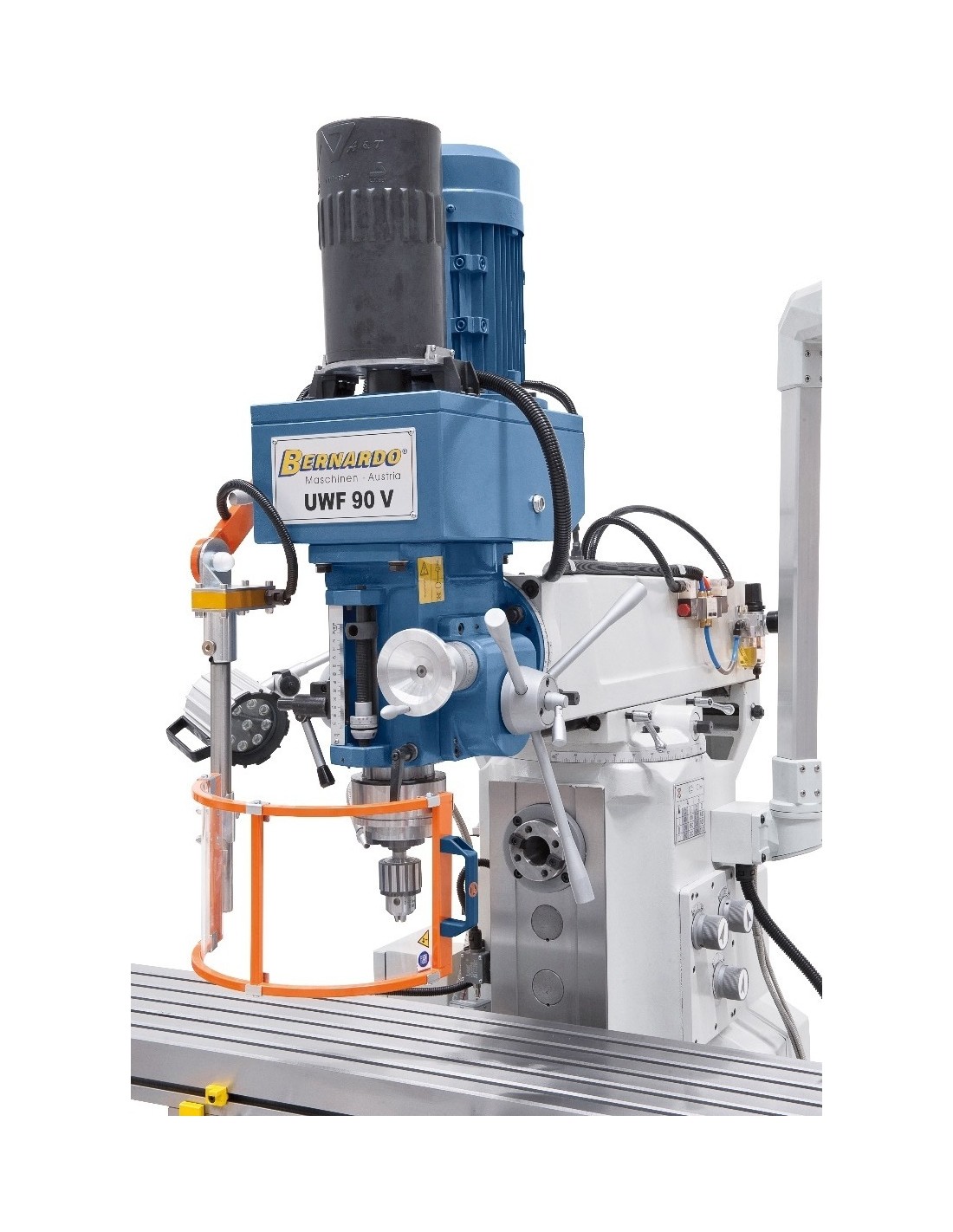

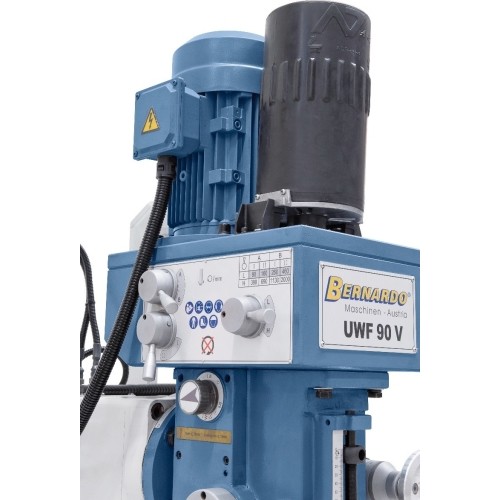

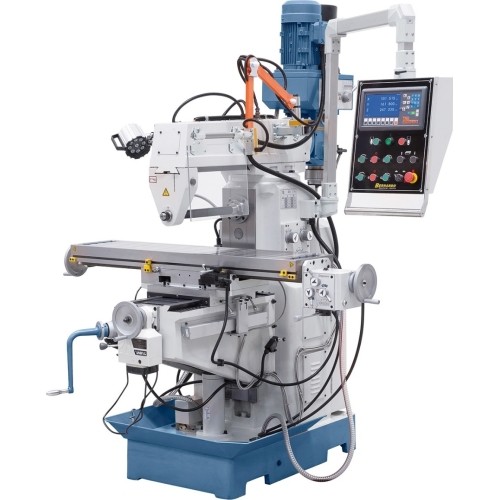

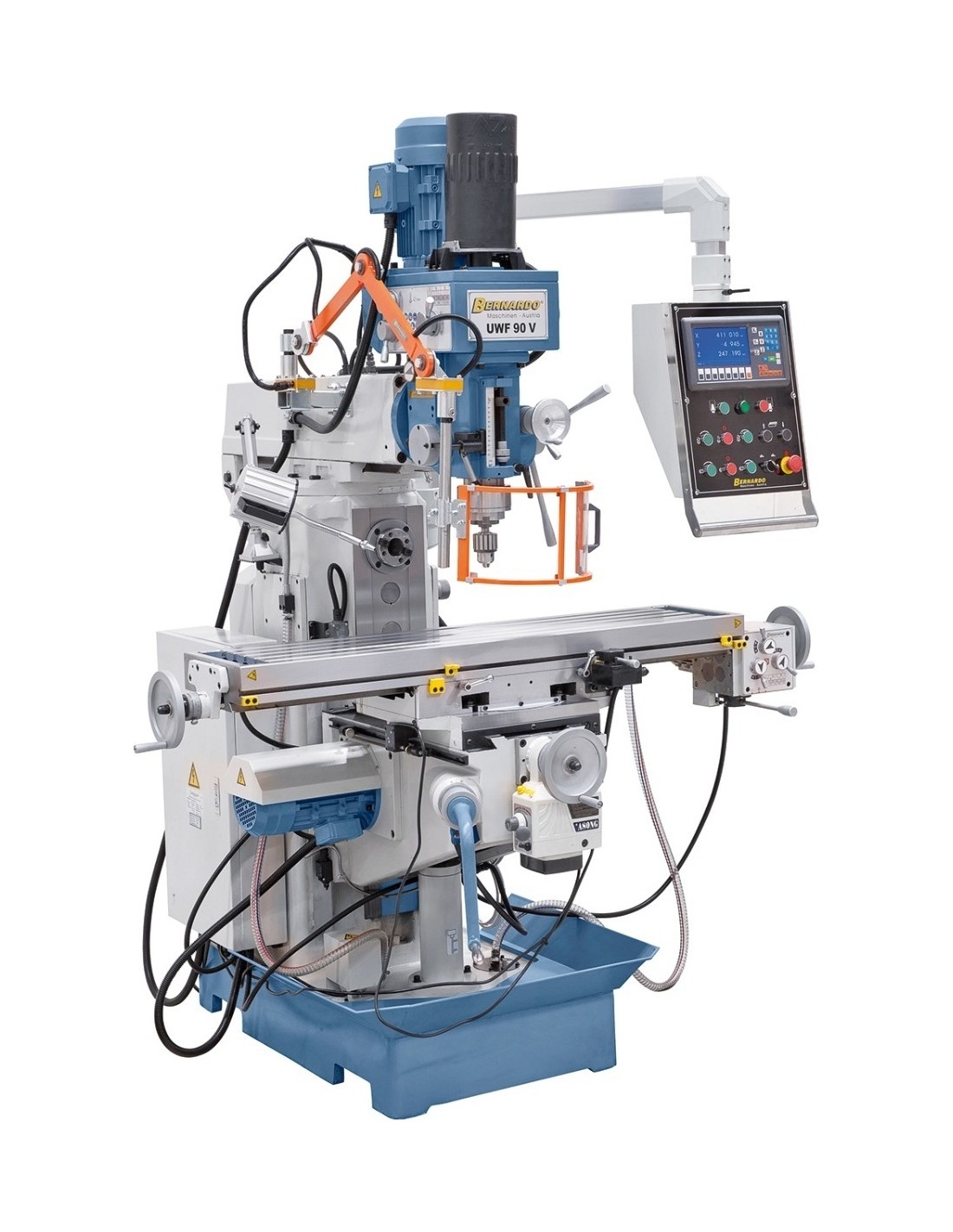

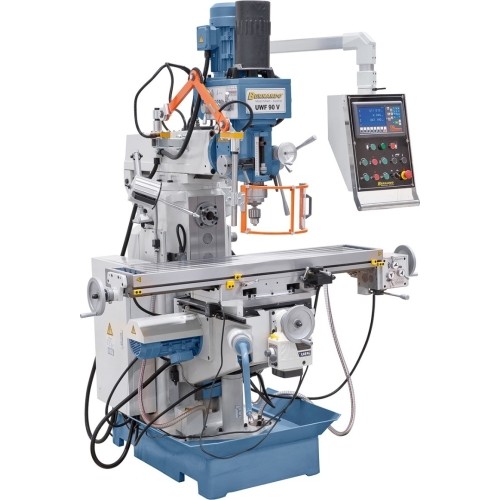

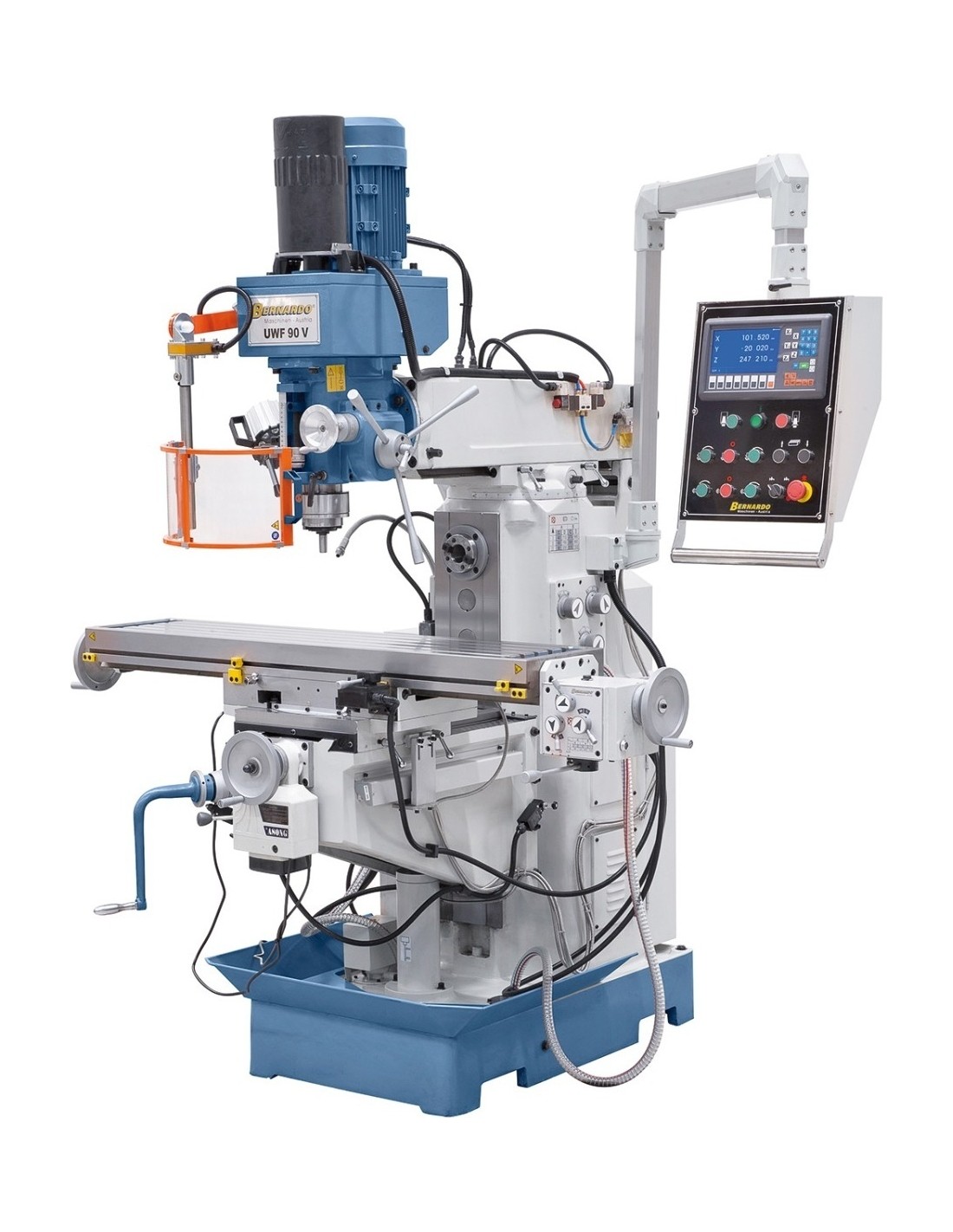

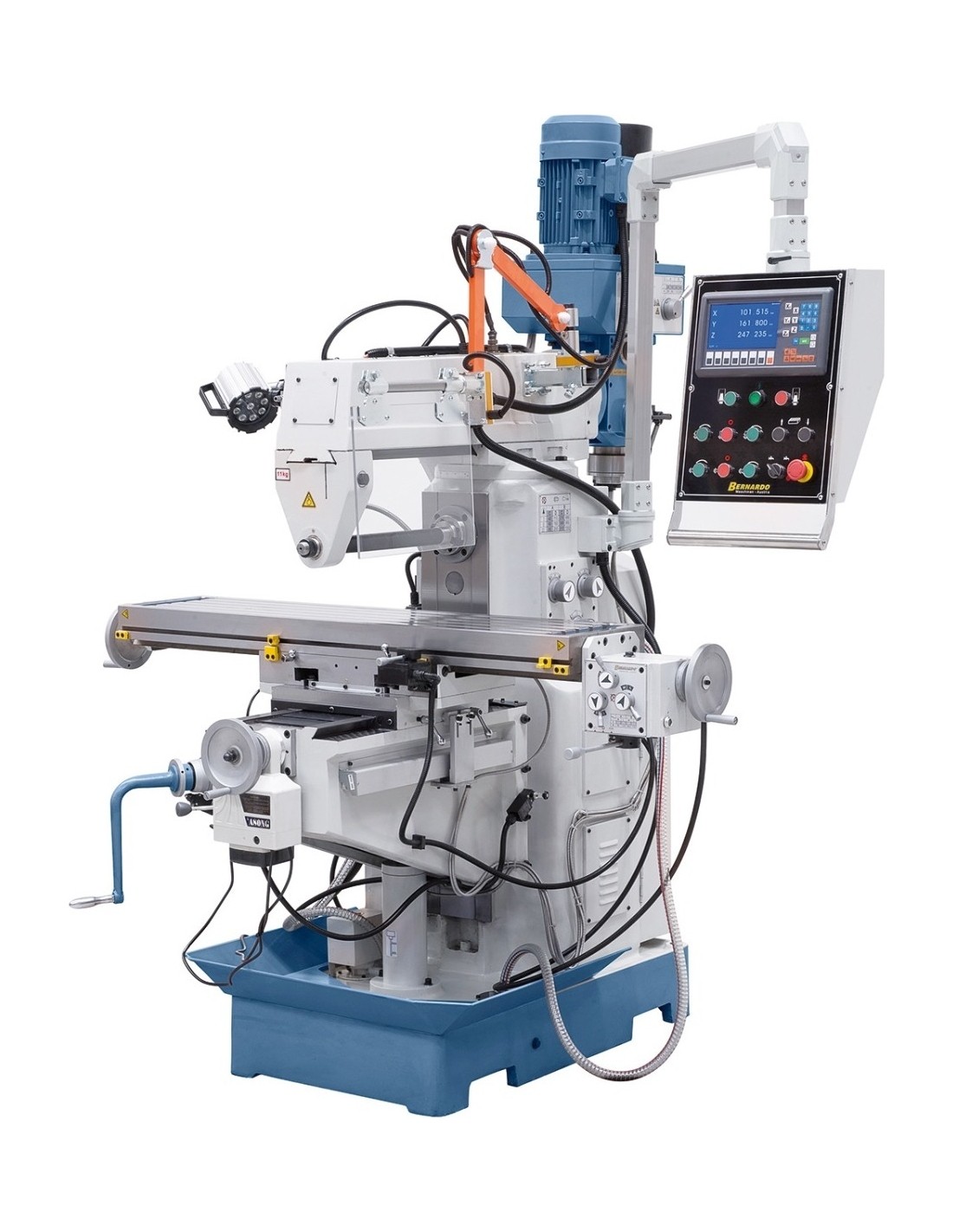

UWF 90 V with pneumatic tool clamping
1092065
Price
€22,641.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 1310 kg.
Description
Properties

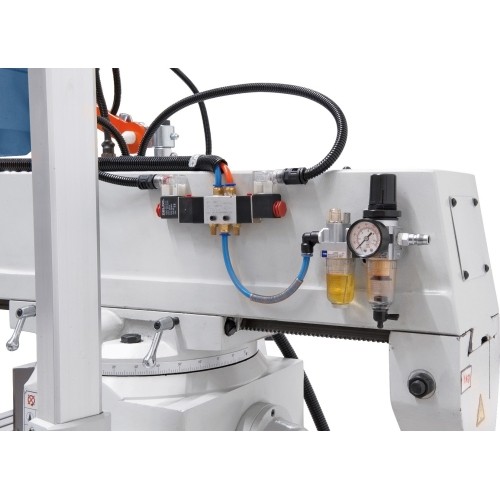

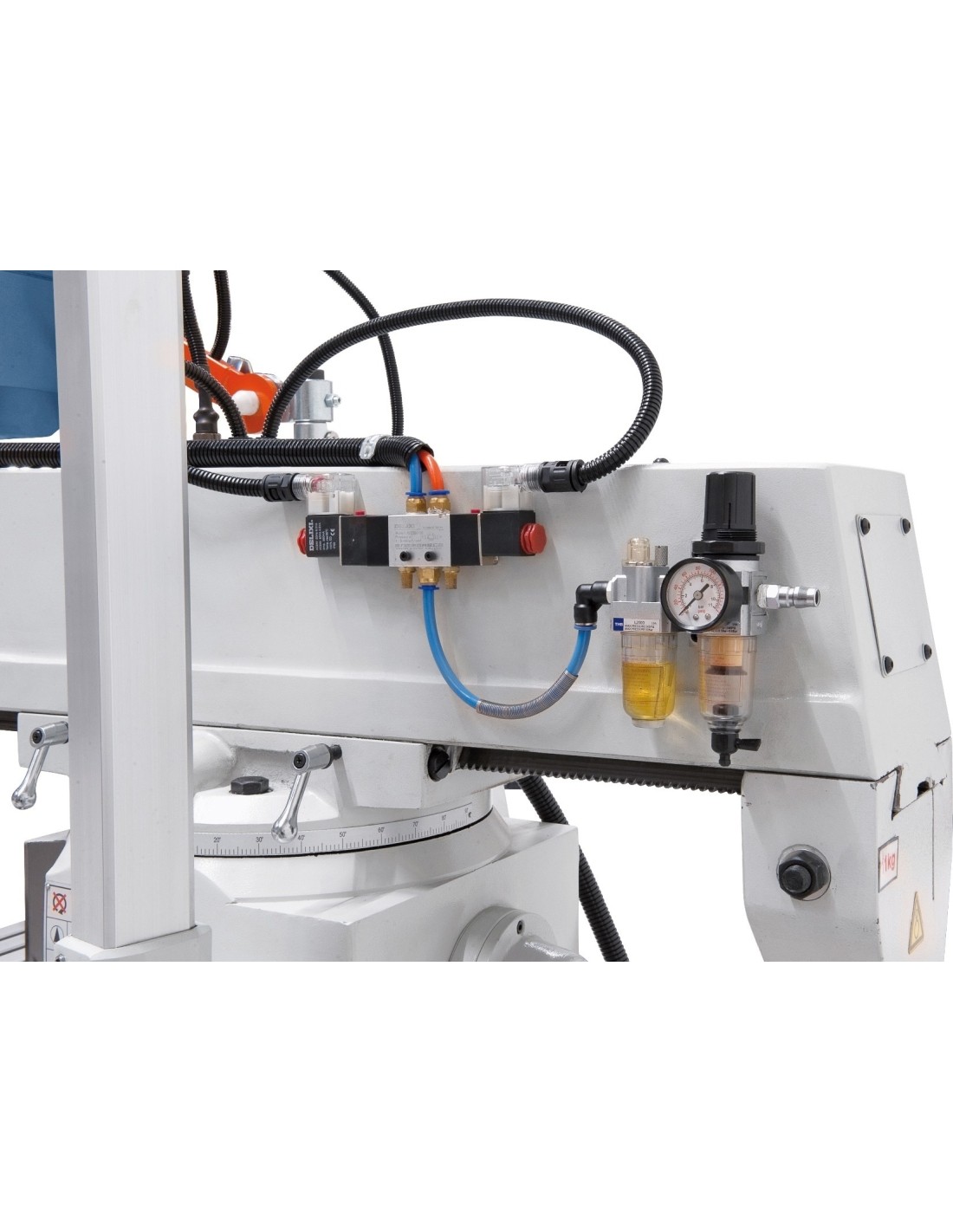

- Pneumatic tool clamping device allows for convenient tool change
- Wide range of applications in general machine engineering, manufacturing, production of single partsÂ

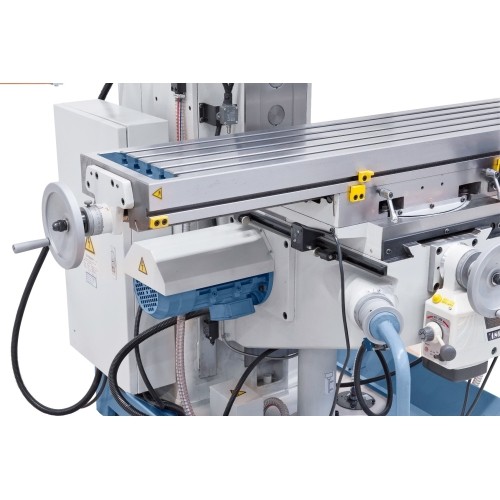

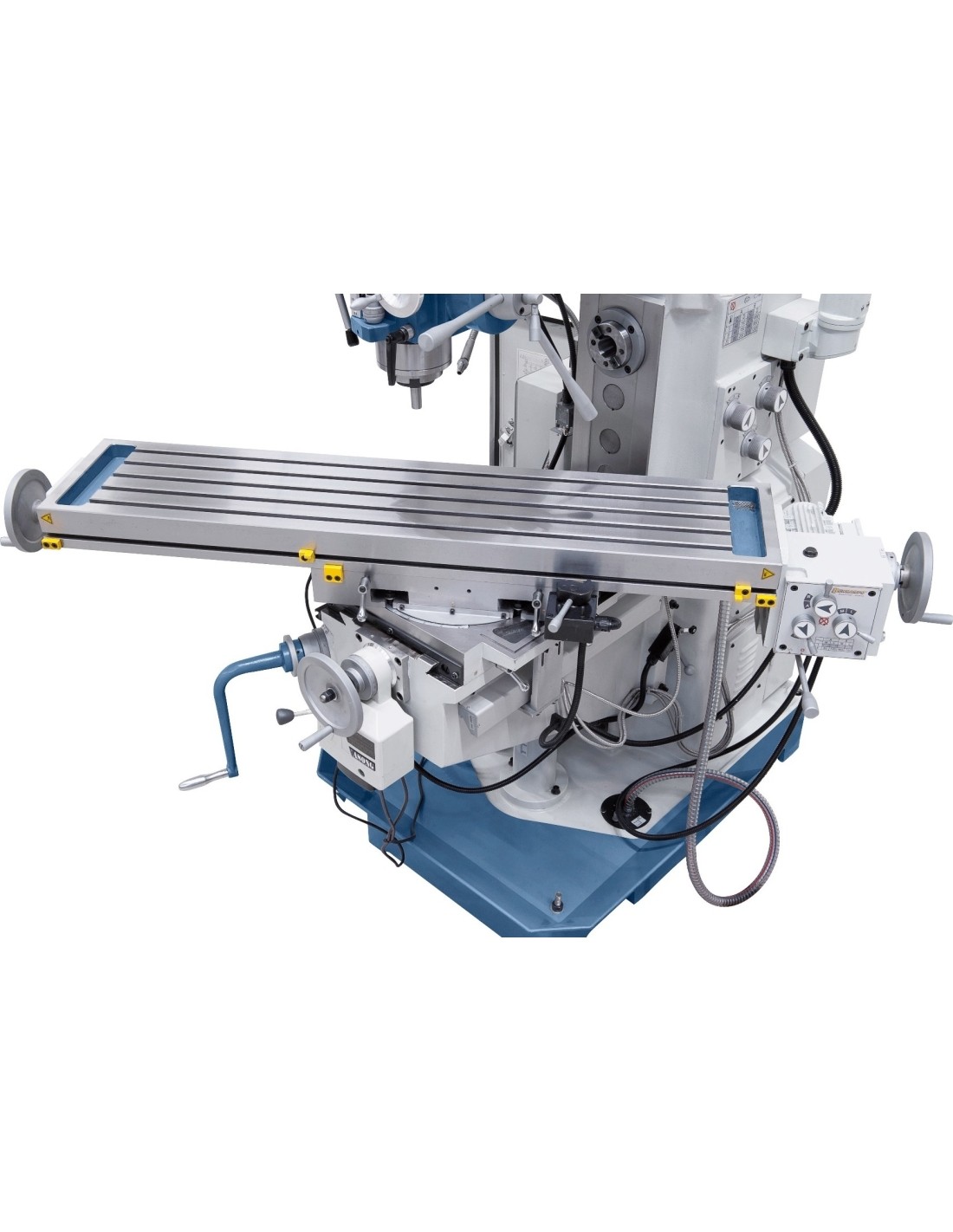

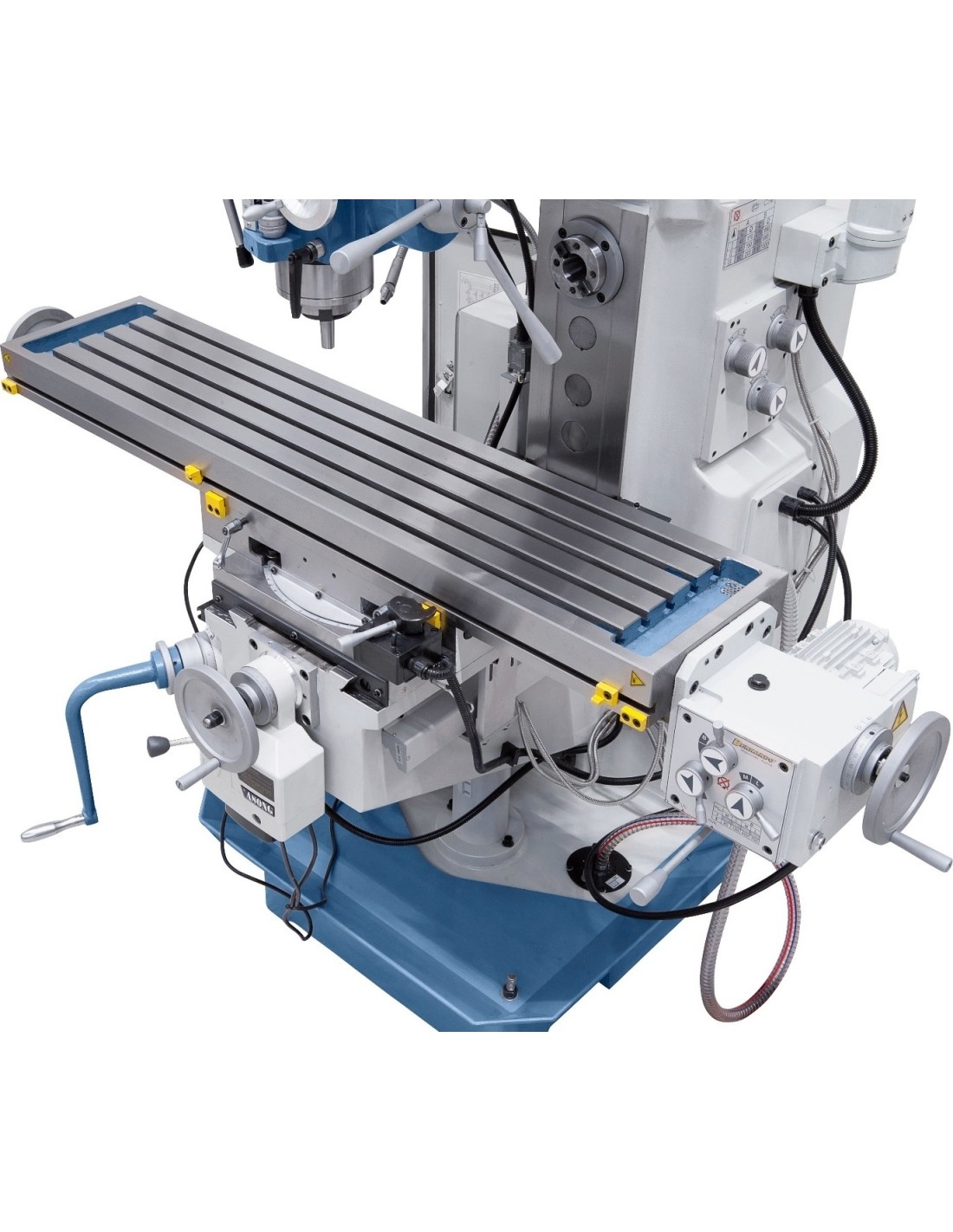

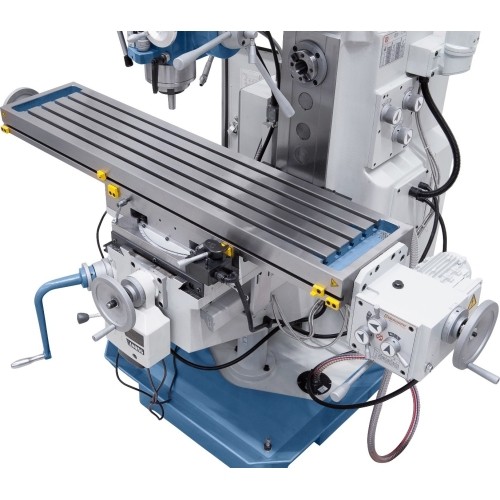

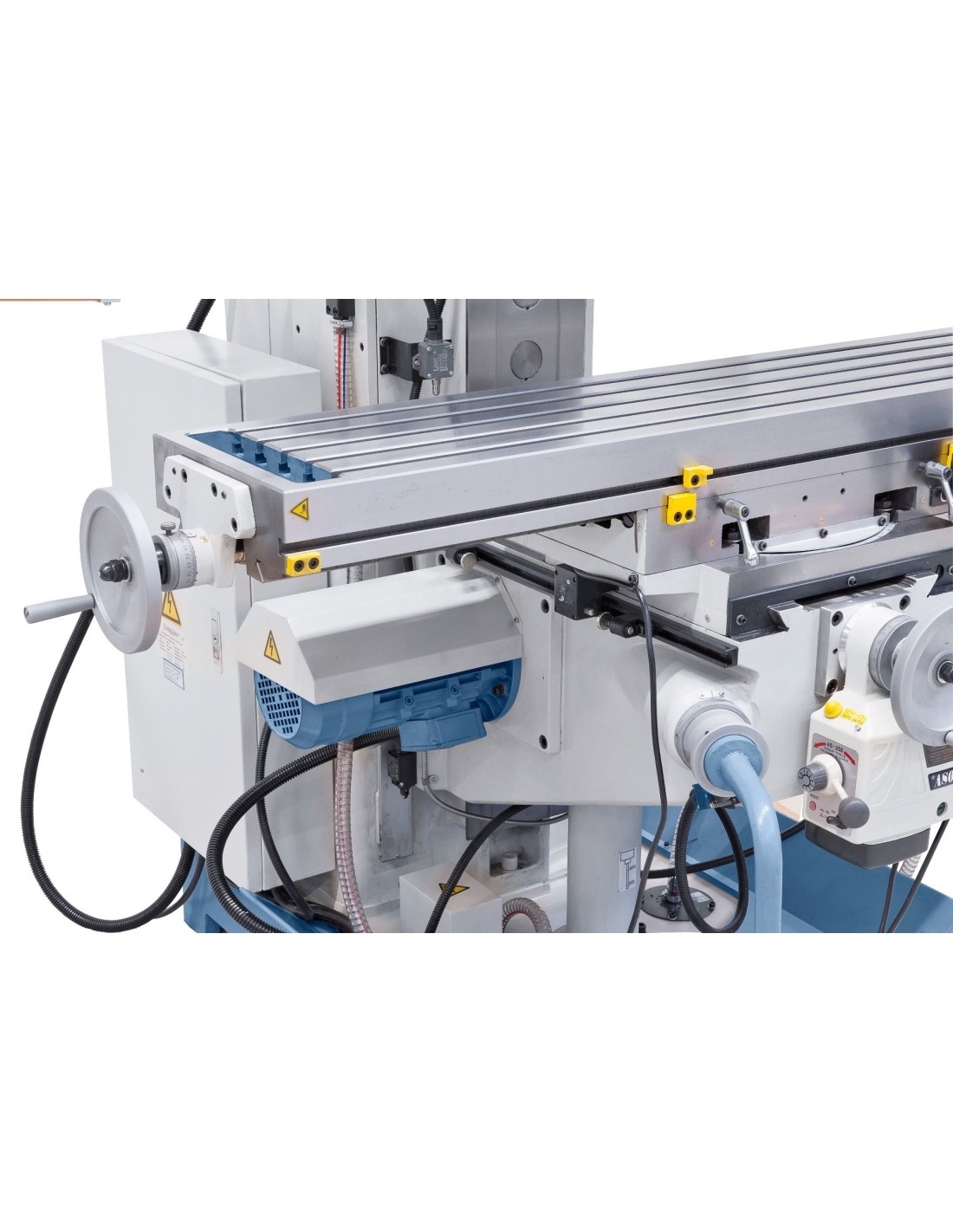

- Complete with automatic table feed in x- and y-axis including rapid feedÂ
- Positioning motor for z–axis comes standard
- Automatic spindle feed (0,08 - 0,25 mm) comes standard
- Heavy cast-iron machine stand eliminates vibrations
- Complete with 3-axis digital readout for maximum productivity
- Polished gear wheels, in oil bath, ensure smooth running
- Ideal for single and small-series production
Standard accessories

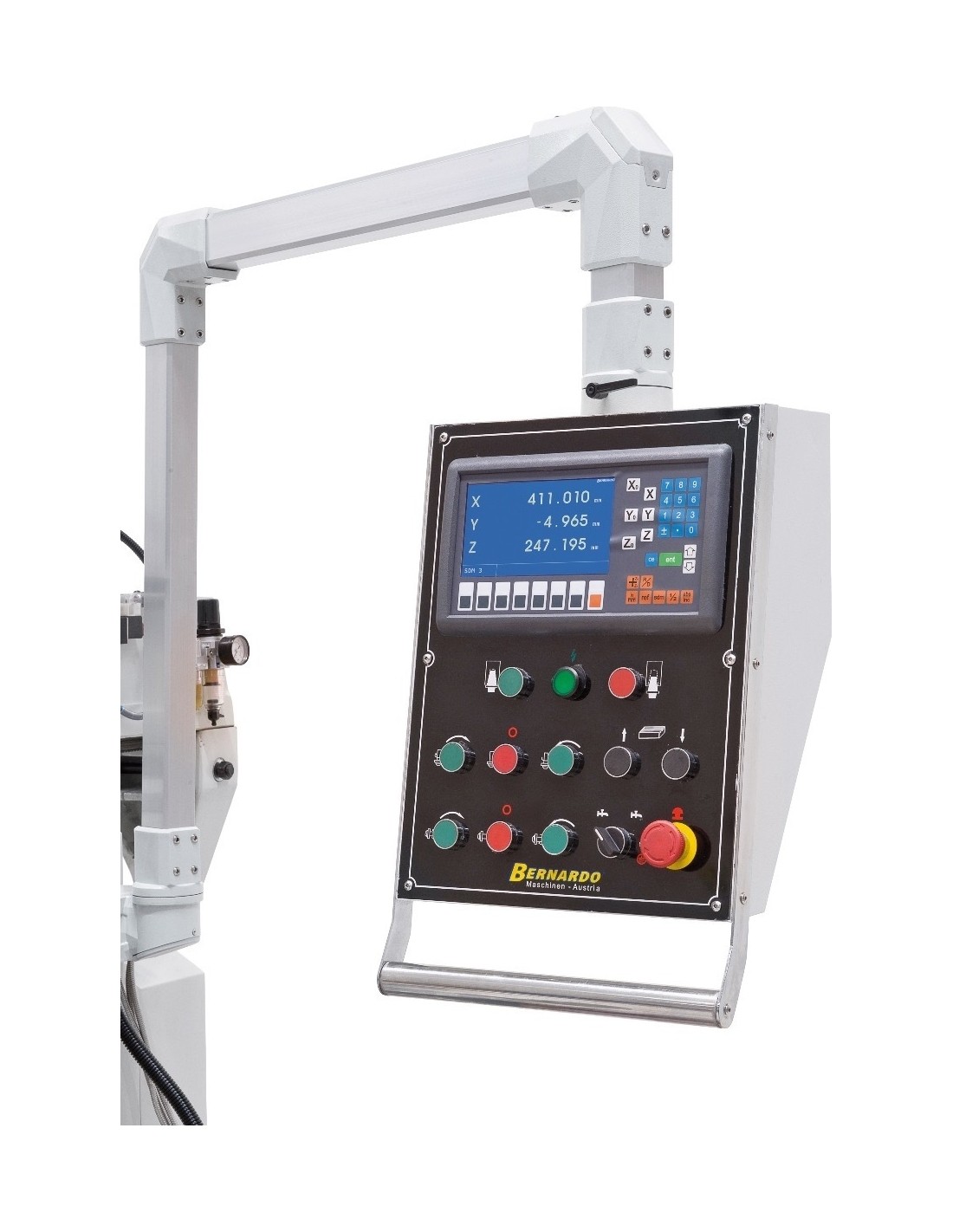

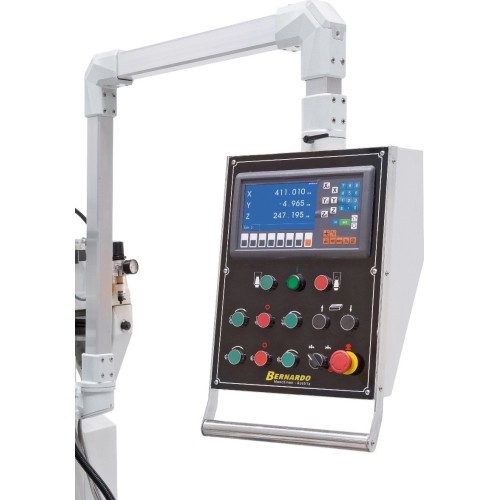

- 3-axis digital readout ES-12 H with LCD-display
- Pneumatic tool clamping (DIN 2080)
- Drawbar M 16
- Horizontal counter bearing
- Adjustable protective deviceÂ
- Protective cover for horizontal milling
- Adapter ISO 40 / B18, ISO 40/MT 3
- Morse taper drill sleeve MT 3 / 2
- Long milling arbor ISO 40/27 mm, ISO 40/32 mm
- Coolant device
- LED machine lightÂ
- Tools
