Spindle taper: ISO 40
Weight approx.: 1380 kg
Motor power: 2,2 kW
Machine dimension (W x D x H): 1570 x 1470 x 1660 mm
Distance spindle to column: 0 - 550 mm
Mill head tiltable: 360°
T-slot size: 14 mm
Spindle speeds: 45 - 1660 rpm
Table size: 1120 x 260 mm
Distance spindle to table: 175 - 520 mm
Travel longitudinal (x): 600 mm
Travel cross (y): 250 mm
Travel vertical (z): 400 mm
Feed range longitudinal / cross: (9) 24 - 402 mm/min
Steps: 11
Rapid feed z-axis: 660 mm/min

Brand

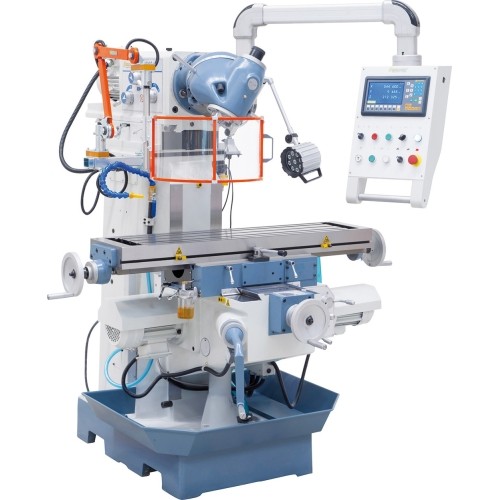

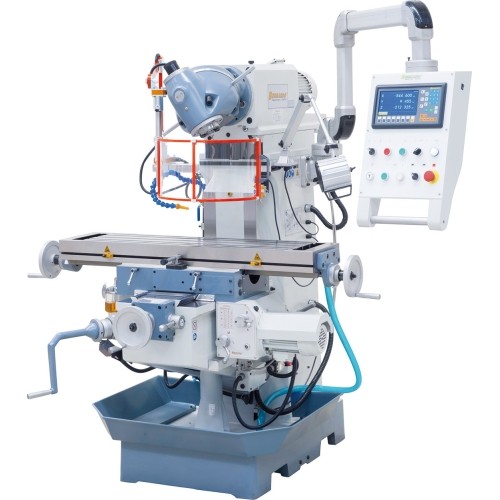

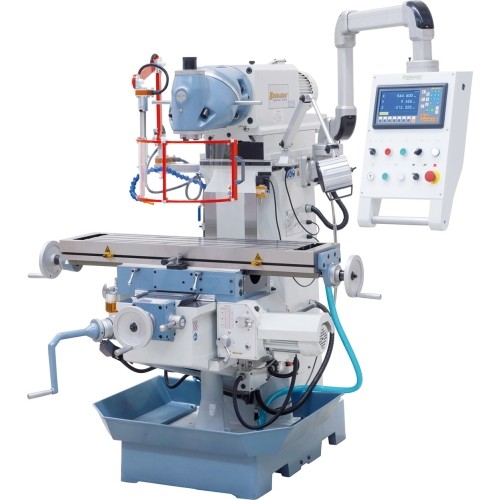

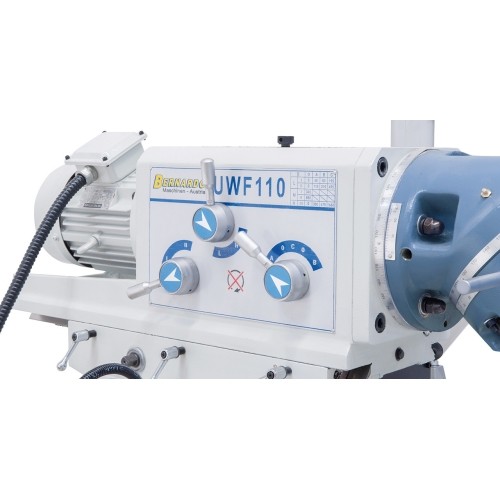

UWF 110

Name: UWF 110
Brand: Bernardo
SKU: 1092062
Price: 22214 EUR
Availability: PreOrder

Reference 1092062

Price €22,214.00 Tax included

Stock Quantity:

In S01 store
not available

In S02 store
not available

In Supplier store
(5+ pcs)

Delivery terms:

NEMOKAMAI atsiimkite thursday, april 17 d., parduotuvėje, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 1380 kg.

Description

Properties

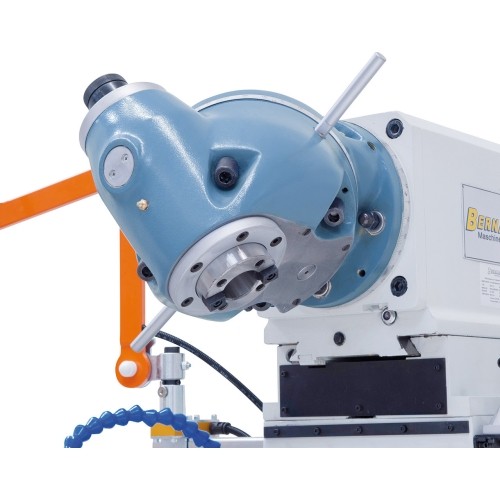

Universal mill head can be set to various angles
Ergonomically mounted switches on swivelling control panel
Solid, grey cast-iron machine construction eliminates vibrations
Dovetail guiding with adjustable gibs in all three axis
Polished gears, in oil bath, guarantee smooth running
Complete with positioning motor for z-axis

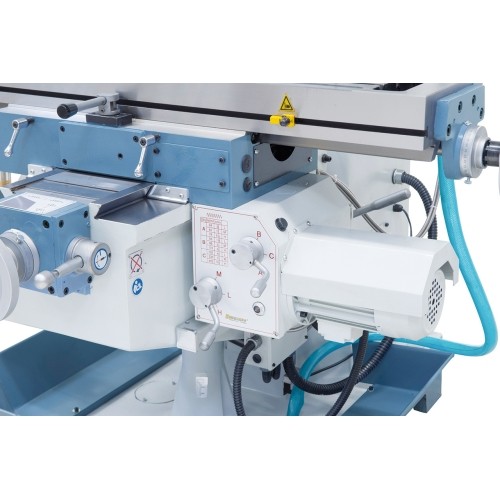

Automatic table feed in x- and y-axis comes standard
Surface treated table features T-slots
Digital readout for x-, y- and z-axis come standard

Standard accessories

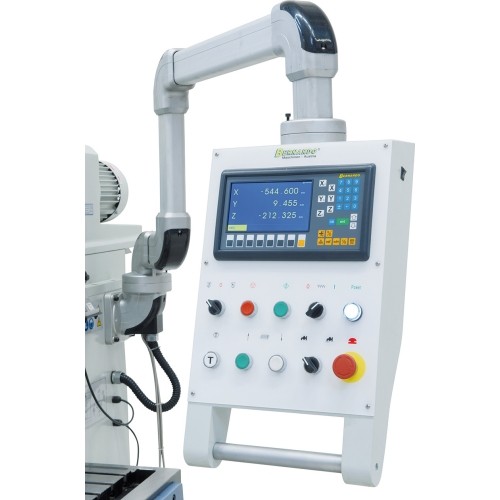

3-axis digital readout ES-12 H with LCD-display
LED machine light
Coolant device

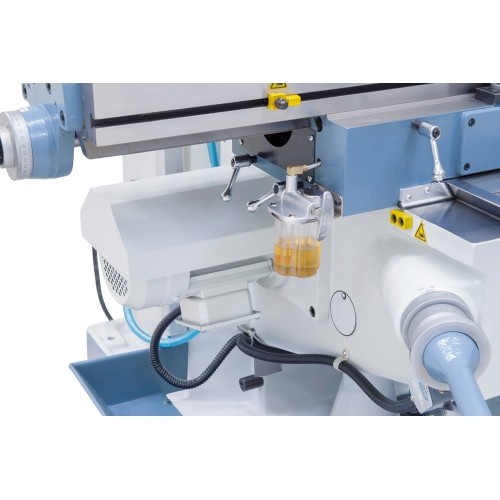

Central lubrication

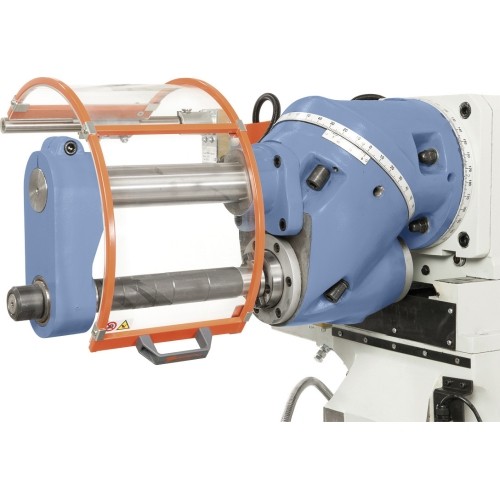

Counter bearing
Long milling arbor 32 mm
Power feed for x- and y-axis
Positioning motor for z-axis
Coolant tray
Adjustable protective cover
