Weight approx.
57 kg
Machine dimension (W x D x H)
400 x 630 x 990 mm
Drilling capacity in steel
20 mm
Distance spindle to column
180 mm
Spindle stroke
80 mm
Spindle speed, stepless
400 - 1950 rpm
Motor power input S6 40%
1,1 kW / 400 V
Morse taper
MT 2
Distance spindle to base
605 mm
Distance spindle to table max.
415 mm
Table size / T-slot size
305 x 305 mm / 16 mm
Drill chuck
1 - 16 mm / B 18
Column diameter
72 mm
Working surface of base
205 x 205 mm
Table tiltable
-45° to +45°
Motor power output S1 1 100%
0,75 kW / 400 V

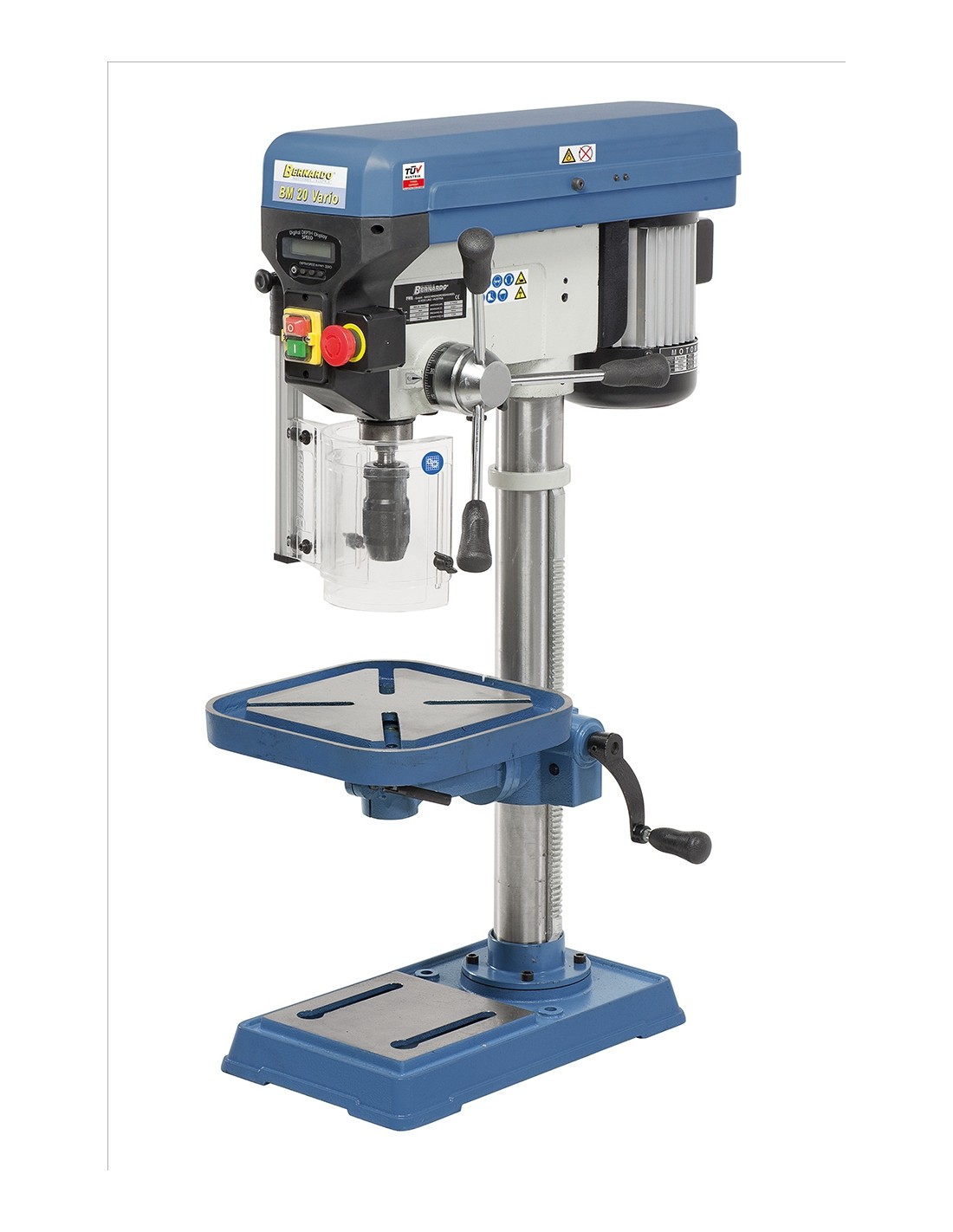

Gręžimo staklės Bernardo BM 20 Vario - 400 V

1091982
Price €1,118.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 57 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 57 kg.

Description

Properties

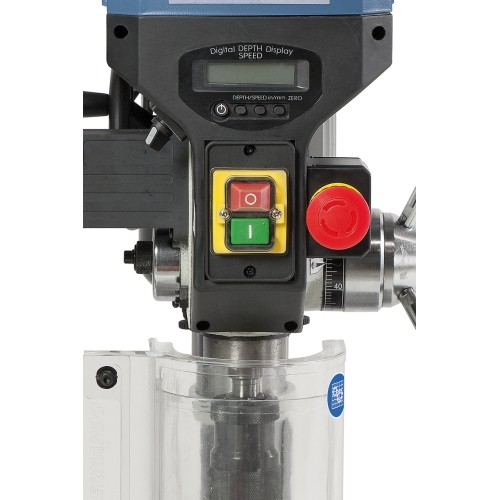

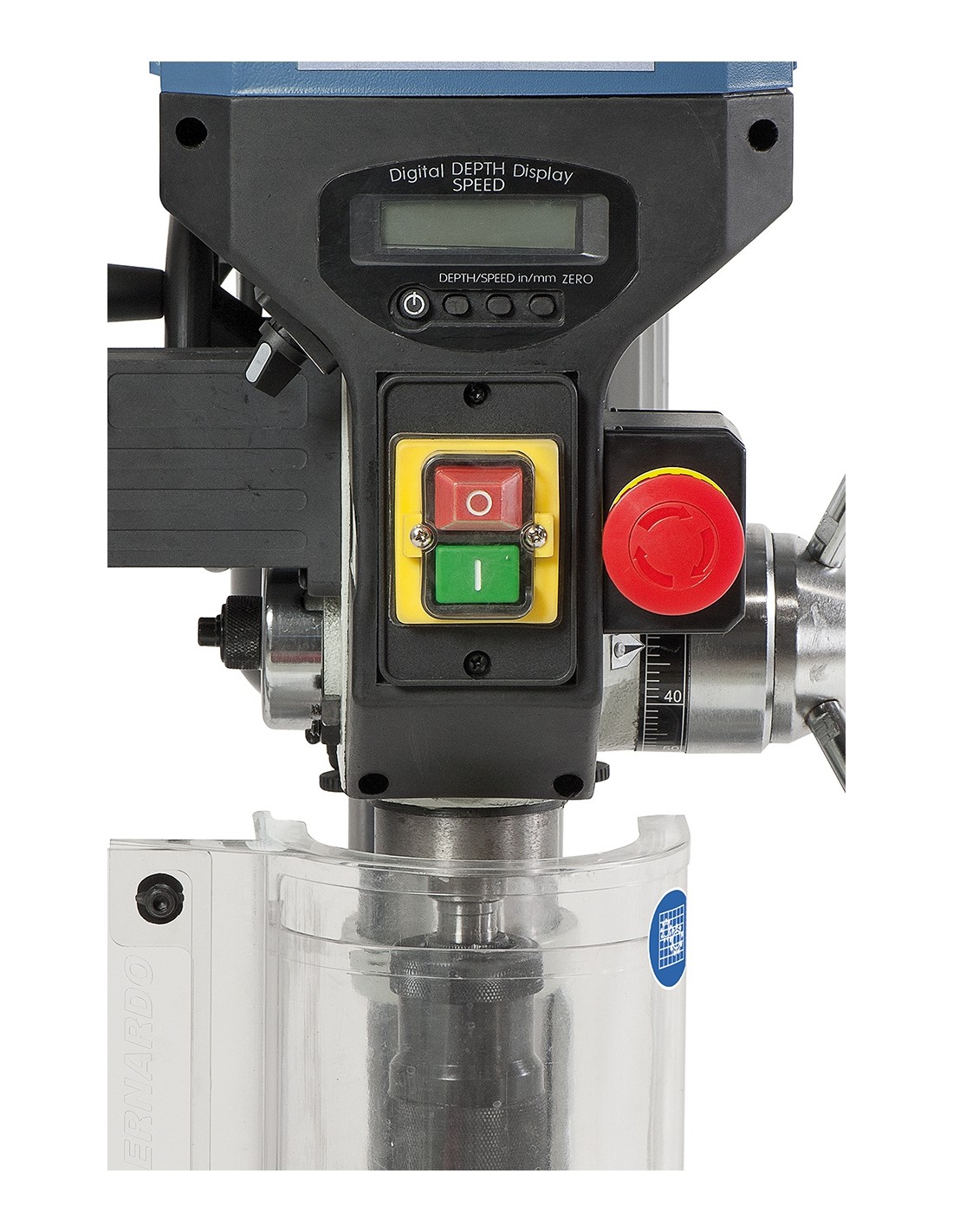

  • Digital display allows easy readout of set speed or spindle stroke
  • Grey cast iron pulley ensures smooth operation
  • High-quality ball bearings guarantee high concentricity
  • Large drill table features diagonal T-slots
  • Rotation switch for right and left turn
  • Drill table tilts (±45°) – gear rack allows height adjustment

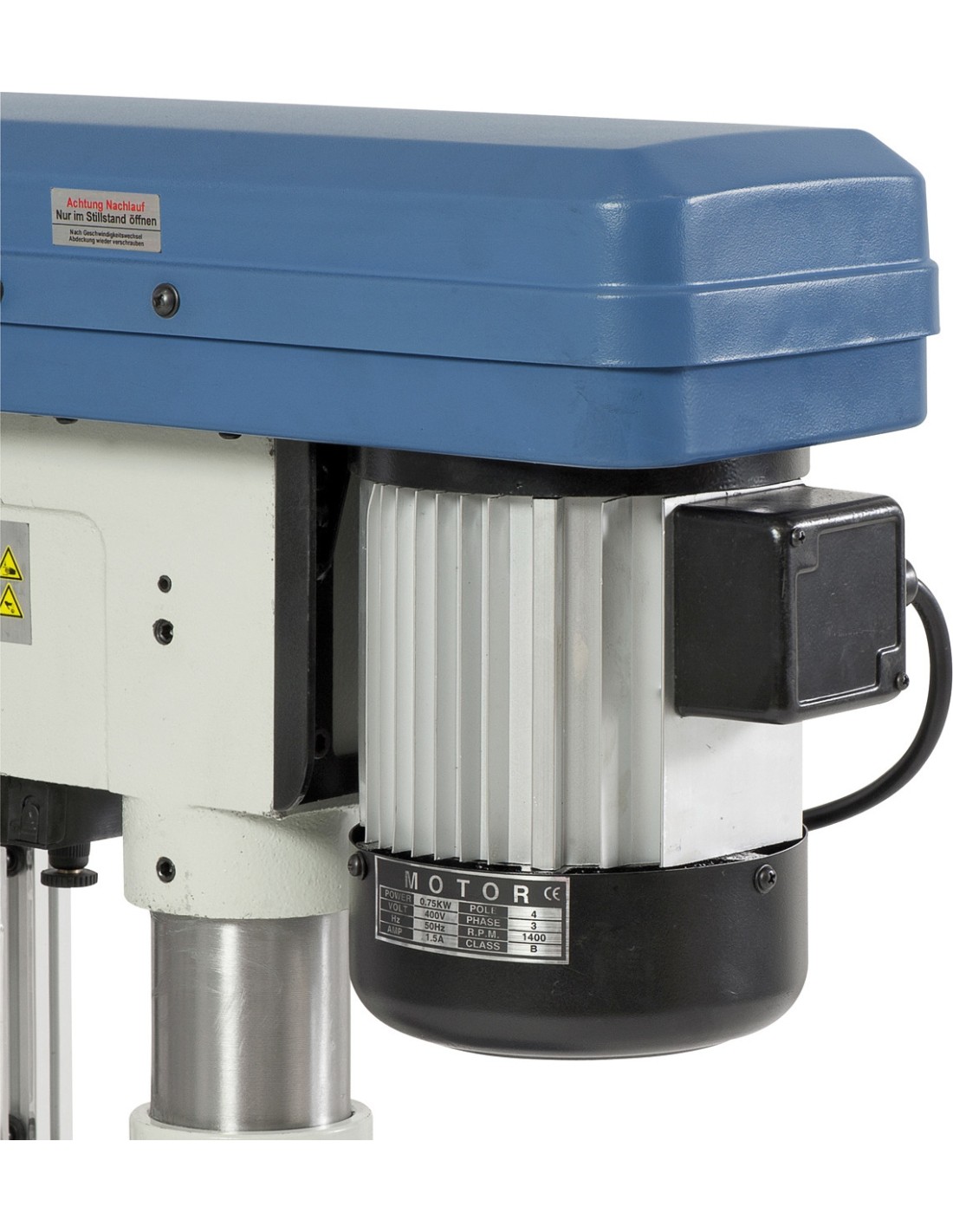

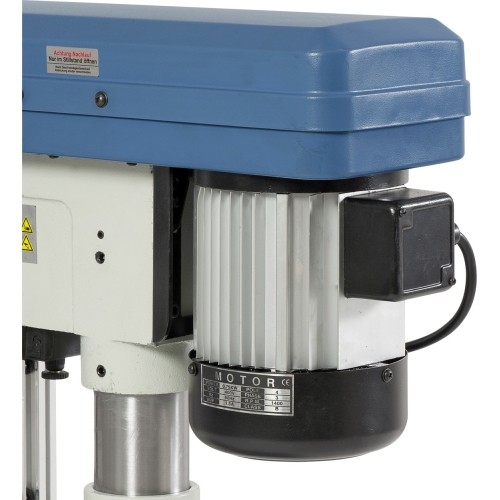

  • Powerful, high performance aluminium motor in accordance with IP 54 standards
  • Precise keyless drill chuck comes as part of the standard accessories
  • Complete with T-slots in polished base plate
  • Ergonomically designed handles maximises work comfort

Standard accessories

  • Keyless drill chuck 1 – 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18
  • Digital spindle stroke indication
  • Digital readout of speed
  • Cross line laser device
  • Left and right turning
  • T-slot nuts

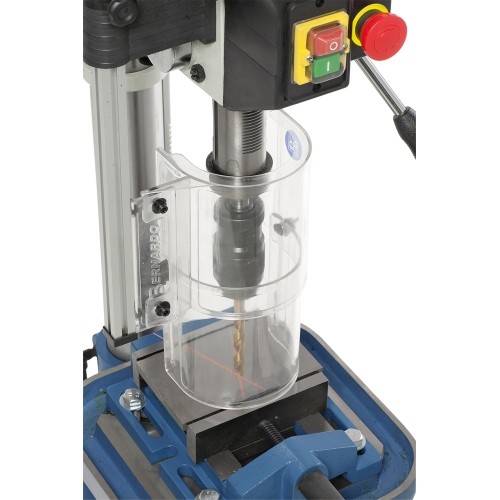

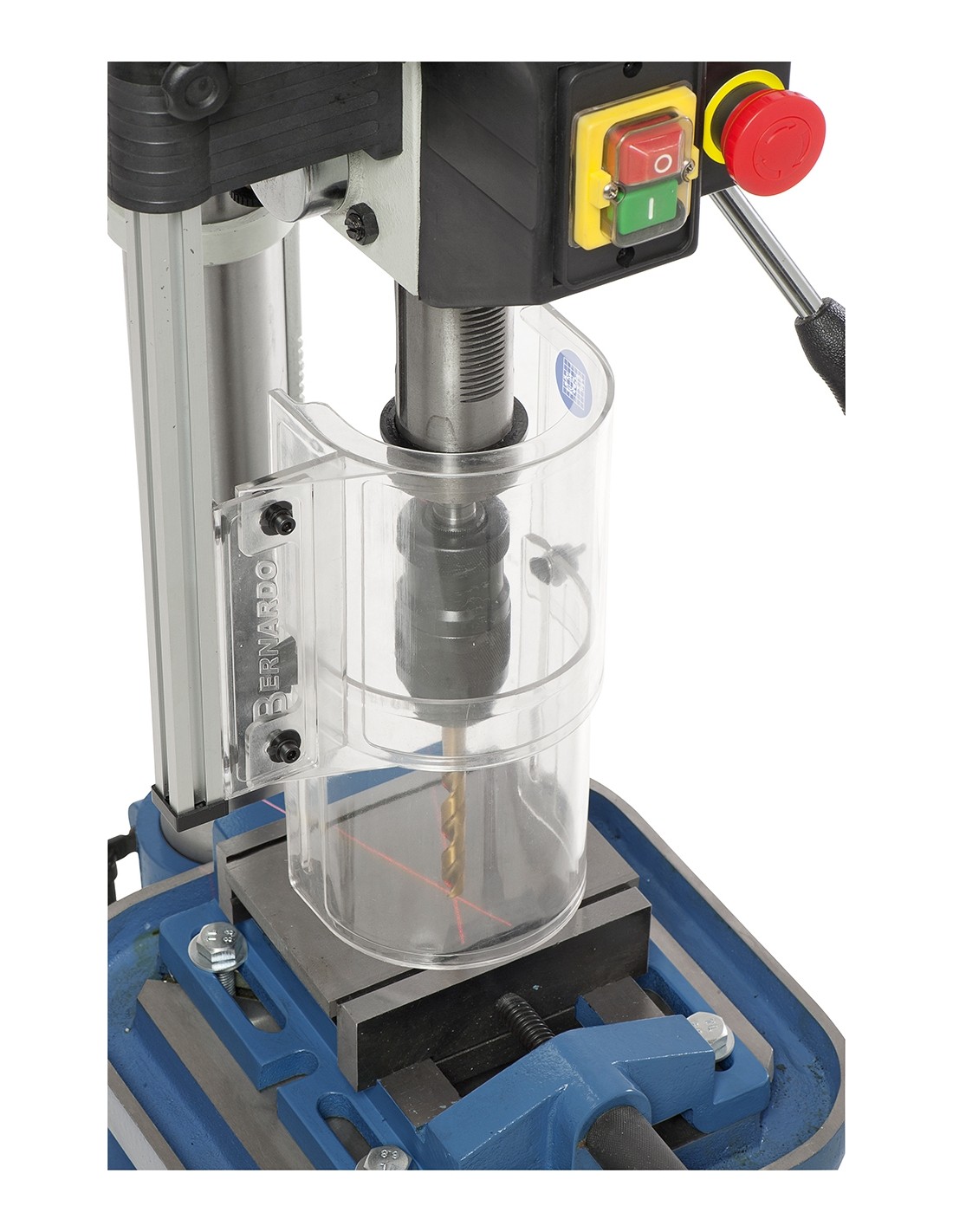

  • Height adjustable protective cover
  • Separate emergency stop switch
  • Tools
