- Weight approx.
- 68 kg
- Machine dimension (W x D x H)
- 420 x 600 x 1560 mm
- Drilling capacity in steel
- 20 mm
- Distance spindle to column
- 180 mm
- Spindle stroke
- 80 mm
- Spindle speed, stepless
- 400 - 1950 rpm
- Motor power output S1 100%
- 0,90 kW / 230 V
- Motor power input S6 40%
- 1,3 kW / 230 V
- Morse taper
- MT 2
- Distance spindle to base
- 1170 mm
- Distance spindle to table max.
- 690 mm
- Table size / T-slot size
- 305 x 305 mm / 16 mm
- Drill chuck
- 1 - 16 mm / B 18
- Column diameter
- 72 mm
- Working surface of base
- 205 x 205 mm
- Table tiltable
- -45° to +45°

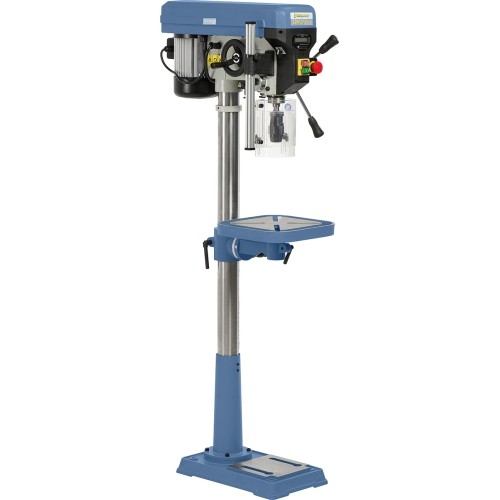

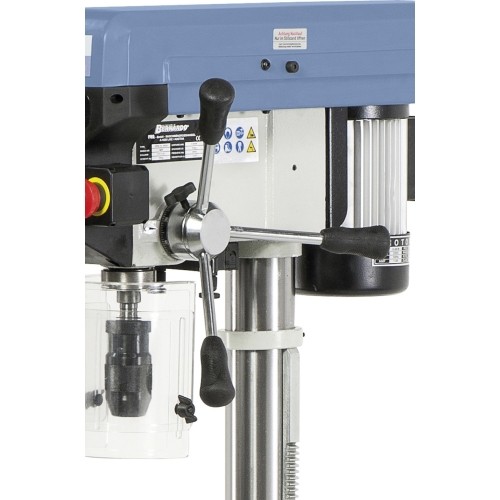

SBM 20 Vario - 230 V
1091976
Price
€1,235.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up tuesday, may 5 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 68 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 68 kg.
Description
Properties

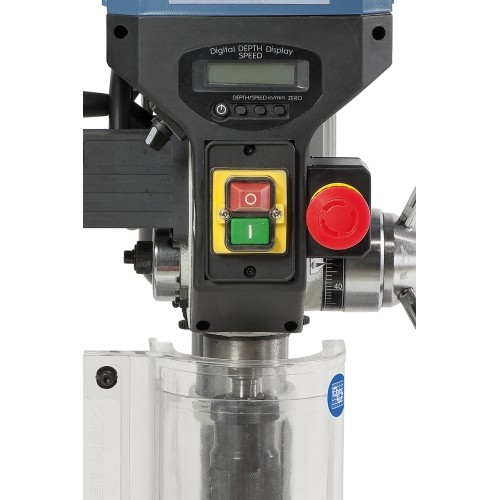

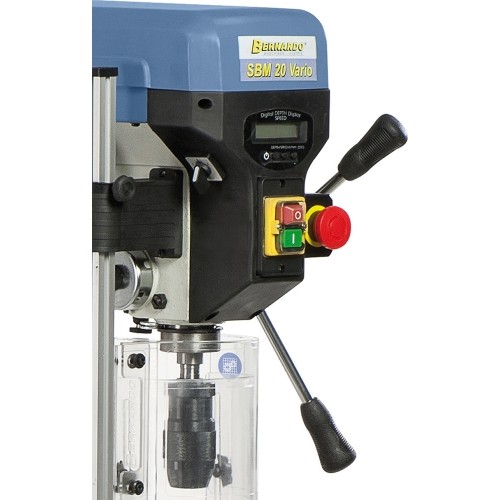

- Digital display allows for easy readout of speed or spindle stroke
- Grey cast iron pulleys ensure smooth operation
- Quality ball bearings guarantee high concentricity

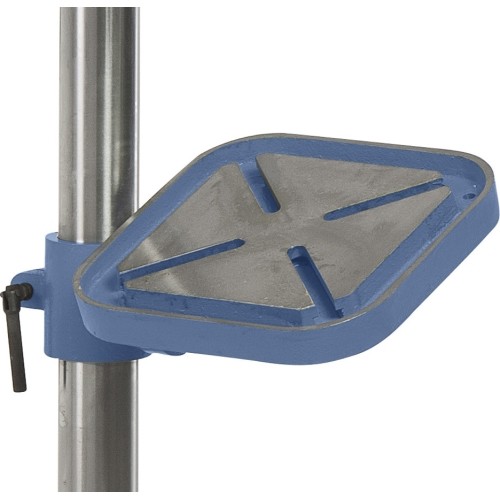

- Oversize drill table features diagonal T-slots
- Drill table tilts (±45°) height adjustment by gear rack

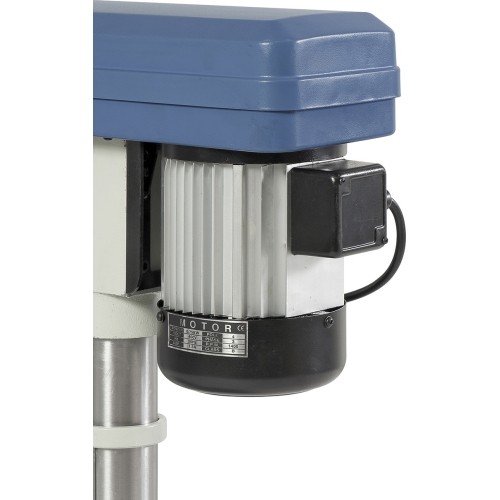

- Powerful, high performance aluminium motor according to IP 54 standards
- Precise keyless drill chuck as part of standard equipment

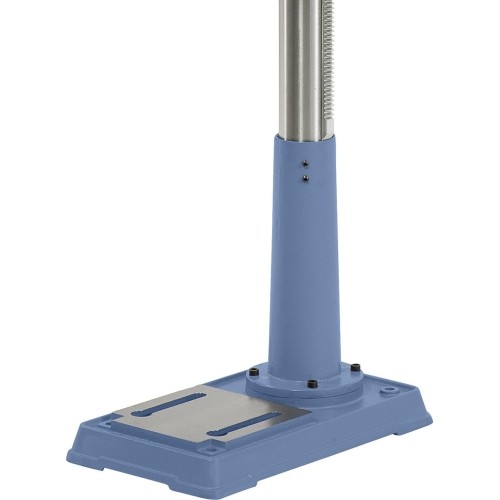

- Comes complete with T-slots in polished base plate
- Ergonomic handles ensure high work comfort
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 2 / B 18
- Digital readout of speed

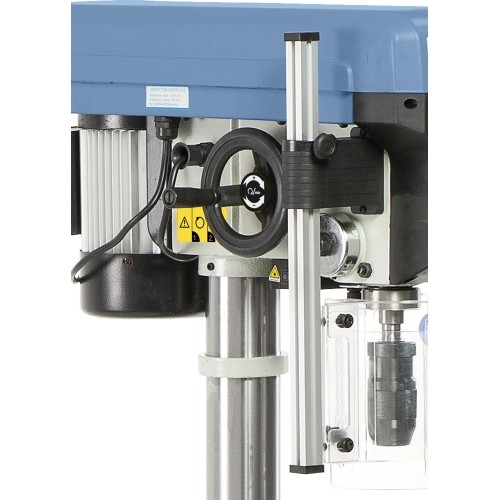

- Digital spindle stroke indication
- Cross laser device
- T-slot nuts

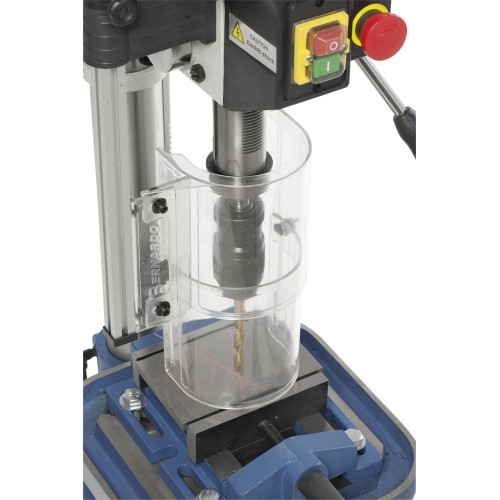

- Height adjustable protective cover
- Separate emergency stop button
- Tools
