Weight approx.
57 kg
Machine dimension (W x D x H)
420 x 600 x 1560 mm
Drilling capacity in steel
16 mm
Distance spindle to column
160 mm
Spindle stroke
80 mm
Spindle speed, stepless
400 - 1950 rpm
Motor power output S1 100%
0,60 kW / 230 V
Motor power input S6 40%
0,85 kW / 230 V
Morse taper
MT 2
Distance spindle to base
1170 mm
Distance spindle to table max.
690 mm
Table size / T-slot size
285 x 285 mm / 16 mm
Drill chuck
1 - 16 mm / B 18
Column diameter
72 mm
Working surface of base
200 x 190 mm
Table tiltable
-45° to +45°

SBM 16 Vario - 230 V

1091974
Price €1,036.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, august 3 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 57 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 57 kg.

Description

Properties

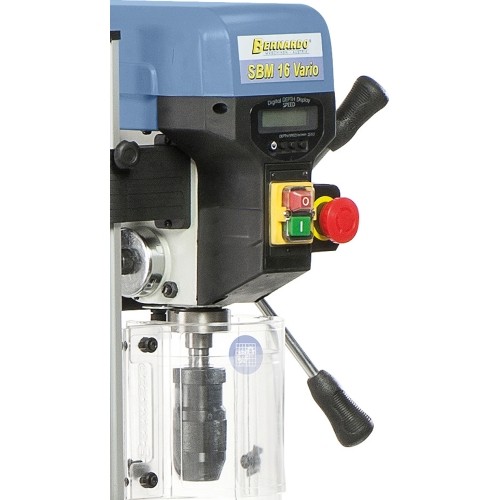

  • Digital display allows for easy readout of speed or spindle stroke
  • Grey cast iron pulleys ensure smooth operation
  • Quality ball bearings guarantee high concentricity

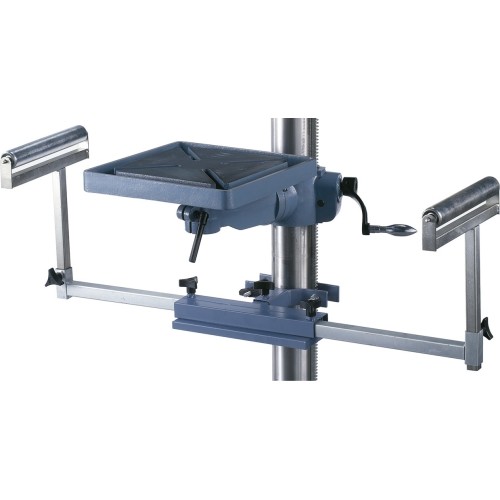

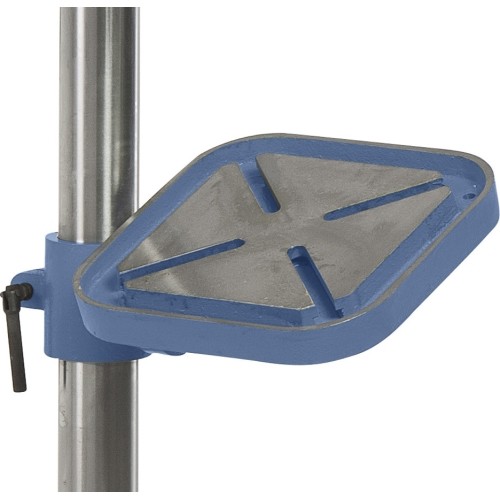

  • Oversize drill table features diagonal T-slots
  • Drill table tilts (±45°) height adjustment by gear rack

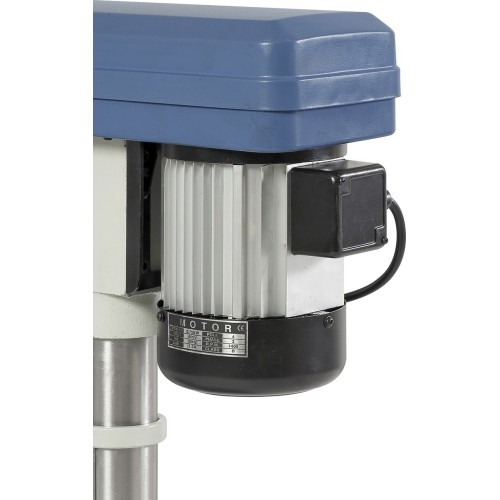

  • Powerful, high performance aluminium motor according to IP 54 standards
  • Precise keyless drill chuck as part of standard equipment

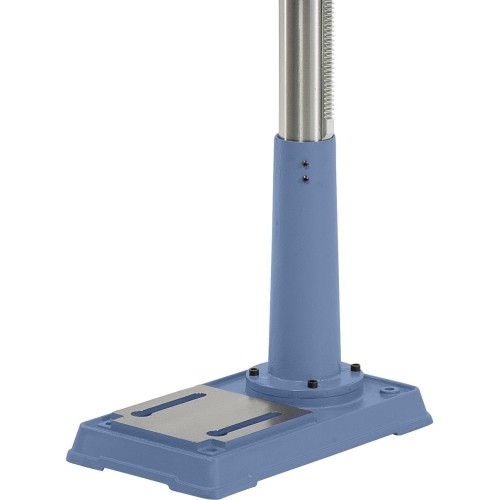

  • Comes complete with T-slots in polished base plate

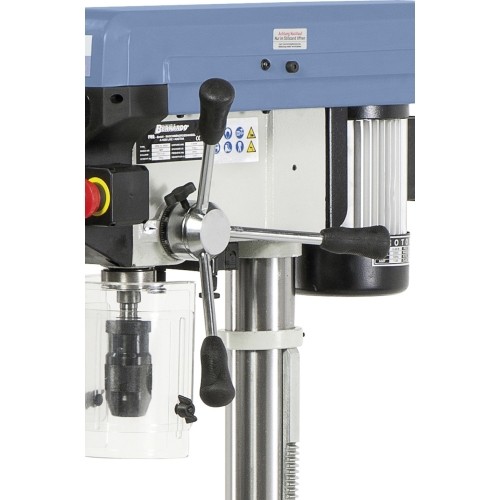

  • Ergonomic handles ensure high work comfort

Standard accessories

  • Keyless drill chuck 1 - 16 mm / B 18
  • Drill chuck arbor MT 2 / B 18

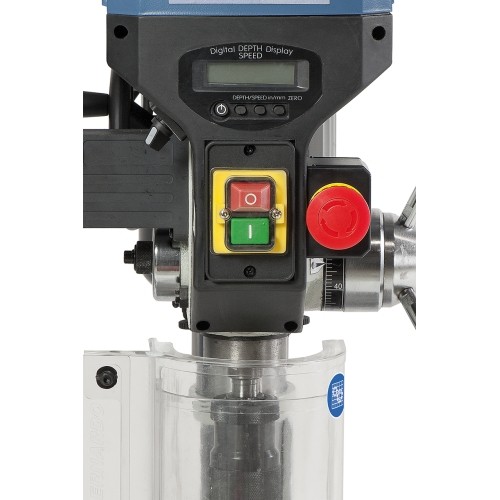

  • Digital readout of speed

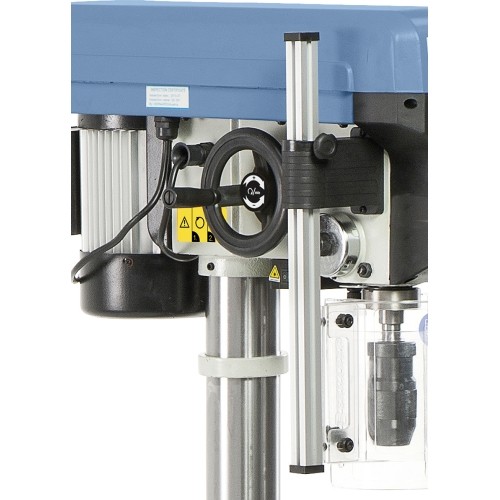

  • Digital spindle stroke indication
  • Cross laser device
  • T-slot nuts

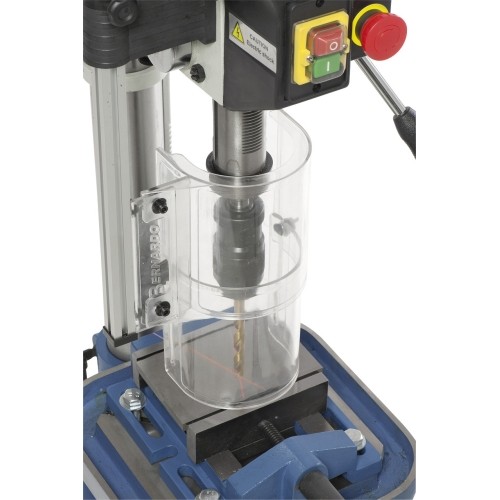

  • Height adjustable protective cover
  • Separate emergency stop button
  • Tools
