- Spindle taper
- MT 4
- Weight approx.
- 362 kg
- Machine dimension (W x D x H)
- 1070 x 800 x 2060 mm
- Drilling capacity in steel
- 32 mm
- Distance spindle to column
- 280 mm
- Spindle stroke
- 120 mm
- Spindle speed, stepless
- 75 - 2750 rpm
- Travel (x / y)
- 495 / 200 mm
- Mill head tiltable
- -90° to +90°
- Height adjustment of mill head
- 260 mm
- T-slot size
- 14 mm
- Motor power output S1 100%
- 1,5 kW / 400 V
- Motor power input S6 40%
- 2,2 kW / 400 V
- Distance spindle to table max.
- 640 mm
- Column diameter
- 115 mm
- Table size
- 730 x 210 mm
- Drilling capacity in cast iron
- 40 mm
- Spindle feed
- (3) 0,10 / 0,18 / 0,26 mm/r
- Milling head max.
- 80 mm
- Distance spindle to base plate max.
- 1190 mm

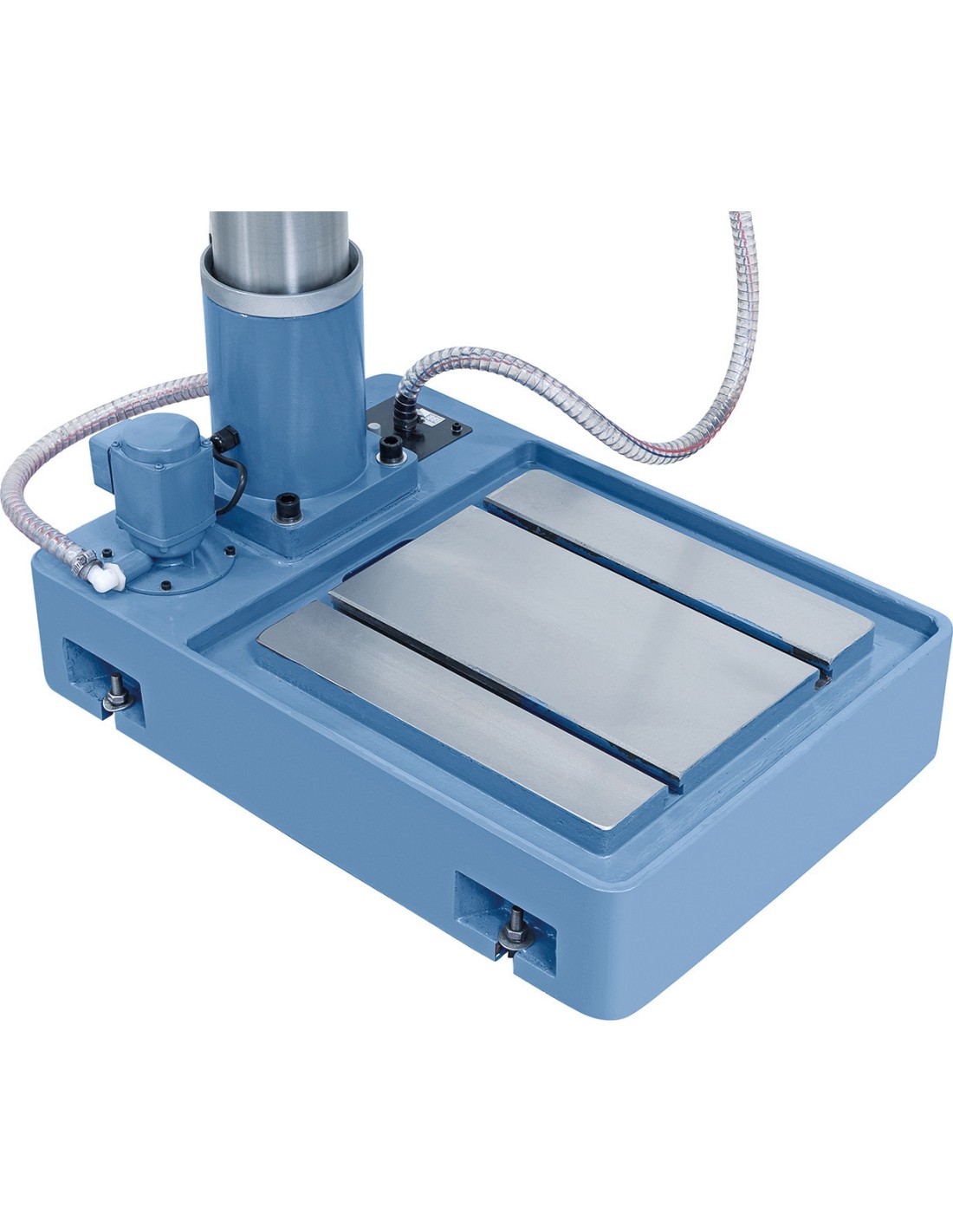

- Base plate
- 365 x 375 mm

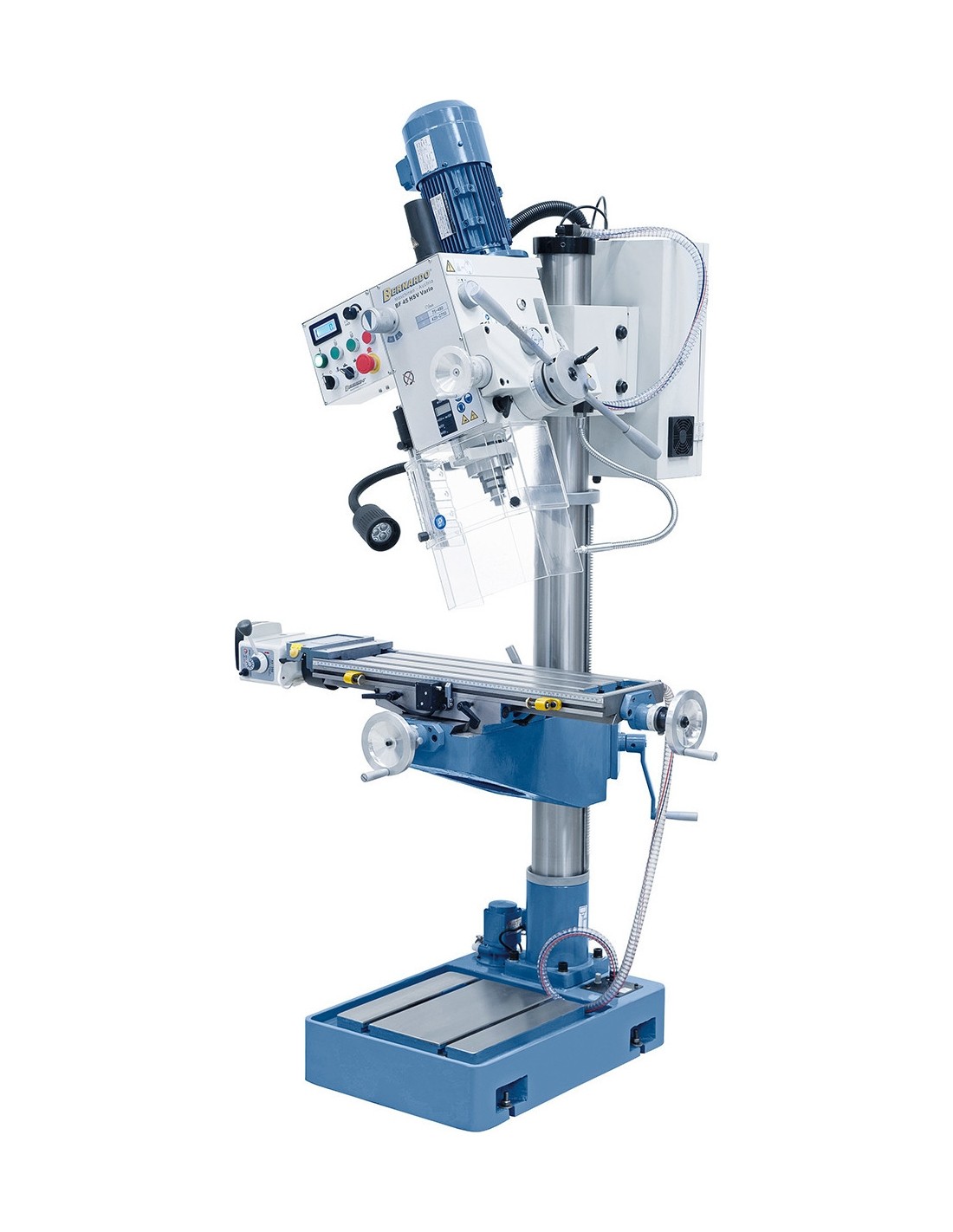

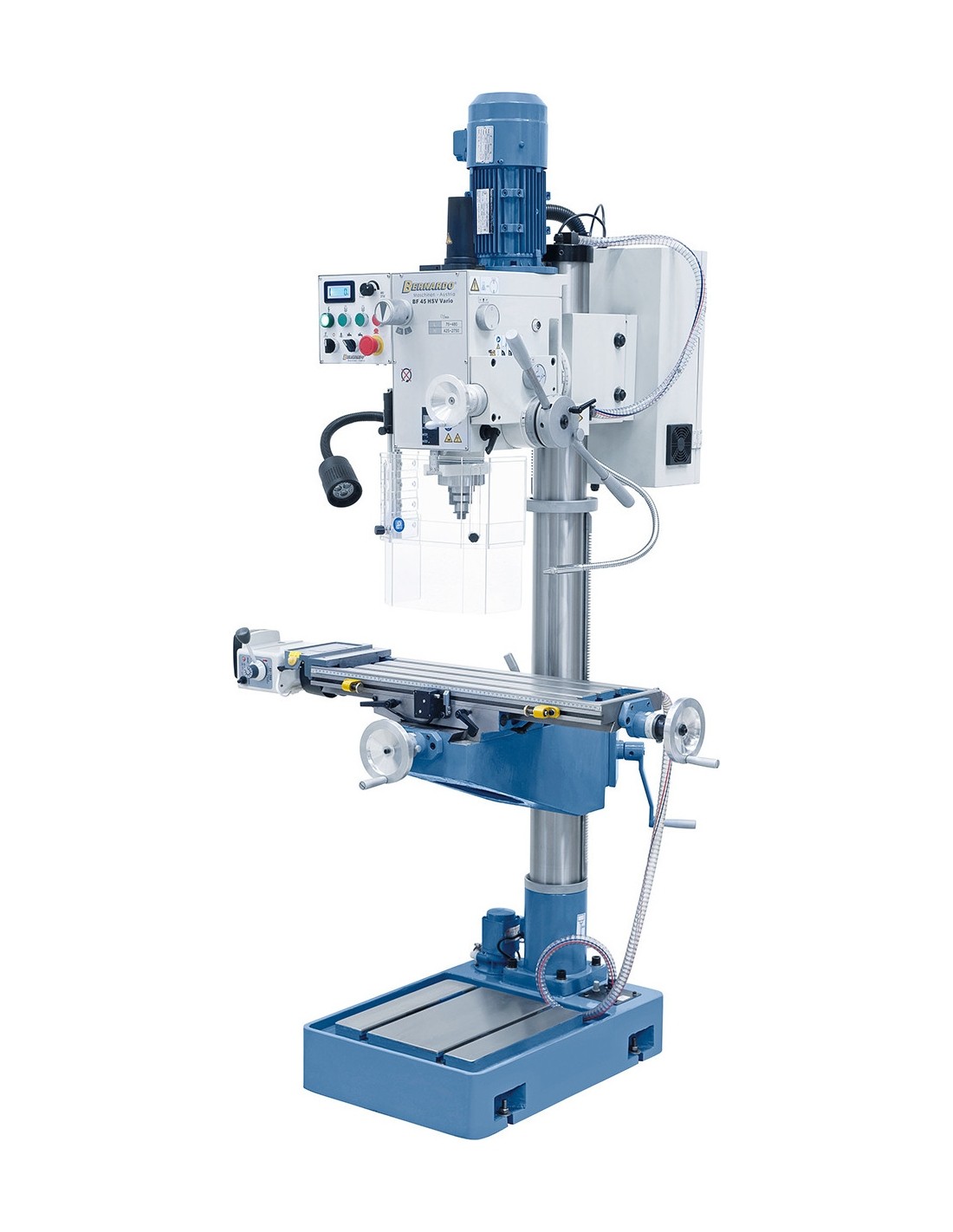

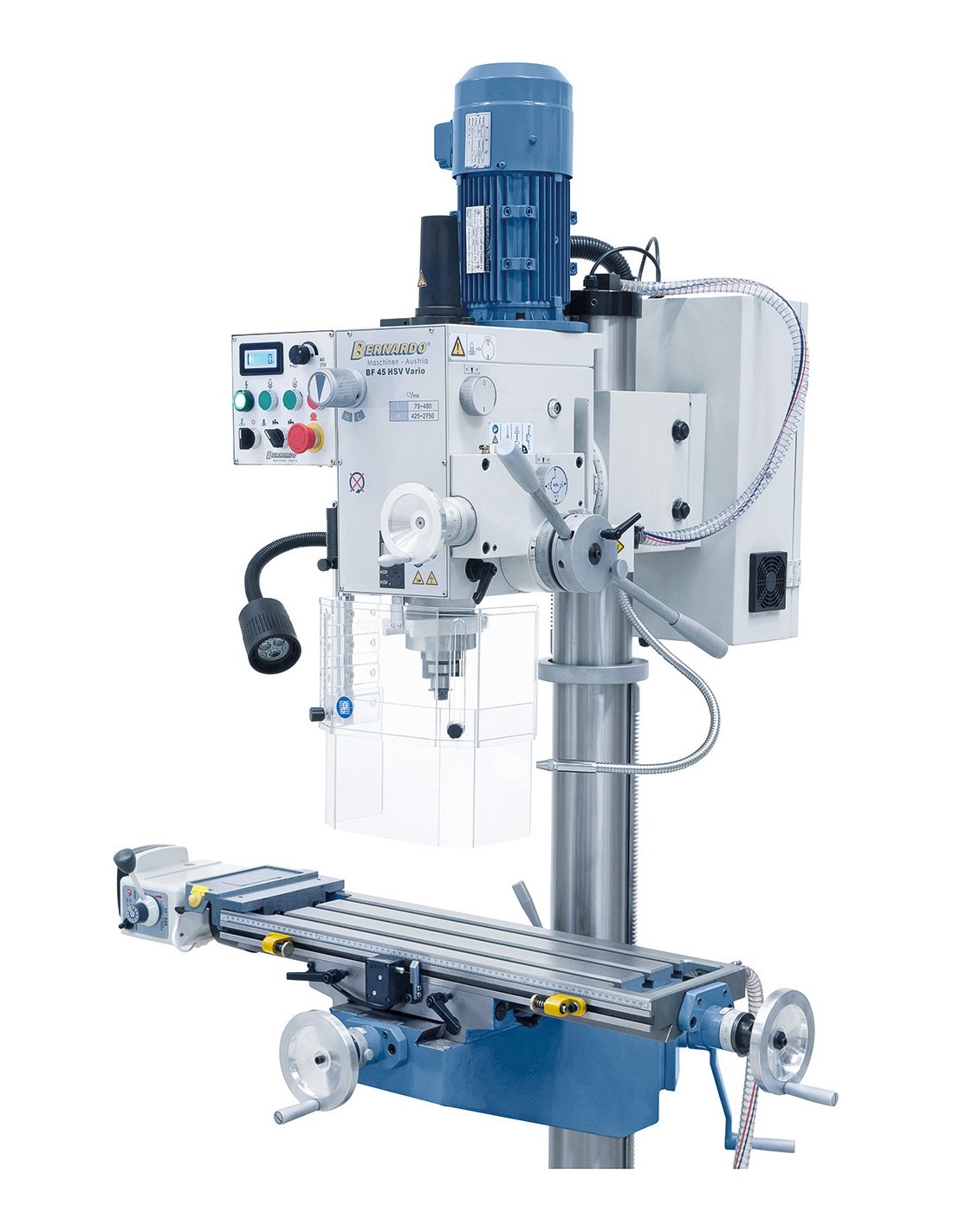

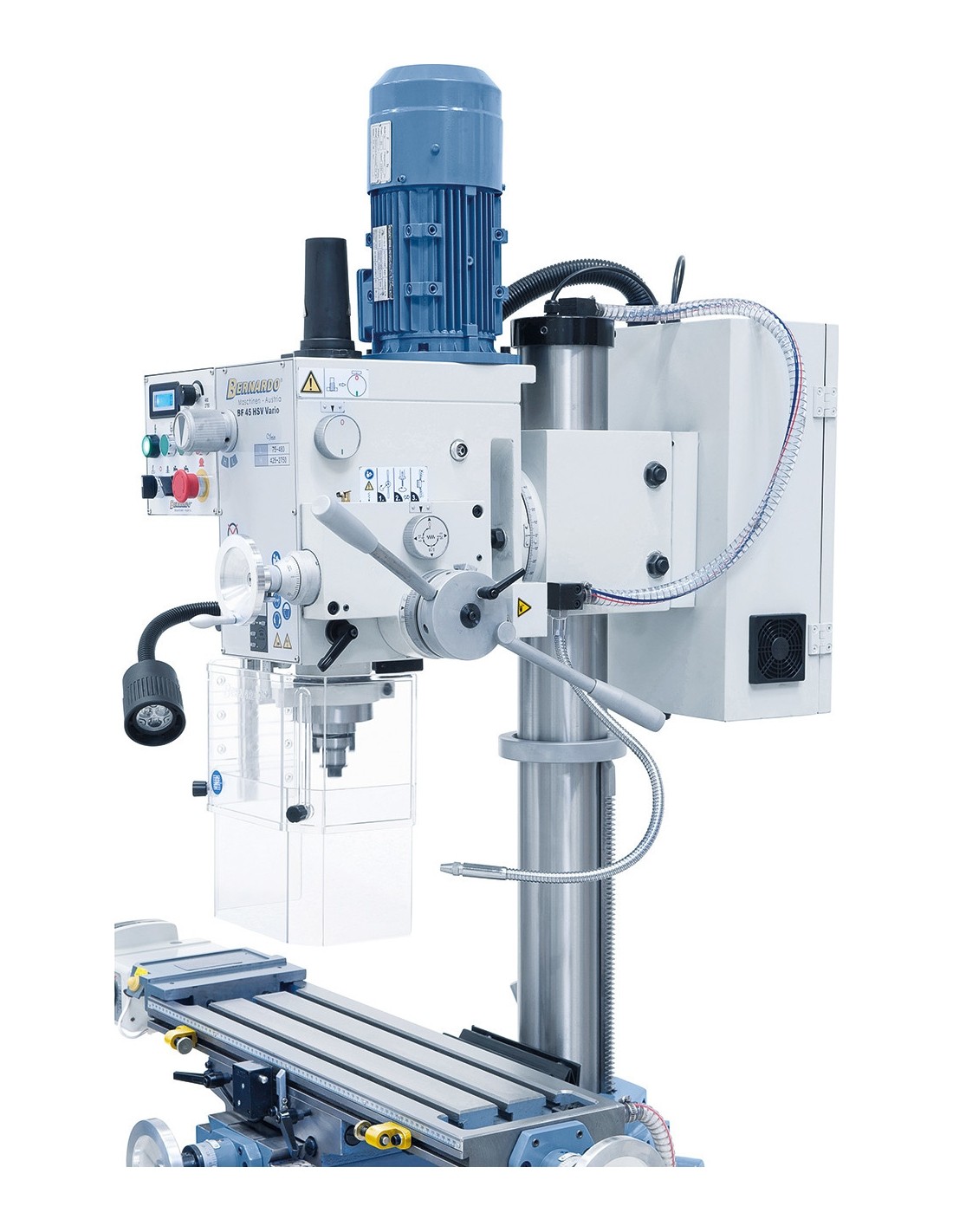

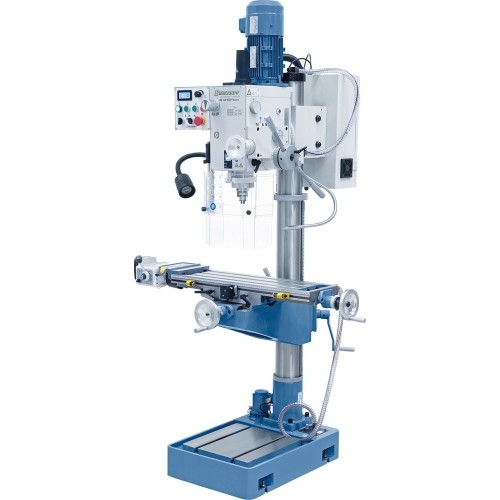

BF 45 HSV Vario with x-axis power feed
1092059
Price
€6,751.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(3+ pcs)
Delivery terms:
FREE pick up monday, june 8 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 362 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 362 kg.
Description
Properties
- Delta-frequency inverter ensures variable speed adjustment with optimal torque
- Height adjustable protective cover in accordance to CE standards for increased safety

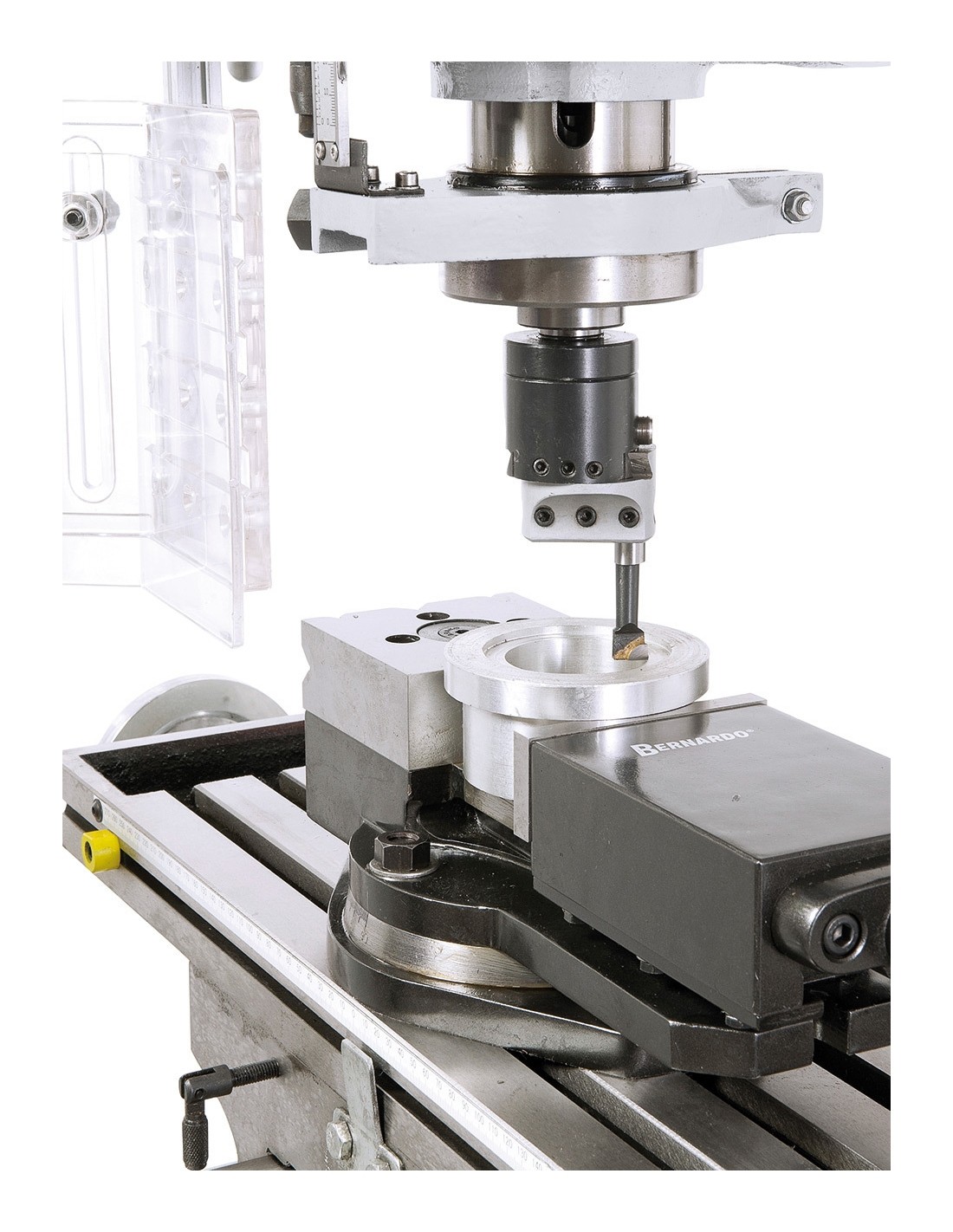

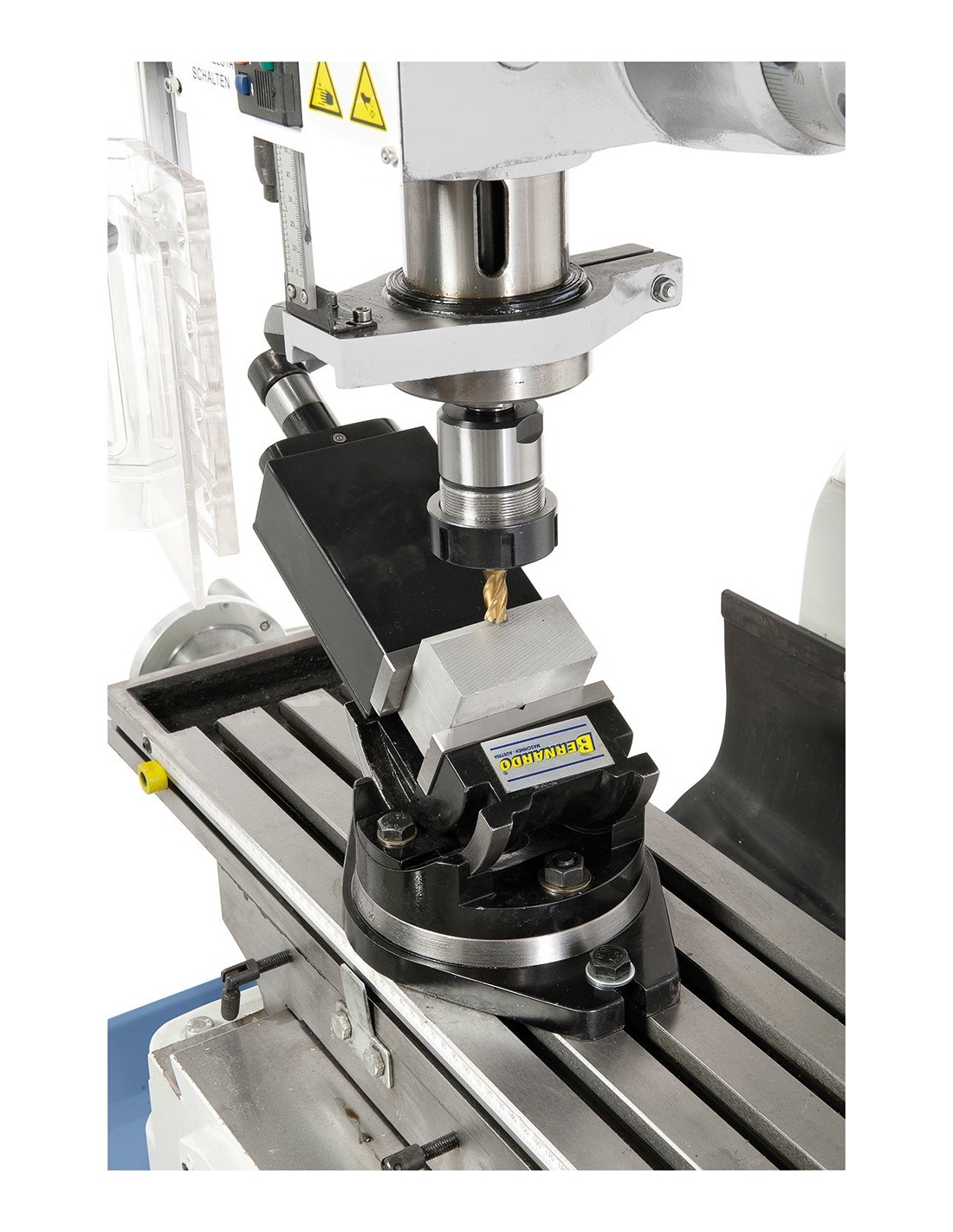

- Many possible applications, such as groove milling, face milling, reboring etc.
- Large cross table with T-slots and coolant groove
- Polished gear wheels, in oil bath, allow smooth running

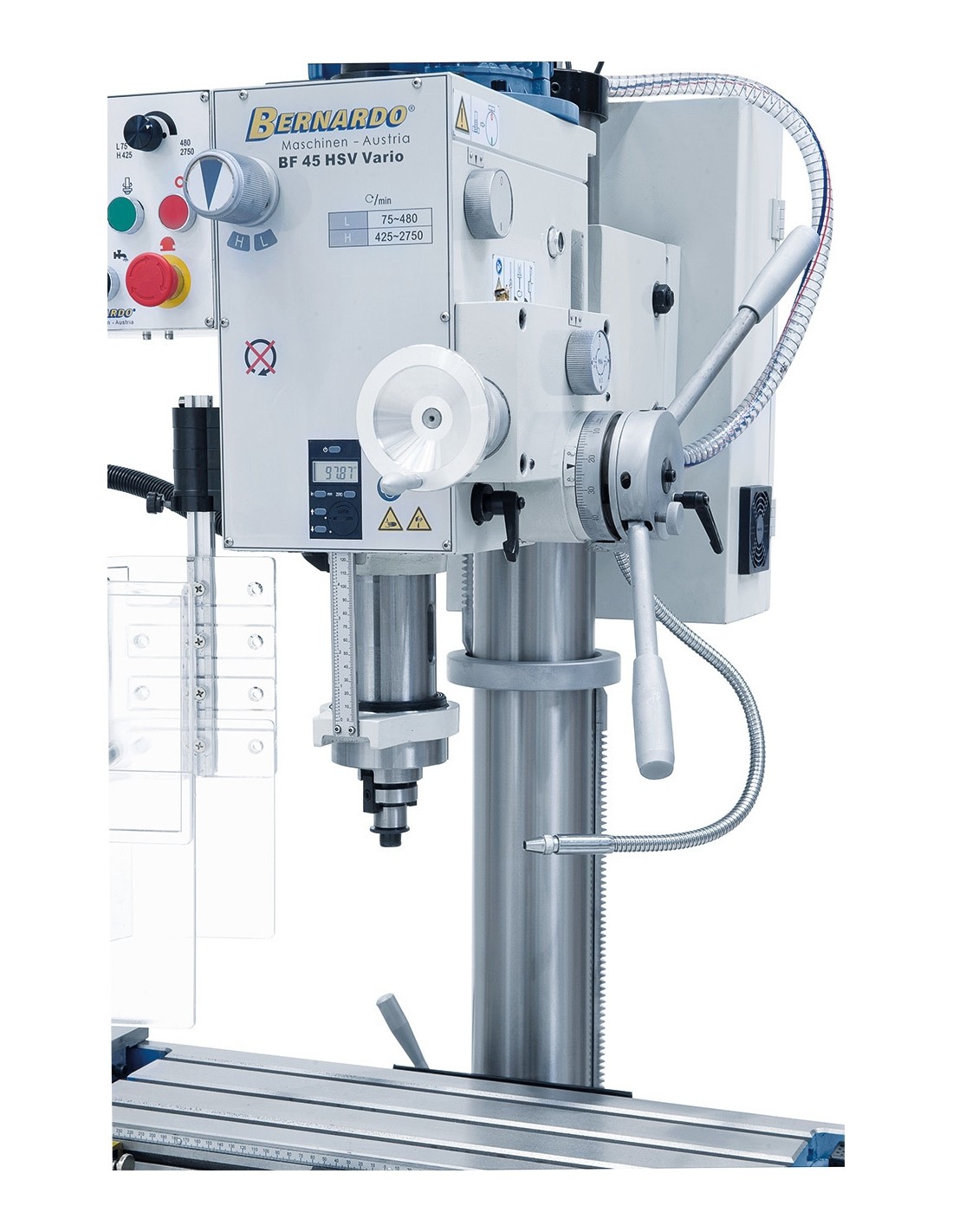

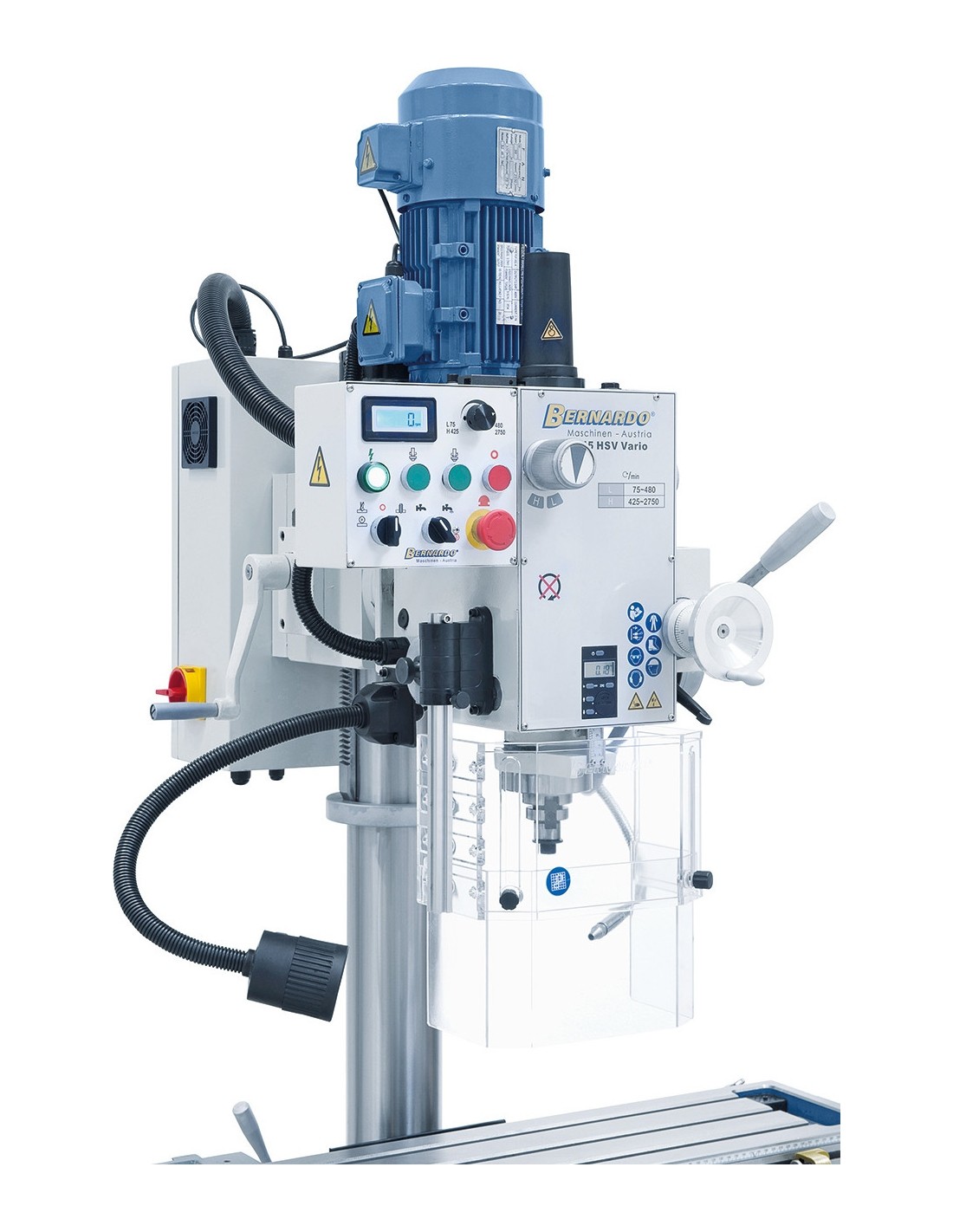

- Digital display for speed and spindle stroke comes standard

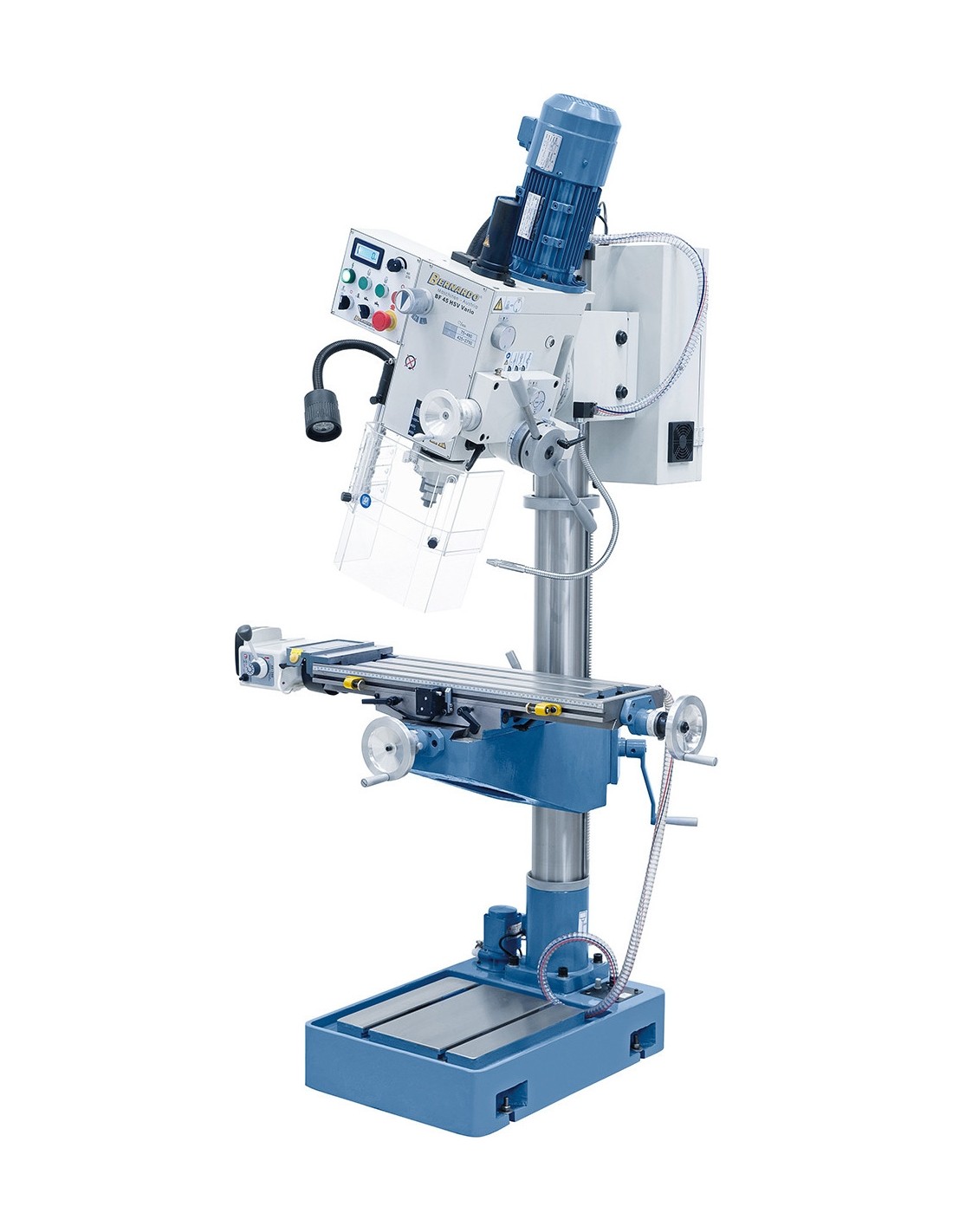

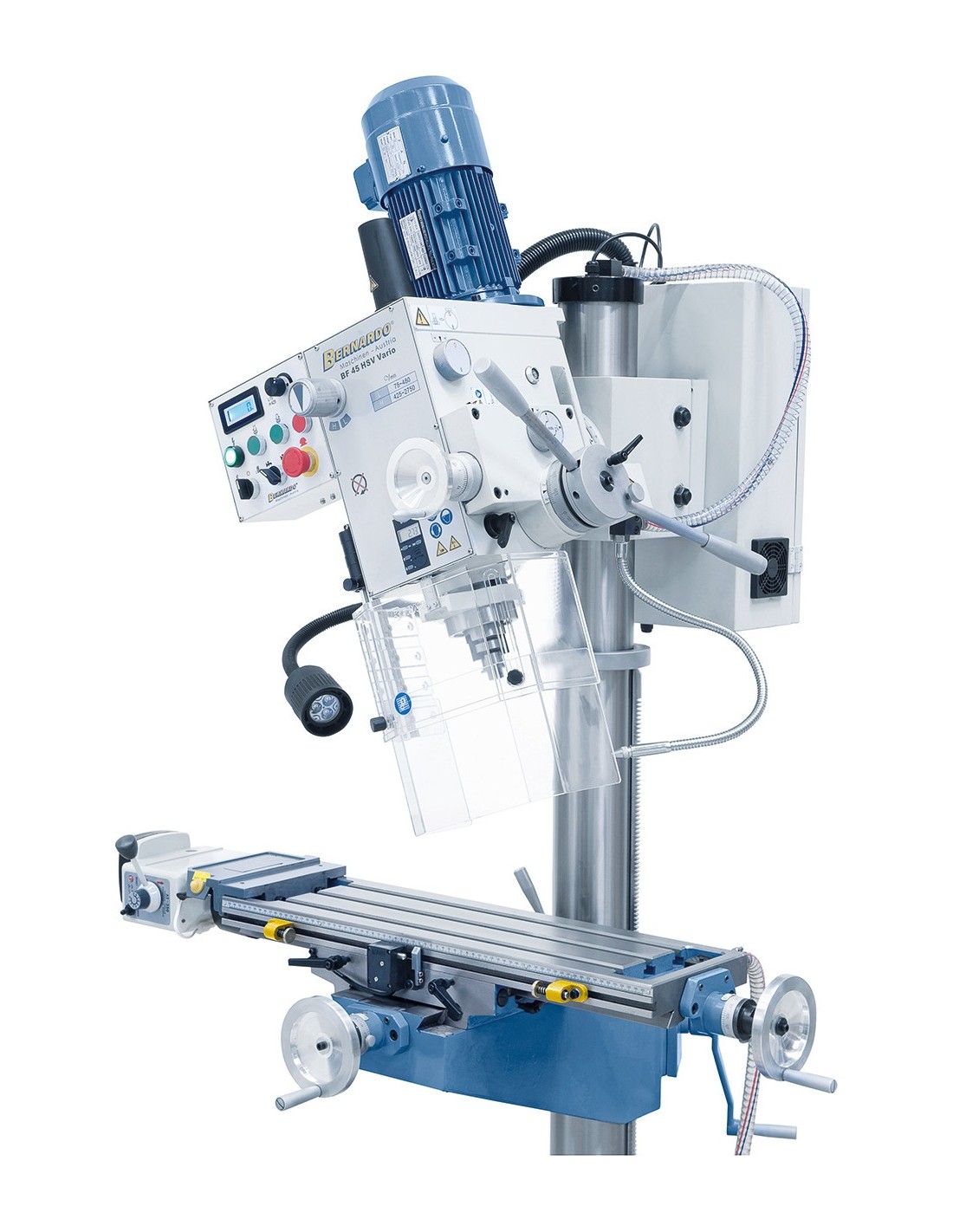

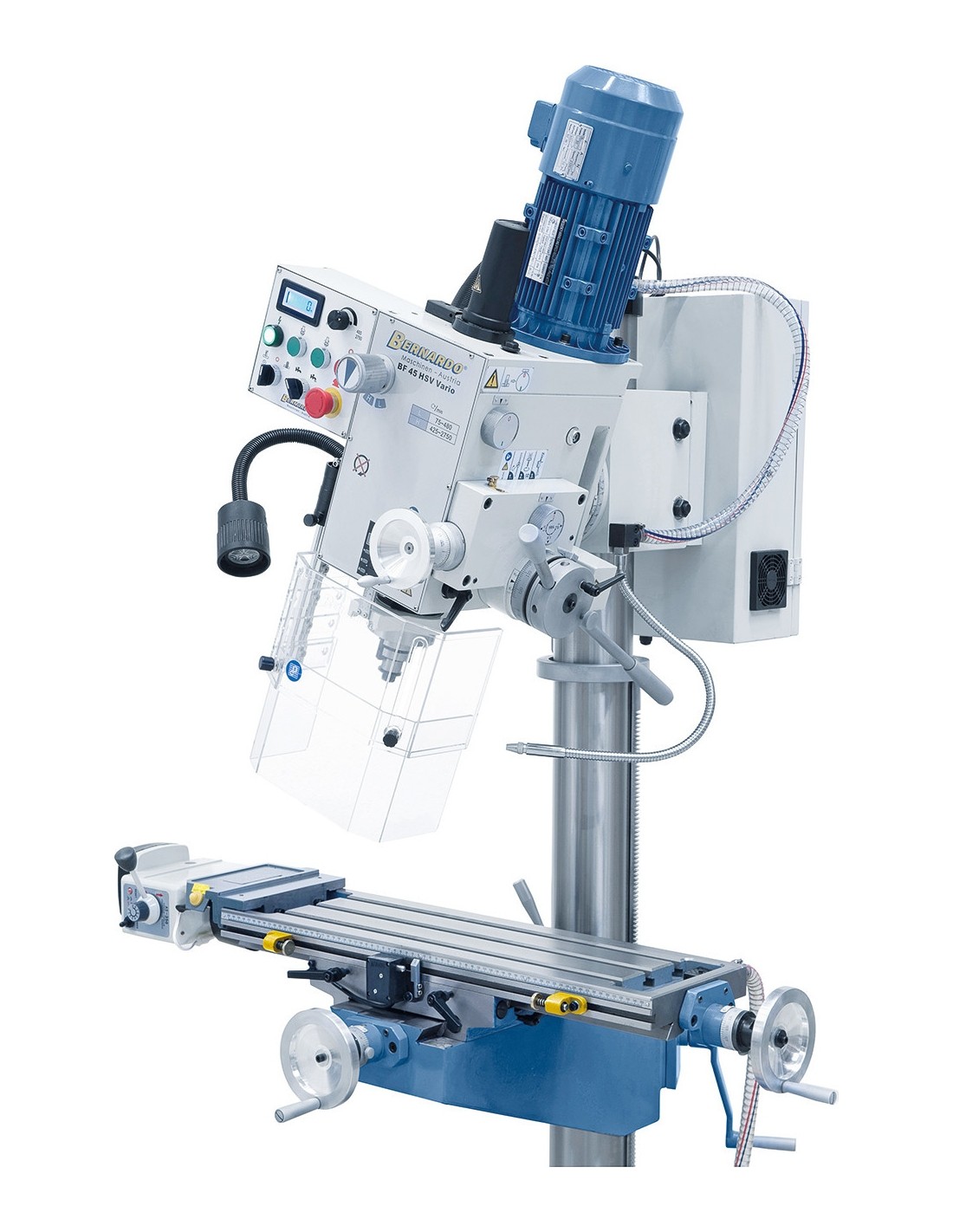

- Mill head tilts to both sides for angular boring, groove milling and many more
- Dovetail guiding in x- and z-axis, adjustable by gibs
- Solid, polished steel column in heavy-duty design
- Comes complete with automatic spindle feed
- Left and right turning for thread cutting
Standard accessories

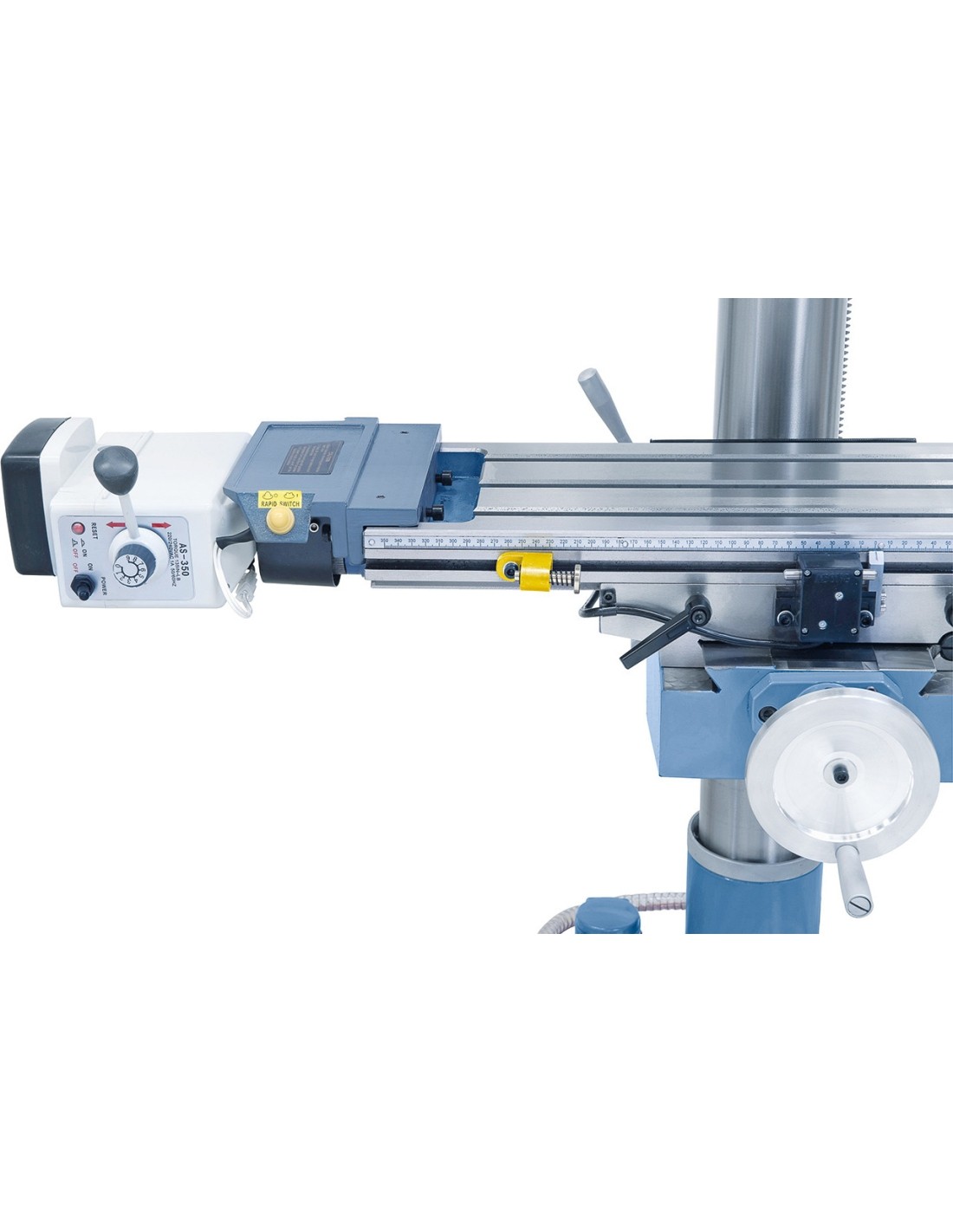

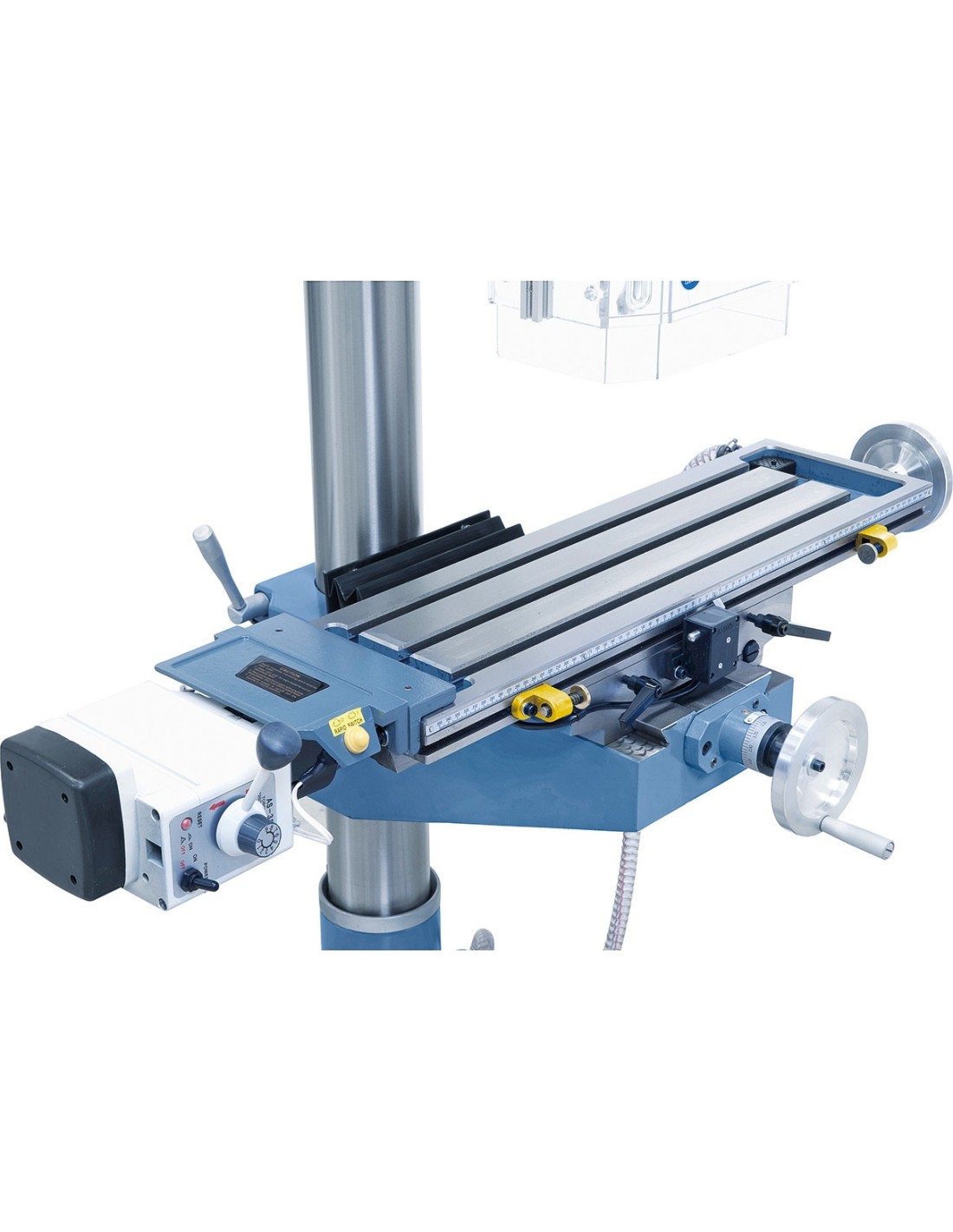

- x-axis power feed AL 450 D
- Keyless drill chuck 1 – 16 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Drawbar M 16
- Morse taper drill sleeve MT 4 / 3
- Taper shell end mill holder MT 4 / 27 mm
- Automatic spindle feed
- Height adjustable protective cover
- Digital spindle stroke indication
- Digital speed indication

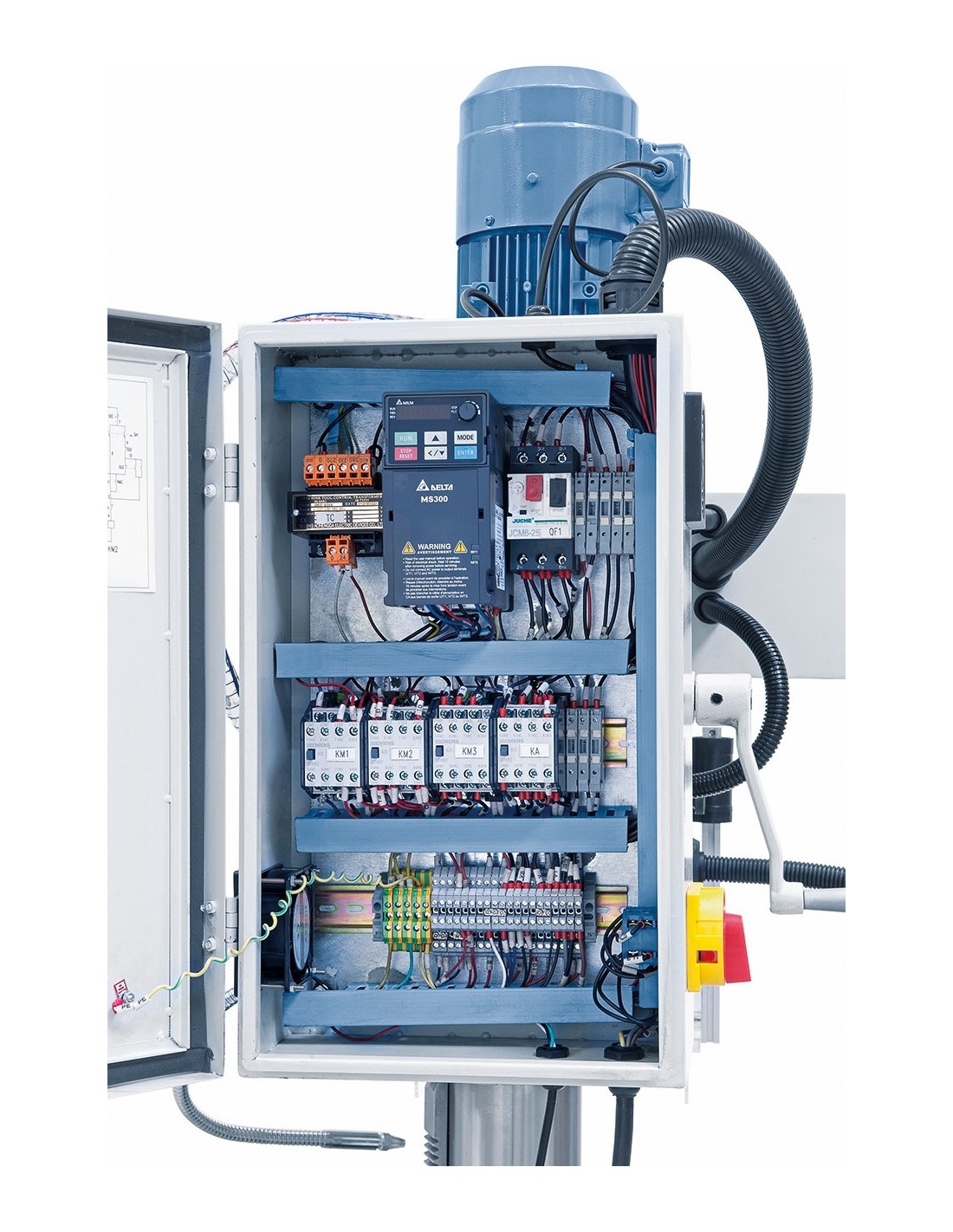

- Frequency inverter
- Thread cutting device
- Coolant device
- LED machine light
- Longitudinal scale
- Tools
