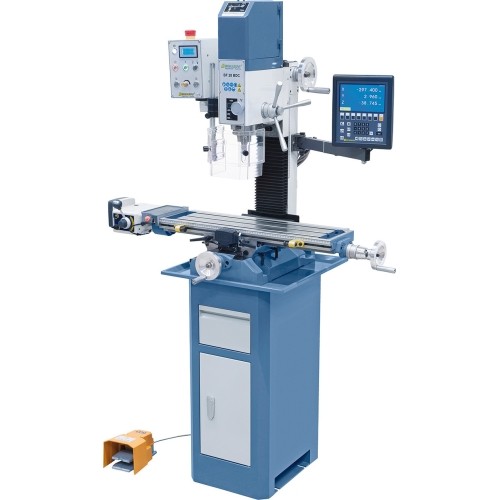

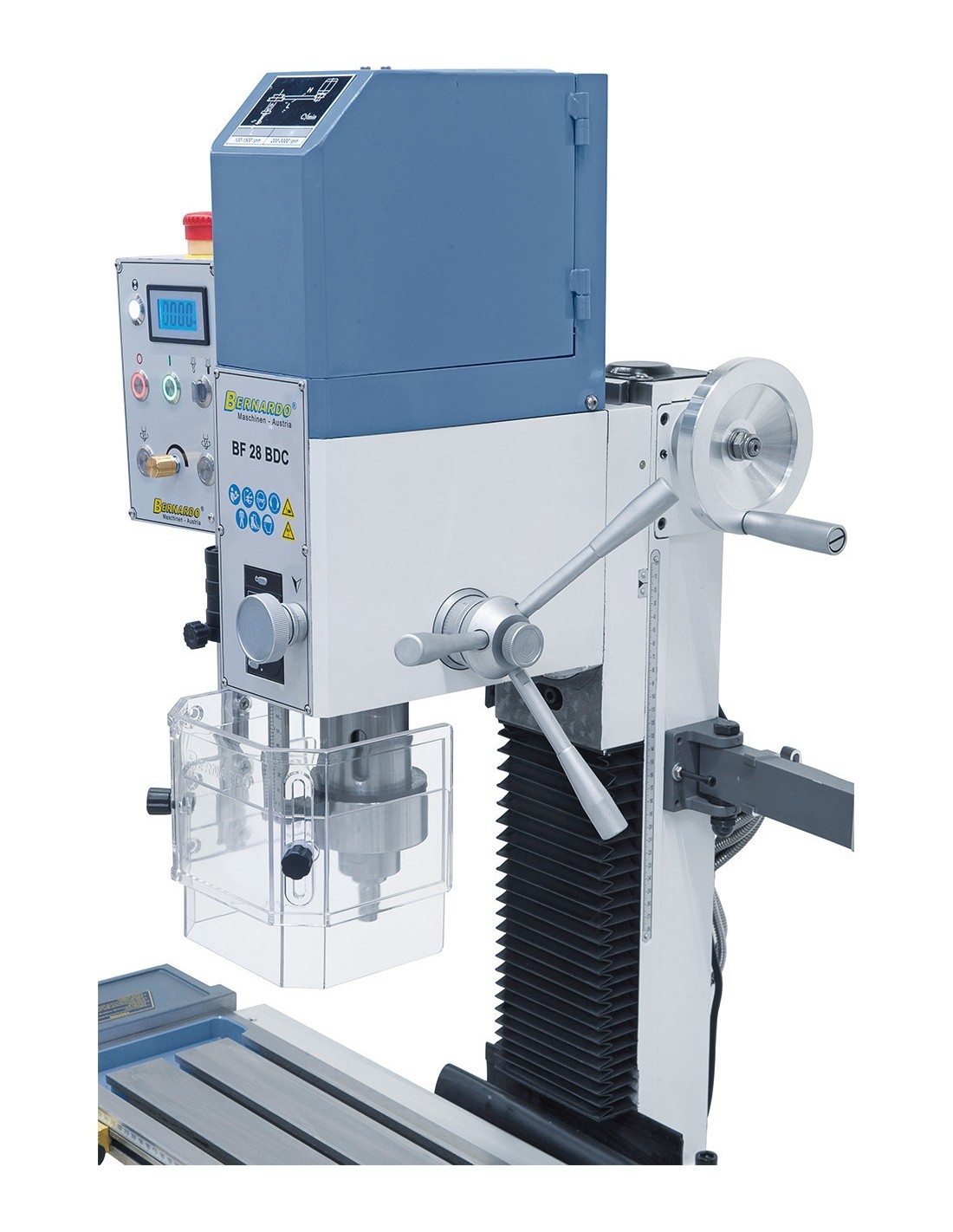

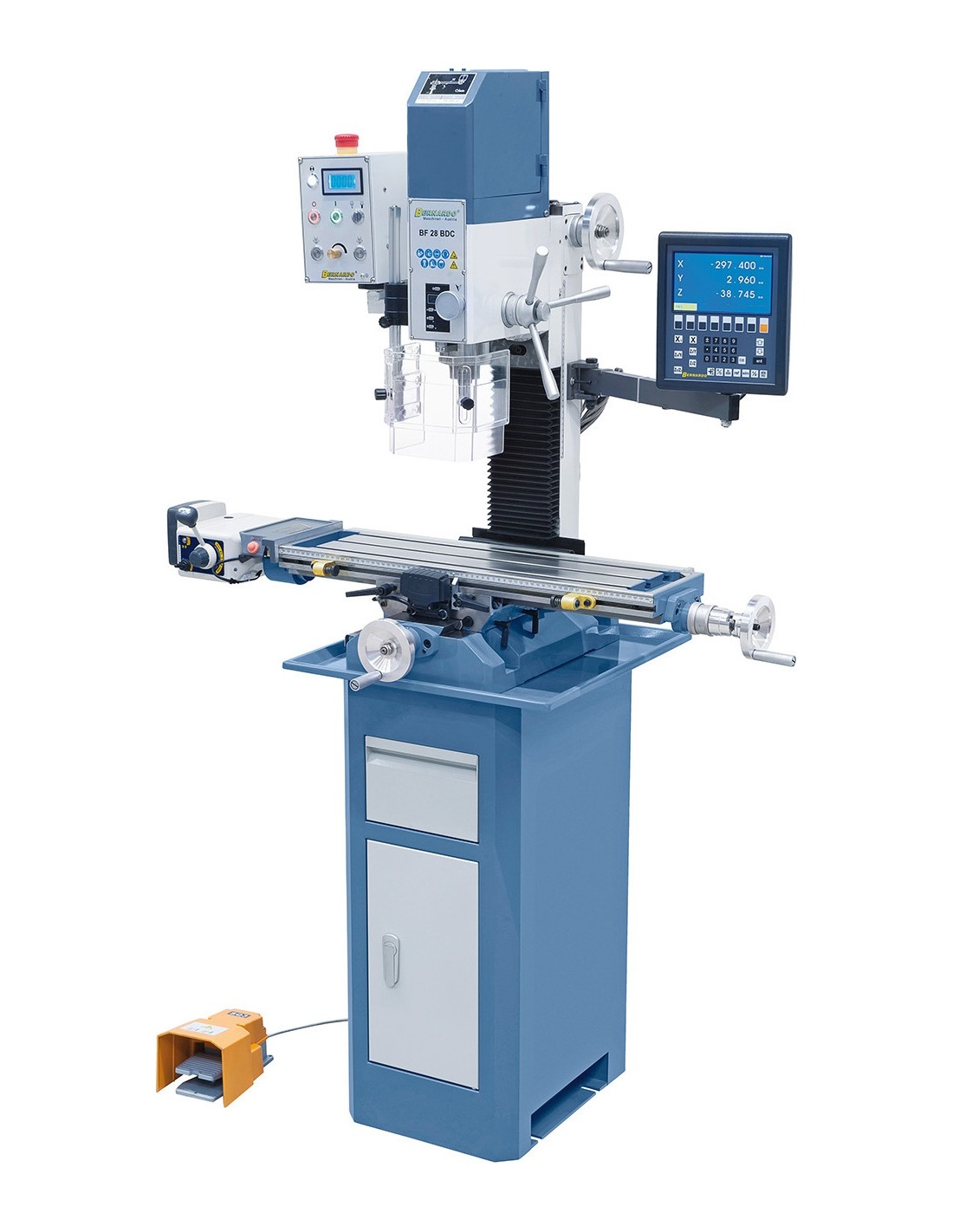

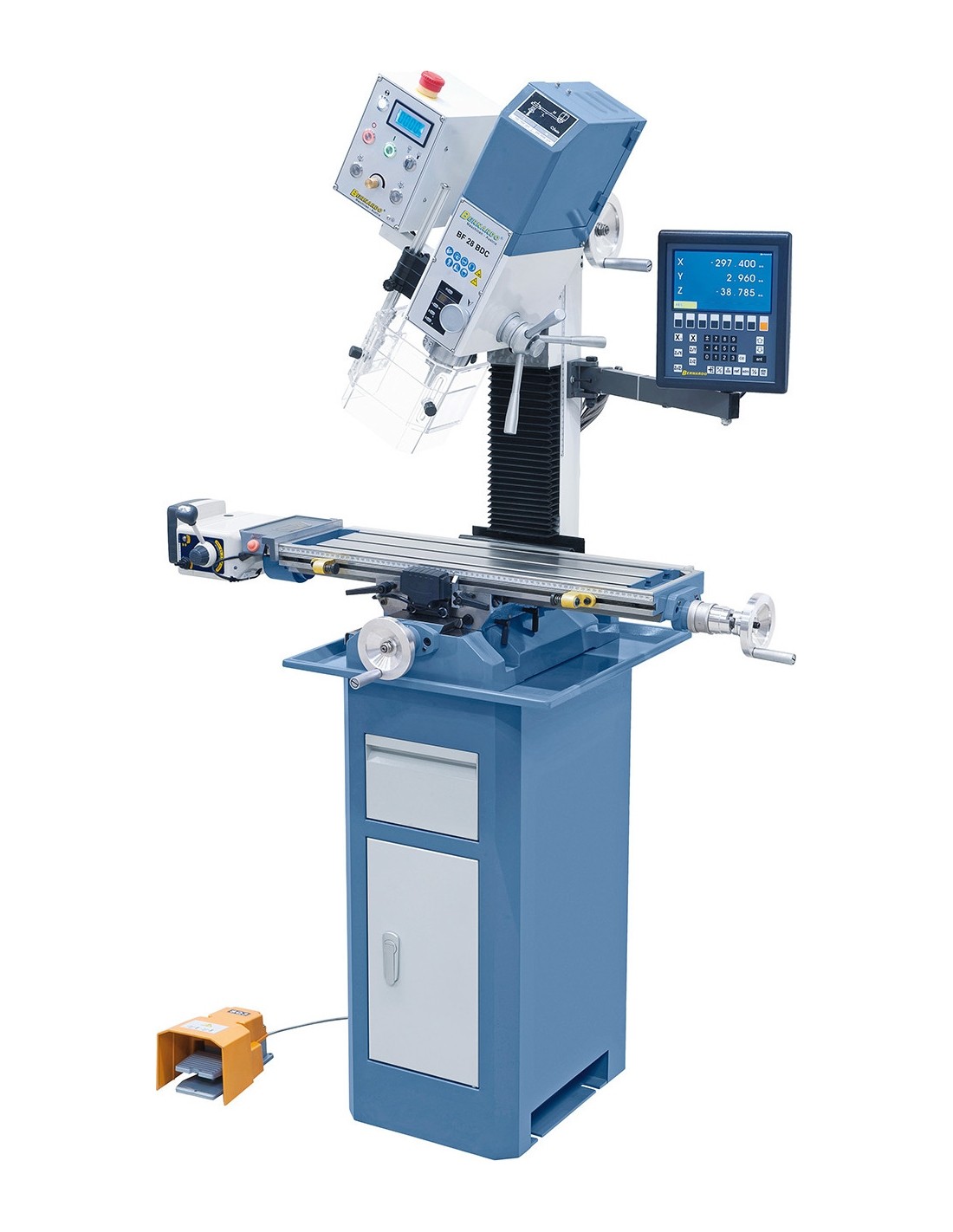

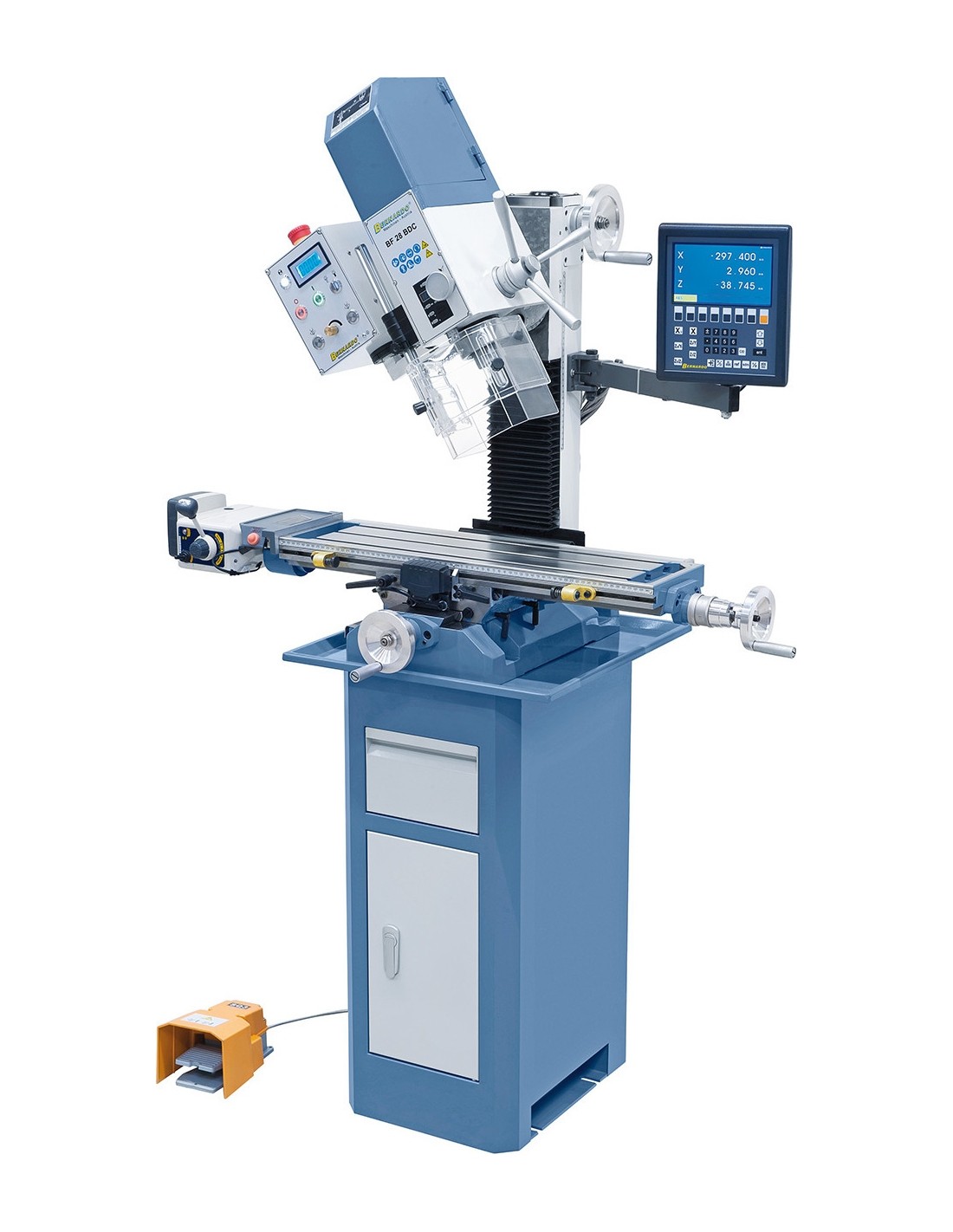

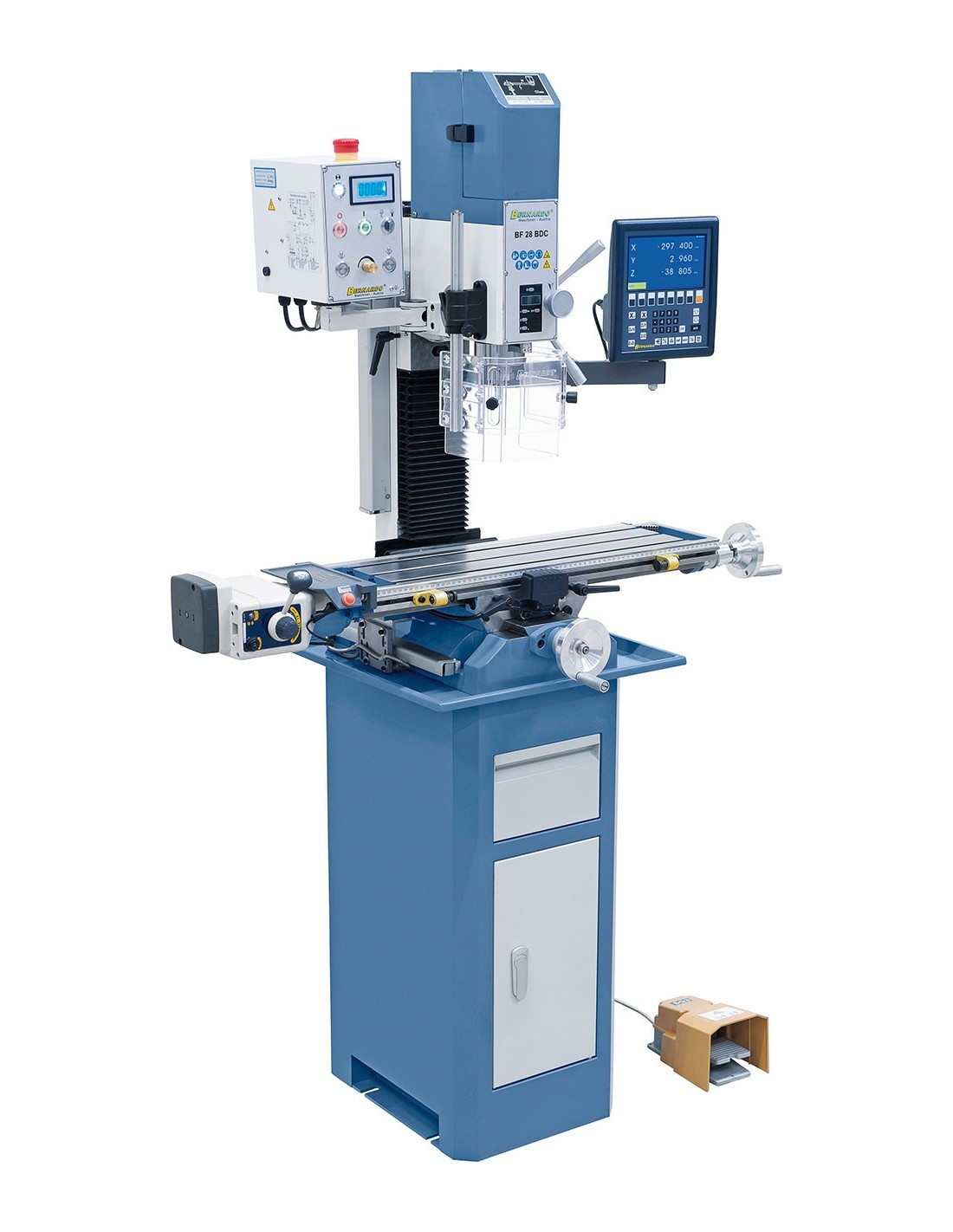

BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
  • Online only
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V
BF 28 BDC with power feed and 3-axis digital readout ES-12 V

Spindle taper
MT 3
Weight approx.
130 kg
Machine dimension (W x D x H)
970 x 605 x 1040 mm
Drilling capacity in steel
28 mm
Face mill capacity max.
63 mm
End mill capacity max.
20 mm
Distance spindle to column
175 mm
Spindle stroke
67 mm
Spindle speed, stepless
100 – 1500 / 200 – 3000 rpm
Travel (x / y)
500 / 215 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
290 mm
T-slot size
12 mm
Motor power output S1 100%
0,75 kW / 230 V
Motor power input S6 40%
1,1 kW / 230 V
Thread cutting max.
M 12
Table size
700 x 180 mm
Distance spindle to table min./max.
75 – 365 mm

BF 28 BDC with power feed and 3-axis digital readout ES-12 V

1092049
Price €3,848.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, september 7 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 130 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 130 kg.

Description

Properties

  • Variable speed adjustment, stepless speed change for ideal adjustment to the workpiece
  • Many possible applications, such as groove milling, face milling, reboring, etc.

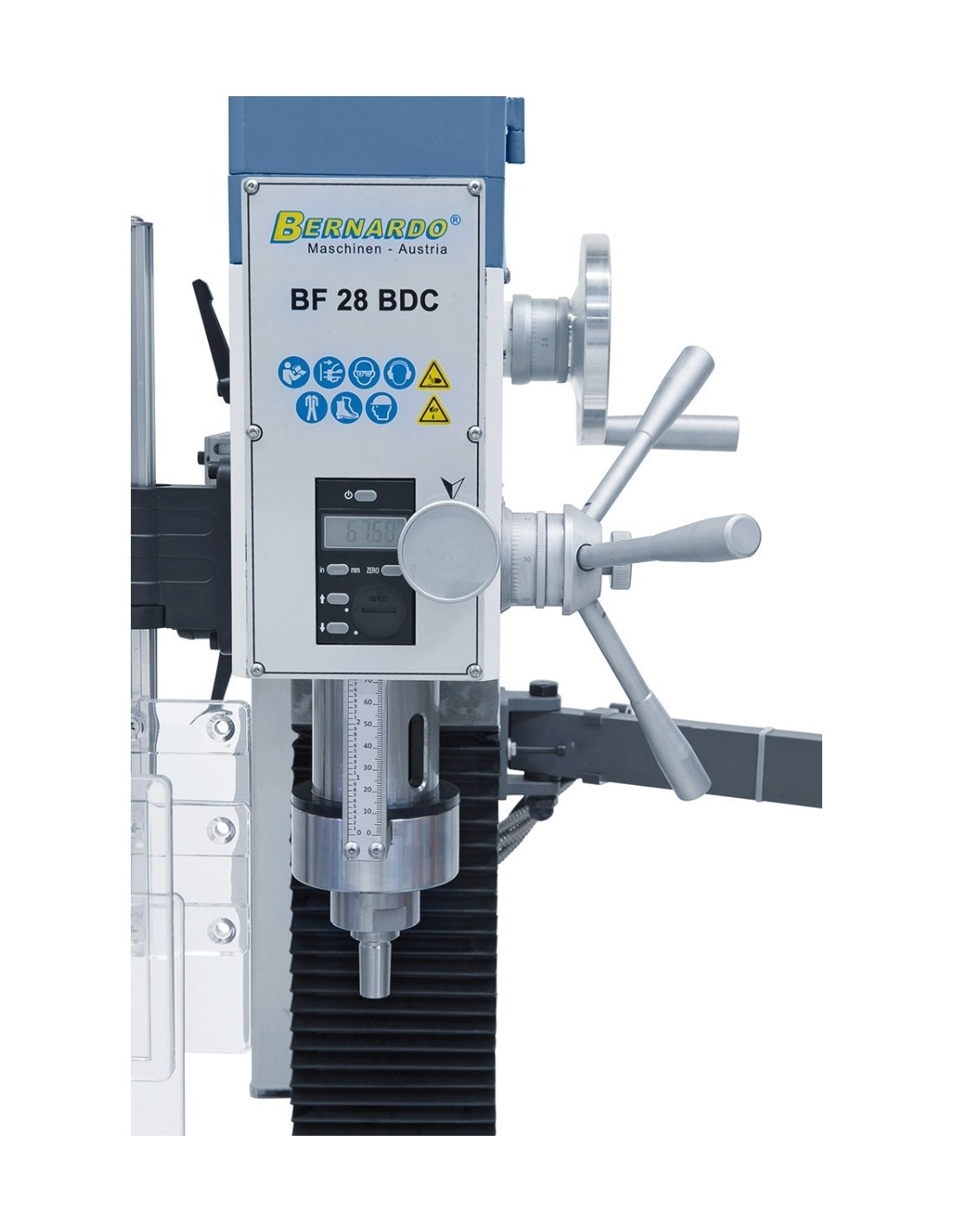

  • Digital speed and spindle stroke indicator included as standard equipment

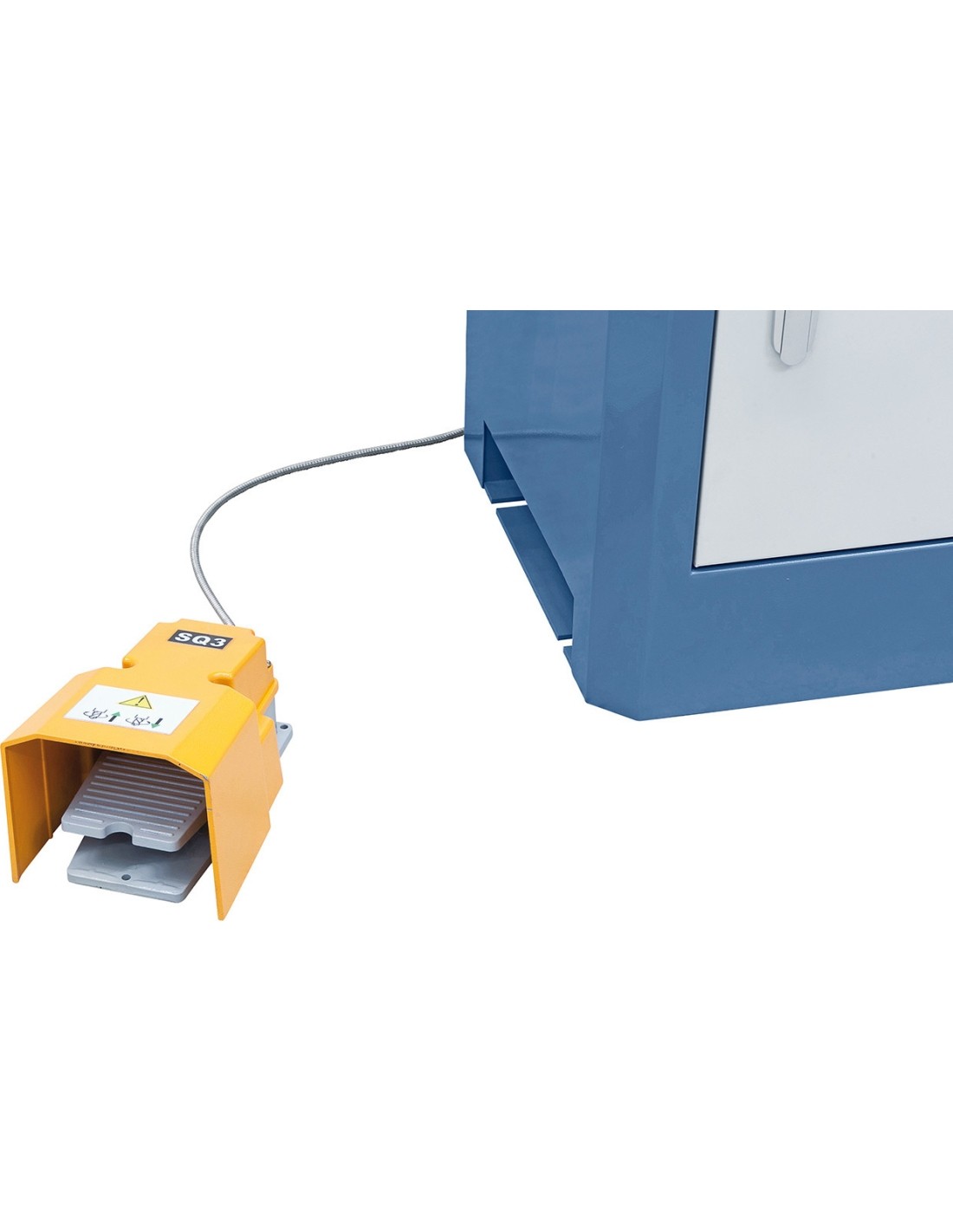

  • Serially with foot pedal to change the running direction when tapping

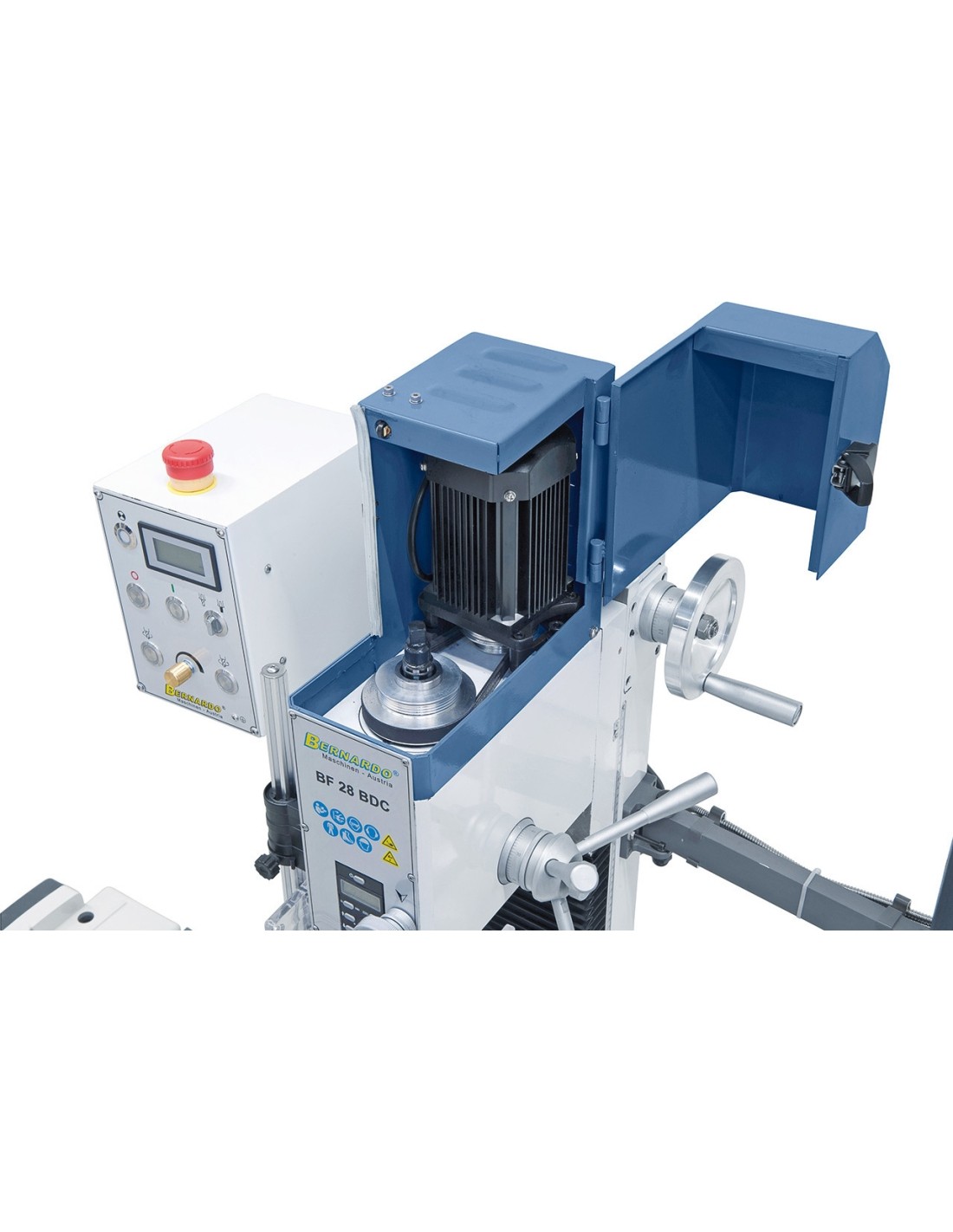

  • Direct current motor for ideal torque at lower speed
  • Dovetail guiding for the x-, y- and z-axis, adjustable via gibs
  • High-quality bearings guarantees high spindle concentricity (≤0.015 mm)

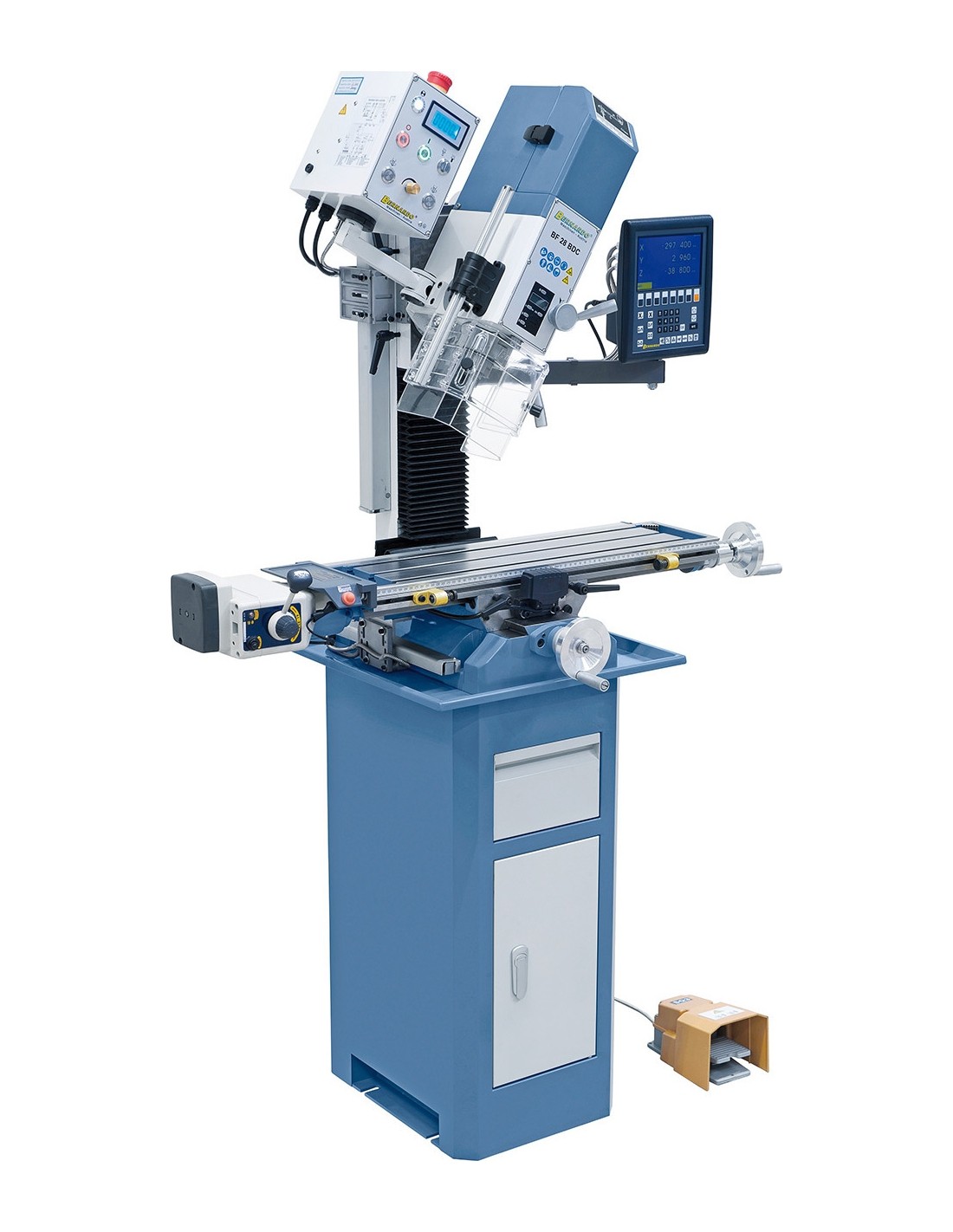

  • Mill head tiltable to both sides for angular boring, milling of bevels etc.

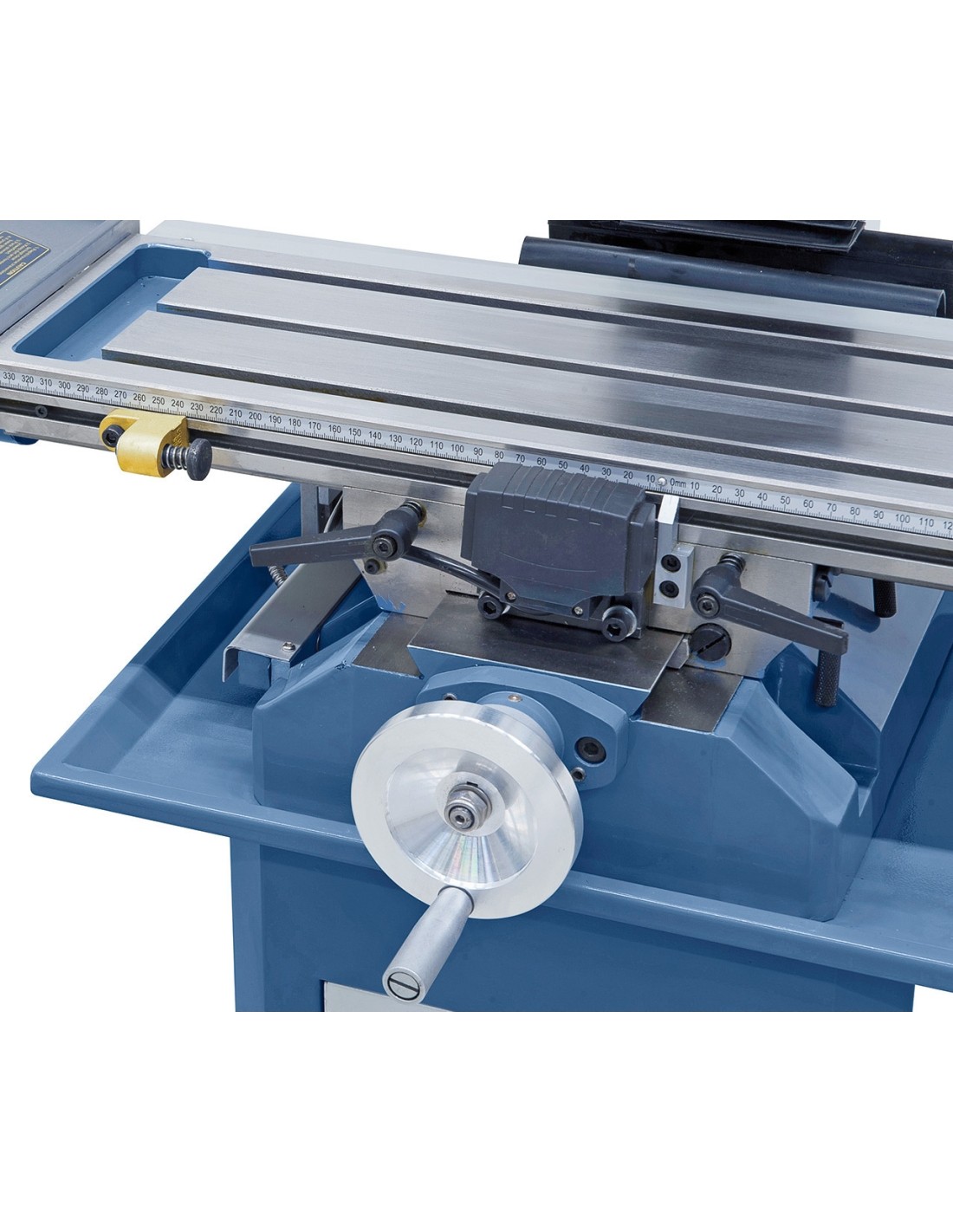

  • Large, surface treated cross table
  • Handle for spindle adjustment, handwheel for fine feed

Standard accessories

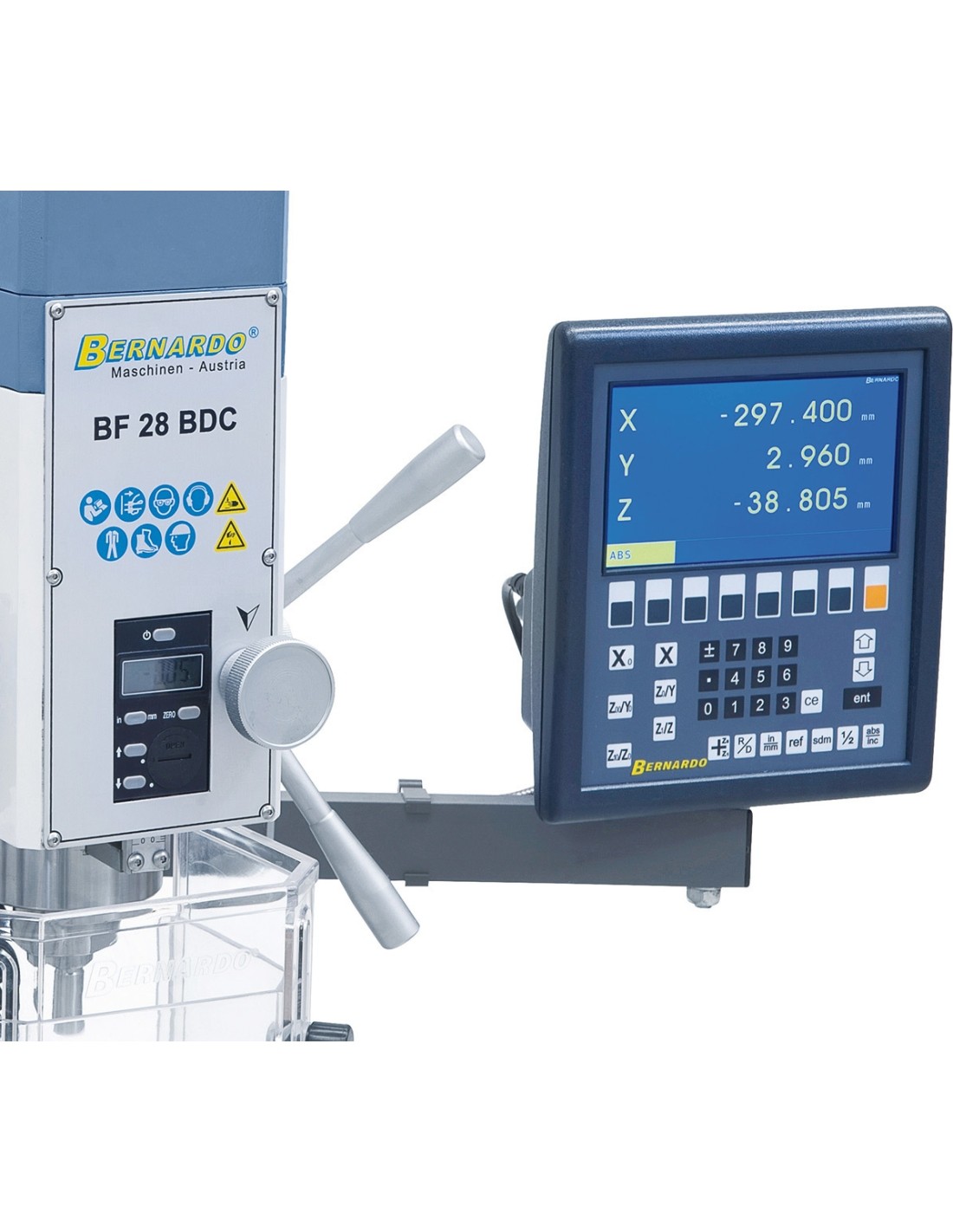

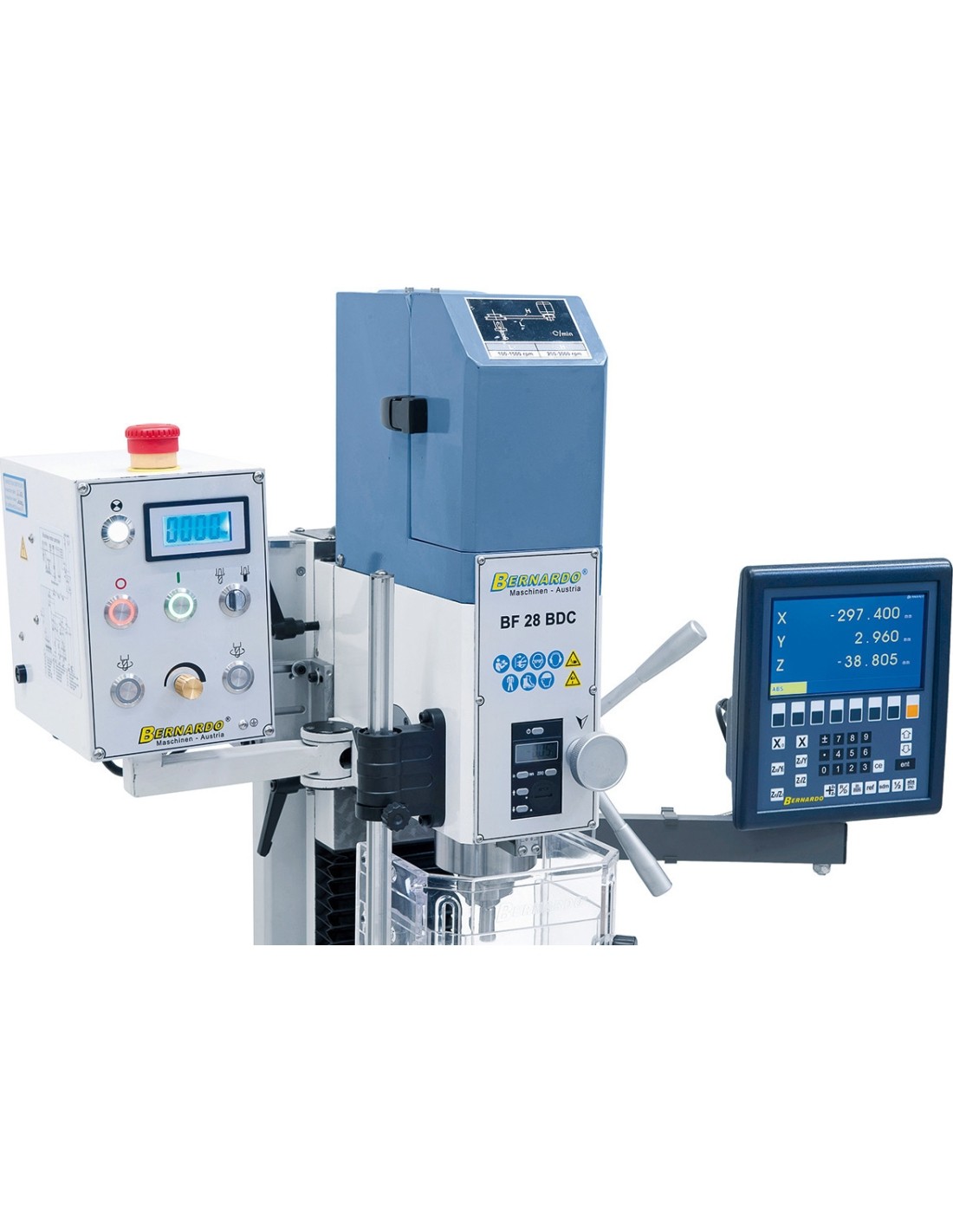

  • 3-axis digital readout ES-12 V with LCD-display

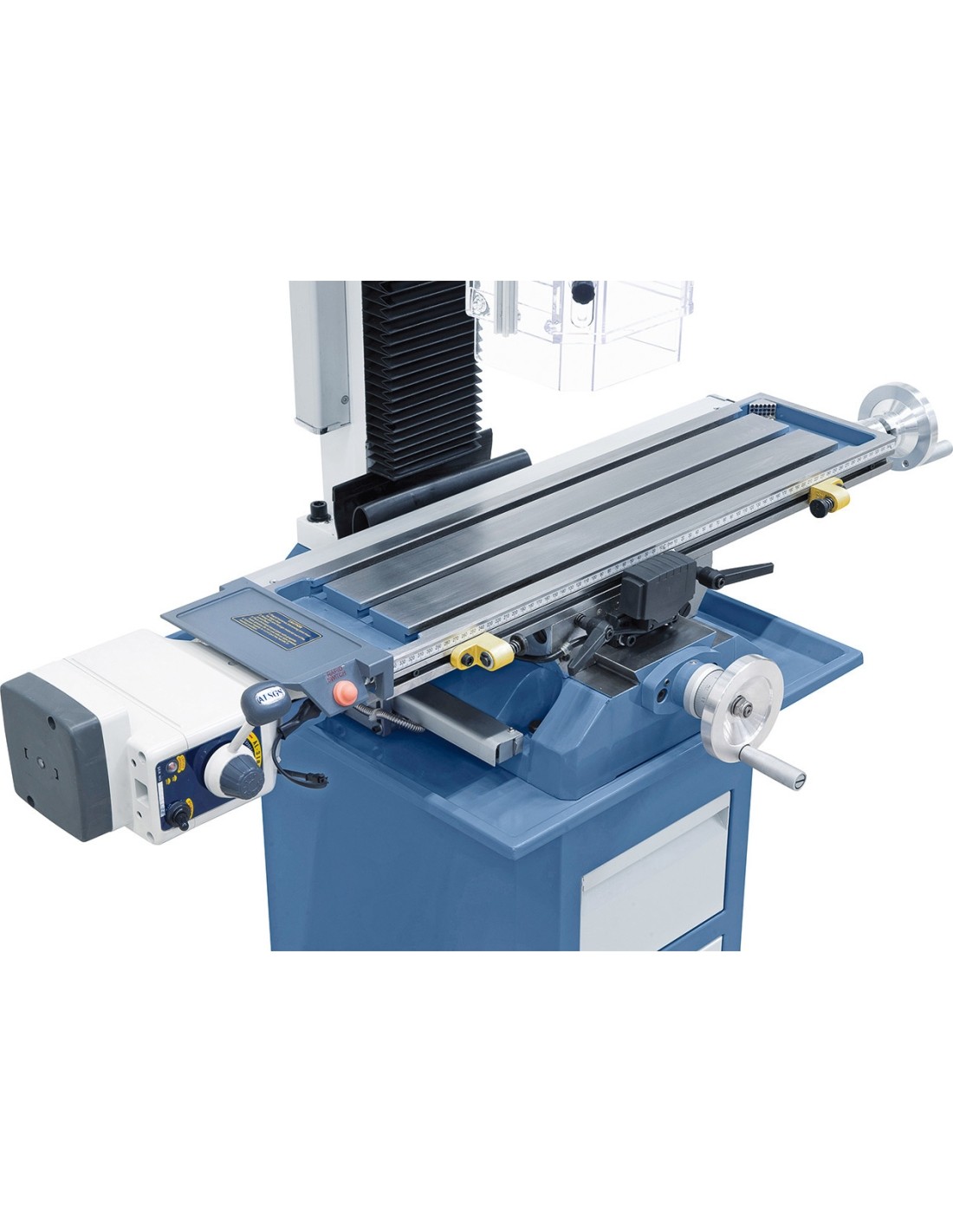

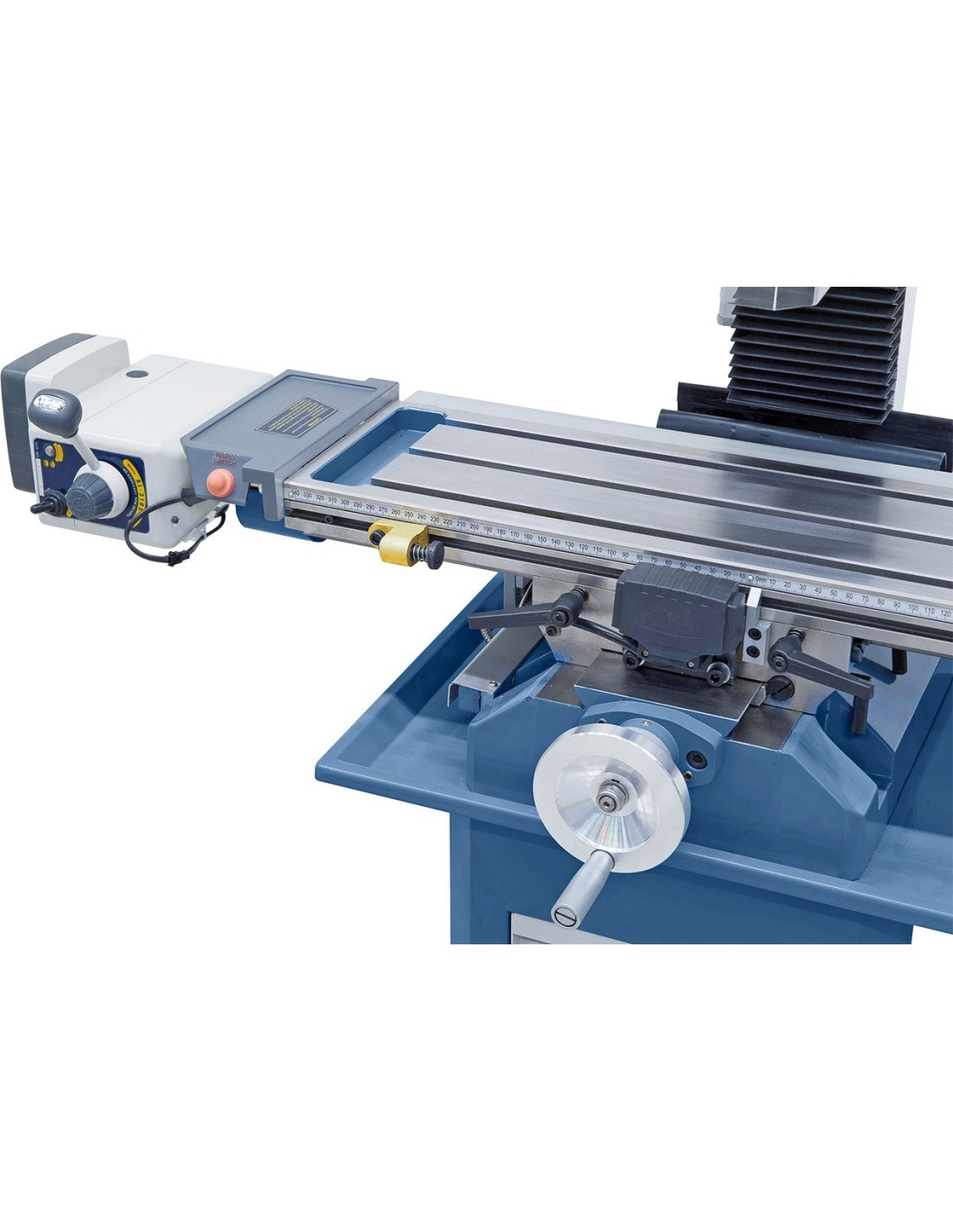

  • X-axis power feed AL 280 D
  • Drill chuck 3 - 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12
  • Digital speed indicator
  • Digital spindle stroke indicator
  • EMC filter according to CE standard
  • Height adjustable protective cover
  • Foot pedal
  • Thread cutting device
  • Tools
