Spindle taper
MT 3
Weight approx.
260 kg
Machine dimension (W x D x H)
1100 x 830 x 1450 mm
Drilling capacity in steel
32 mm
Distance spindle to column
255 mm
Spindle stroke
120 mm
Travel (x / y)
520 mm / 175 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
325 mm
Motor power output S1 100%
1,1 / 1,5 kW (400 V)
Motor power input S6 40%
1,5 / 2,2 kW (400 V)
Spindle speeds
(12) 75 - 3200 rpm
Table size / T-slot size
730 x 210 mm / 14 mm
Column diameter
115 mm
Distance spindle to table
135 - 460 mm
Drilling capacity in cast iron
40 mm
Milling head max.
80 mm

FM 40 HS

1092048
Price €3,921.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, september 7 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 260 kg.
We will deliver the product to you via: 5-11 w.d. Venipak (€40.99)
Weight: 260 kg.

Description

Properties

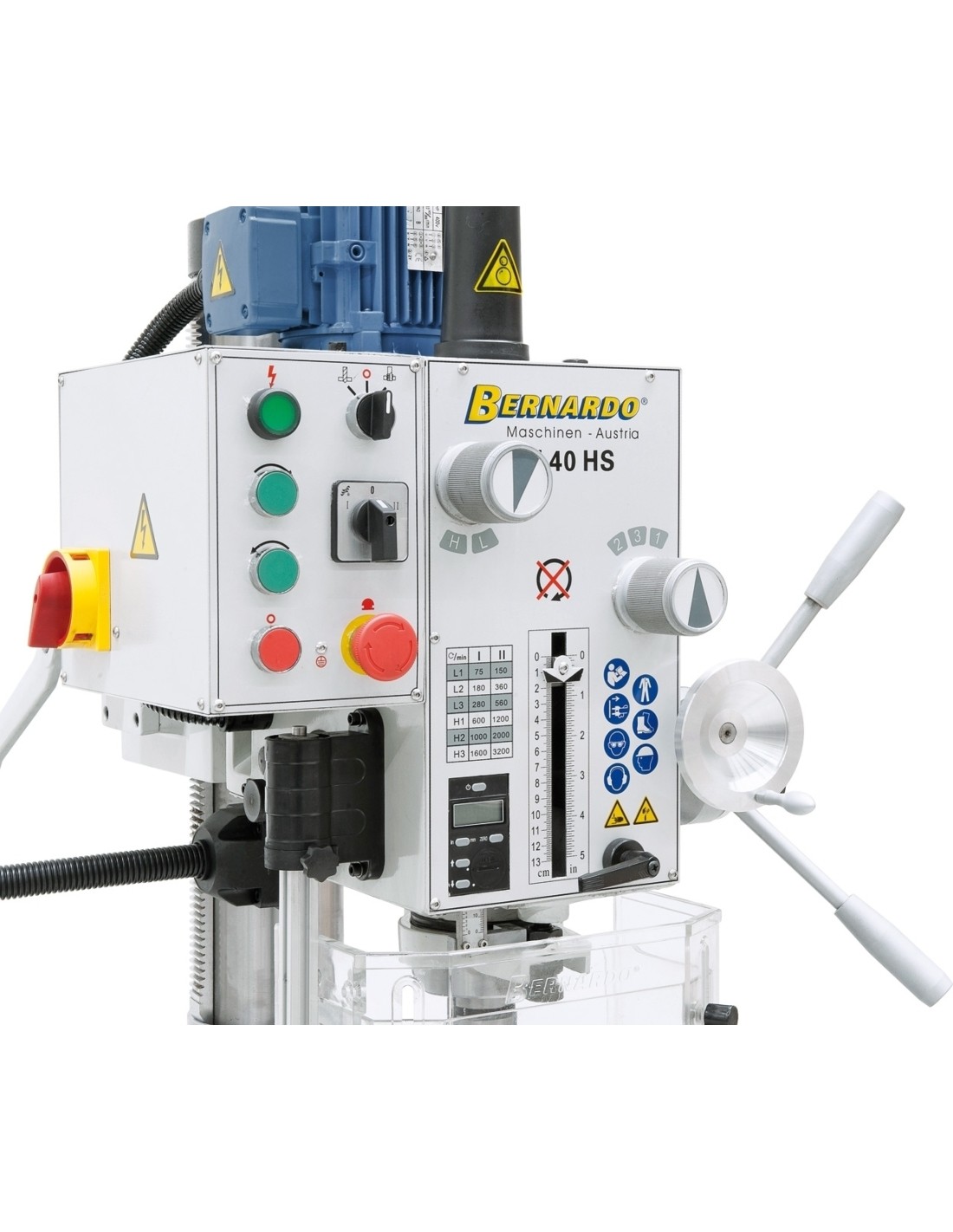

  • Gear selector switch allows easy and quick speed  change

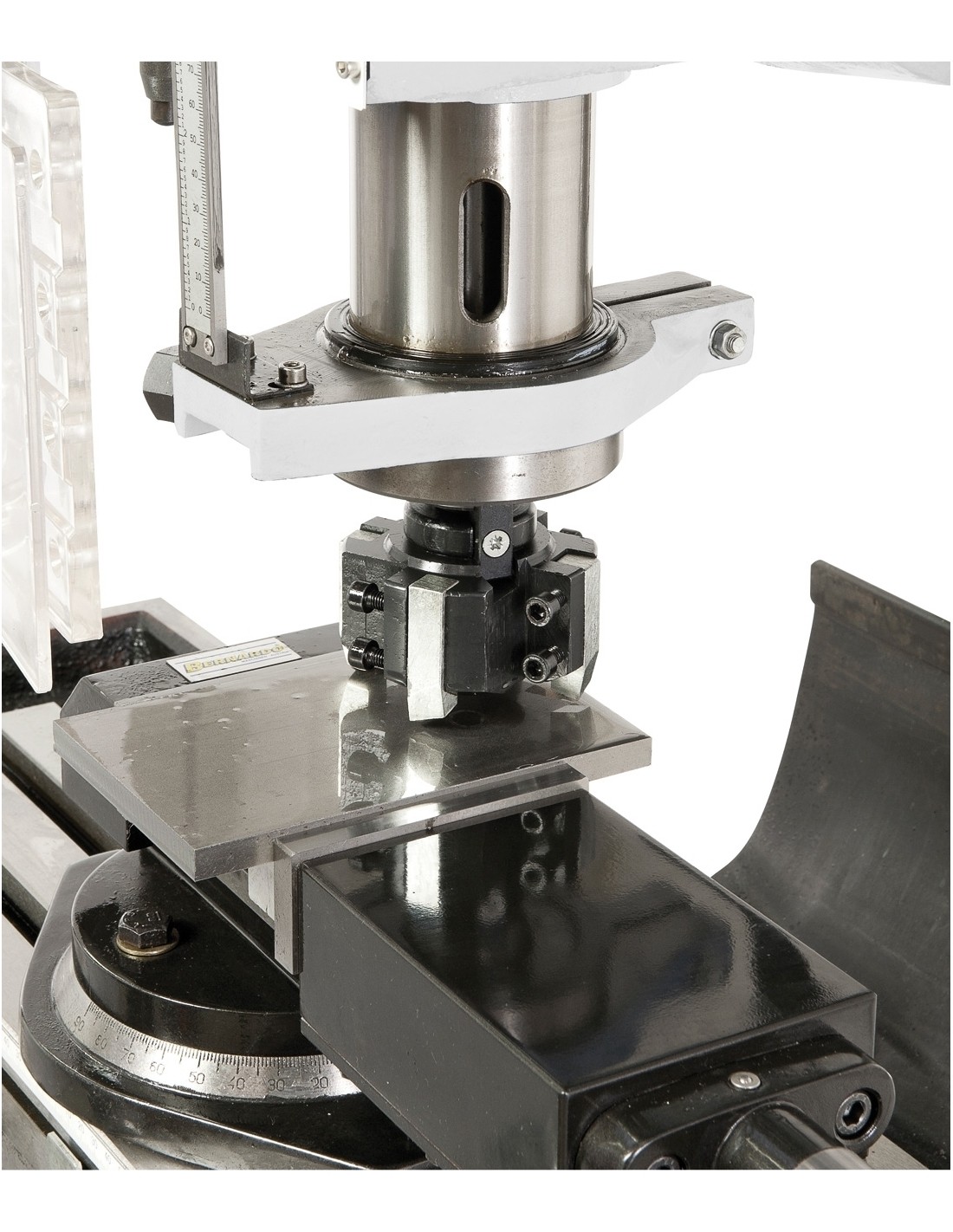

  • Multiple application possibilities such as drilling, milling and thread cutting

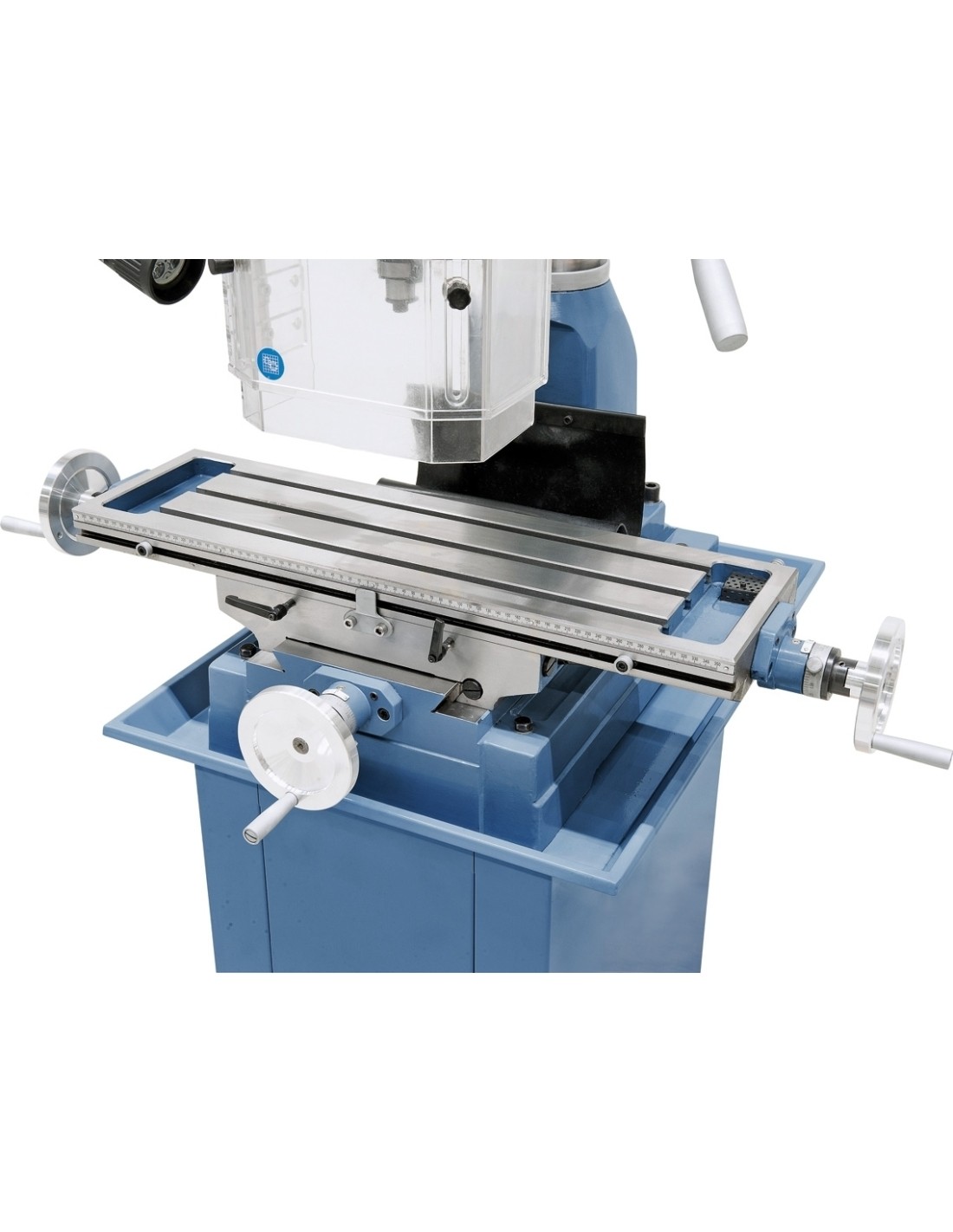

  • Large cross table, precisely processed surface
  • Gibs adjustable at the table
  • Polished gears, in oil bath, for smooth running
  • Taper roller bearings guarantees high concentricity
  • Right and left rotation allows thread cutting

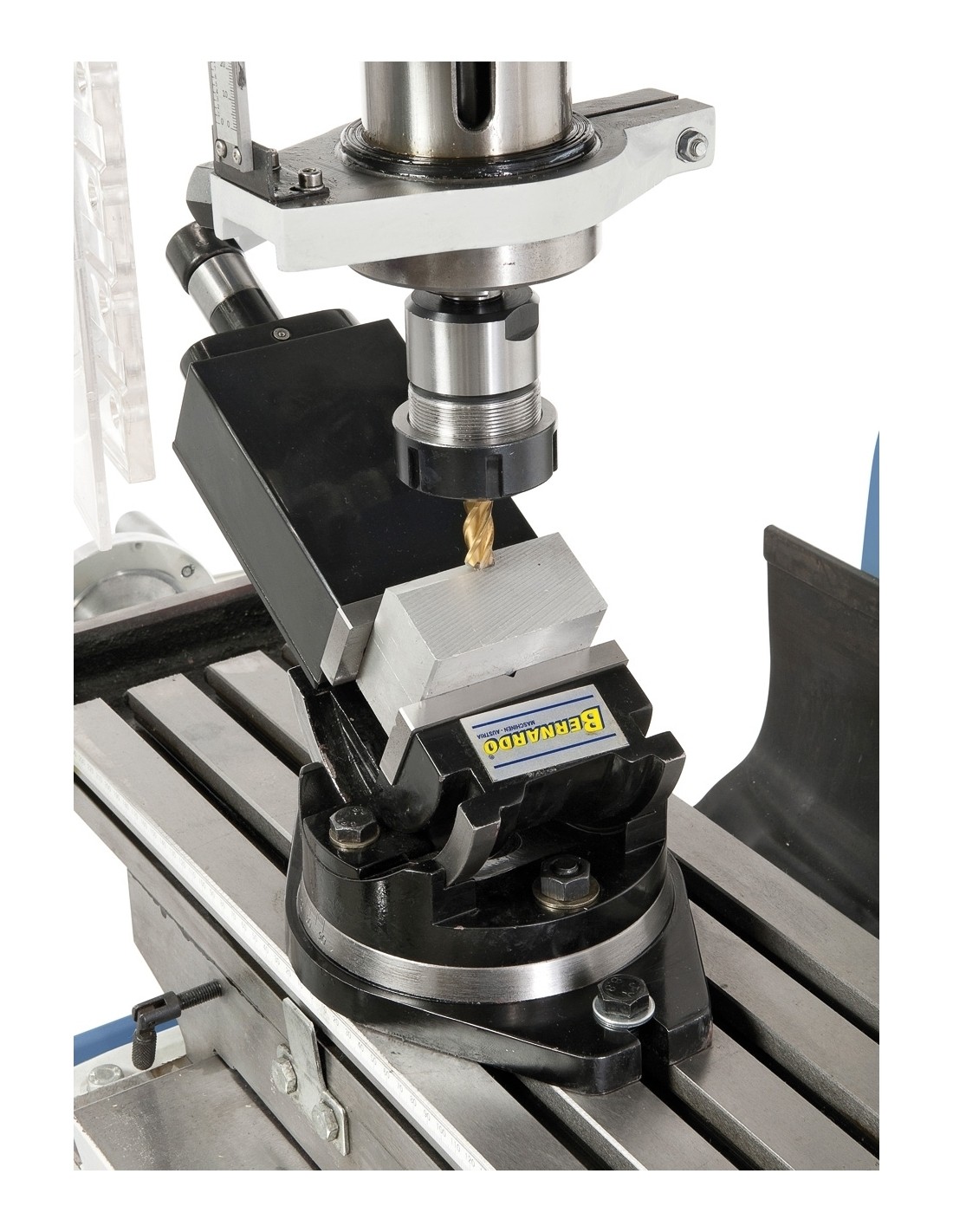

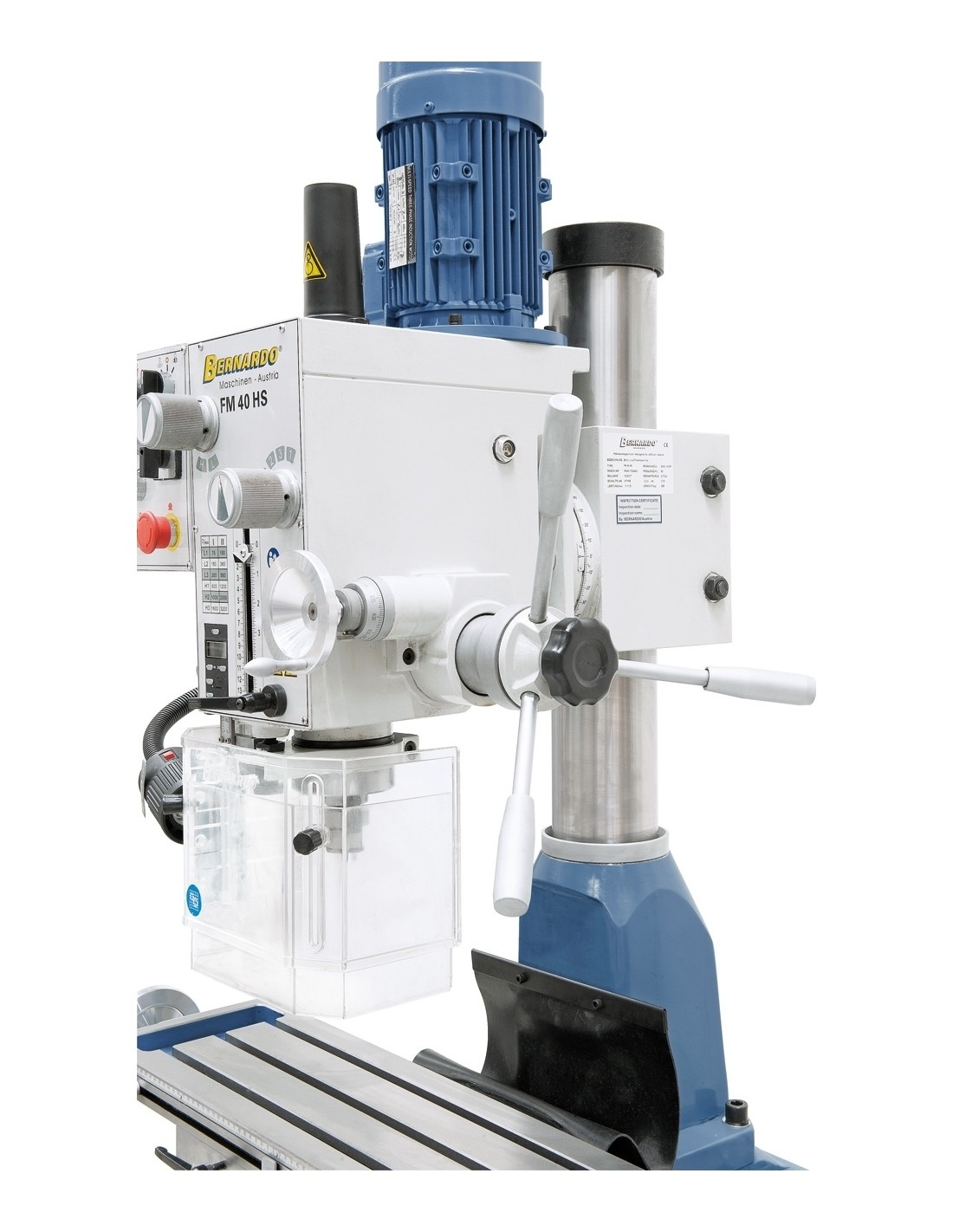

  • Gear head 180° tiltable, 360° rotatable and adjustable in height
  • Powerful 2-step motor, speed range 75 - 3200 rpm
  • Handle for spindle adjustment, handwheel for fine feed

Standard accessories

  • Keyless drill chuck 3 – 16 mm / B 16
  • Drill chuck arbor MT 3 / B 16
  • Drawbar M 12
  • Morse taper drill sleeve MT 3/2
  • Taper shell end mill holder MT 3 / 27 mm

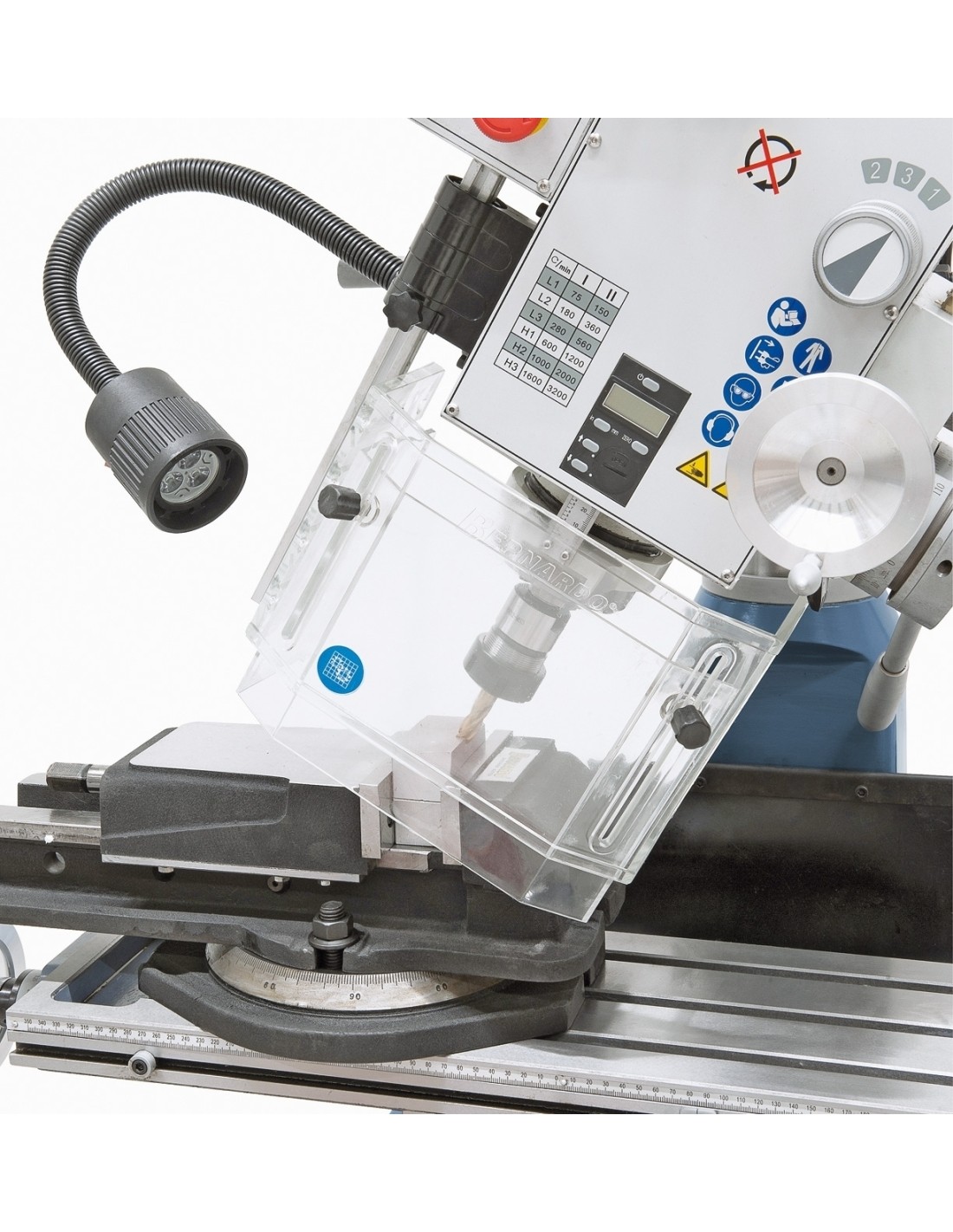

  • Height adjustable protective cover
  • LED machine light
  • Digital spindle stroke indication

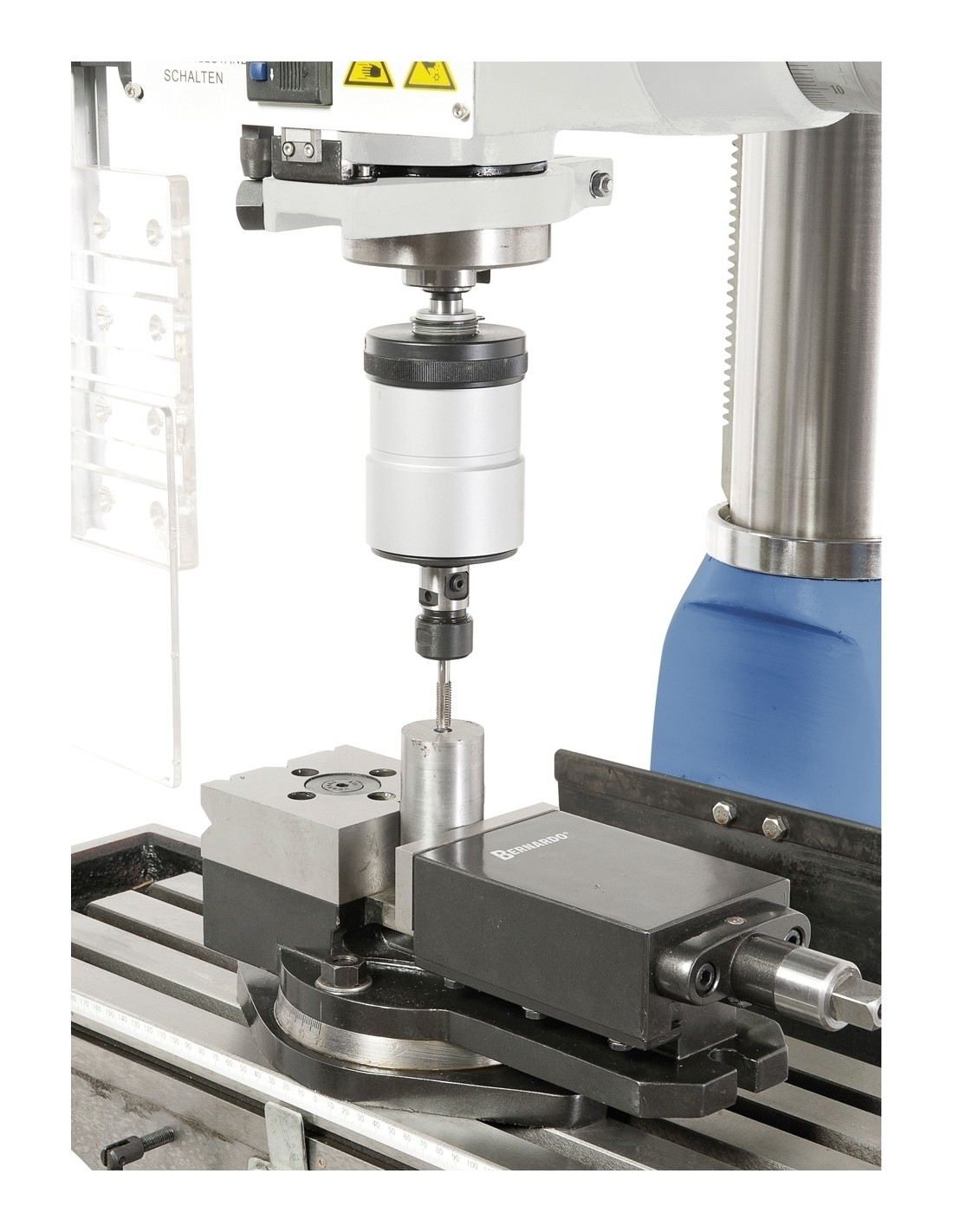

  • Thread cutting device
  • Longitudinal scale
  • Tools
