- Distance between centers
- 750 mm

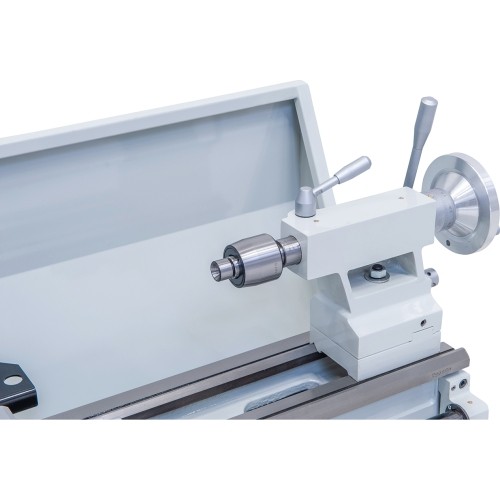

- Taper of tailstock sleeve
- MT 3
- Travel of tailstock sleeve
- 75 mm
- Weight approx.
- 268 kg
- Center height
- 165 mm
- Swing over bed
- 330 mm
- Spindle bore
- 38 mm
- Speed Range
- (12) 70 - 1800 rpm
- Longitudinal feed
- (45) 0,0087 - 1,395 mm/rev.
- Cross feed
- (48) 0,018 - 0,296 mm/rev.
- Metric thread
- (17) 0,5 - 4 mm
- Inch thread
- (26) 8 - 40 threads/1“
- Machine dimension (W x D x H)
- 1370 x 680 x 1320 mm
- Motor power output S1 100%
- 1,1 kW / 400 V
- Motor power input S6 40%
- 1,5 kW / 400 V
- Taper at spindle bore
- MT 5
- Bed width
- 160 mm

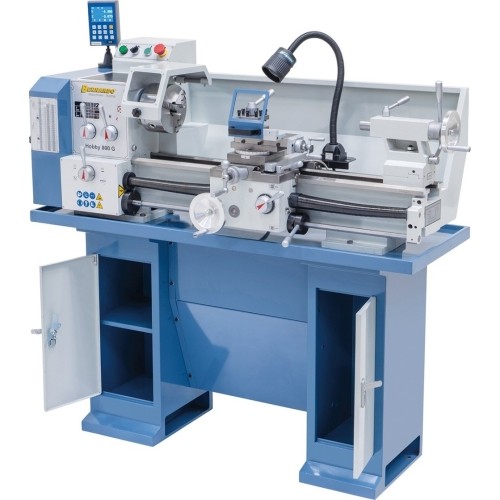

Hobby 800 G / 400 V incl. 3-axis digital readout DT 40
1227908
Price
€5,114.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up thursday, may 14 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 268 kg.
We will deliver the product to you via: 5-11 w.d. Venipak
(€40.99) Weight: 268 kg.
Description
Properties
- Control gear allows easy and quick speed change
- High-quality tapered rollerbearings ensure high concentricity of spindle nose (≤ 0,009 mm)
- Powerful motor for high torque, speed range 70 – 1800 rpm
- Wide range of applications: precision mechanics, training and education, etc.
- Logically arranged feed setting allows easy, smooth adjustment
- Solid machine bed with inductive hardened and polished guideways
- Ideal for processing steel, non-ferrous metals and plastics
- Comes complete with feed rod for automatic longitudinal and cross feed

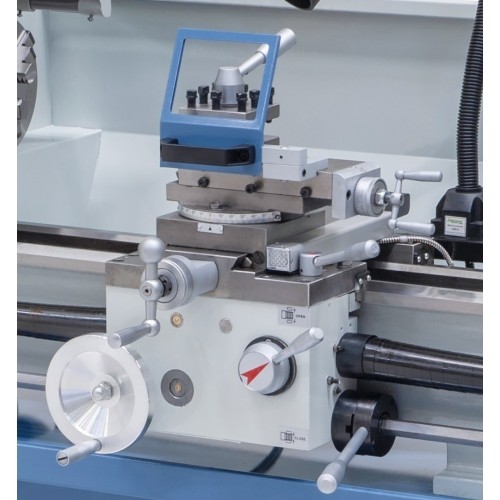

- Apron features handwheels with fine scale
Standard accessories

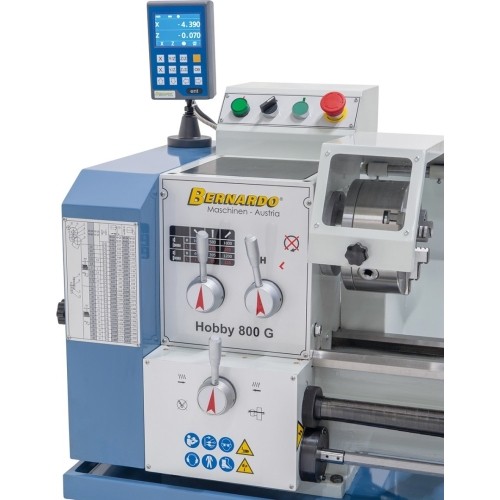

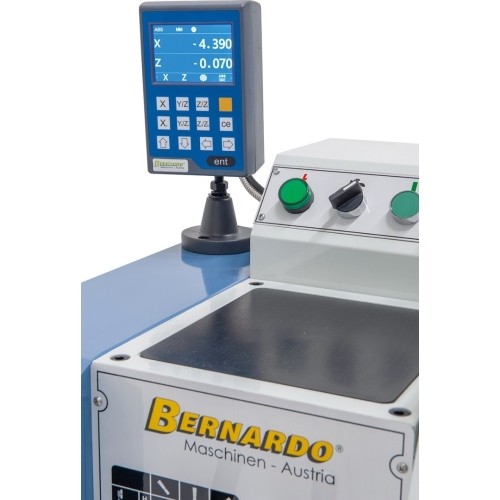

- 3-axis digital readout DT 40 with LCD-display

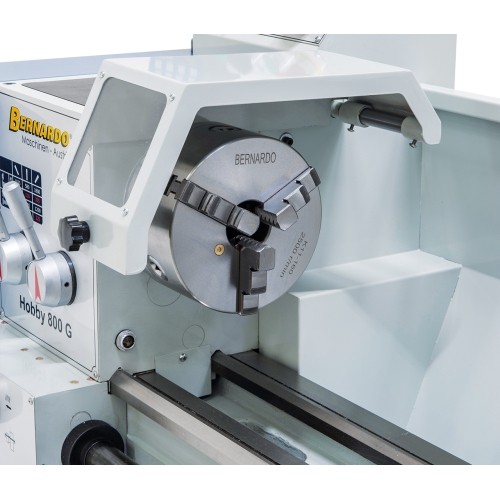

- 3-jaw chuck 160 mm
- Cross slide with top support

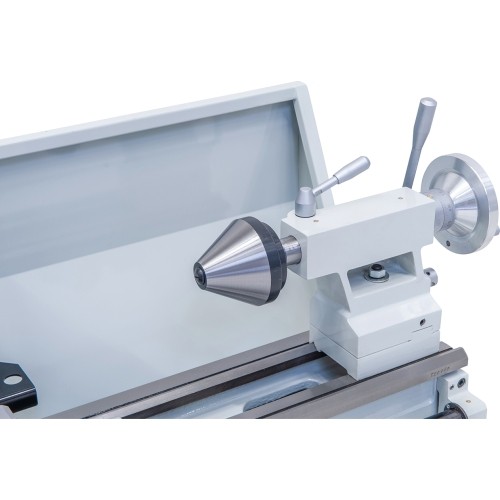

- Dead center

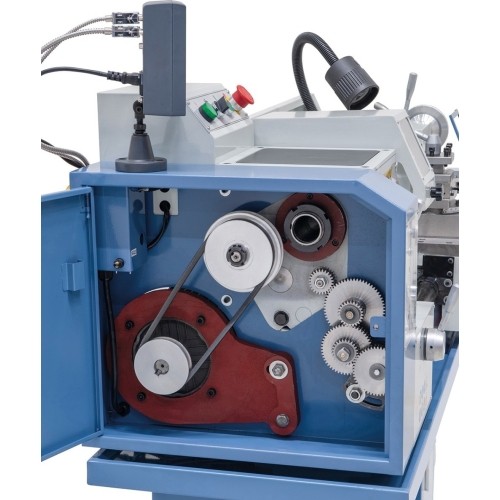

- Change gears

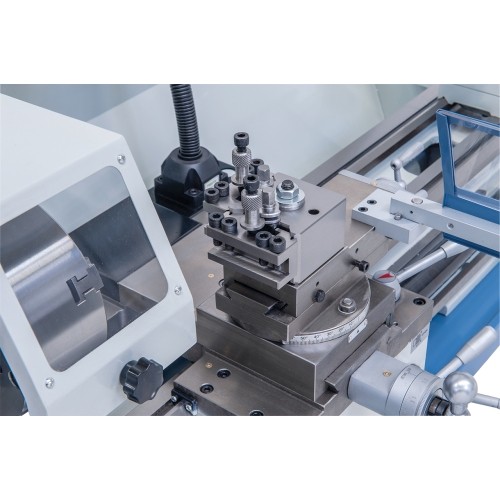

- 4-way tool post holder
- LED machine light
- Chuck guard
- Splash guard
- Leadscrew cover
- Chip tray
- Stand
- Tools
