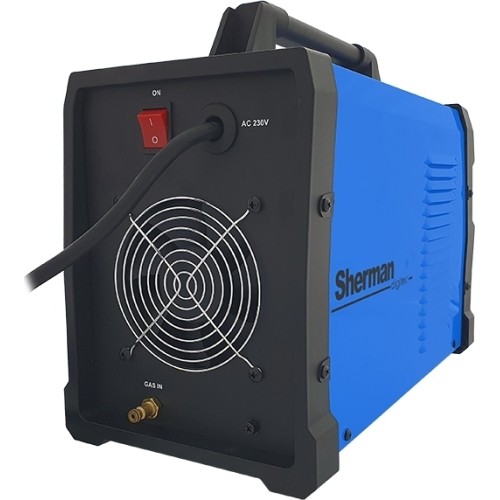

Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC
Inverter welder Sherman DIGITIG 226P AC/DC

Funkcijos
2T/4T, lanko jėga, elektrodų valymo funkcija, karštas paleidimas, srovės didinimas, srovės mažinimas, nustatymų atmintis, TIG dujų didinimas, išankstinis dujų srautas, TIG impulsas, skaitme
Phase
Vienfazis (230V)
Weight, kg
12
Suvirinimas / pjaustymas / kiti metodai
MMA DC, TIG HF AC, TIG HF DC
IÅ¡matavimai mm
47 x 29 x 35
Gamybos technologija
IGBT
Maximum current MMA [A]
160
Maximum current TIG [A]
200
MMA darbo ciklas [%].
30
TIG darbo ciklas [%].
25
Įtampa be apkrovos [V].
62
Maksimalus MMA suvartojamos galios kiekis [kVA}
6
Maksimalus TIG sunaudojamas galingumas [kVA].
6
Maksimalus MMA srovÄ—s suvartojimas [A].
32,3
Maksimalus TIG srovÄ—s suvartojimas [A].
27,5
Pagrindinis metodas
TIG
Tinklo apsauga [A].
25
Įmonių garantijos laikotarpis [metai].
1
Maksimali TIG suvirinimo kintamÄ…ja srove srovÄ— [A].
200
SrovÄ—s kilimo laikas [s]
0 - 10
PradinÄ— srovÄ— [A].
5-160
BazinÄ— srovÄ— [A].
20-200
Dabartinis kritimo laikas [s]
0-15
Kraterio srovÄ— [A].
5-200
Išankstinis dujų srautas [s].
0,1 – 10
TIG dujų srautas [s].
0,5 – 15
TIG impulsų dažnis [Hz].
0,2 – 200
TIG impulsų plotis [%].
20-80
Kintamosios srovės dažnis [Hz].
20 – 250
Kintamosios srovÄ—s balansas [%]
15-85
Current type
AC / DC
Suitable for welding
Aluminum and its alloys
Non-ferrous and other rare metals (Titanium, Copper, Brass, Nickel)
Stainless steel (Inox)
Structural steel
Inverter technology
IGBT

Inverter welder Sherman DIGITIG 226P AC/DC

1232791
Price €575.00 VAT incl.

Stock Quantity:
Kaunas Shop
(2 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up tomorrow, in the store, Raudondvario pl. 141, Kaunas (€0.00)
We will deliver the product to you via: 1-2 w.d. Venipak (€5.00)
We will deliver the product to you via: 1-2 w.d. Venipak pickup (paštomatas) (€4.00)

Description

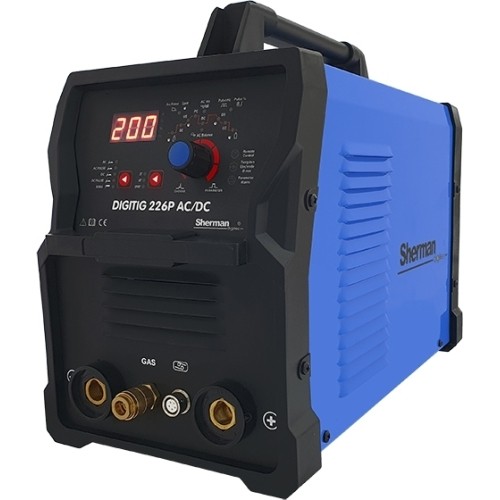

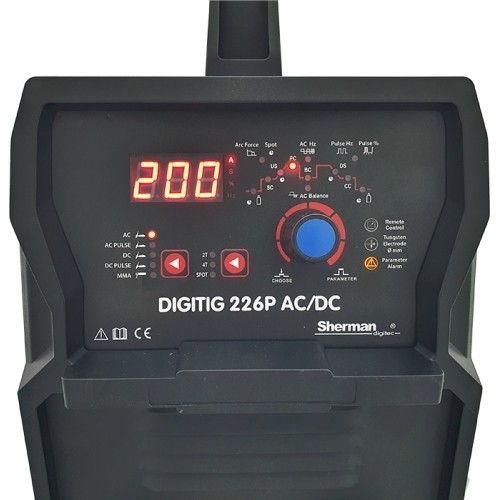

The digital welder DIGITIG 226P AC/DC is designed for manual TIG welding with HF arc ignition (TIG HF) of quality steels, aluminium and other non‑ferrous metals using both direct current and alternating current. The unit also supports MMA (covered electrode) welding with an adjustable Arc Force function. It offers fully digital adjustment and control of pulse parameters and AC frequency. You can set current upslope and downslope, gas pre‑flow and post‑flow, and use spot welding. Remote control with a foot pedal is available as an option.

Built on IGBT inverter technology, the machine provides up to 200 A TIG and 160 A MMA output and supports 2T/4T operation for comfortable, precise control during production and service work.

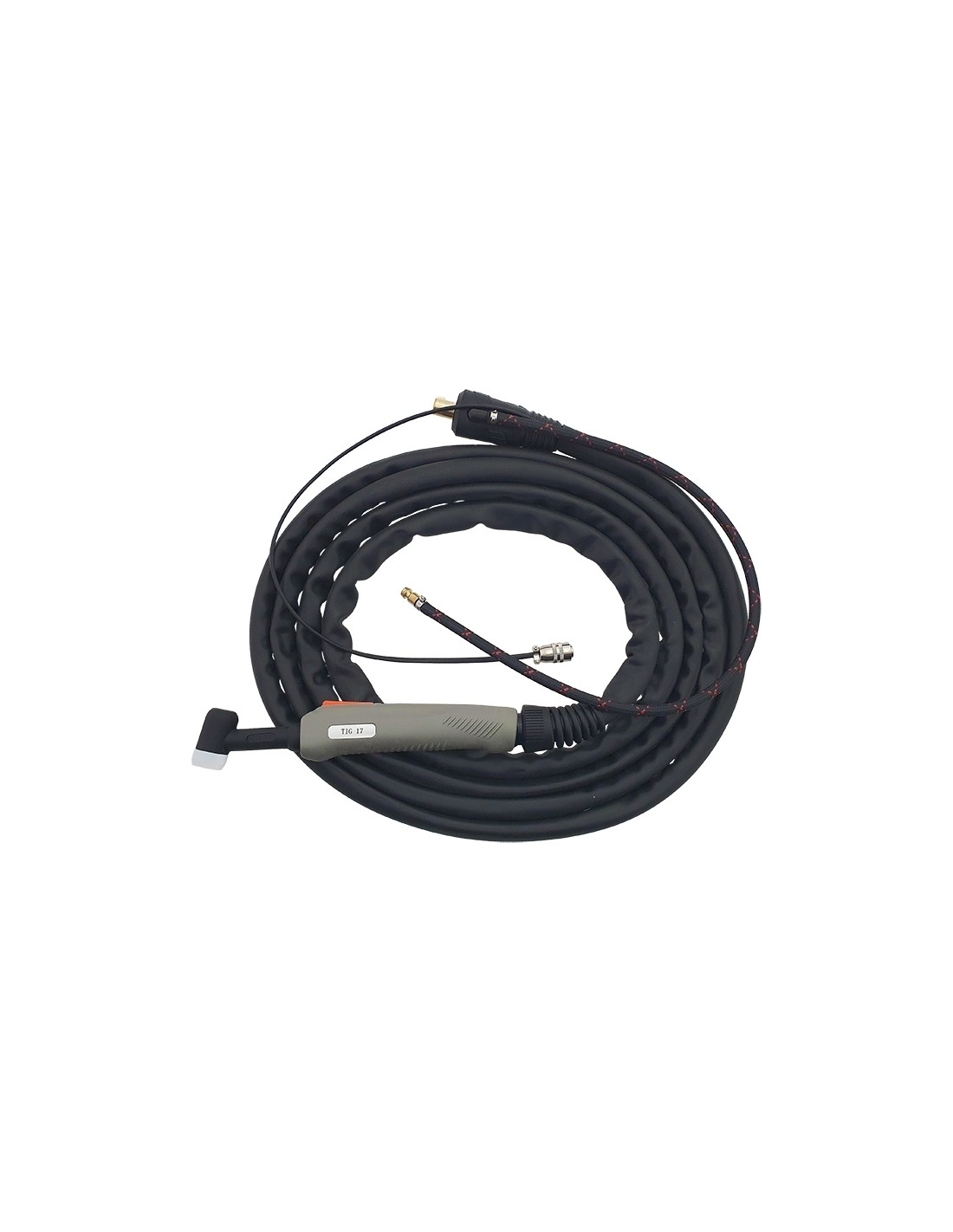

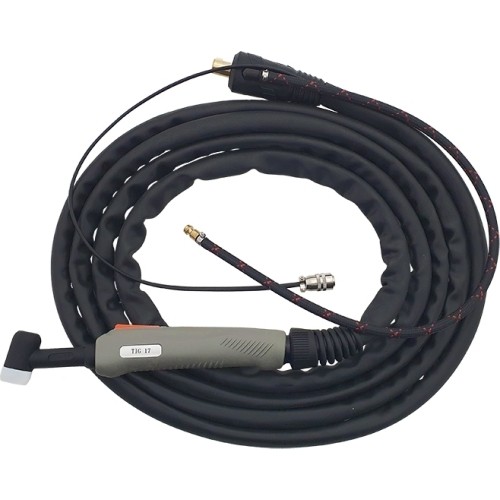

Included equipment: TIG welding torch and work/ground cable.
