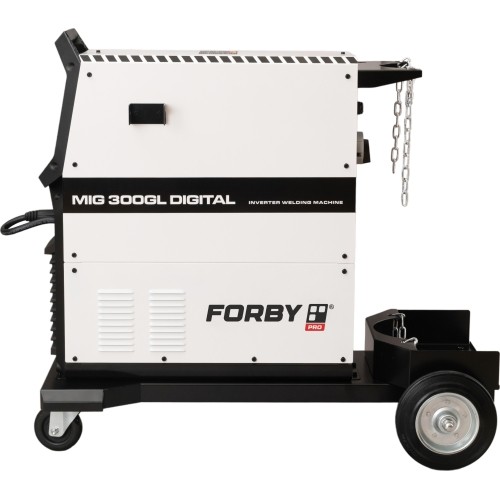

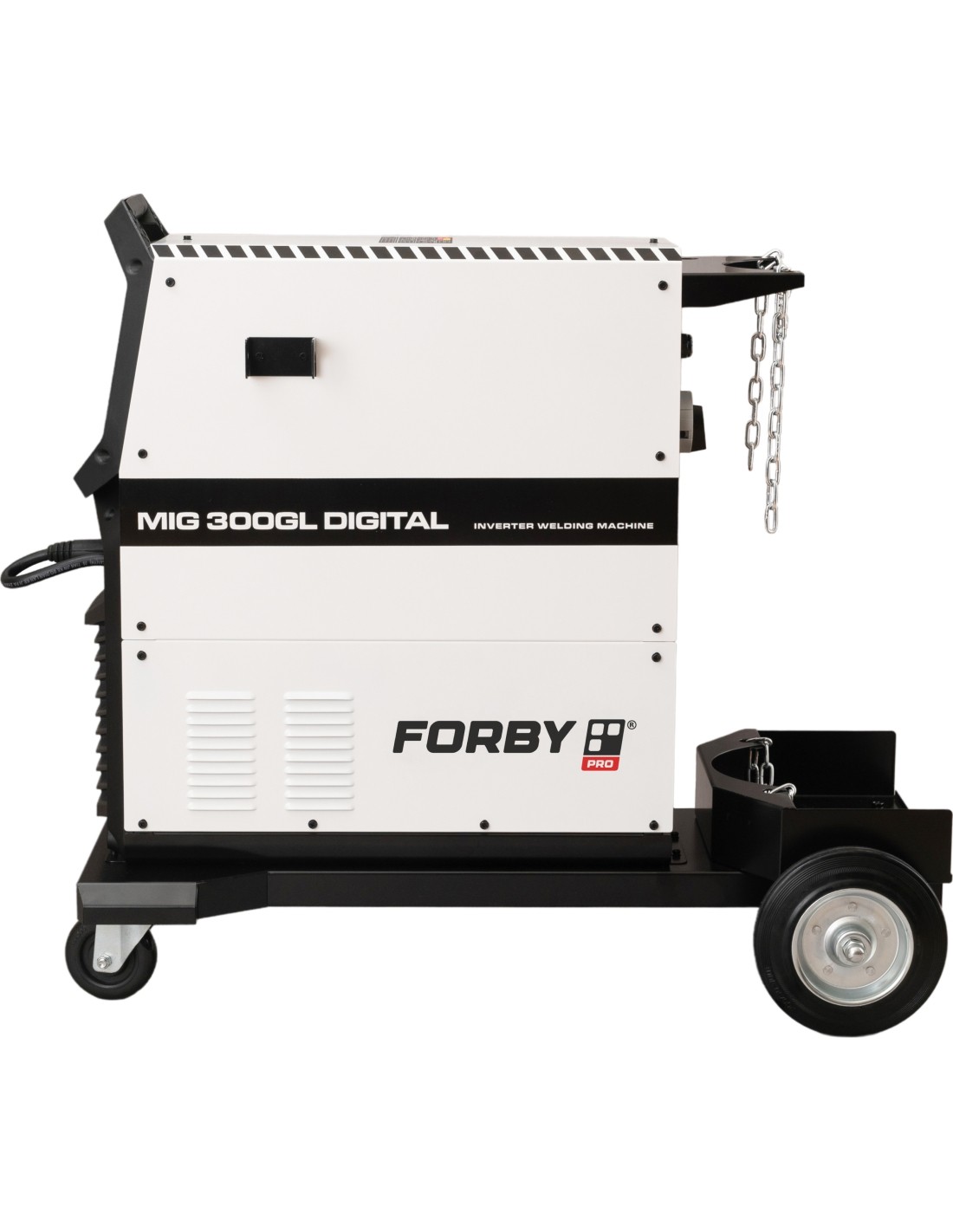

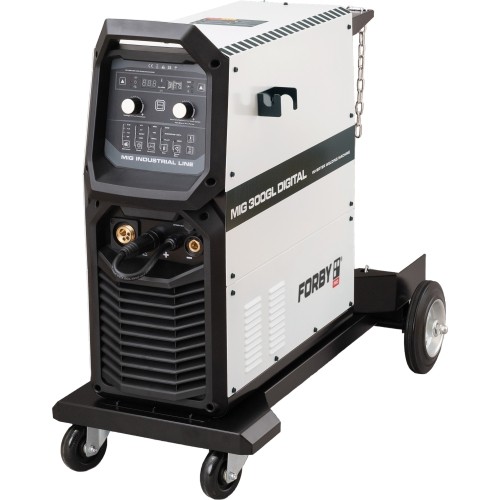

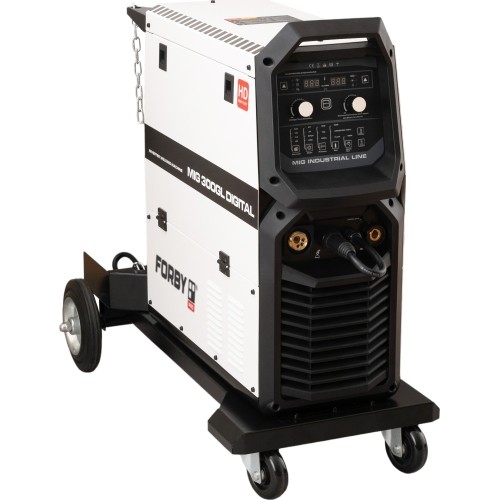

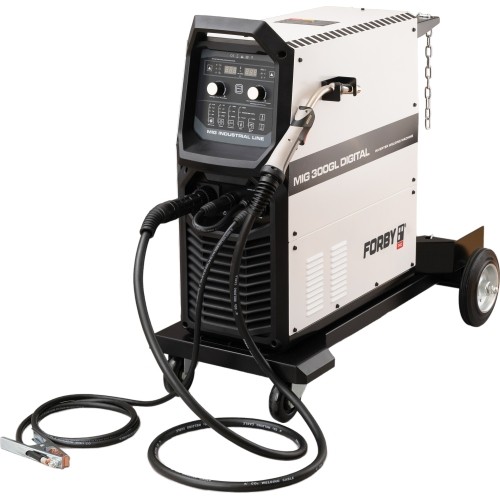

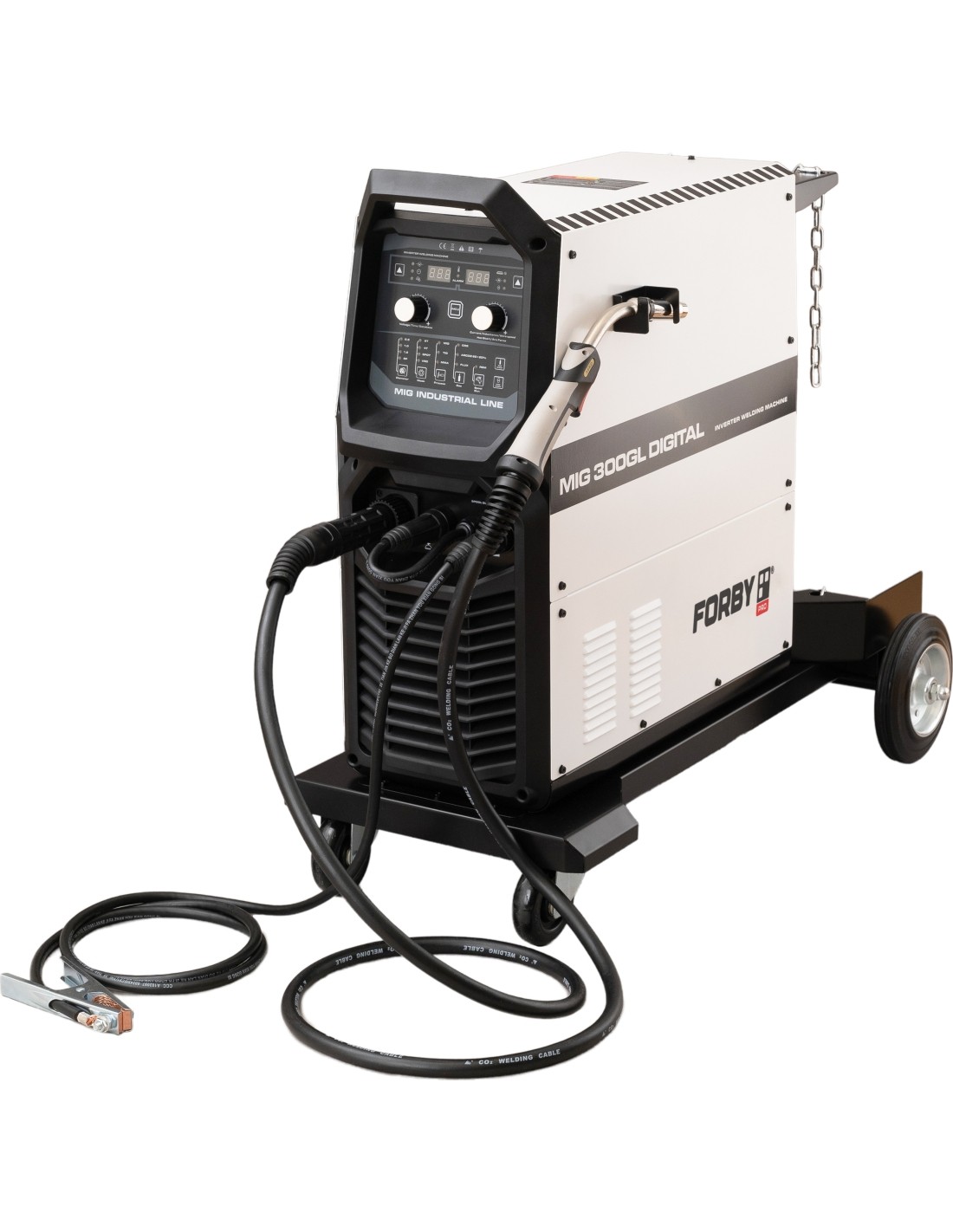

FORBY® MIG 300GL digital semi-automatic welding machine (synergic)

MIG-300GL DIGITAL - Professional and versatile welding machine
High-performance welding machine with advanced IGBT inverter technology

MIG-300GL DIGITAL is a powerful three-function (MIG/MAG, LIFT TIG, MMA) welding machine that offers very high working efficiency and stability. Its advanced IGBT inverter technology gives a steady arc, low spatter and excellent weld bead formation.

FORBY MIG-300GL Digital is a professional three-phase (3×400 V) inverter welding machine for workshops and industry. Digitally controlled MIG/MAG, LIFT TIG and MMA (stick) welding covers a wide range of uses, from making and repairing metal structures to repairing car bodies, gates, railings and agricultural machinery.

Key advantages:

• Welding current up to 300 A - enough even for large structures.
• IGBT inverter technology - stable arc, less spatter, high efficiency.
• 3 modes in one machine: MIG/MAG, LIFT TIG and MMA.
• Digital control panel - simple, logical settings and quick parameter changes.
• Takes spools up to 15-18 kg and 0.8-1.2 mm diameter wire - so you can work without frequent changes.
• Integrated trolley - easy transport of the machine, gas cylinder and accessories around the workplace.

Ideal for professional, intensive industrial use!

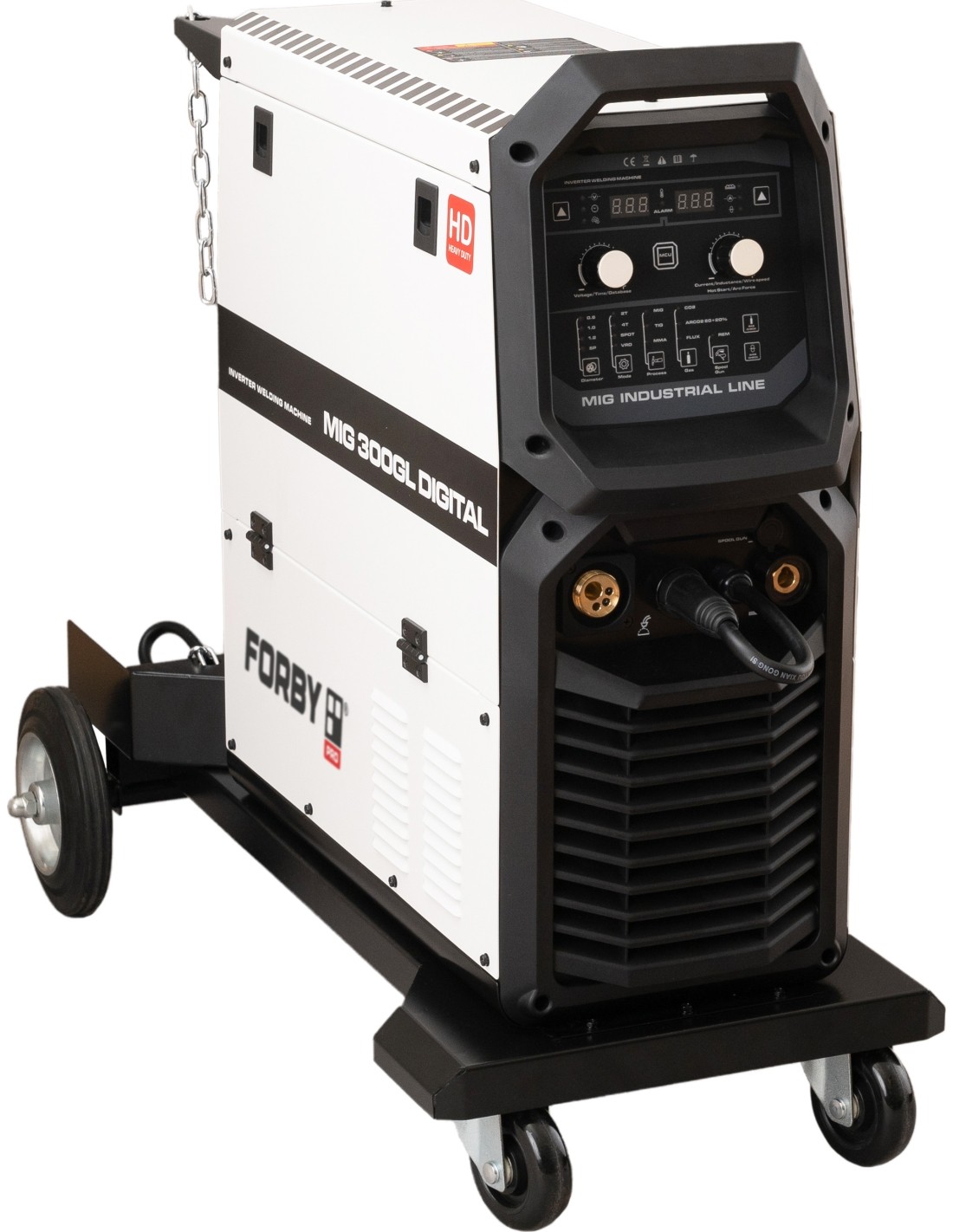

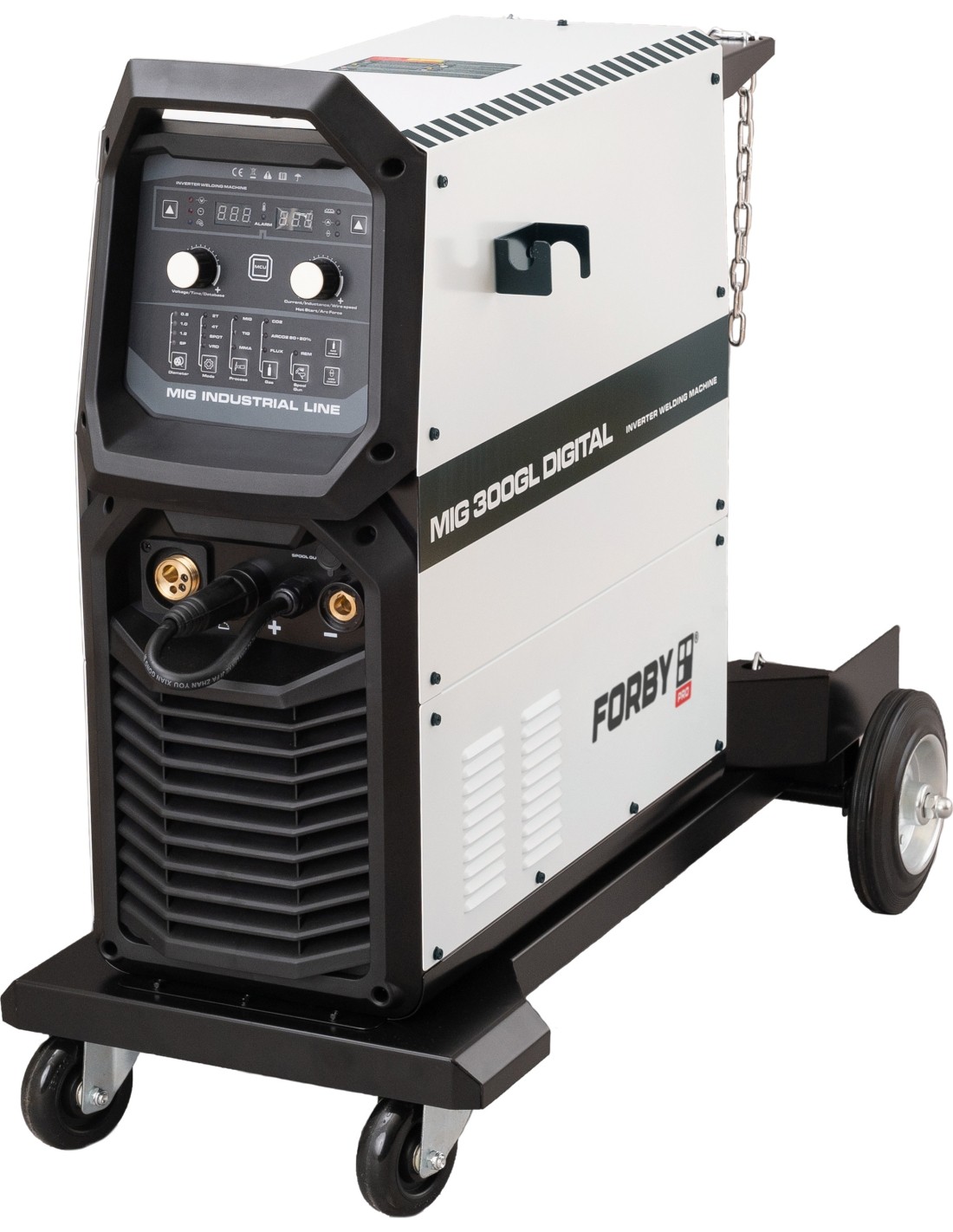

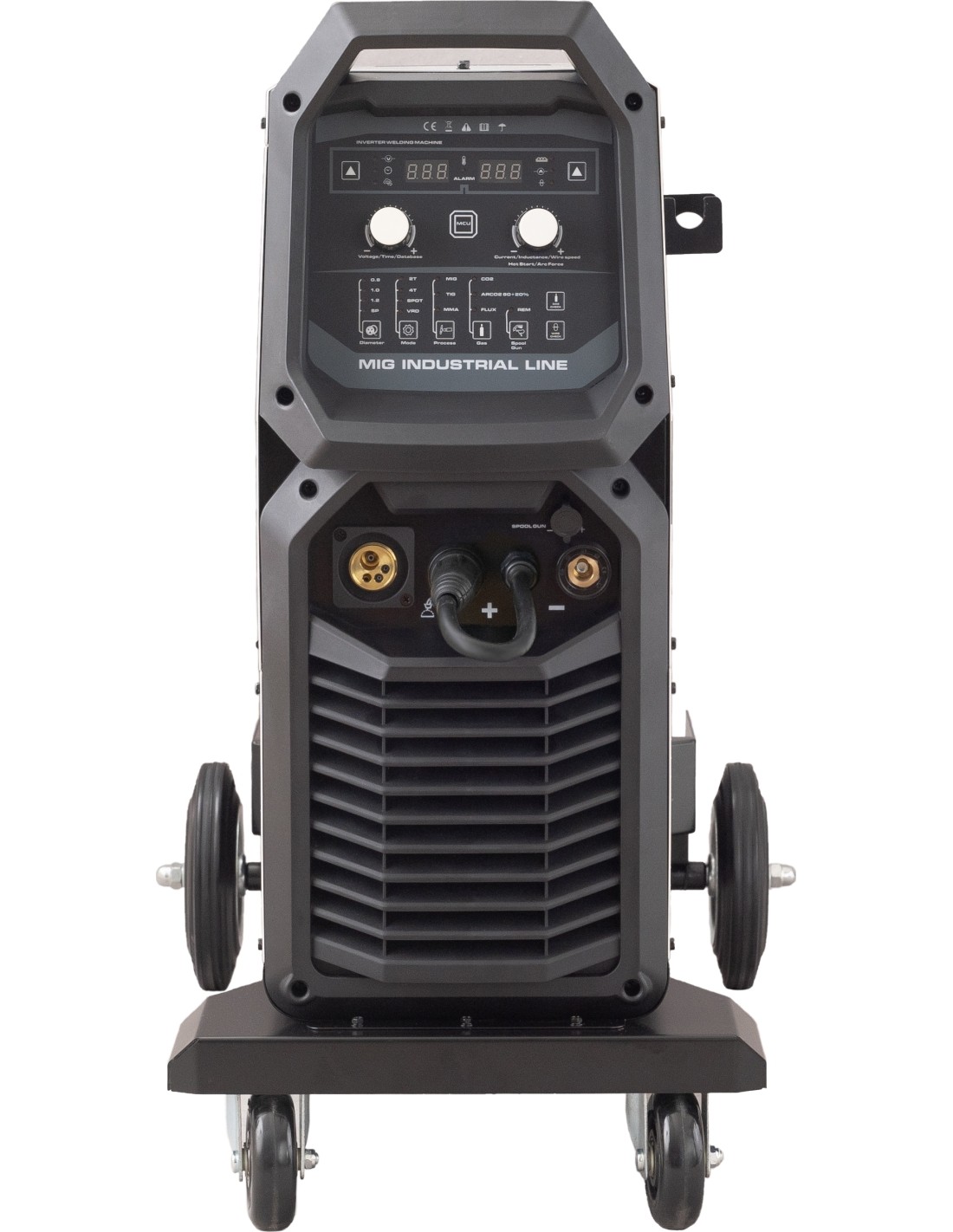

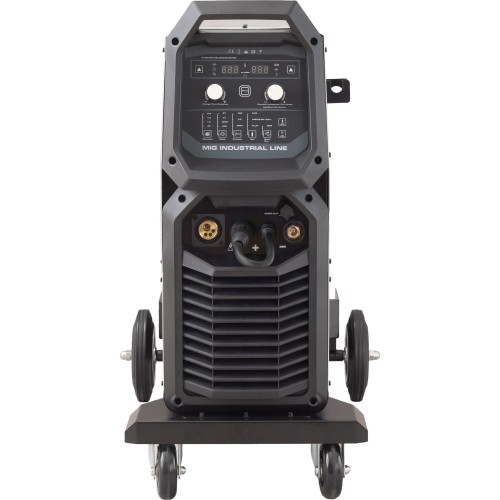

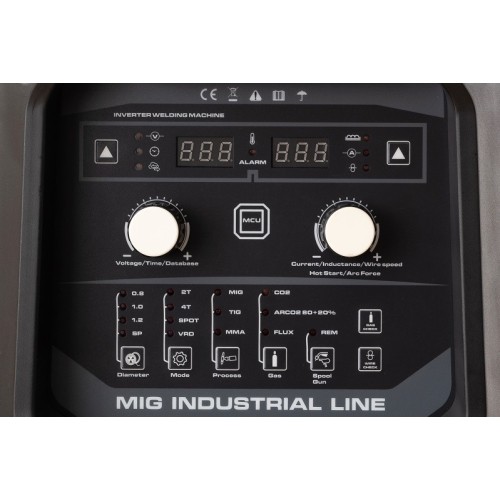

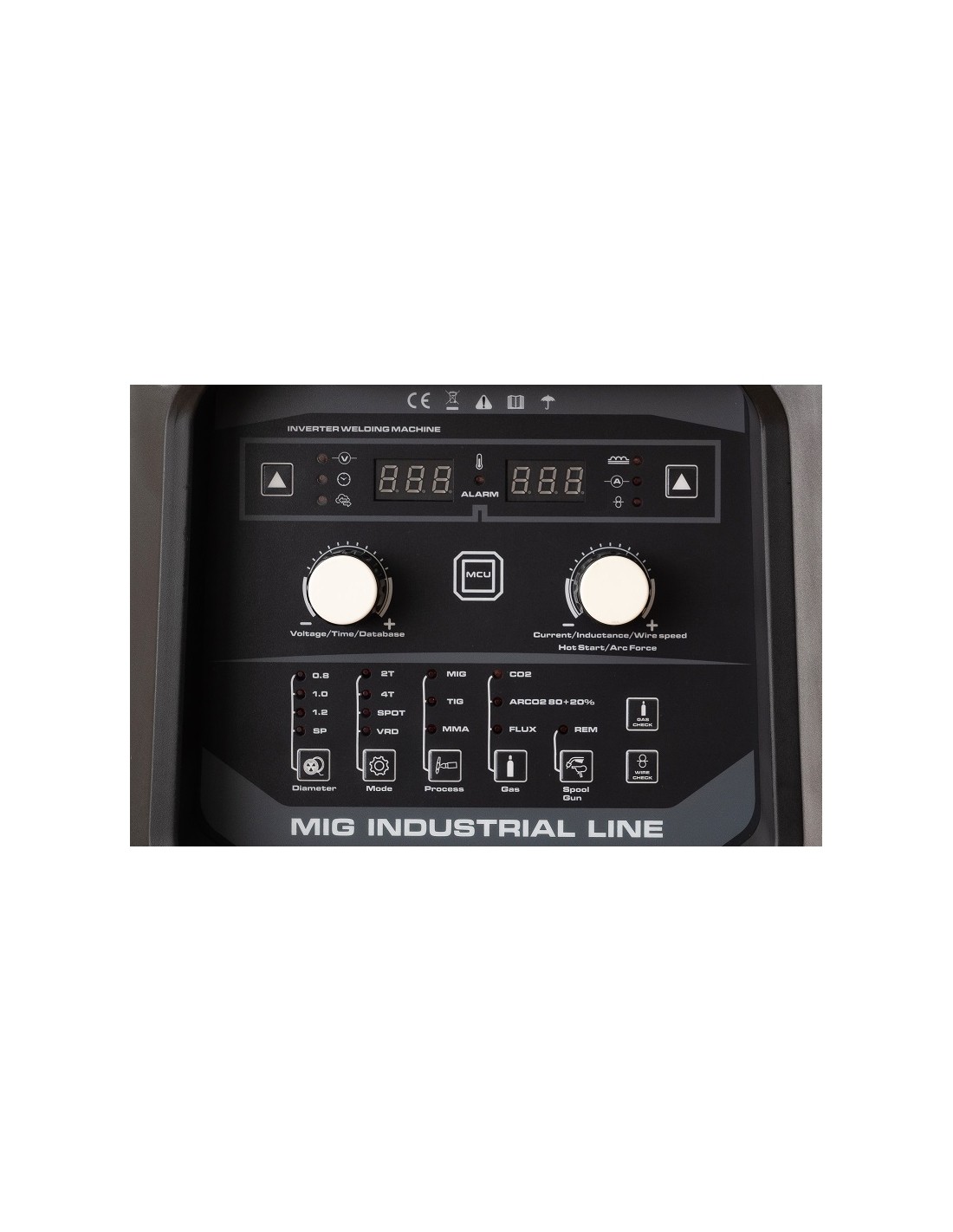

Control panel and functionality:

The front panel has two digital LED displays and easy-to-use controls for quickly setting the required parameters:

• 2 digital displays - show the set voltage, current, wire feed speed and MIG inductance.
• Parameter selection buttons - choose which parameter to adjust (voltage, current/wire speed, inductance, spot welding time, memory).
• Two adjustment knobs:

-fine control of voltage and spot welding time;

-adjustment of current, wire feed, inductance and MIG/TIG/MMA parameters.

• Mode buttons: MIG, LIFT TIG, MMA; 2T/4T, VRD (safe MMA operation); wire diameter and manual mode selection.
• Gas selection: CO₂, mixed gas or "gasless" (flux) with one press of a button.
• "Wire Check" and "Gas Check" - easy checking of wire feed and gas flow without striking an arc.
• Euro connector for the torch and socket for a spool gun - quick torch changes for different tasks.

Functions and use:

MIG/MAG welding

• Welding with shielding gas (CO₂ or a mixture) or without gas (flux-cored wire).
• Adjustable voltage and wire feed speed - can be matched to different sheet thicknesses and positions.
• Suitable for structural steel and most common repair and production work in workshops and production halls.

MMA (stick) mode

• Works with basic and rutile electrodes (Ø2.5-5.0 mm).
• A practical choice for outdoor and on-site work where MIG is harder to use.

LIFT TIG mode

• Lets you do simpler TIG work with Lift ignition (a TIG torch and argon system are required).
• Suitable for thinner sheets where a cleaner, neater weld is needed.

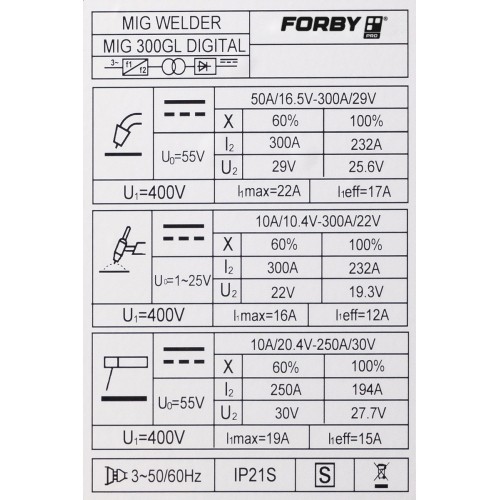

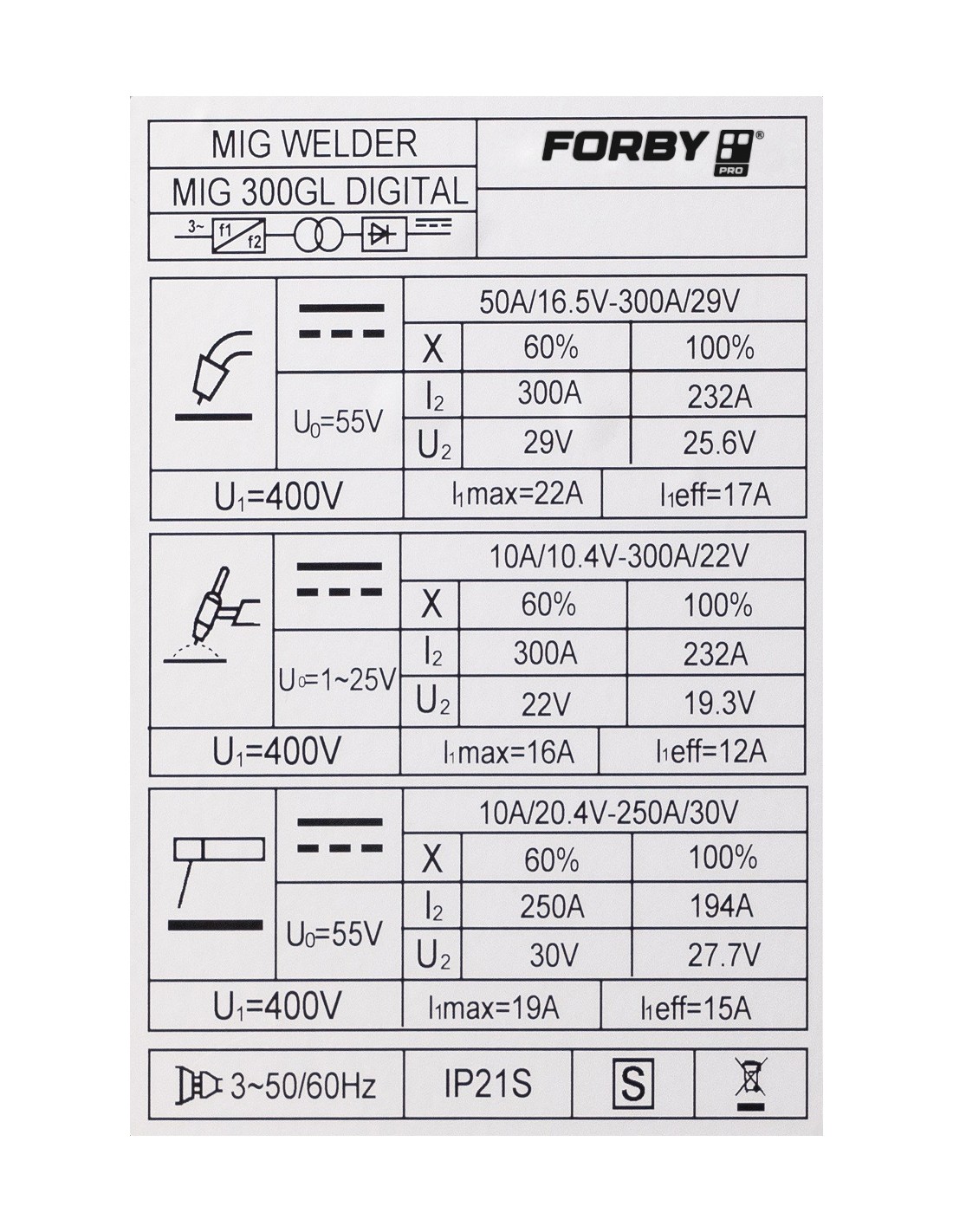

Main operating mode parameters:

MIG/MAG (gas) mode

• Maximum current (I₂) at 60 % duty cycle: 300 A
• Current at 100 % duty cycle: 232 A

MMA (electrode) mode

• Current at 60 % duty cycle: 250 A
• Current at 100 % duty cycle: 194 A

TIG (Lift TIG) mode

• Current at 60 % duty cycle: 300 A
• Current at 100 % duty cycle: 232 A

Design advantages:

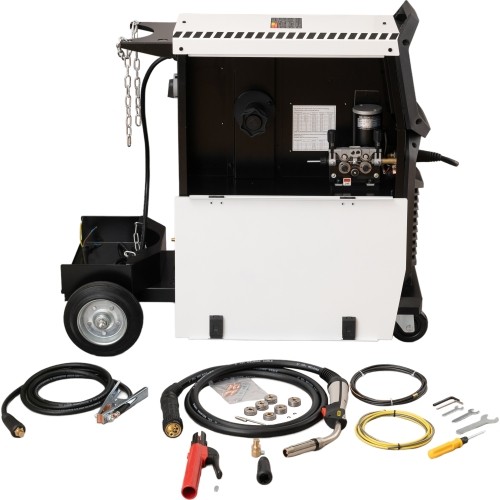

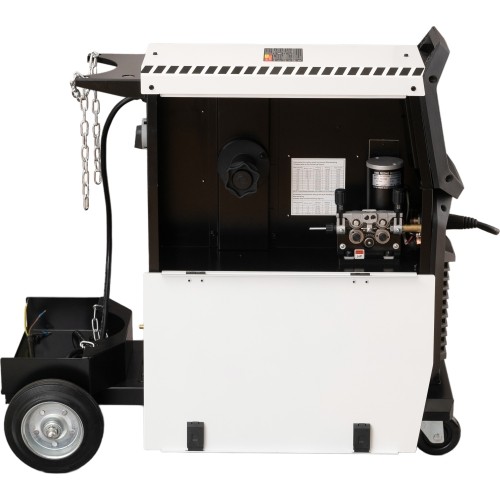

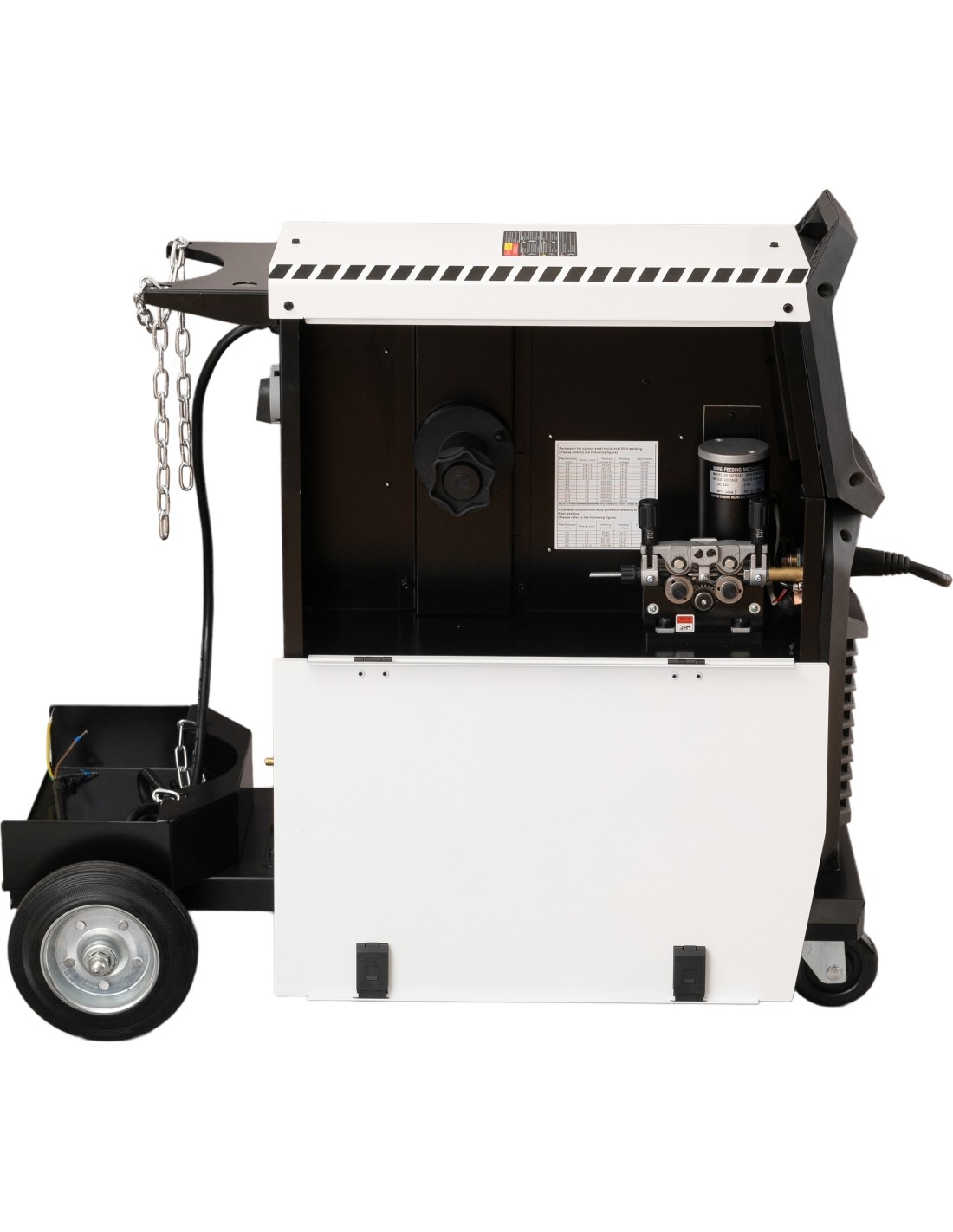

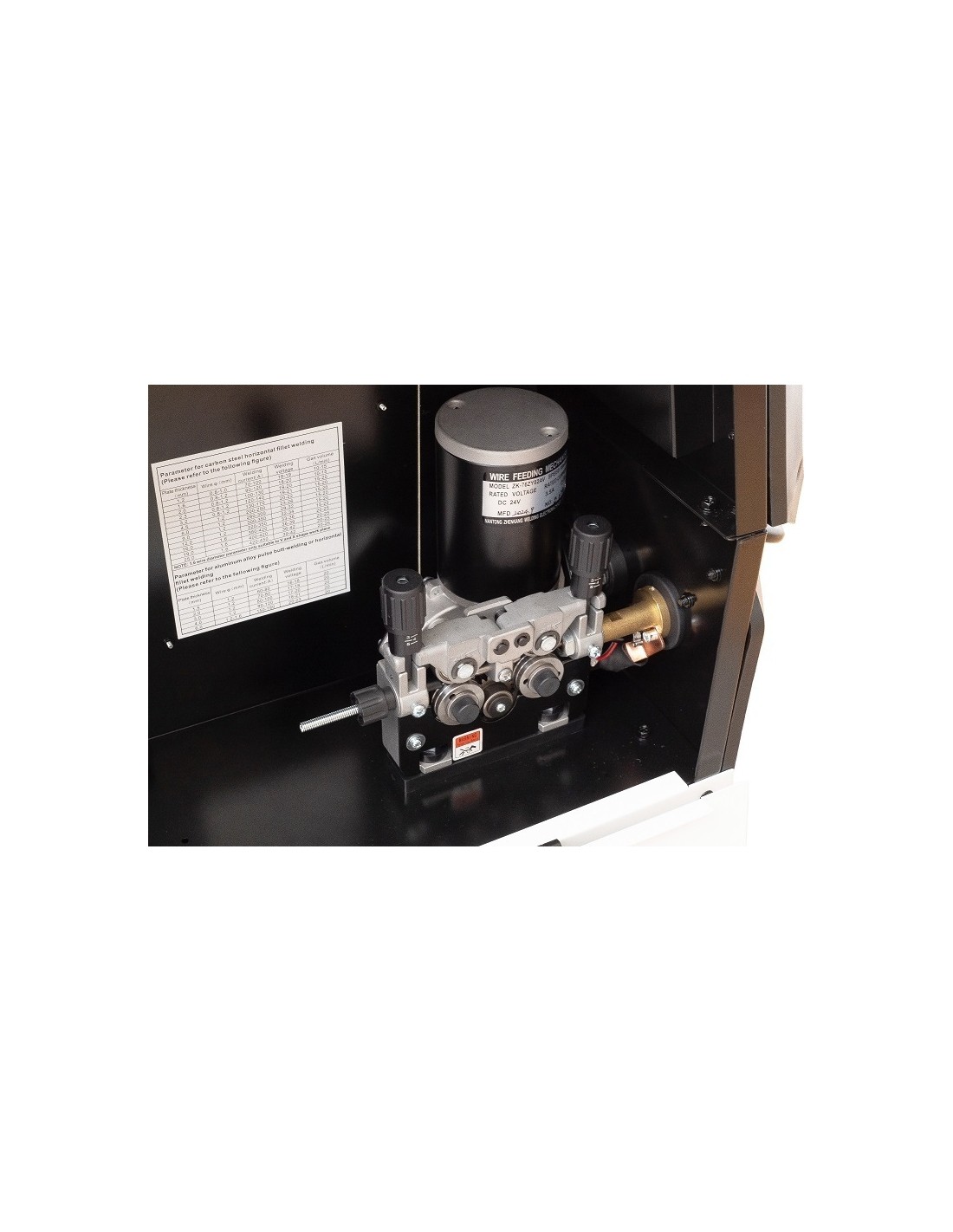

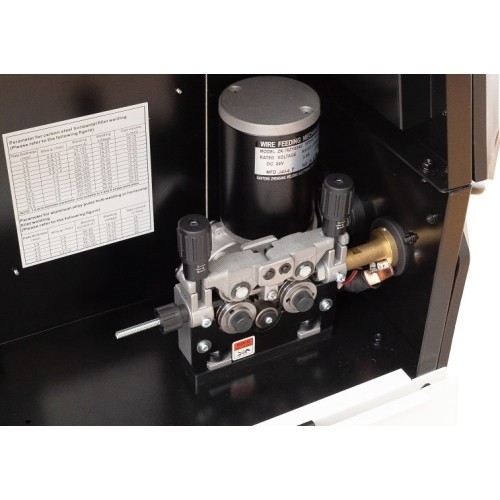

Ergonomic wire compartment

• Wide, easy-opening compartment

• Quick spool change

• Easy daily care and maintenance

• Stable, even wire feed

• Durable metal construction

• Precise tension adjustment, slip protection

• Fewer spool changes → less downtime

• Lower price per kg → much lower wire cost

• Ideal for long welding runs and production

Built for professionals

• Reliable under heavy-duty operation

• Clean weld bead formation

• Minimal spatter and a stable arc

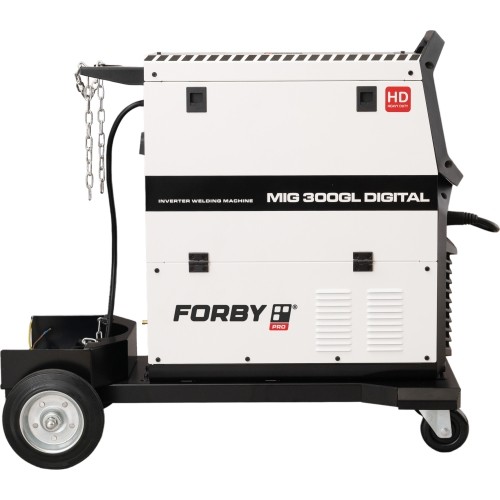

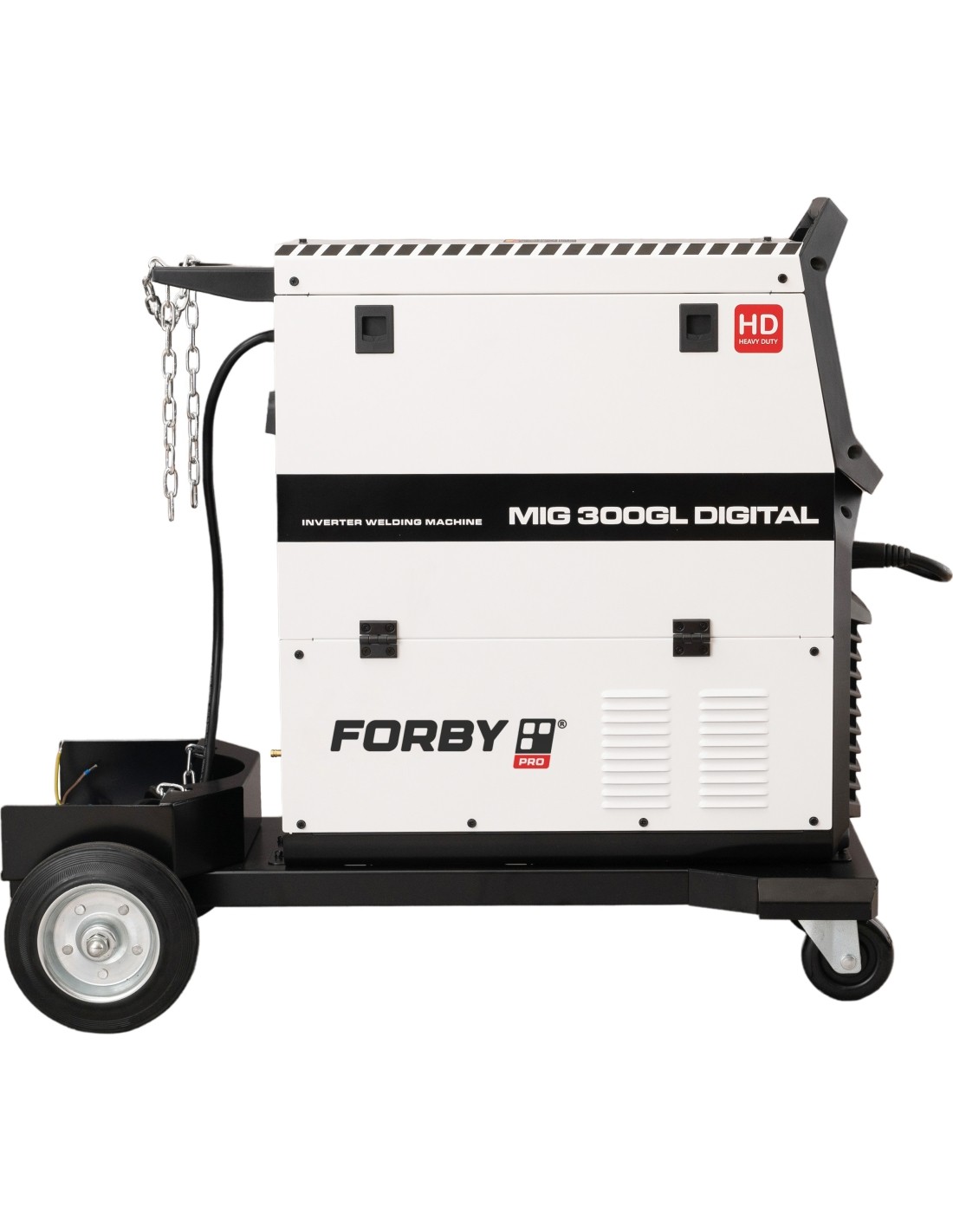

Key design advantages:

• Sturdy powder-coated construction with better resistance to corrosion, impacts and harsh working conditions.
• Easy access to the wire feeder - quick spool changes and easy maintenance during daily work.
• Precise wire feed mechanism - keeps wire feed even in all working situations.

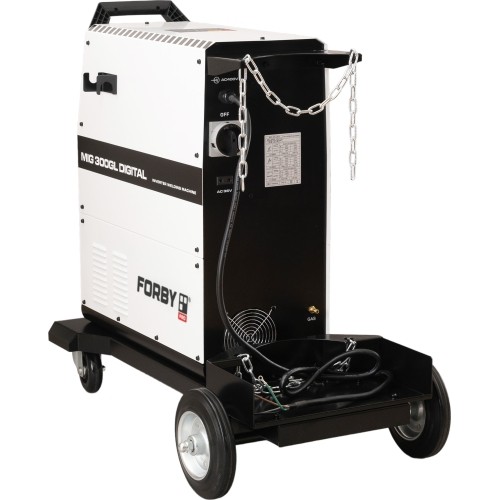

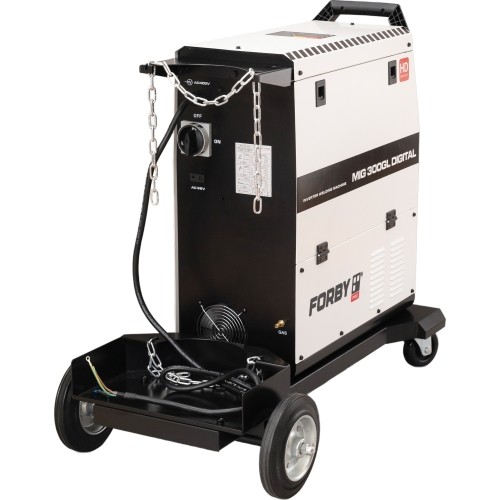

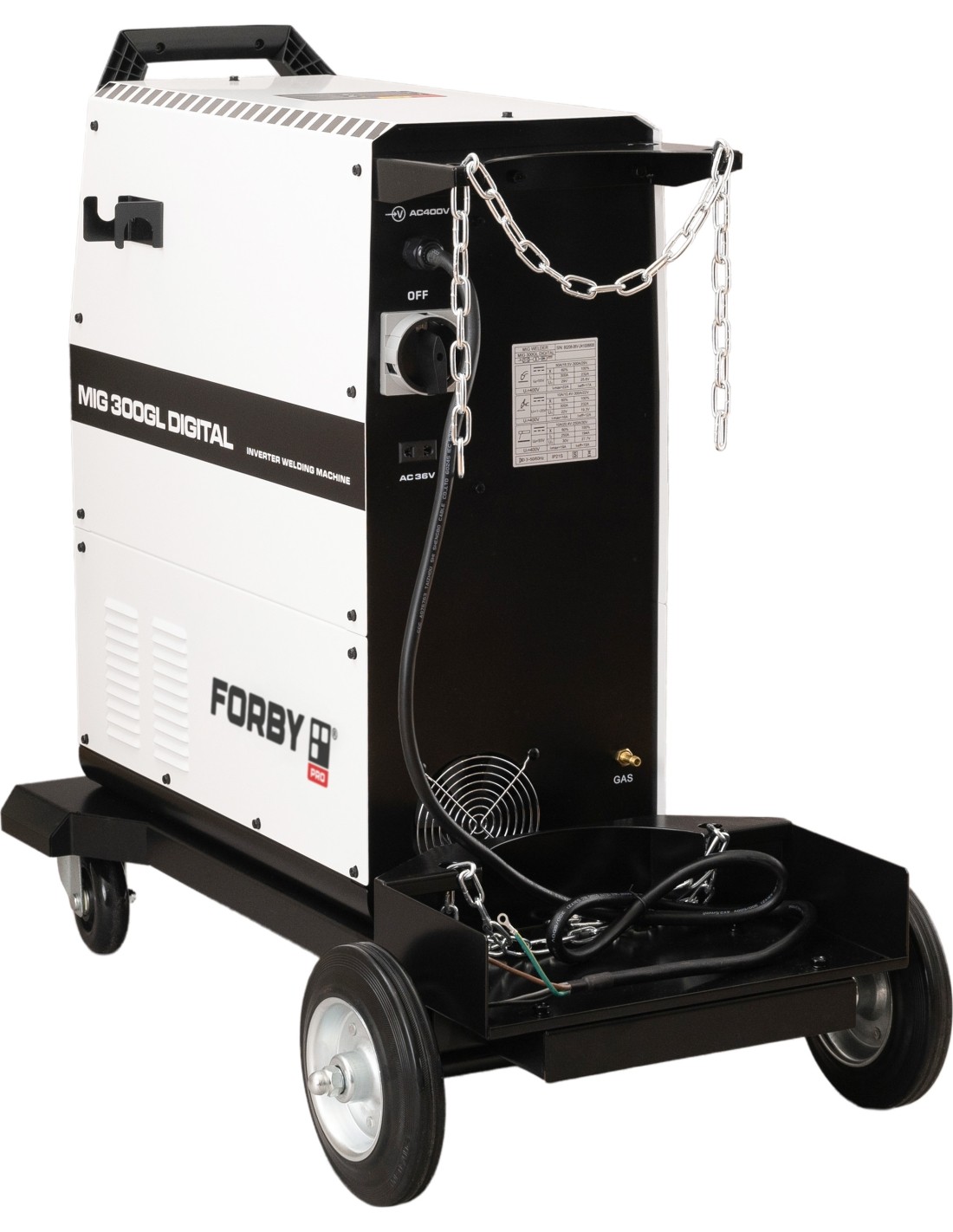

• Large rear wheels and agile front castors make it easy to move, even in large workshops or on production lines.

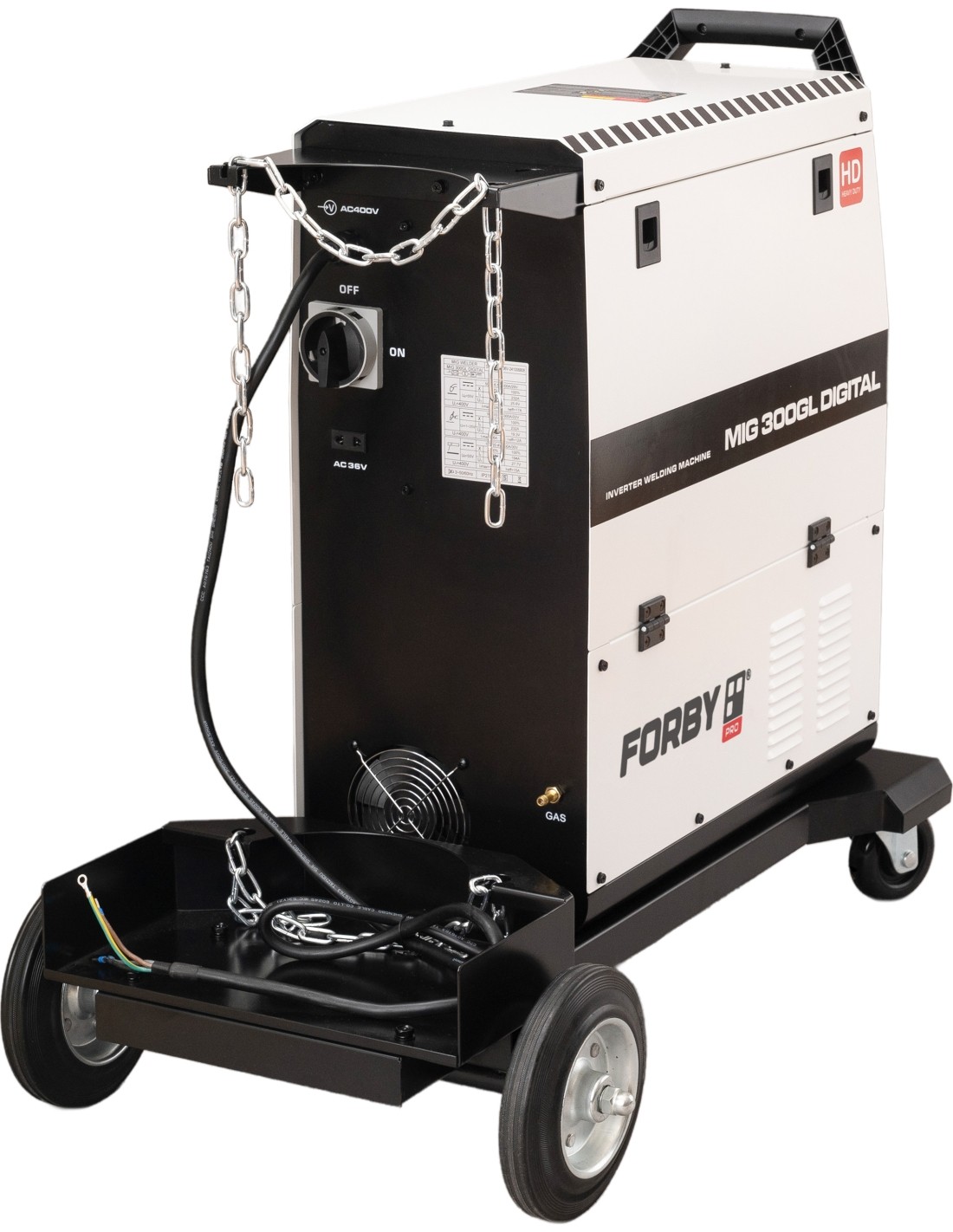

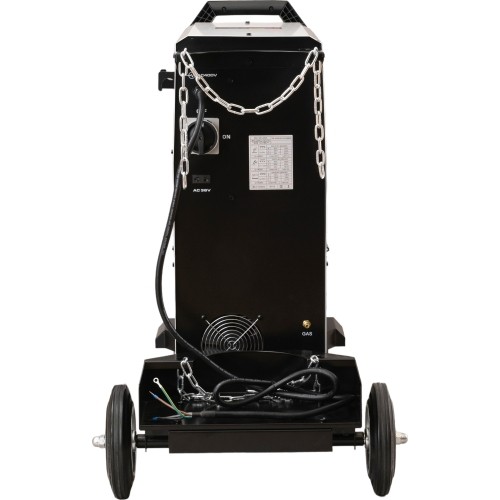

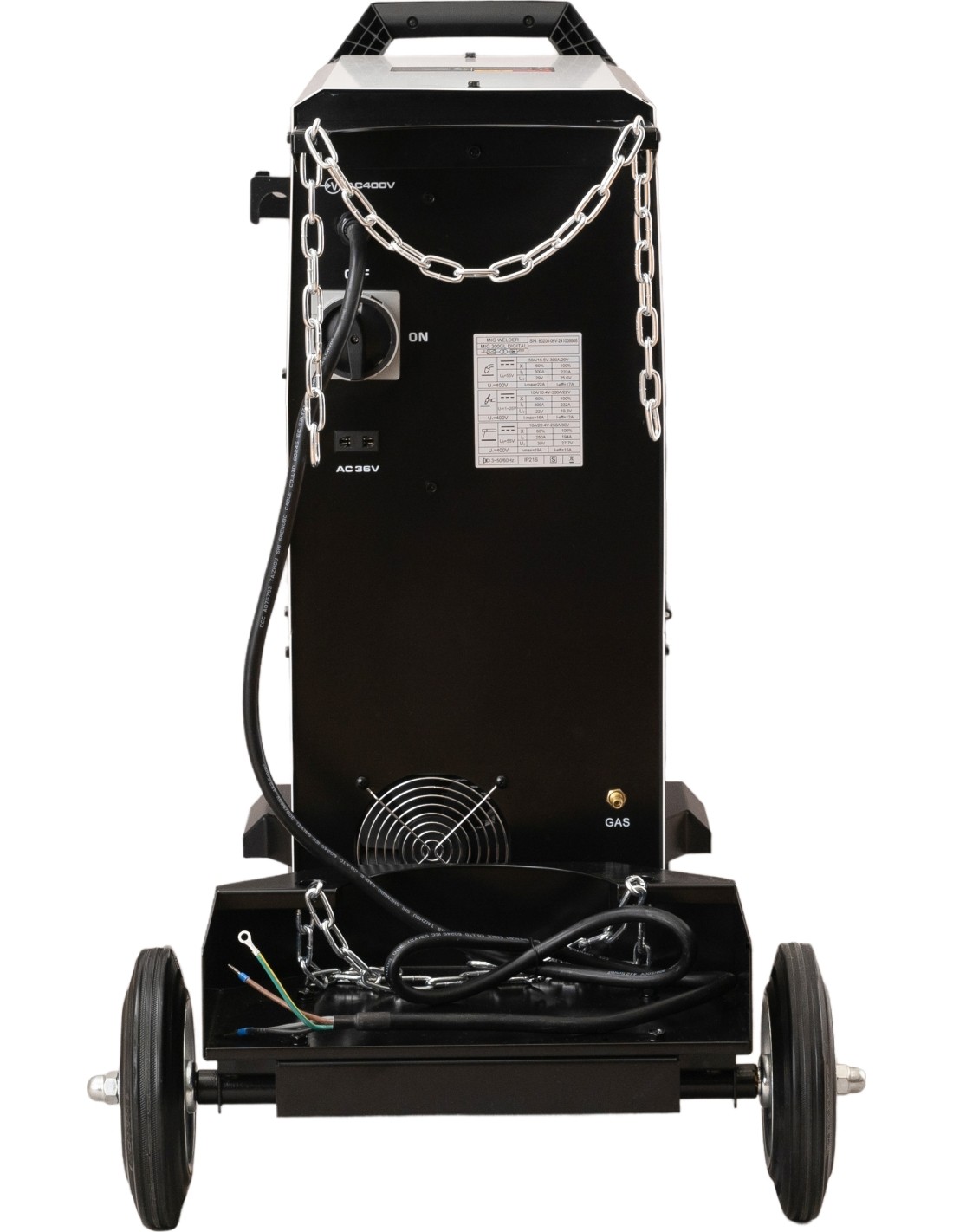

• Integrated gas cylinder holder with safety chain - for safe and stable transport of the gas cylinder.
• Convenient top carrying handle - for easy carrying of the machine.
• Torch holder - everything at hand, safe and tidy.
• The well-designed housing provides good ventilation and longer component life.

Every design detail supports the machine's main purpose - to give professionals a convenient, efficient and durable welding solution.

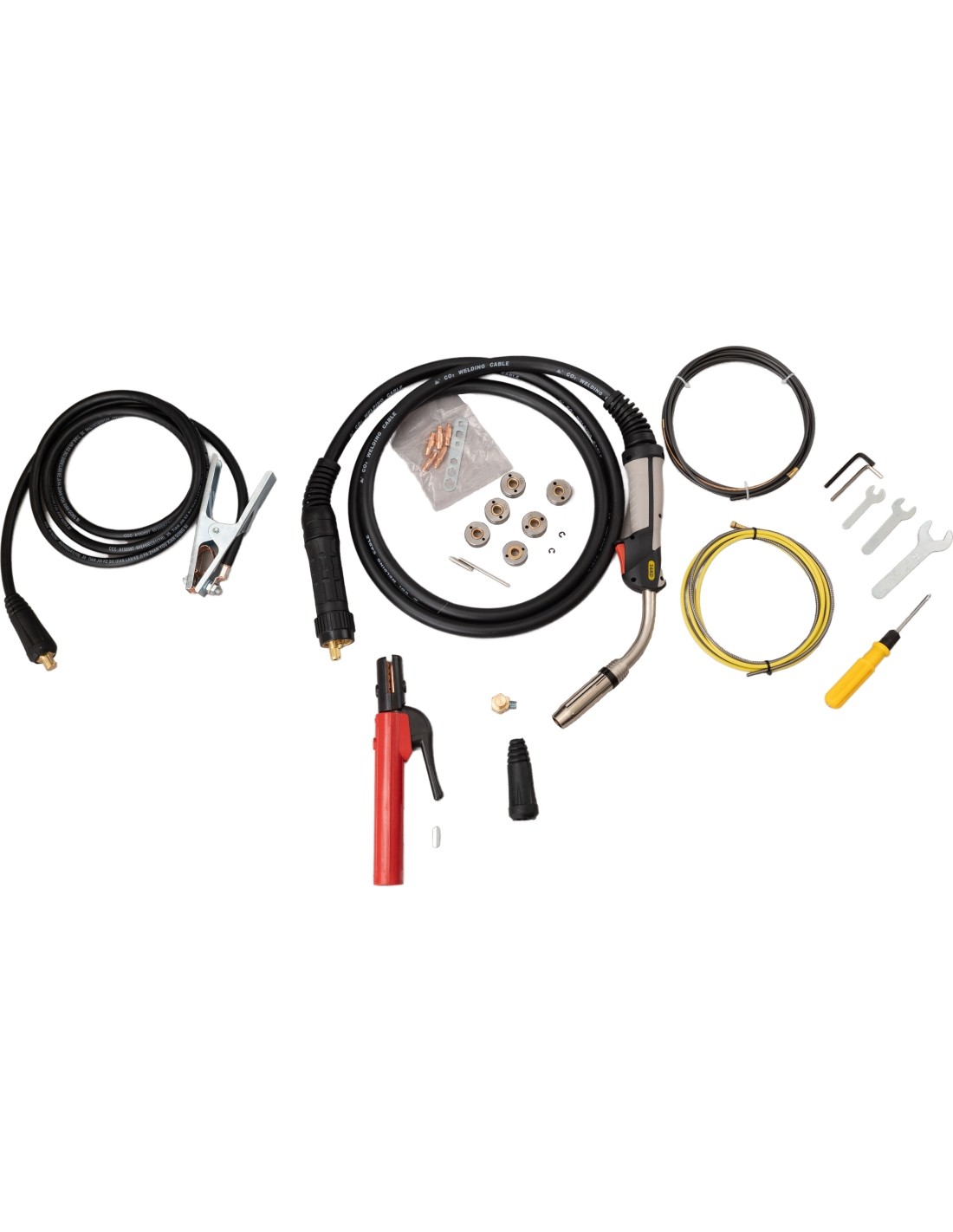

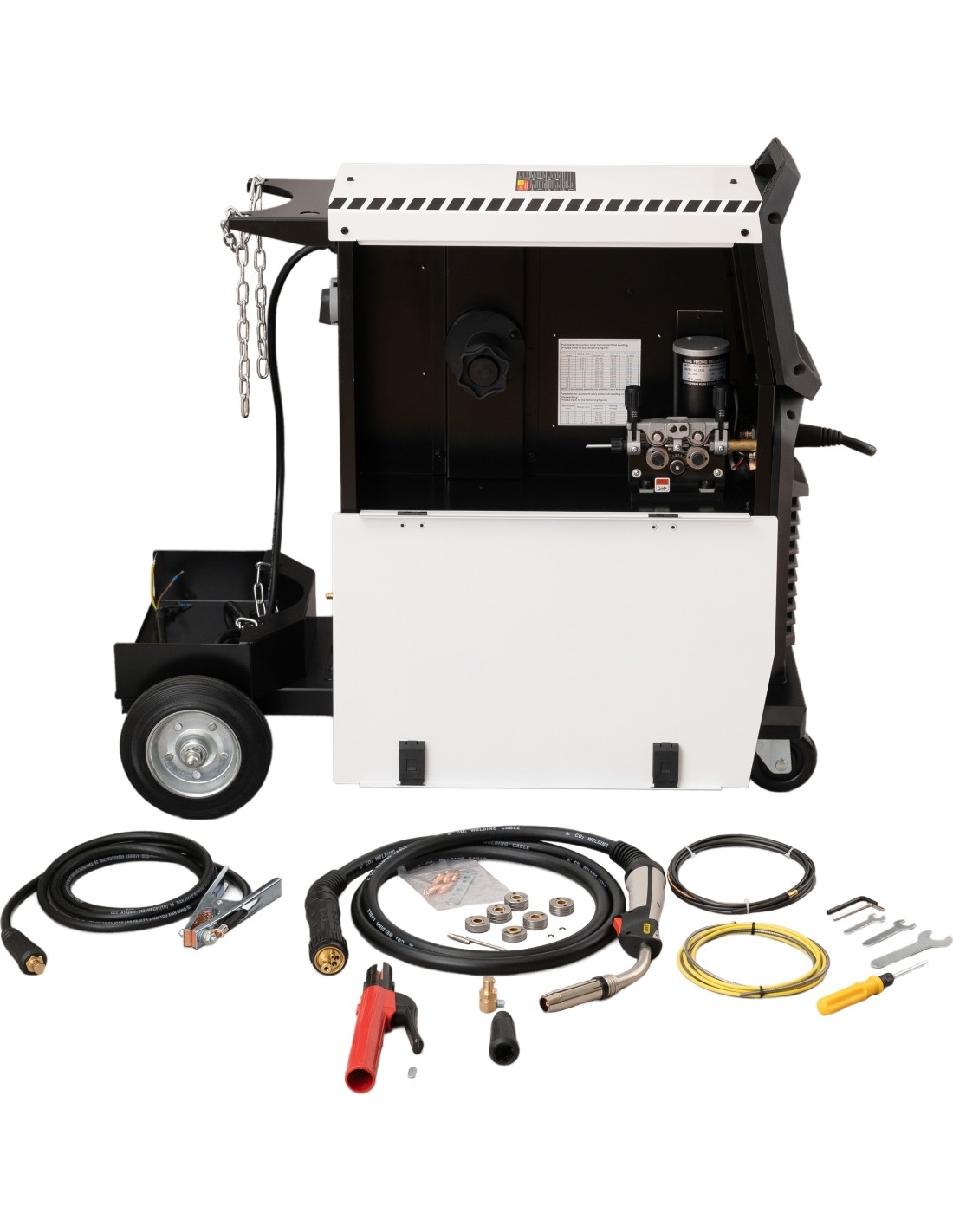

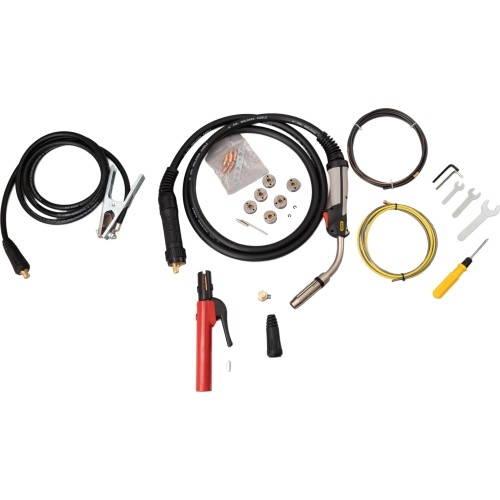

Package contents:

• MIG welding machine MIG-300 GL Digital
• MIG torch M-36, 4 meters (with consumables: nozzle, contact tip, gas diffuser, steel liner)
• Electrode holder with 3 meter cable, 600 A (35 mm2 cable, 35-50 mm connector)
• Earth clamp with 3 meter cable, 500 A (35 mm2 cable, 35-50 mm connector)
• Additional wire feed rolls, 2 pcs (for 1.0 / 1.2 mm wire) for steel.
• Tightening tools
• Trolley platform
• User manual EN/LT
