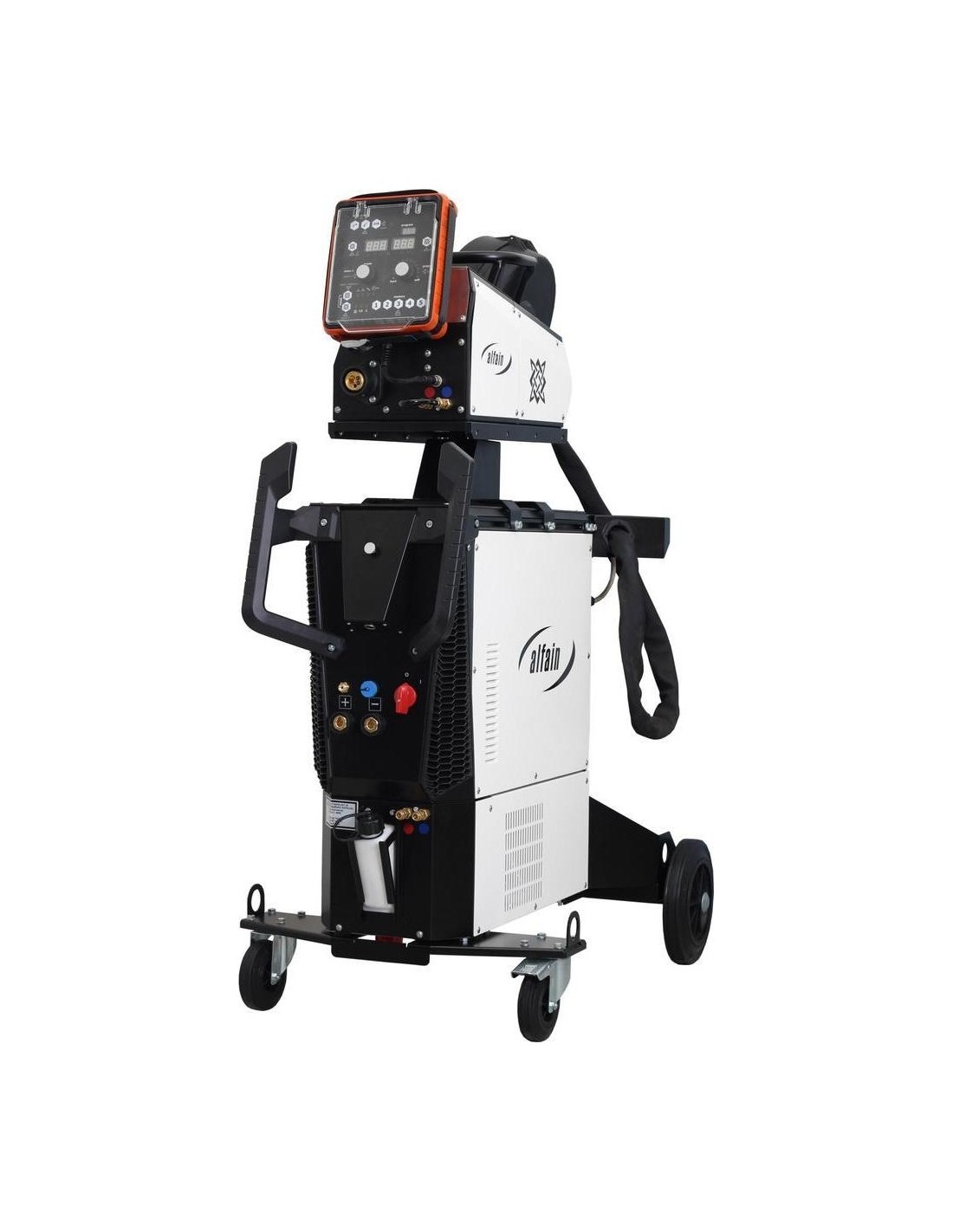

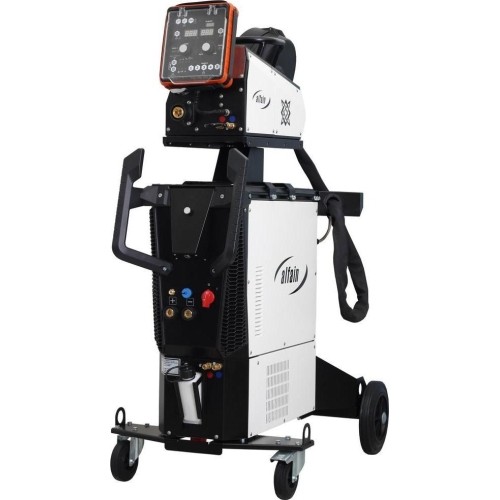

SVAROG 520 HD H2O Dpulse
  • Online only
SVAROG 520 HD H2O Dpulse

Phase
Trifazis (400V)
Aušinimo skystis
ACL-10 (su filtru)
User Level
industrial
Wire spool size [kg]
18
Maximum current MMA [A]
500
Maximum current TIG [A]
500
Maximum current MIG/MAG
500
Vielos ritės skersmuo ø [mm].
200, 300
Nom. įtampa / Voltage
3×400 V / 50–60 Hz
Maks. be apkrovos įtampa (U₀) / Open-circuit voltage
94 V
PWM suvirinimo srovė (60 % cikle) / Welding current @ 60 % duty
500 A
PWM suvirinimo srovė (100 % cikle) / Welding current @ 100 % duty
420 A
MMA srovės diapazonas / MMA range 10
500 A
MMA 60 % / MMA @ 60 % duty
500 A
MMA 100 % / MMA @ 100 % duty
420 A
TIG DC srovės diapazonas / TIG–DC range 1
0–500 A
TIG 60 % / TIG–DC @ 60 % duty
500 A
TIG 100 % / TIG–DC @ 100 % duty
420 A
Dydis (plotis × ilgis × aukštis) / Dimensions
270 × 660 × 390 mm
Svoris – compact / Weight (compact)
16 kg
Atstumas iki valdymo panelės (magnetinis laikiklis) / Control panel distance
≤ 12 m (pratęsimo kabelis – 6 m)
Veikimo tikslumas ir paprastumas
Impulsinis PULSE ir HSL režimai mažina purslų kiekį iki 70 %, suvirinimo greitis padidėja 30–35 %
Efektyvumas / Efficiency
89 %
Inverter technology
IGBT
Shielding Gas Requirement
Gas / Gasless

SVAROG 520 HD H2O Dpulse

1343404
Price €6,490.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10+ pcs)
Delivery terms:
FREE pick up monday, august 10 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 100 kg.
We will deliver the product to you via: 8-17 w.d. Venipak (€40.99)
Weight: 100 kg.
