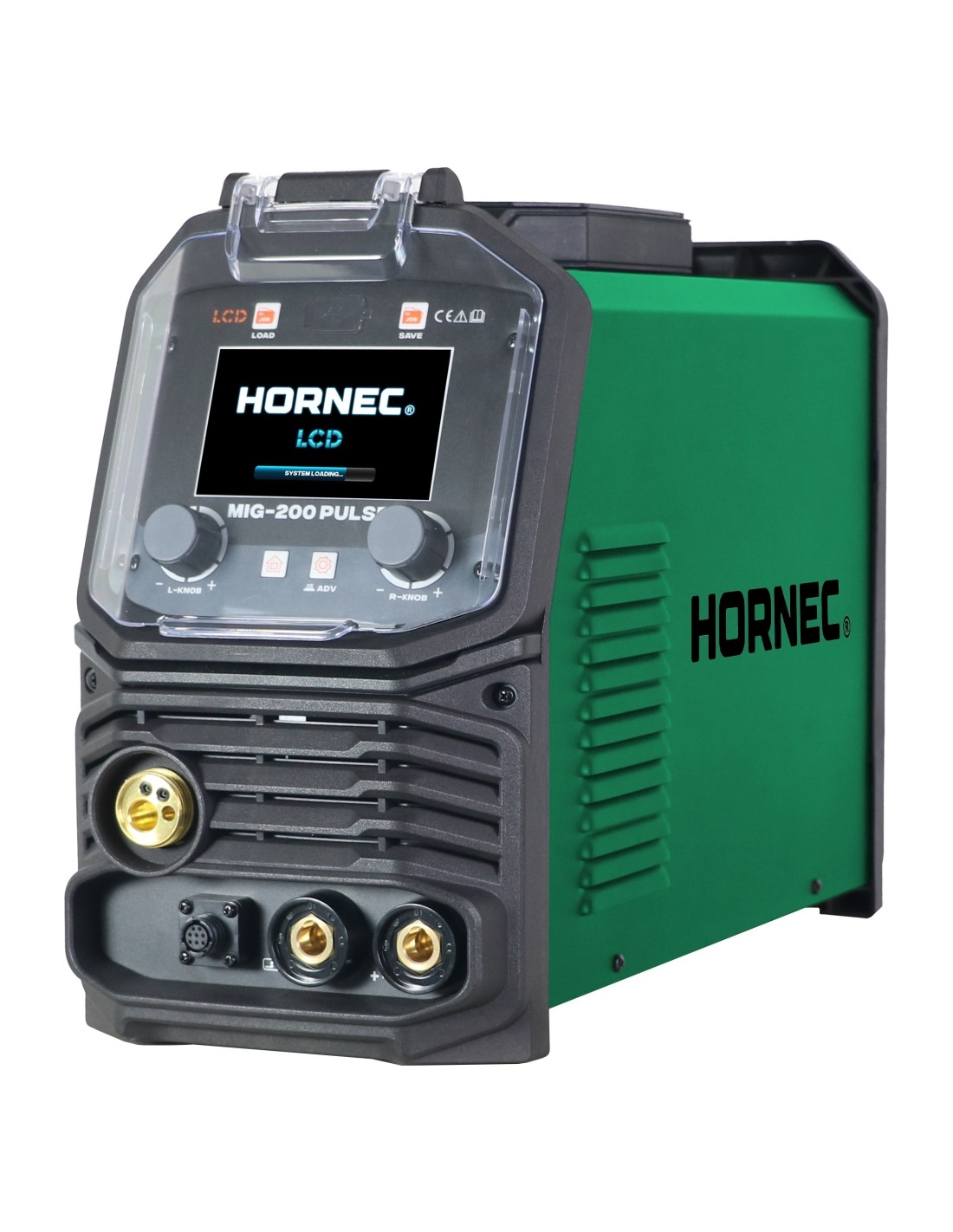

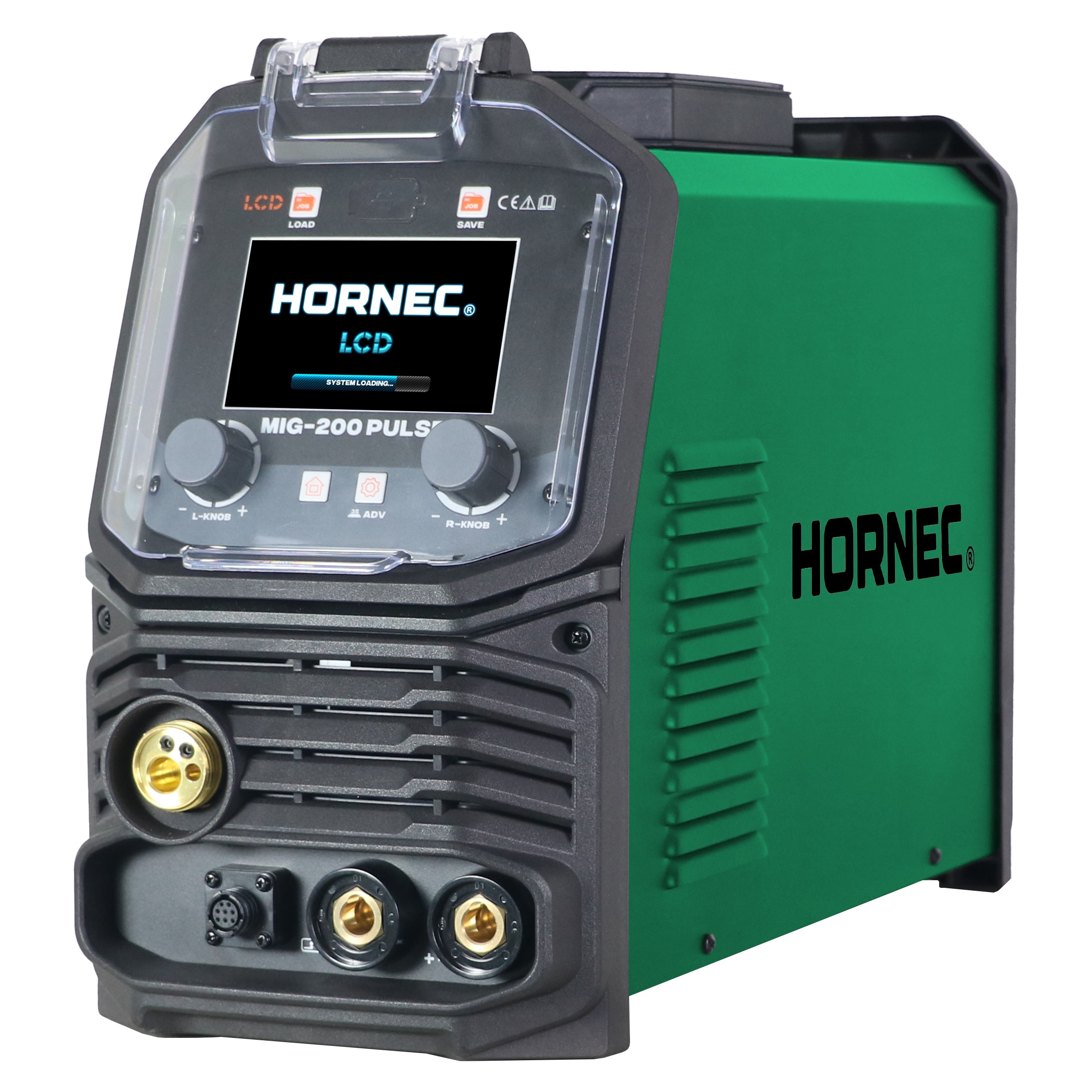

Hornec® MASTER-MIG iQ 200 Double Pulse welding machine

Welding machine HORNEC® MASTER-MIG iQ 200 Double Pulse

Up to 200 A, single and double MIG pulse, 5-inch LCD display - more options for different welding jobs.

This welding machine combines conventional MIG/MAG, pulsed MIG, double pulse MIG, MMA and Lift-TIG DC welding. It is a practical choice for metal fabrication workshops, repair work and tasks where convenient parameter control and a neat weld appearance matter.

The included 24KD MIG torch, set up for aluminium wire, and the steel wire guide accessories allow you to adapt the machine to different jobs by selecting the right wire, gas and welding settings.

• Single and double MIG pulse: for controlling the welding process and bead formation.
• 5-inch LCD display: for a clear view of the parameters.
• 15 JOB memory slots: for saving frequently used settings.
• 1 kg and 5 kg wire spools: for jobs of different scale.
• 230 V single-phase power supply.

Advanced IGBT inverter technology

The IGBT inverter design allows efficient adjustment of welding parameters, helps maintain a stable arc and reduces energy losses.

• digital parameter control;
• stable DC arc;
• overheating and overcurrent protection;
• active fan cooling;
• compact housing for home workshops.

Double Pulse - more bead shaping options

Single pulse MIG mode alternates the welding current between peak and base values. Properly selected settings help control metal transfer and reduce spatter.

Double pulse mode additionally varies the intensity of the pulsed process. This gives more control over the weld pool and helps form a rhythmic, scale-like bead surface.

These capabilities are especially useful when welding aluminium and for work where the appearance of the joint matters. The result depends on workpiece preparation, wire, shielding gas, parameters and welding technique.

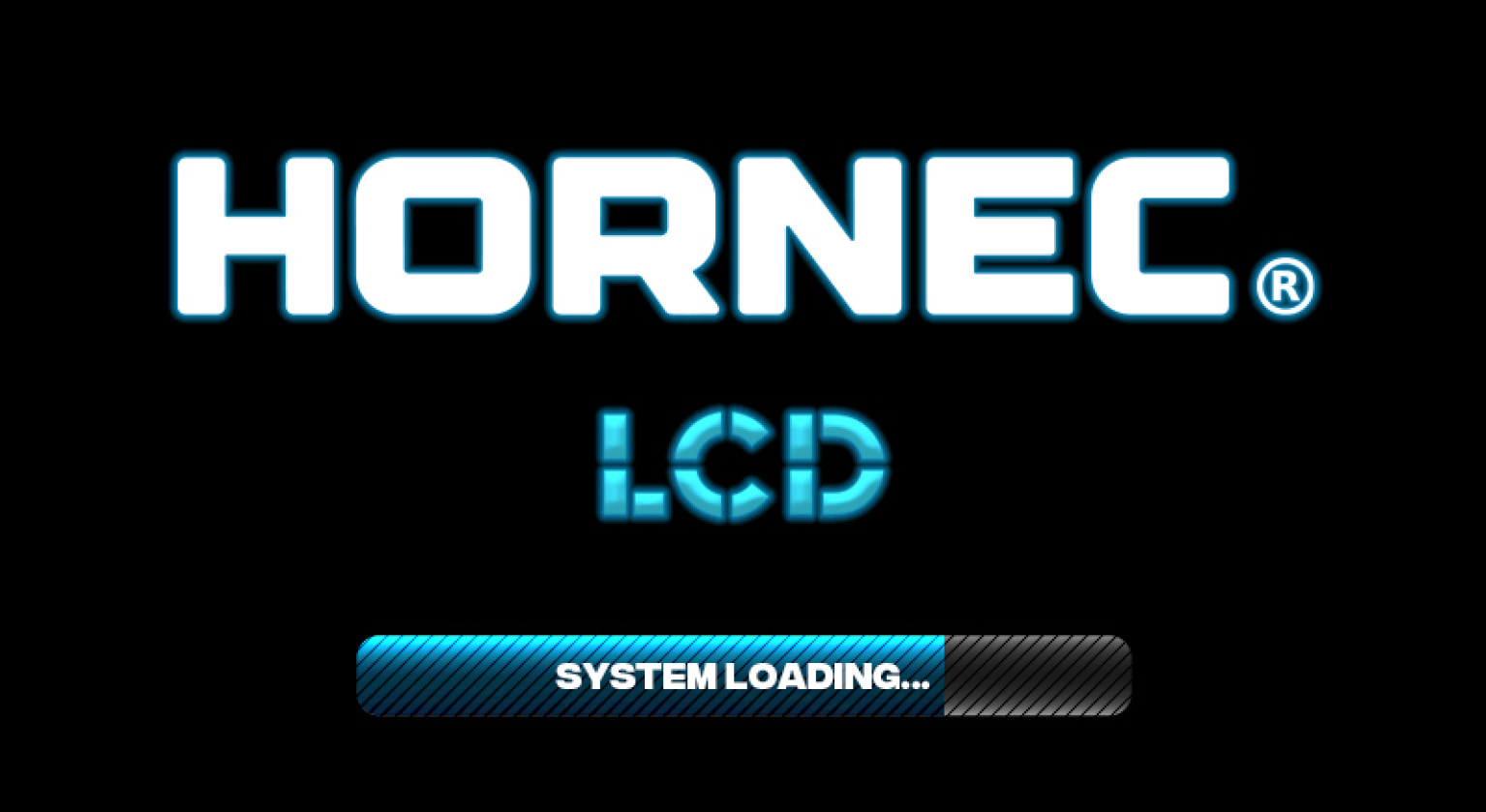

5-inch LCD display and 15 settings memory slots

The large LCD display lets you conveniently view the selected mode and welding parameters. Clearly visible settings help you prepare for work and adjust the process as the task changes.

15 JOB memory slots are intended for saving frequently used setting sets. When returning to a repetitive job, the tuned parameters can be recalled from memory.

This is convenient when you regularly weld workpieces of different thickness or change the wire and welding task.

1 kg and 5 kg wire spools - according to the scope of work

The welding machine accepts 1 kg and 5 kg welding wire spools. A smaller spool is convenient for occasional jobs, while a larger one allows longer work without changing it.

The set includes a 0.8-1.0 mm V-groove feed roller for steel wire, a steel wire inlet guide and a steel torch liner.

The 24KD MIG torch is set up for aluminium wire. When changing the wire material or diameter, the feed roller, wire liner and contact tip must be matched accordingly.

Adjustable functions for electrode welding

In MMA mode the welding current is adjustable within the 10-200 A range. Additional functions help adapt arc ignition and arc behaviour to the selected task.

• Hot Start: adjustable short-term current boost during arc ignition.
• Arc Force: adjustable arc dynamics that help maintain the arc as it shortens.
• VRD: open-circuit voltage reduction function.

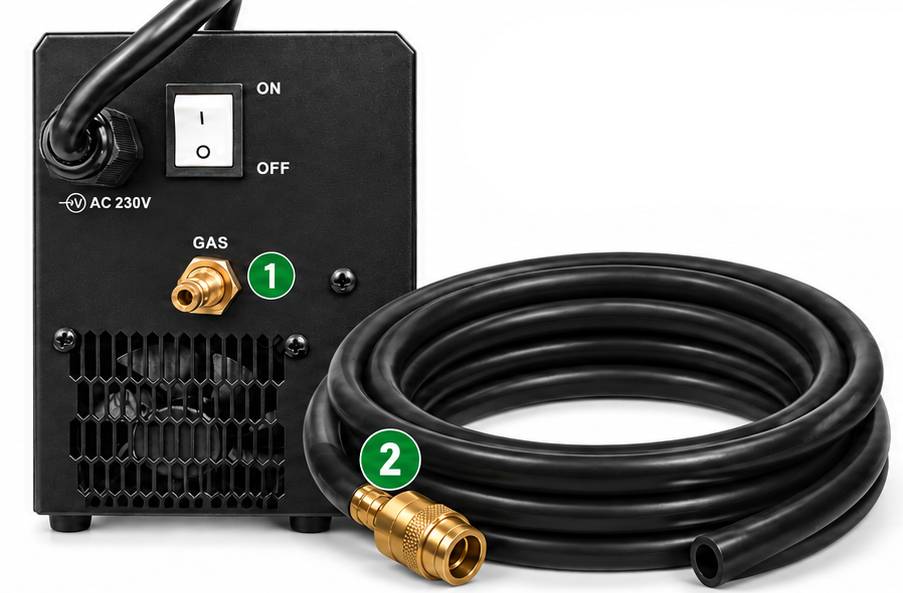

Quick and convenient gas hose connection

1. The integrated quick gas coupling allows the gas hose to be connected or disconnected easily and quickly. This shortens the machine setup time and makes moving and transporting it easier.

2. A 3-metre pressure-resistant gas hose is included with a quick coupling on the machine side. The optimal hose length gives more freedom to conveniently position the welding machine and gas cylinder at the workplace.

• Hose length: 3 m.
• Inner diameter: 6 mm.
• Outer diameter: 13 mm.
• Quick coupling size: NW 5.0.

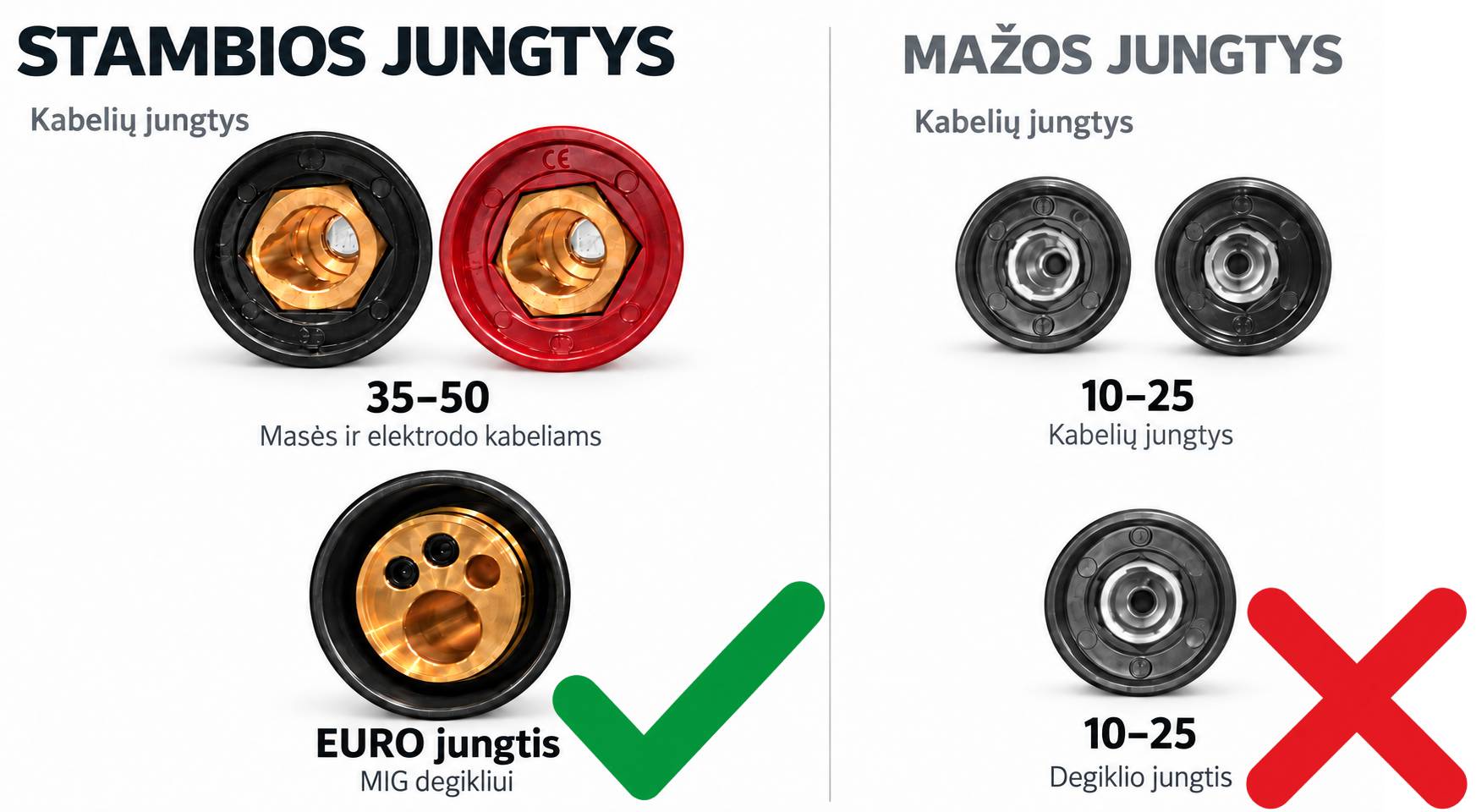

ROBUST CONNECTORS DESIGNED FOR HIGHER LOADS

Large 35-50 welding cable connectors ensure reliable contact and stable current transfer. They are designed for higher loads and help reduce connector heating and energy losses. Compared to budget-class machines, which more often use 10-25 connectors, 35-50 welding cable connectors provide an additional reliability margin.

The standard EURO connector for the MIG torch combines welding current, gas, wire feed and control contacts in a single connection. The torch can be quickly connected, disconnected or easily replaced with another MIG torch, and the threaded lock ensures a secure connection during work.

HORNEC® welding equipment focuses on quality, durability and ease of use, which is why even compact machines feature higher-specification solutions such as large 35-50 cable connectors and a universal EURO connector for the MIG torch.

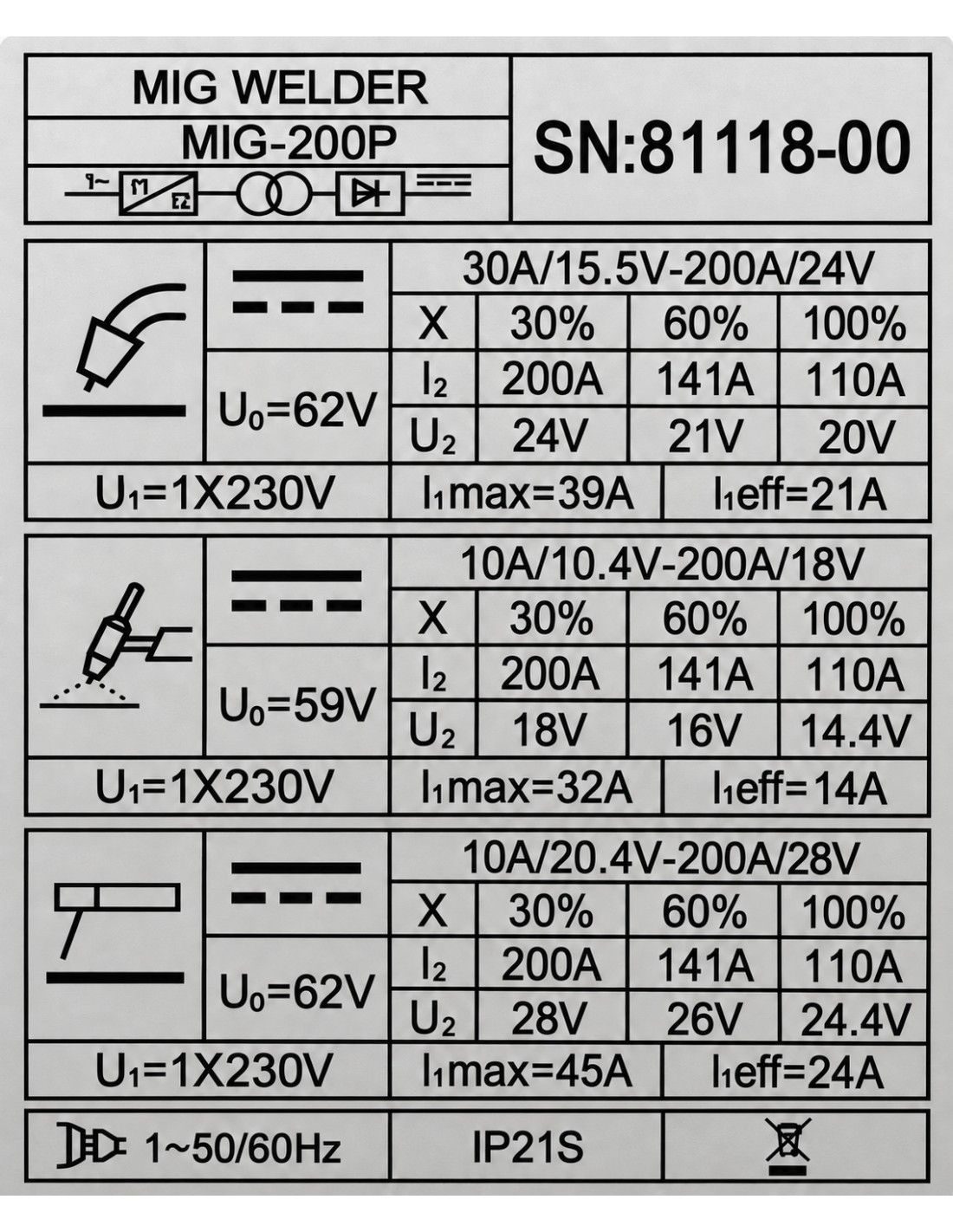

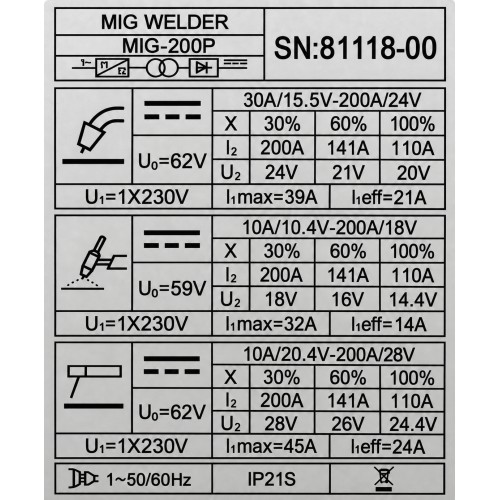

Main parameters

The 30 % duty cycle at 200 A is specified at an ambient temperature of 40 °C over a 10-minute period.

Easy to carry and set up at the workplace

The HORNEC® MASTER-MIG iQ 200 Double Pulse welding machine has a top carrying handle that helps move the machine to another workplace. Detachable cables, MIG torch and gas hose make it easier to prepare for transport.

The 5-inch LCD display and controls on the front of the machine provide convenient access to the welding settings. When choosing a place on a workbench or trolley, leave free space for the cooling vents and cables.

Package contents

• Welding machine HORNEC® MASTER-MIG iQ 200 Double Pulse.
• 24KD MIG torch with EURO connector: 3 m, set up for aluminium wire, with a fitted 1.0A contact tip.
• Gas hose: 3 m, inner diameter 6 mm, outer 13 mm, with quick coupling on the machine side.
• Additional contact tips: 0.8 and 1.0 mm for steel wire; 1.0A and 1.2A for aluminium wire.
• 300 A earth clamp: with 3 m, 16 mm² copper cable and 35-50 type connector.
• 200 A Italian-type electrode holder: with 3 m, 16 mm² copper cable and 35-50 type connector.
• V-groove wire feed roller: for 0.8-1.0 mm steel wire.
• Wire inlet guide for steel wire.
• Steel torch liner for steel wire.
• Torch wrench and 3 mm wrench.
• Power cable with 16 A plug: external length 2 m; total cable length including the part inside the housing 2.2 m.
