- Weight approx.
- 40 kg
- Machine dimension (W x D x H)
- 280 x 850 x 820 mm
- Spindle stroke
- 60 mm

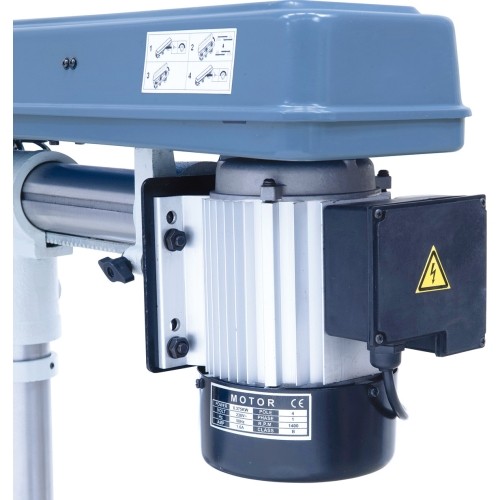

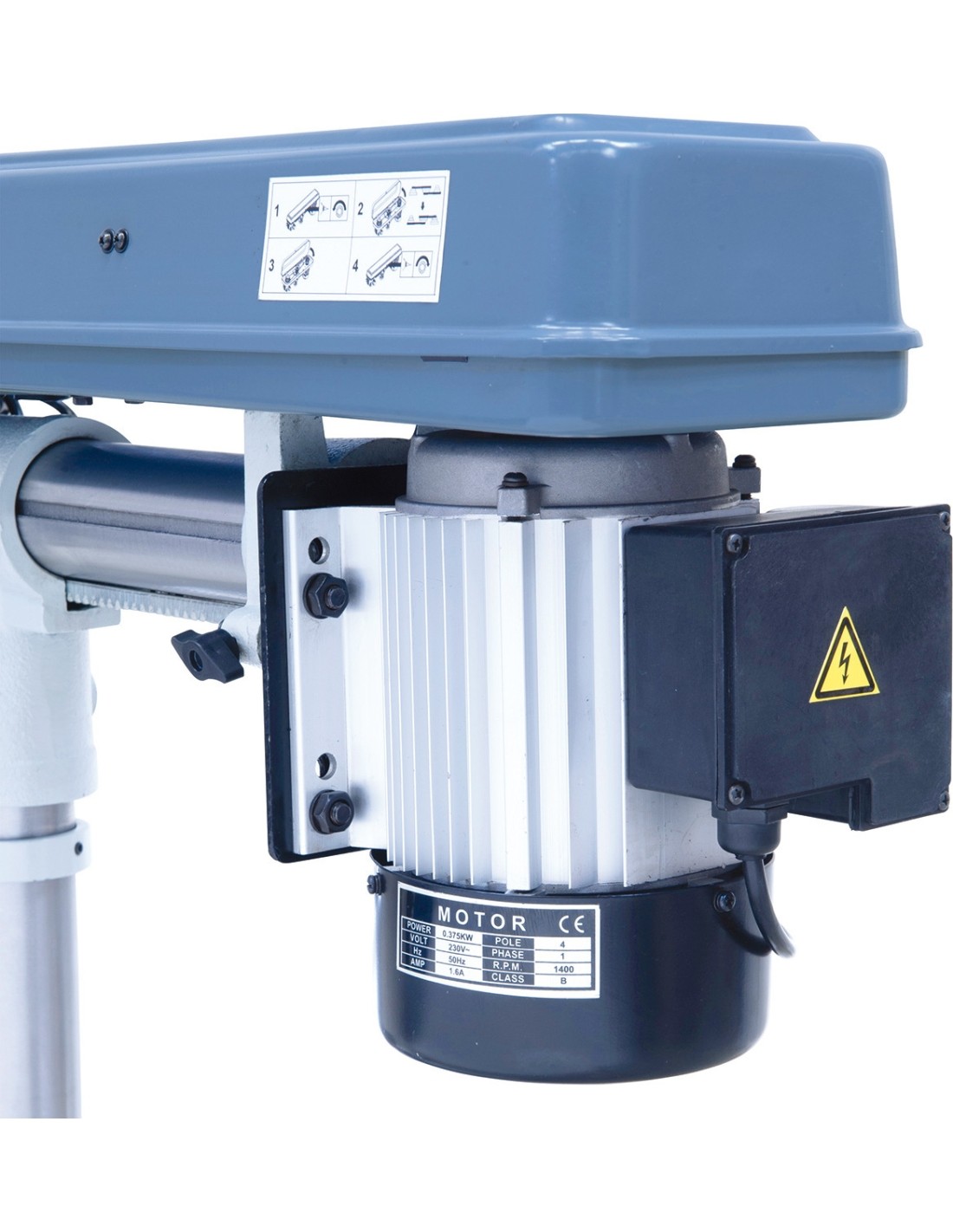

- Motor power output S1 100%
- 0,37 kW
- Motor power input S6 40%
- 0,55 kW
- Drilling capacity max.
- 16 mm
- Distance spindle to column min./max.
- 115 - 395 mm
- Morse taper
- MT 2
- Spindle speeds
- (12) 300 - 2550 rpm
- Drill chuck
- 1 - 16 mm / B 16
- Column diameter
- 58 mm
- Working surface of base
- 185 x 200 mm
- Table size
- Ø 255 mm
- Drill head tiltable
- -90° to +45°
- Phase
- 230 V

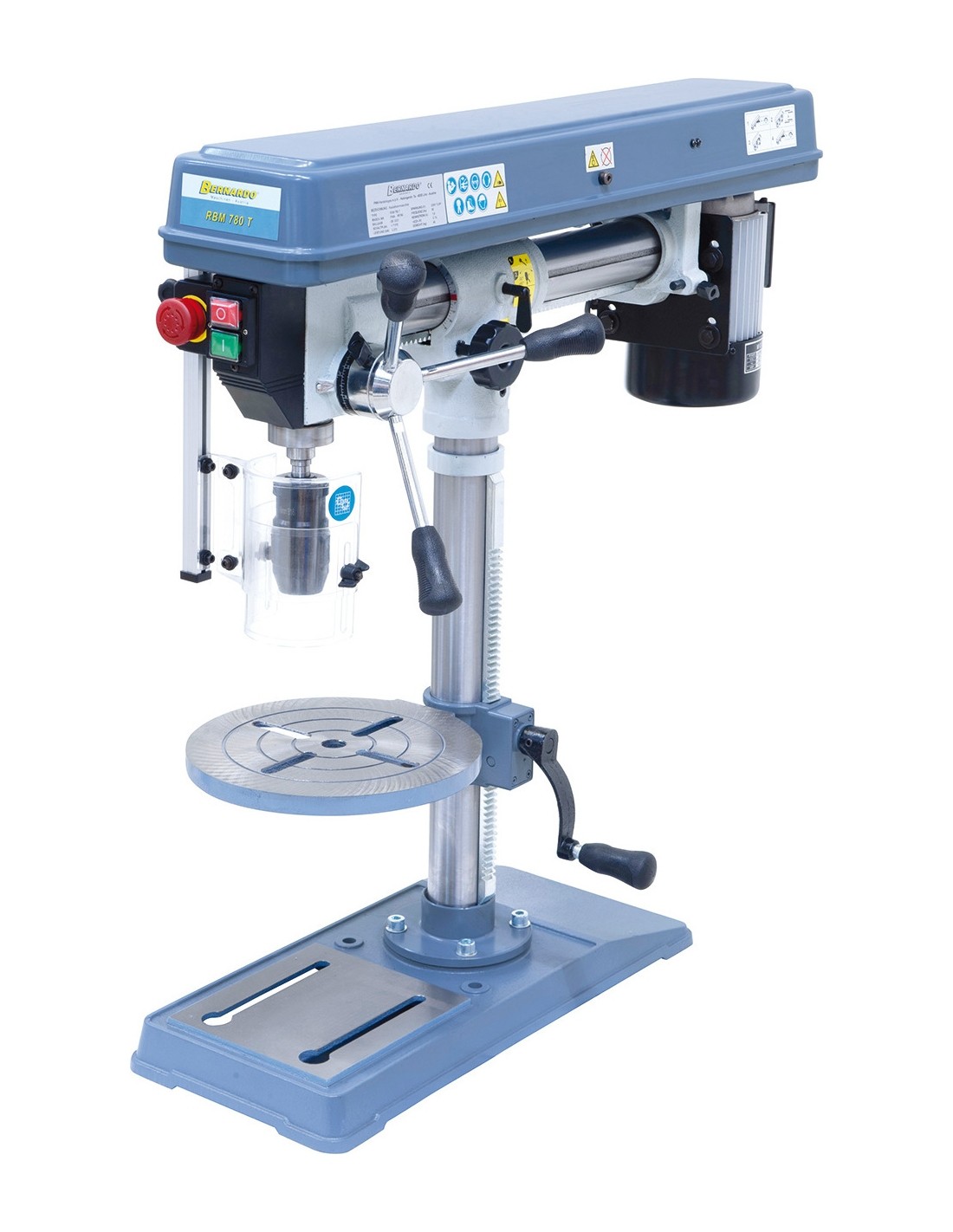

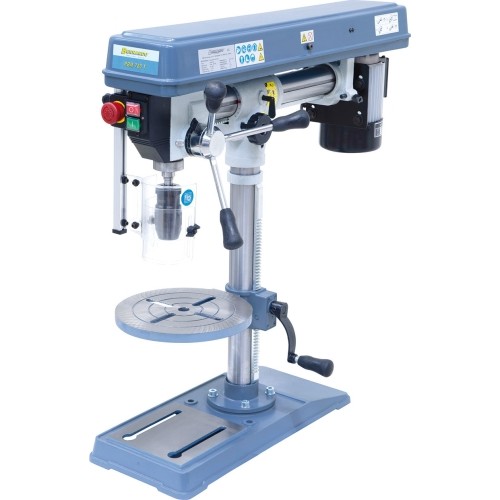

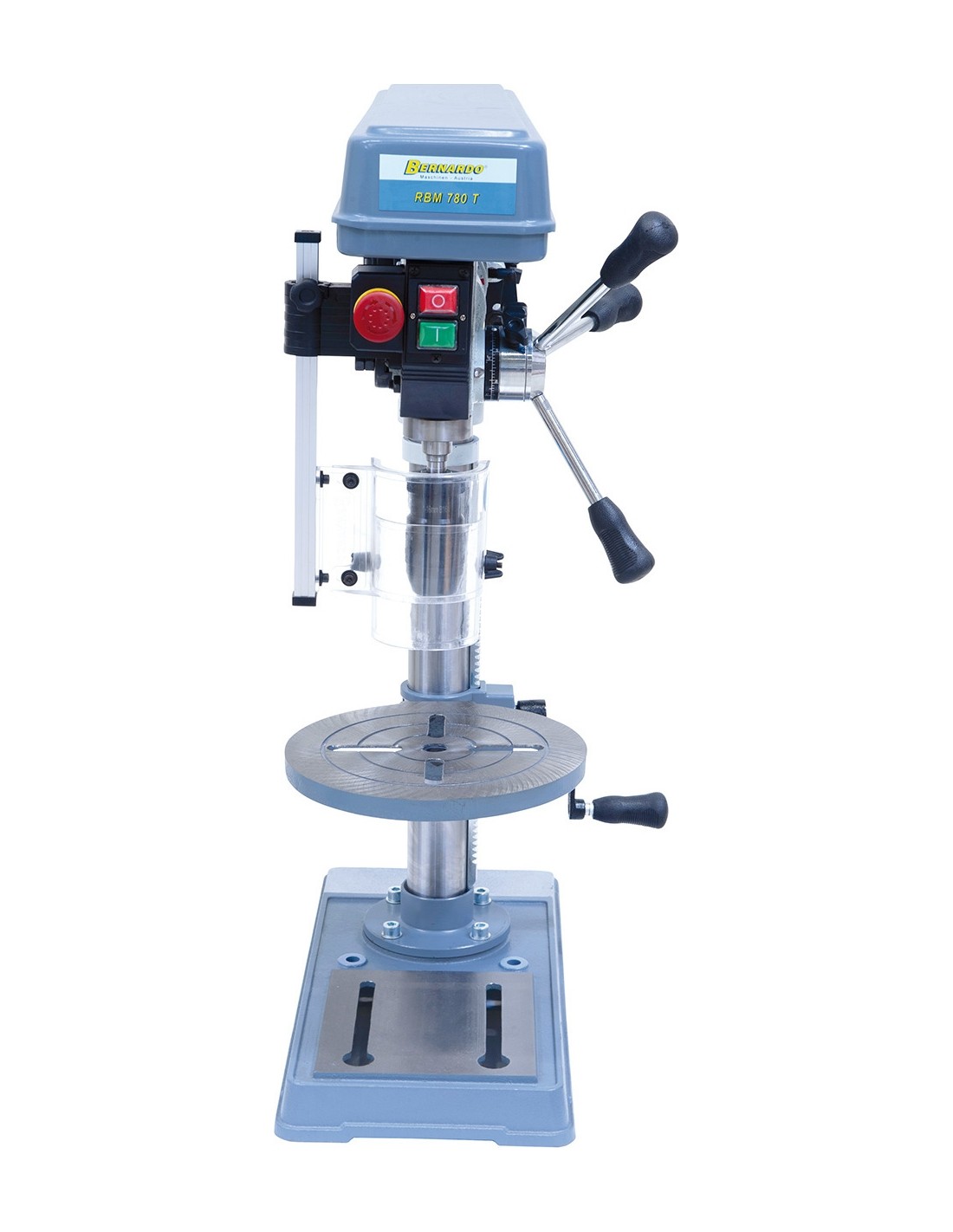

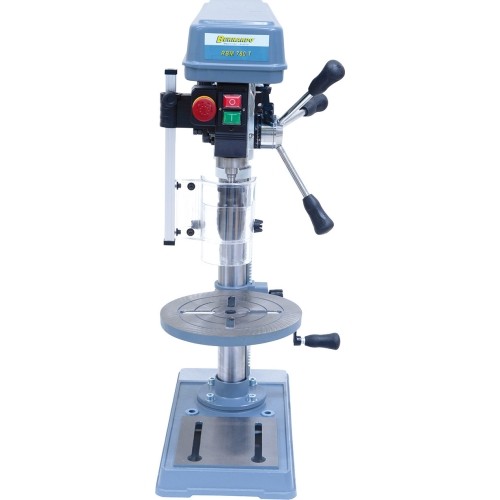

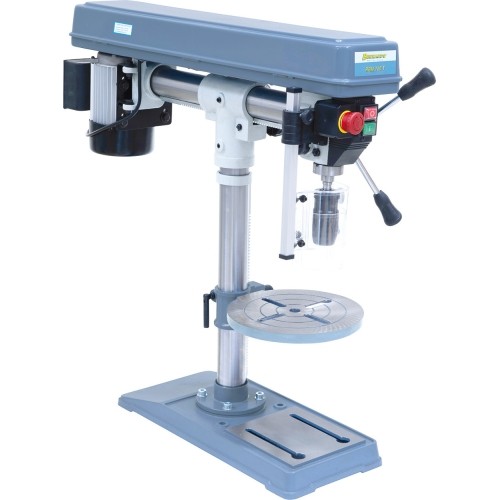

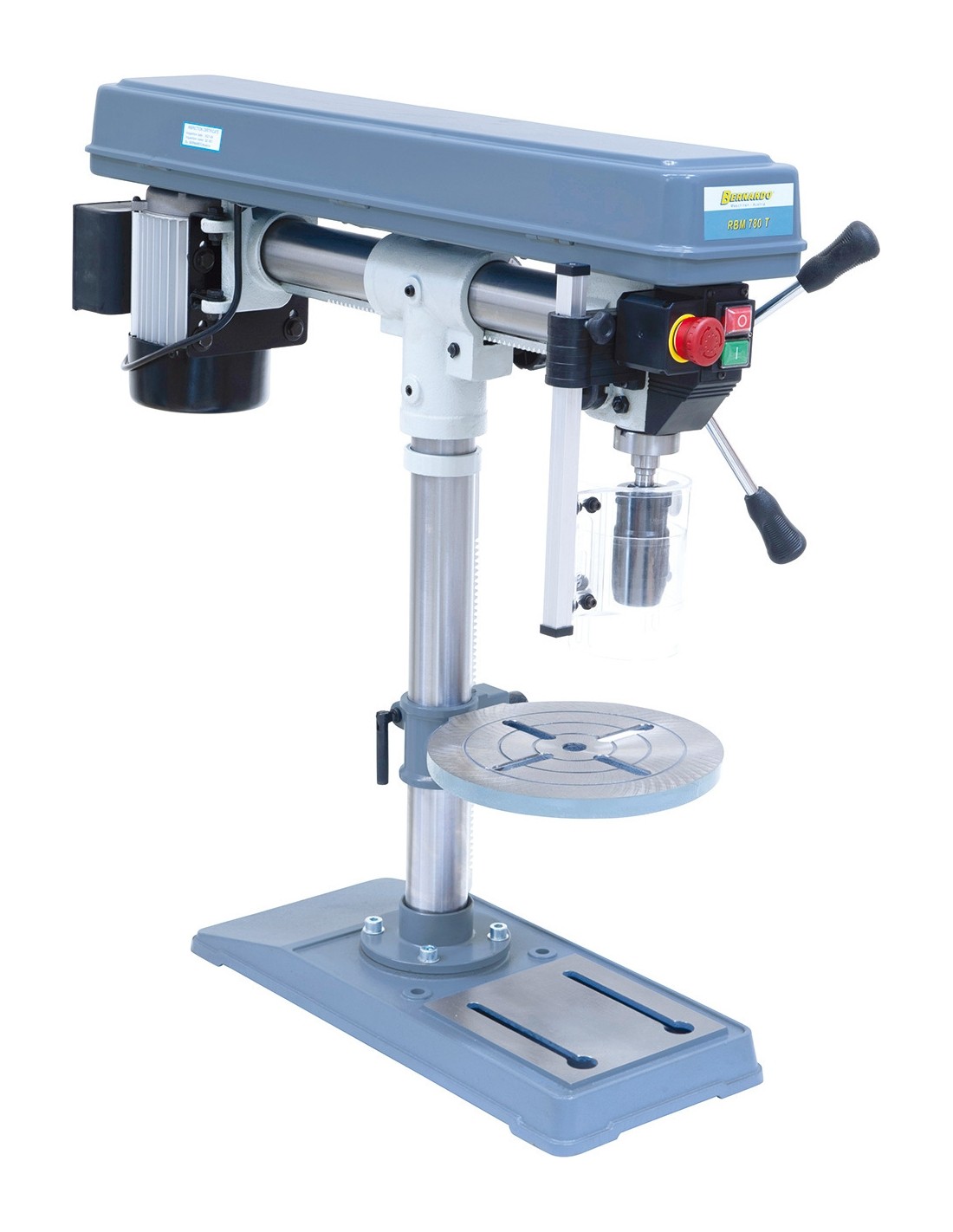

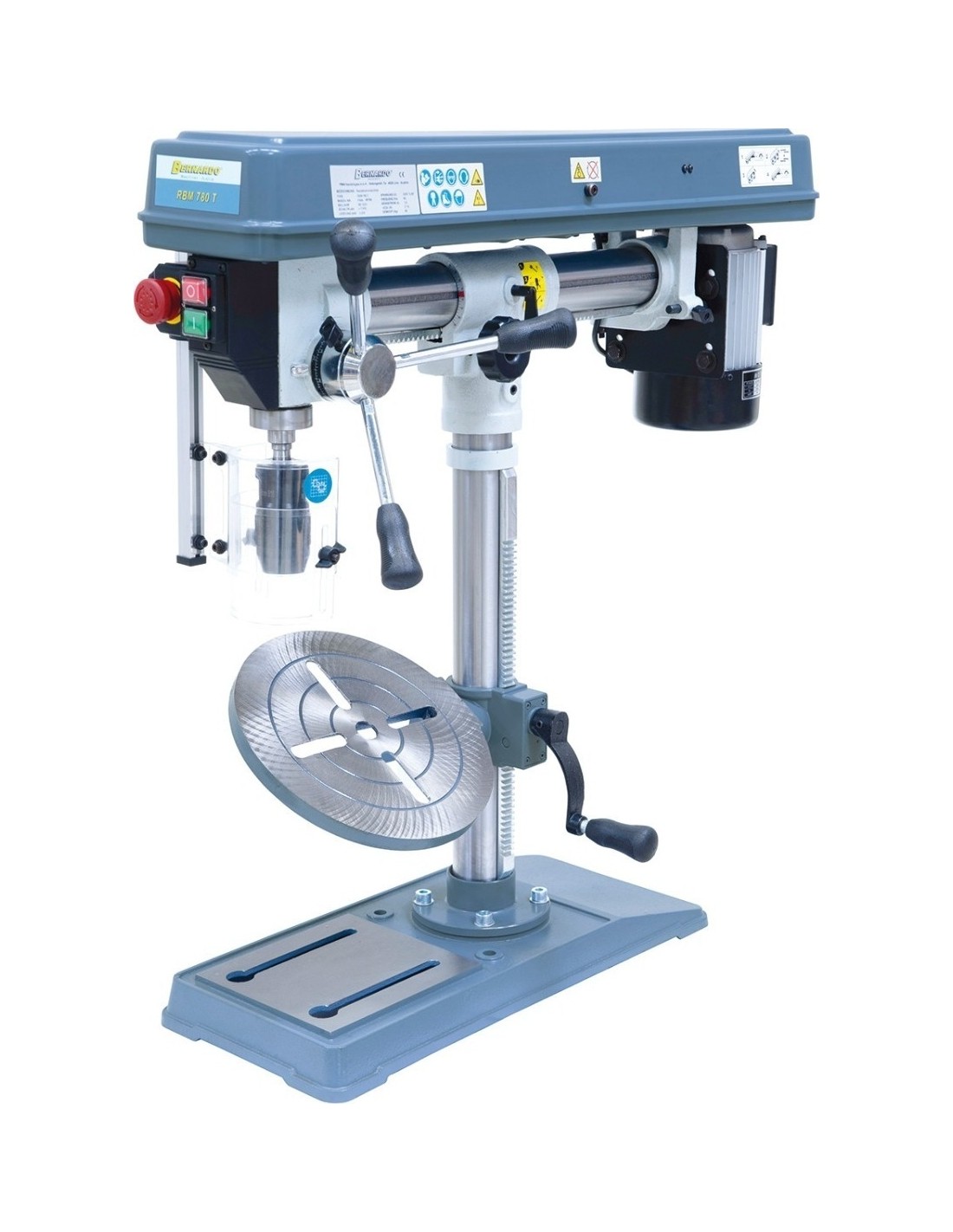

RBM 780 T - 230 V
1092023
Price
€490.00
VAT incl.
Stock Quantity:
Kaunas Shop
(1 pcs)
Central warehouse
not available
Delivery terms:
FREE pick up today, in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 40 kg.
We will deliver the product to you via: 1-2 w.d. Venipak
(€10.00) Weight: 40 kg.
Description
Properties

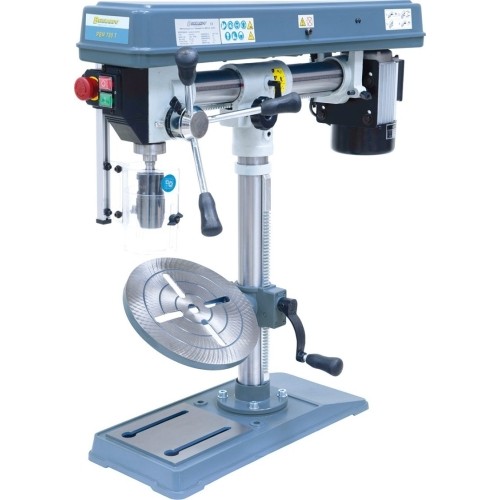

- Precise machined work table tilts -45° to +45°
- Safety switch in accordance with the IP 54 standard features undervoltage release
- High concentricity, spindle seated in precision ball bearings

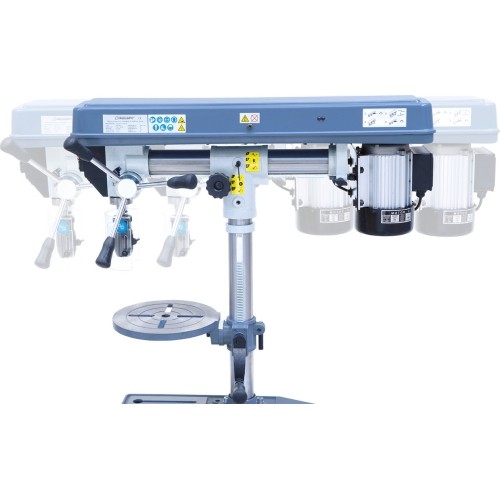

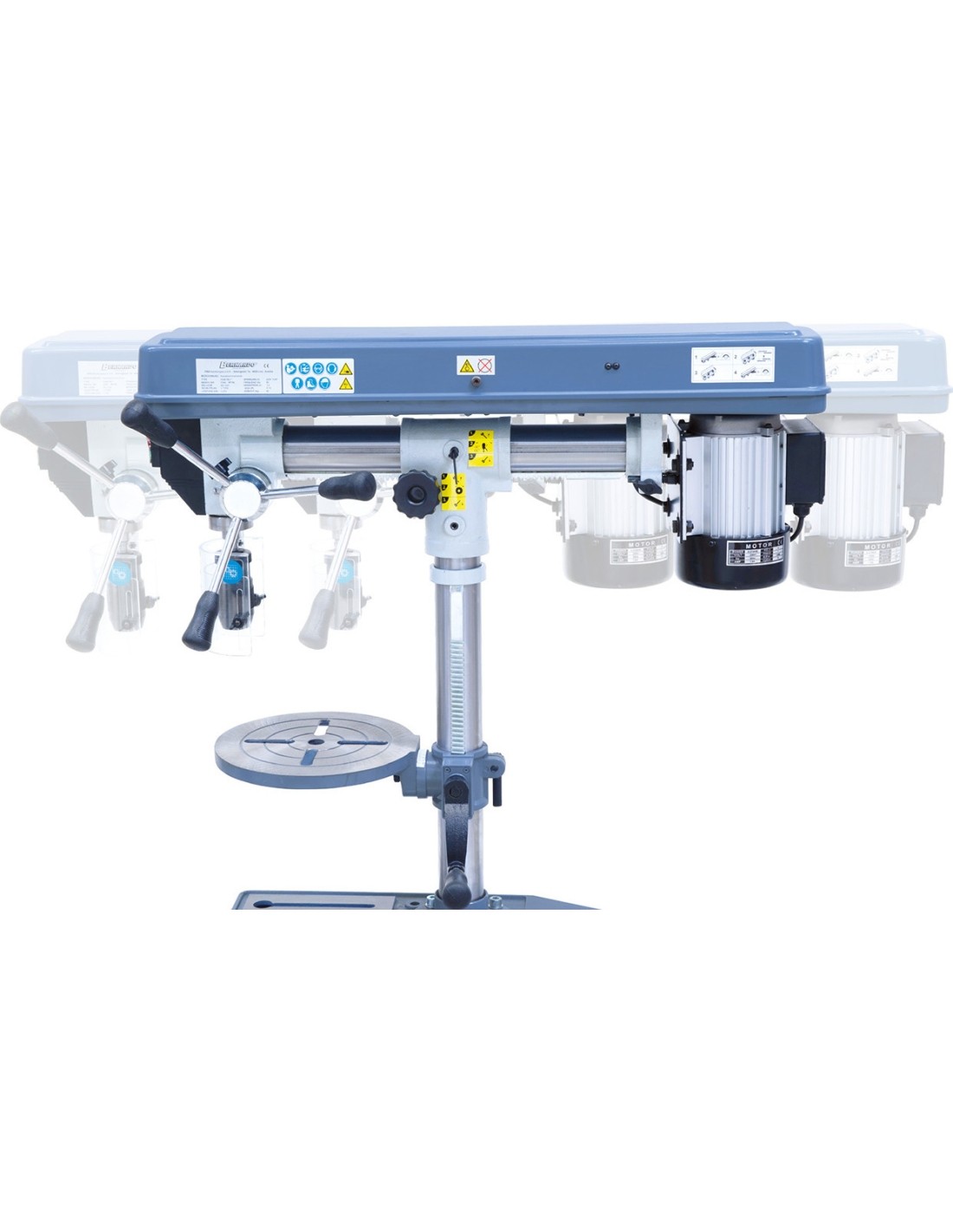

- Extendable, turn- and tiltable drill head ensures high productivity

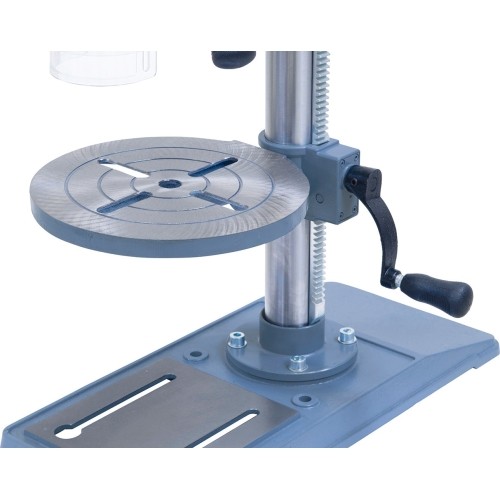

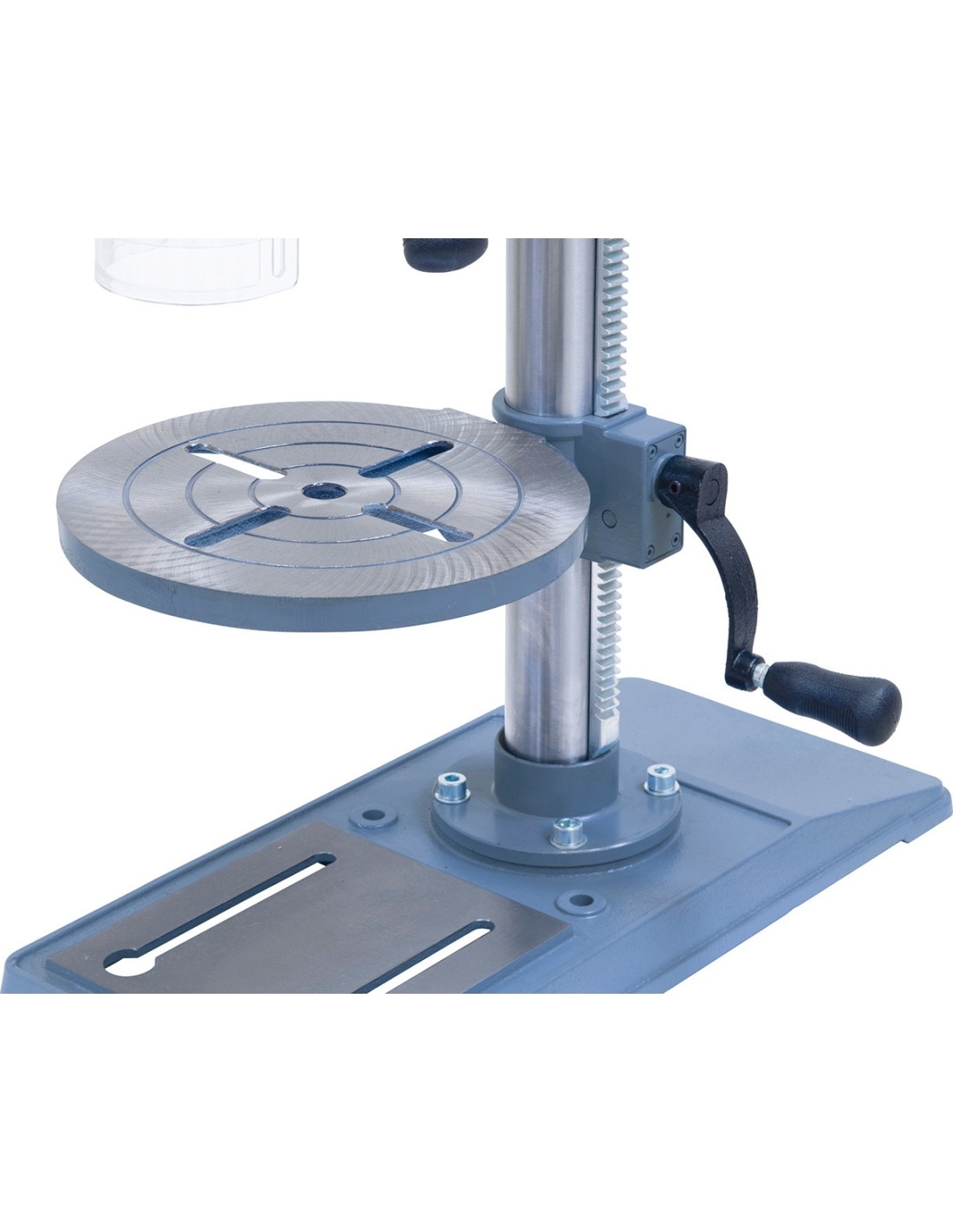

- Solid, smooth steel column comes with gear rack for table height adjustment

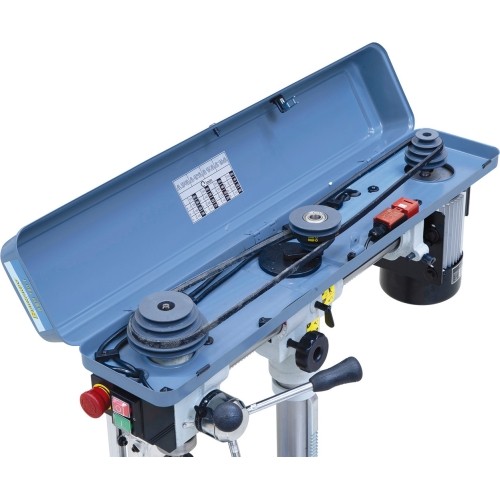

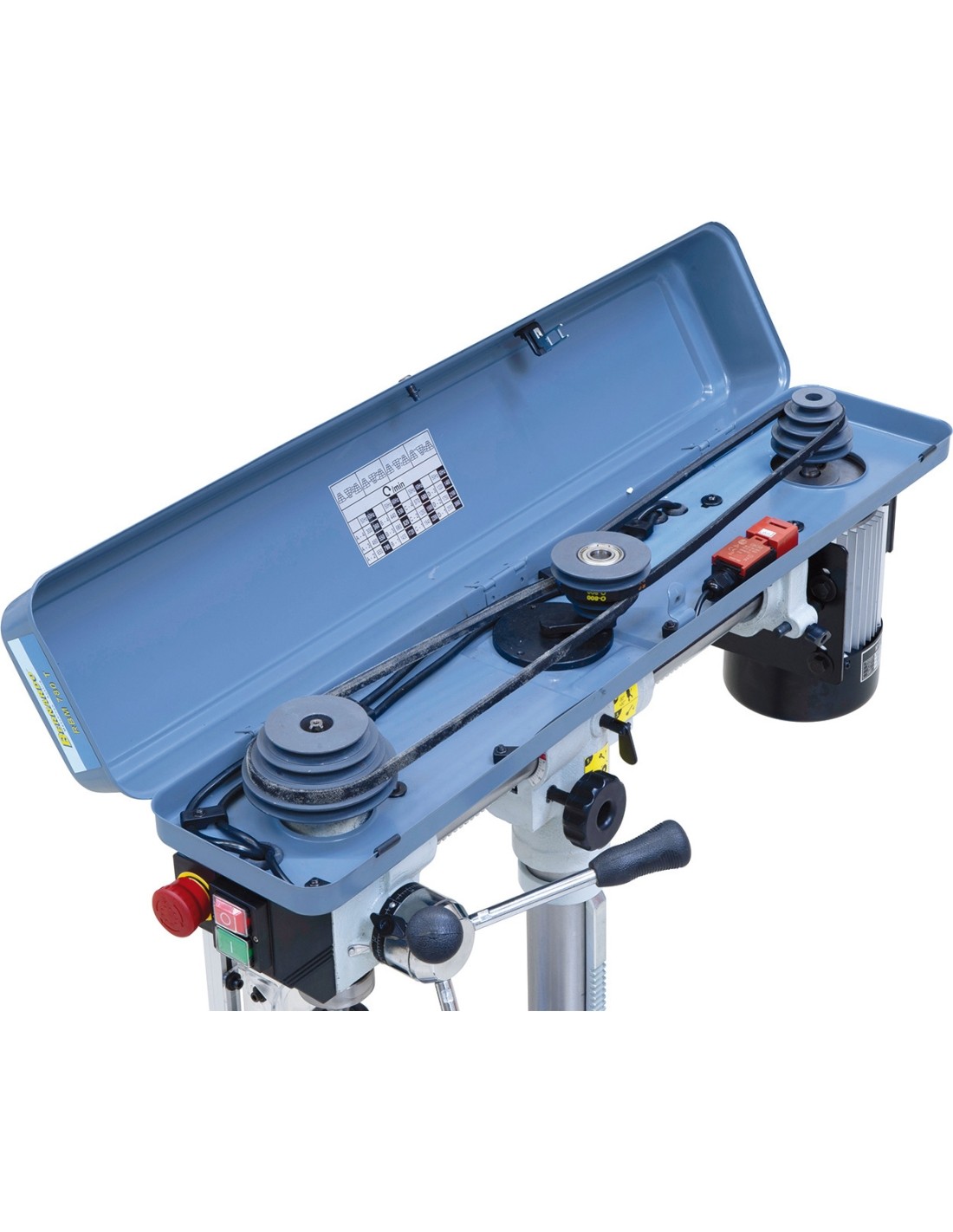

- Grey cast-iron pulleys ensure smooth operation
- Ergonomically positioned handles allow for high operating comfort
- High-quality ball bearings ensure high spindle concentricity

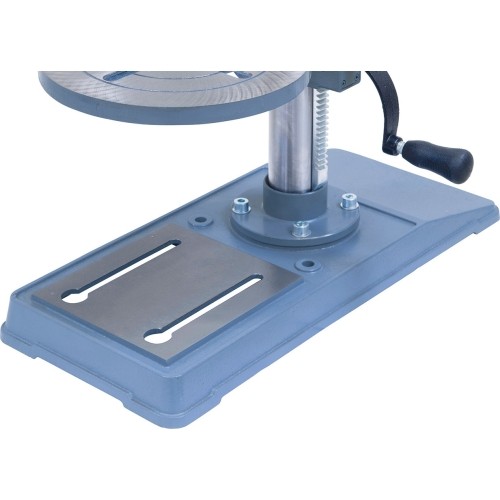

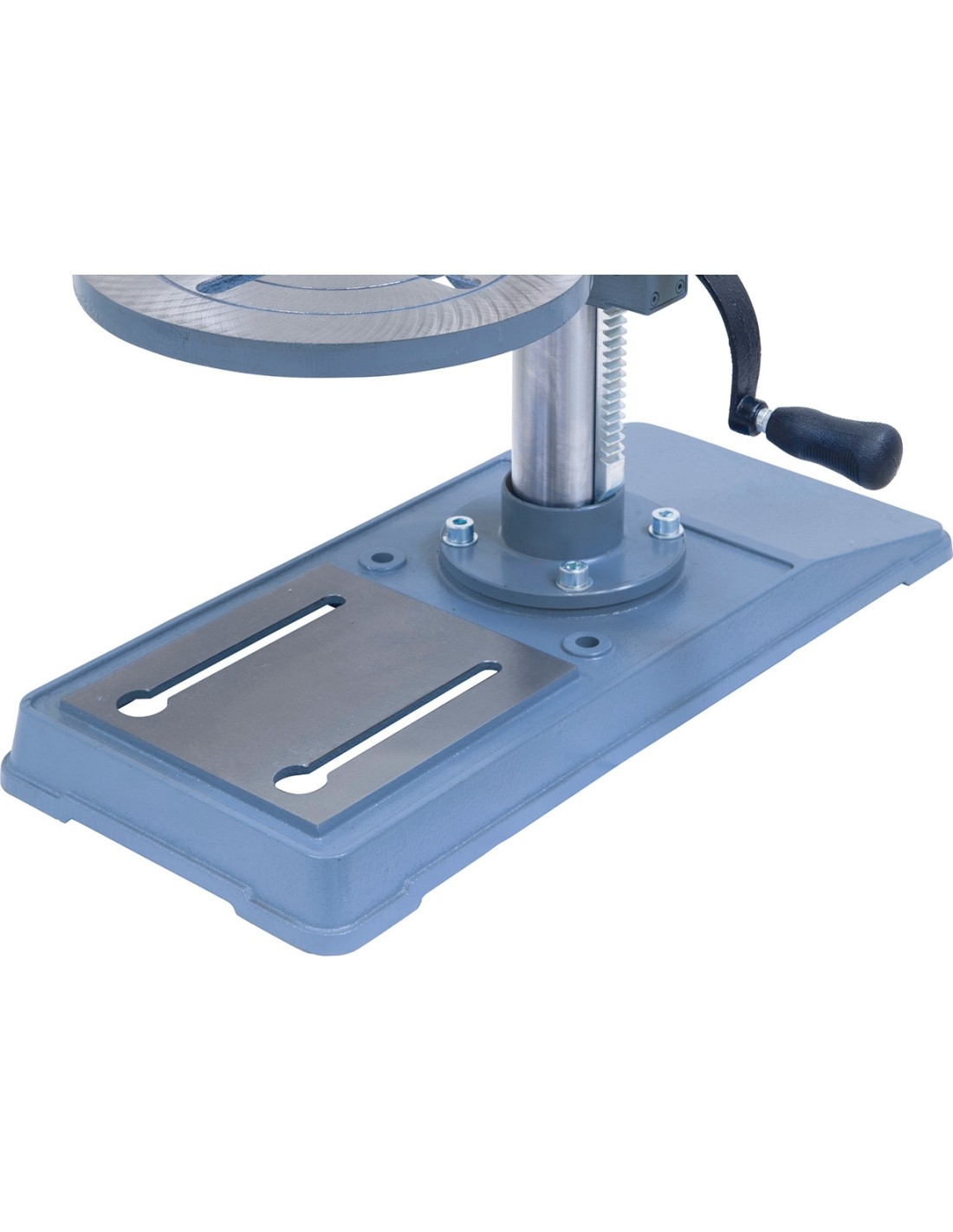

- Large machine base increases stability
Standard accessories
- Keyless drill chuck 1 - 16 mm / B 16
- Drill chuck arbor MT 2 / B 16
- T-slot nuts

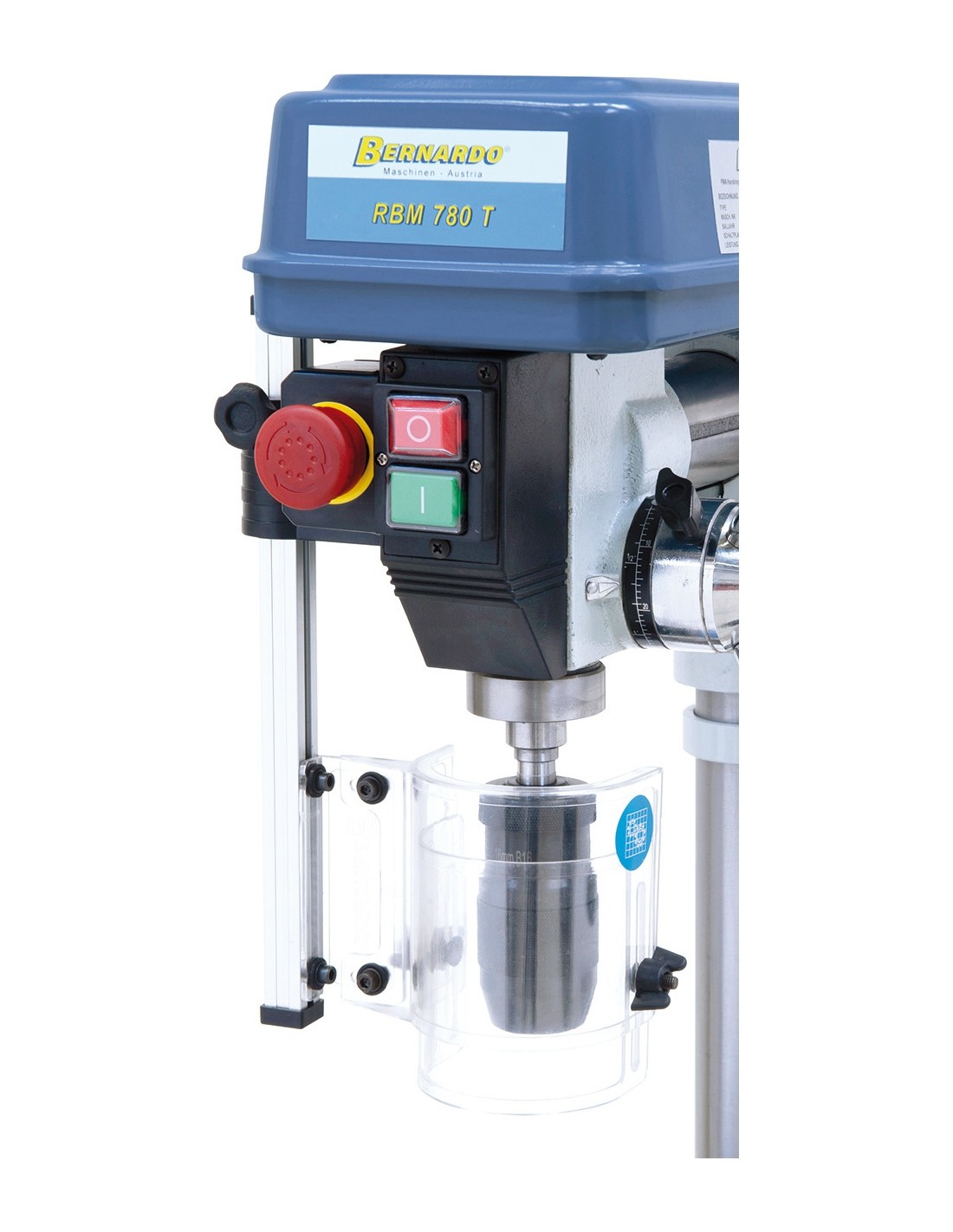

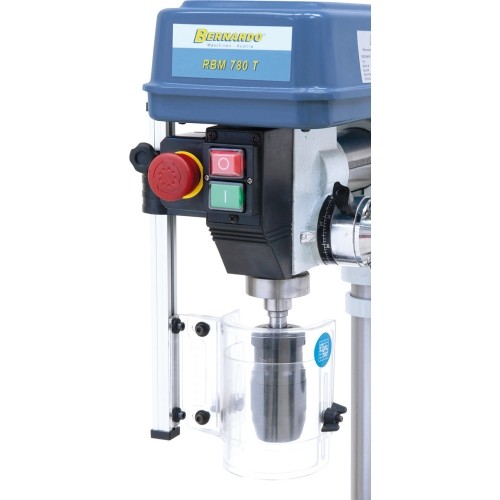

- Height adjustable protective cover
- Separate emergency stop switch
- Tools
