- Weight approx.
- 3000 kg
- Motor power
- 4,0 kW
- Machine dimension (W x D x H)
- 2035 x 1000 x 2830 mm
- Spindle stroke
- 335 mm
- Drilling capacity max.
- 50 mm
- Thread cutting max.
- M42
- Distance spindle to column min./max.
- 320 – 1220 mm
- Vertical movement of the support
- 580 mm
- Travel of drill head (horizontally)
- 900 mm
- Morse taper
- MT 5
- Spindle speeds
- (16) 25 - 2000 rpm
- Feed range
- (16) 0,04 – 3,2 mm/rev.
- Distance spindle to box table
- 0 - 670 mm
- Distance spindle to base
- 330 – 1170 mm
- Clamping area base
- 1300 x 980 mm
- Box table (L x W x H)
- 630 x 500 x 500 mm

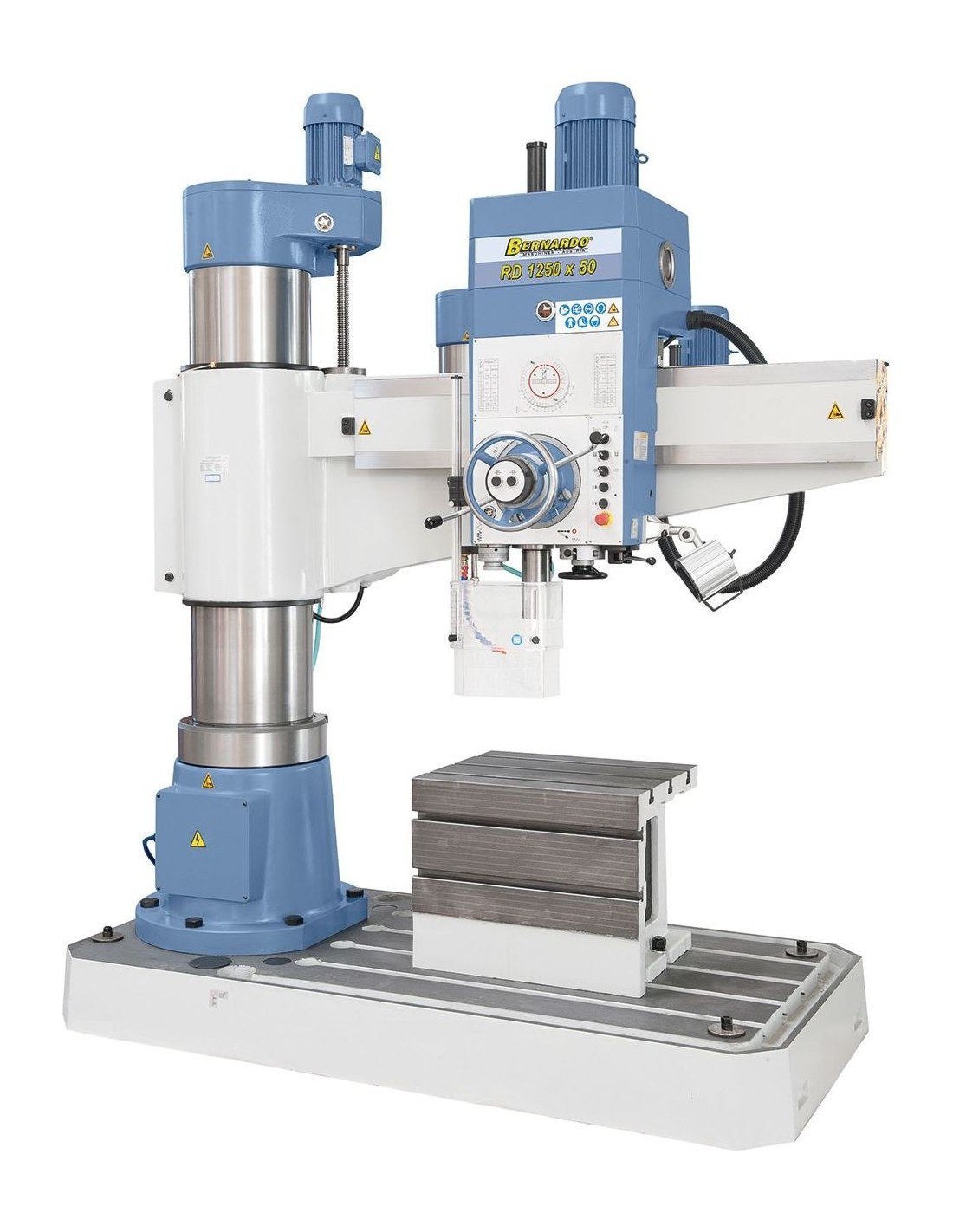

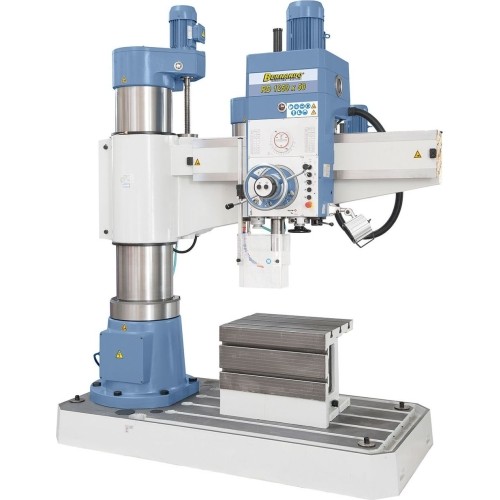

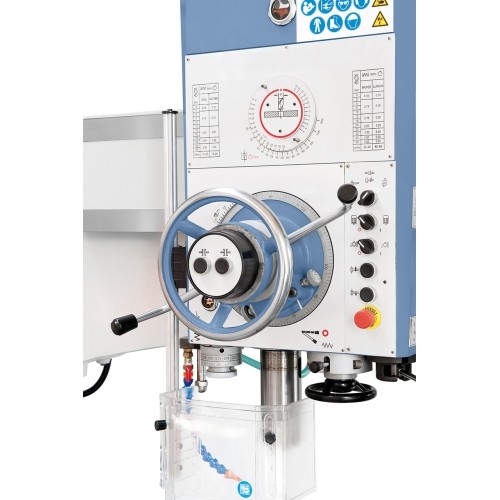

RD 1250 x 50
1320310
Price
€30,559.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 3000 kg.
Description
Properties
- Oversize base plate, ideal for processing of large workpieces
- Torsion-free, polished column promotes sliding capacity of radial arm
- Radial arm and drill head feature independent hydraulic clamp
- Lifting motor allows for easy height adjustment of radial arm

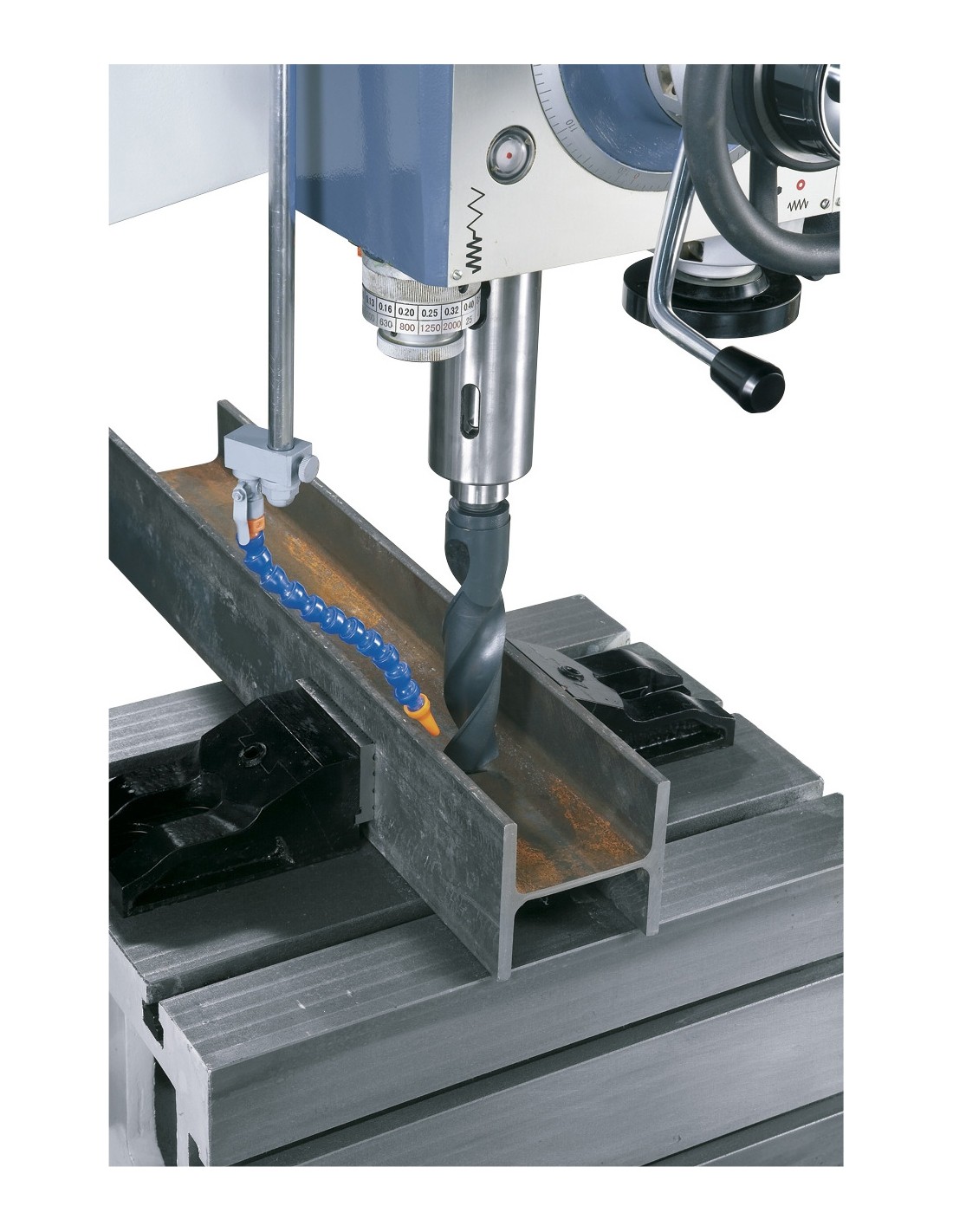

- Ideal for drilling, countersinking, reaming and tapping
- Hardened, polished gears in oil bath

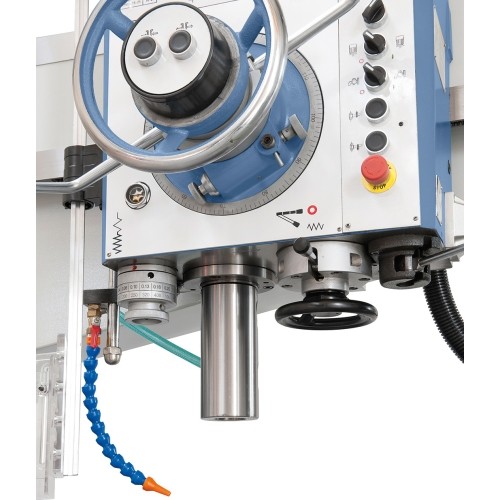

- Polished surface ensures for smooth movement of drill head on radial arm
Standard accessories

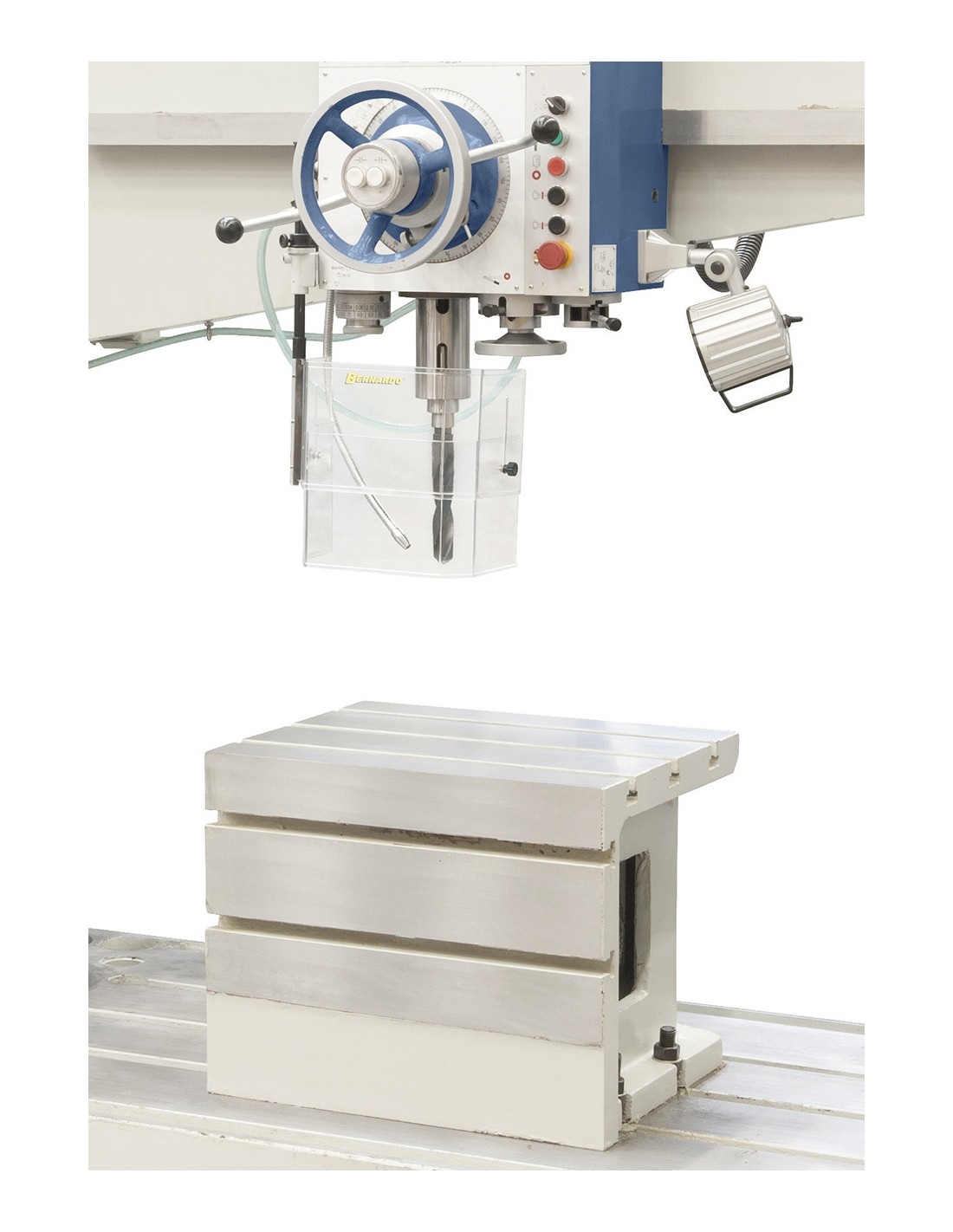

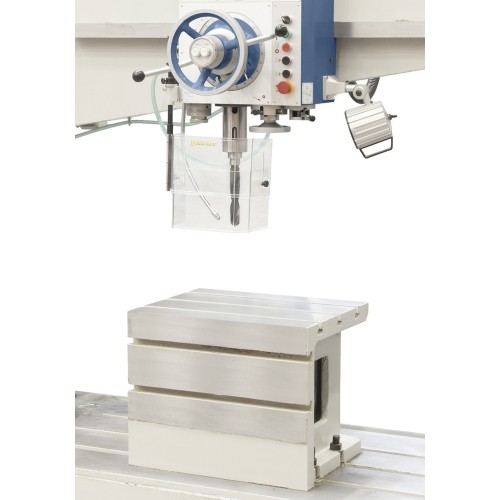

- Box table
- Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
- LED machine light
- Initial filling with Shell Tellus 46

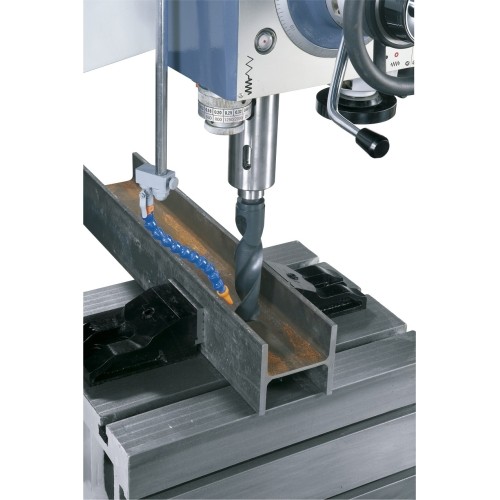

- Coolant device

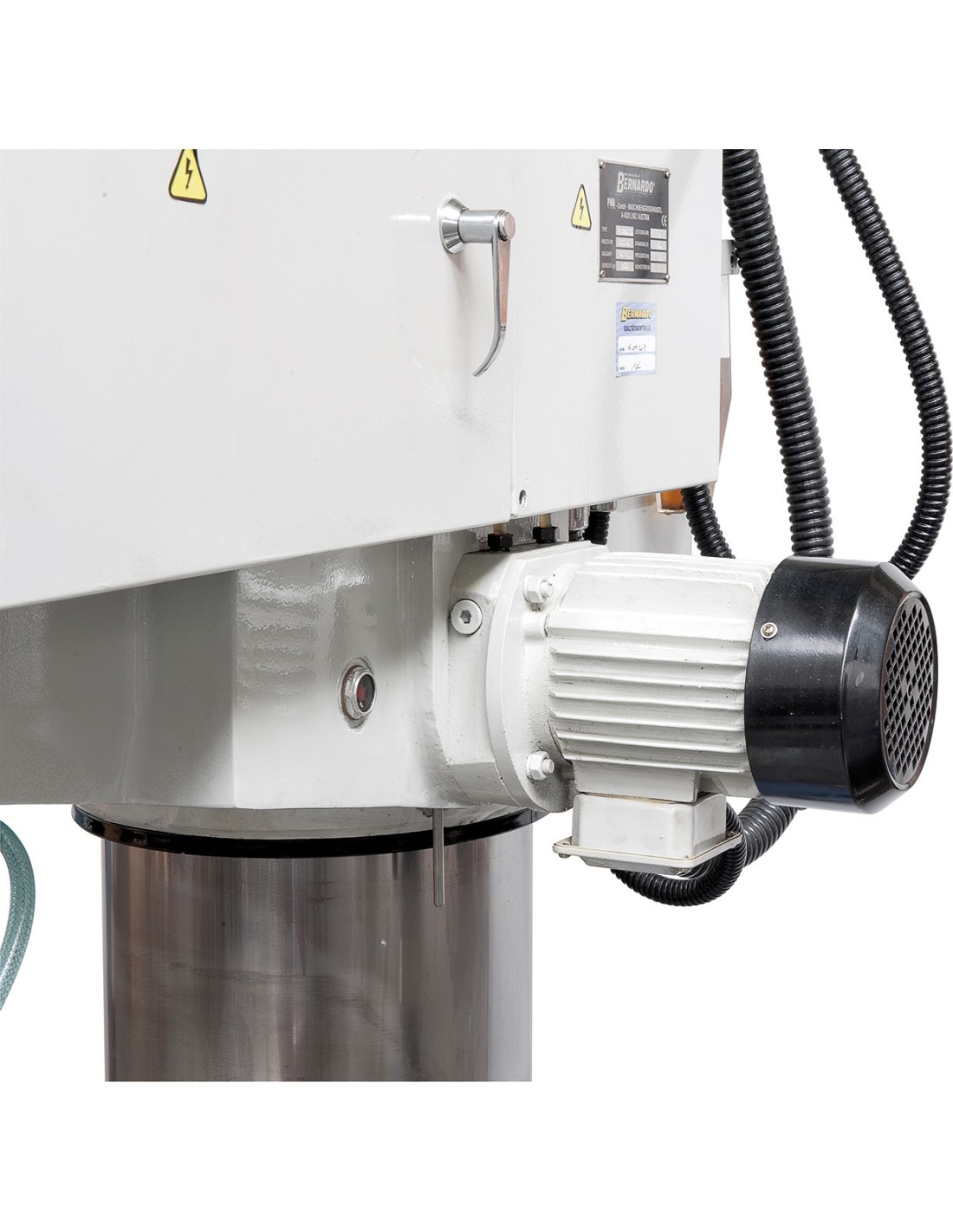

- Lifting motor
- Hydraulic motor
- Tools
- Height adjustable protective cover
