- Weight approx.
- 2800 kg
- Motor power
- 2,2 kW
- Machine dimension (W x D x H)
- 1200 x 2450 x 2720 mm
- Spindle stroke
- 200 mm
- Spindle speed, stepless
- 50 - 316 / 316 - 2000 rpm
- T-slot size
- 18 mm
- Drilling capacity max.
- 40 mm
- Thread cutting max.
- M30
- Distance spindle to column min./max.
- 370 - 950 mm
- Vertical movement of the support
- 390 mm
- Morse taper
- MT 4
- Feed range
- (6) 0,08 - 0,50 mm/rev.
- Column diameter
- 220 mm
- Table size
- 1195 x 500 mm
- Drill head tiltable
- -90° to +90°
- Distance spindle to table surface
- 390 - 780 mm

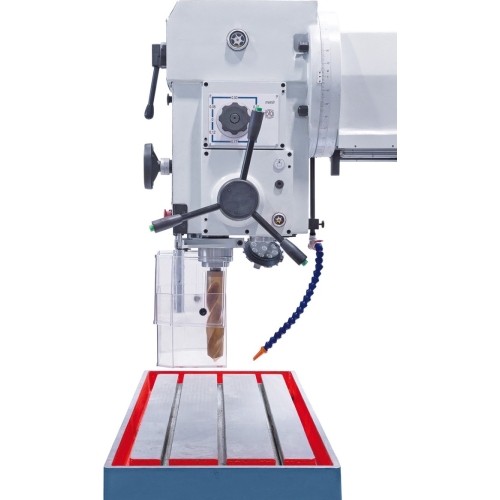

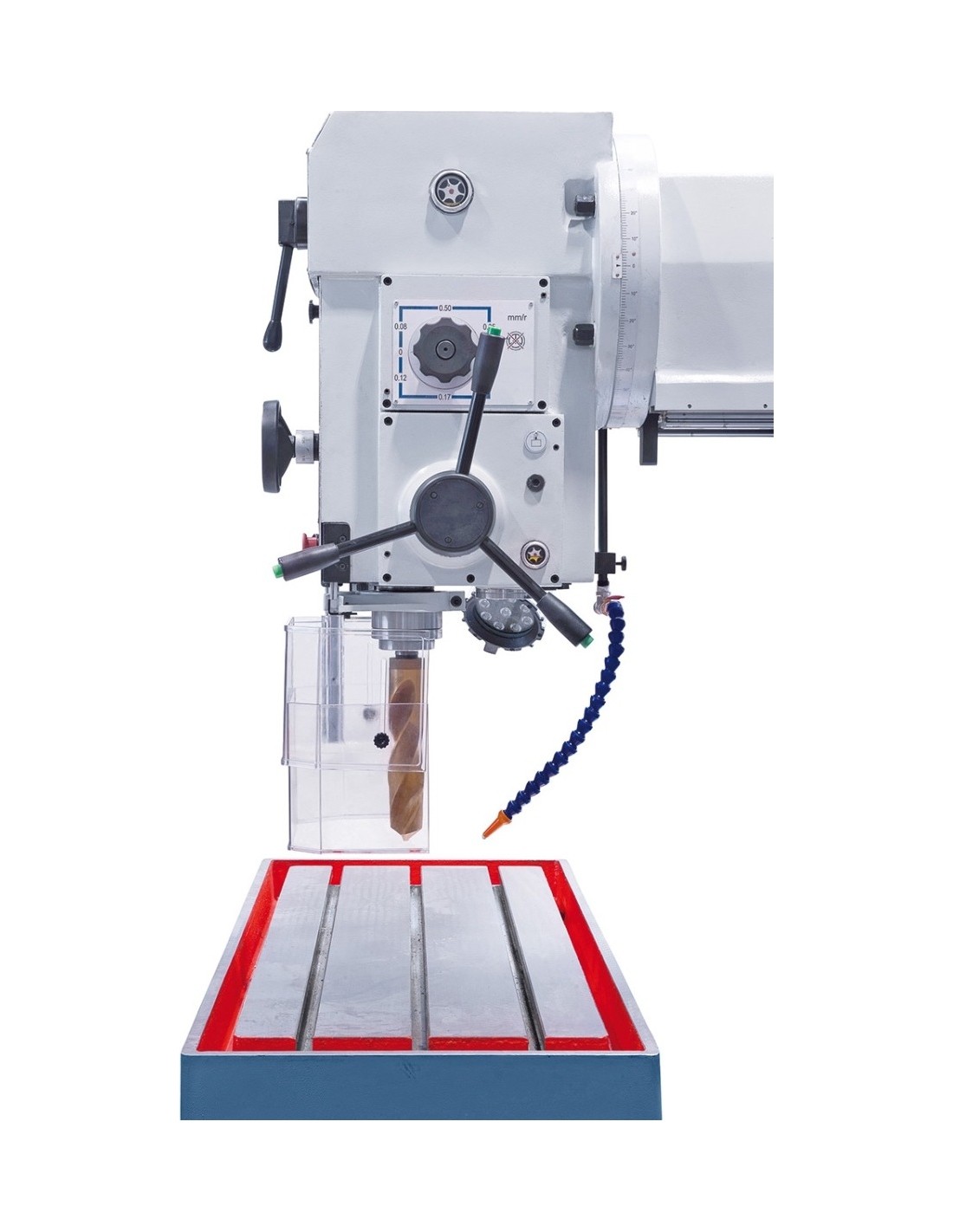

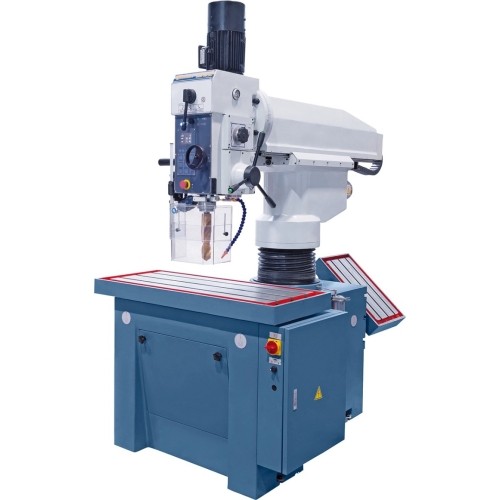

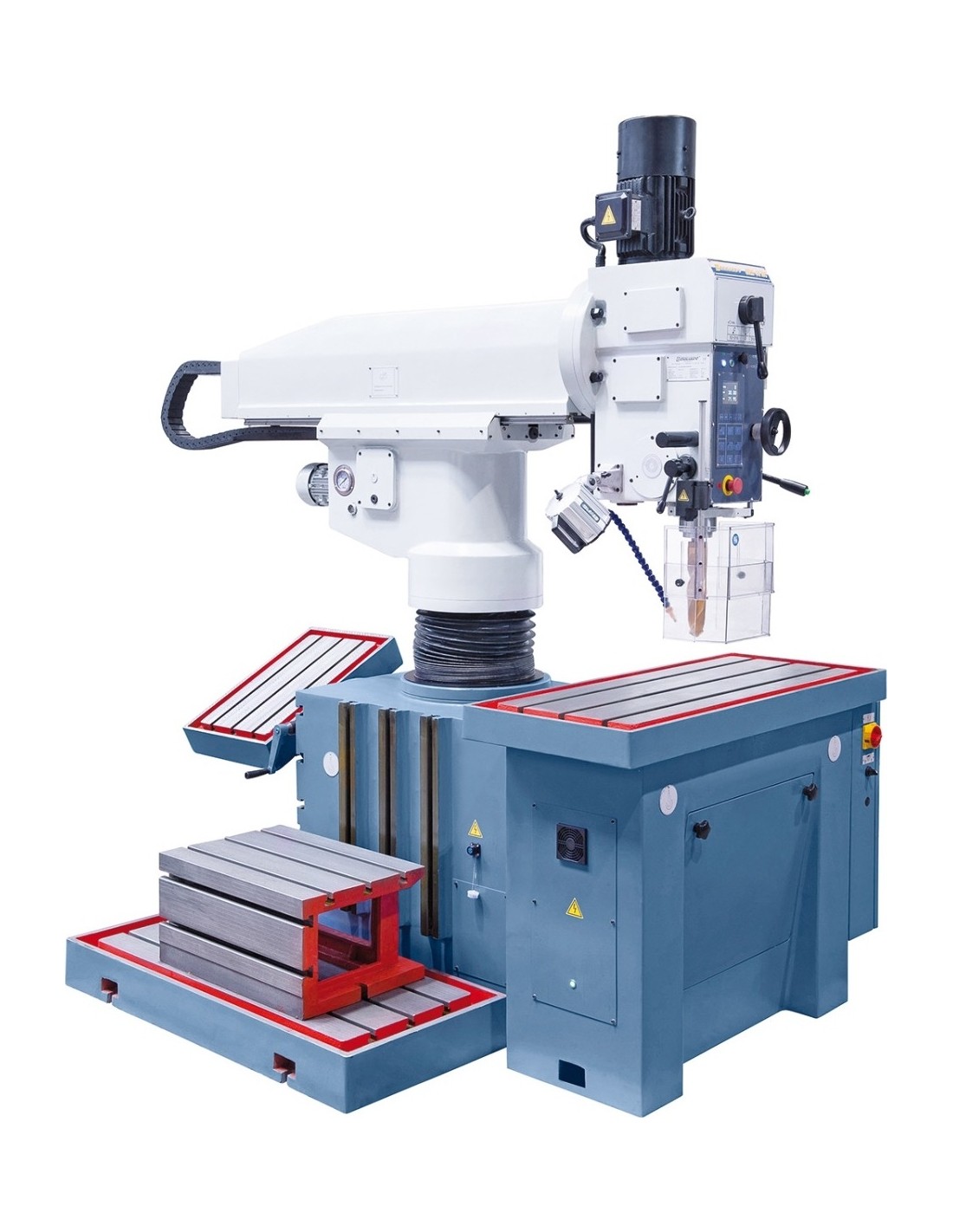

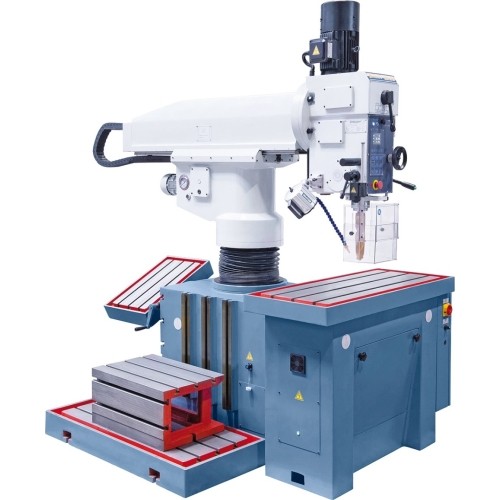

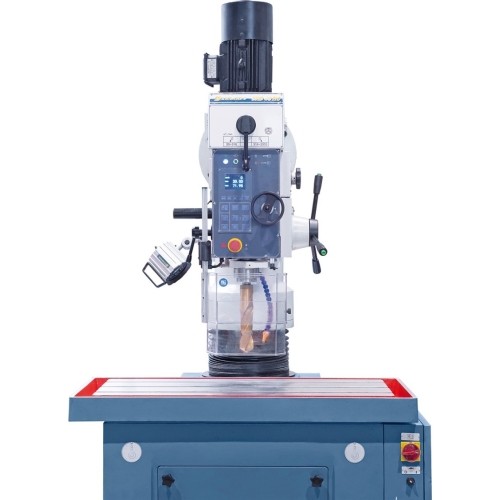

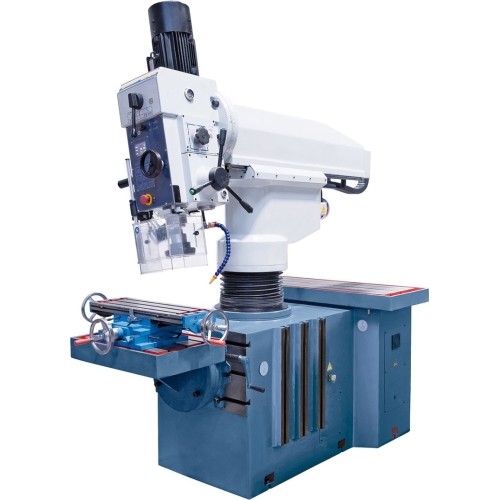

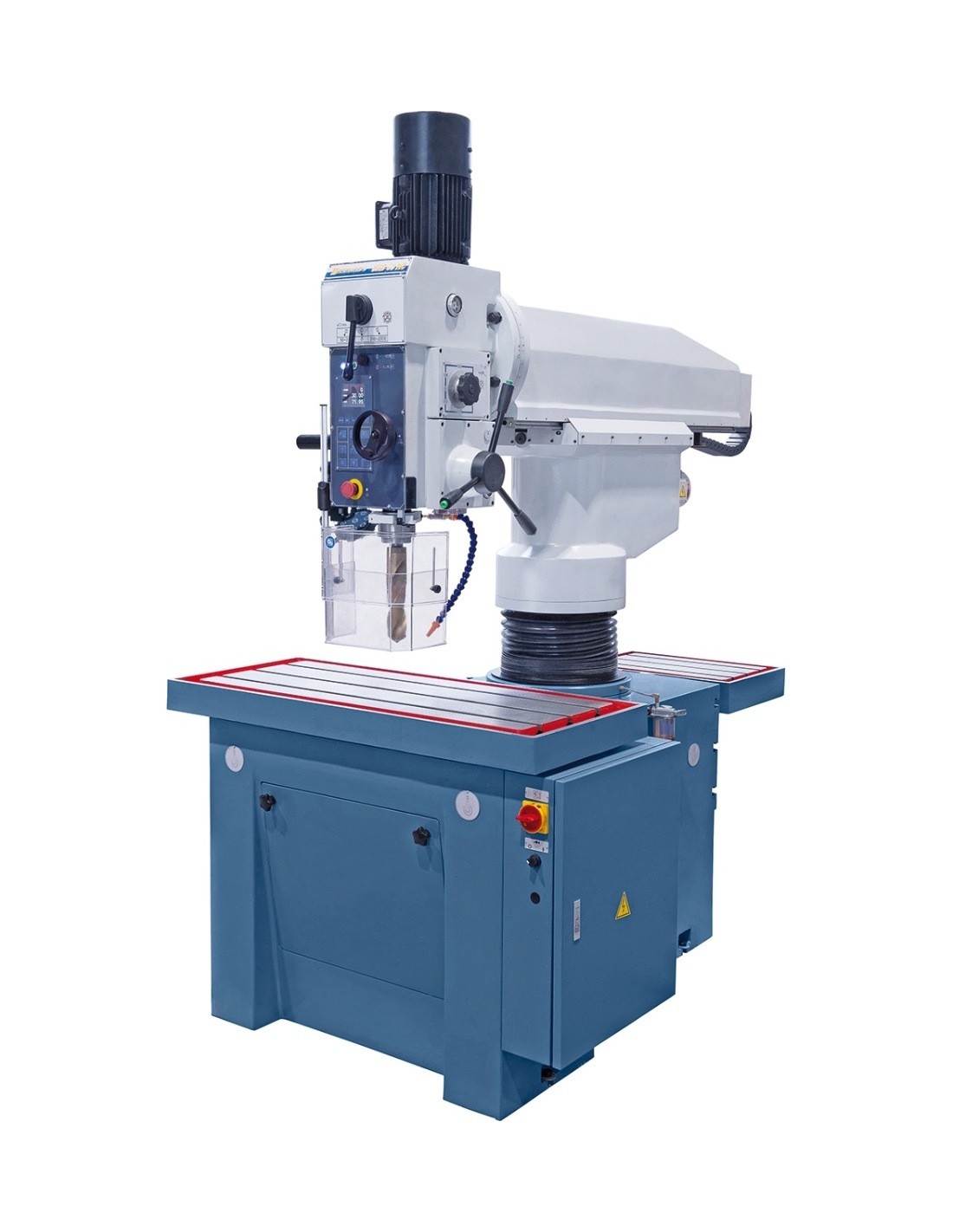

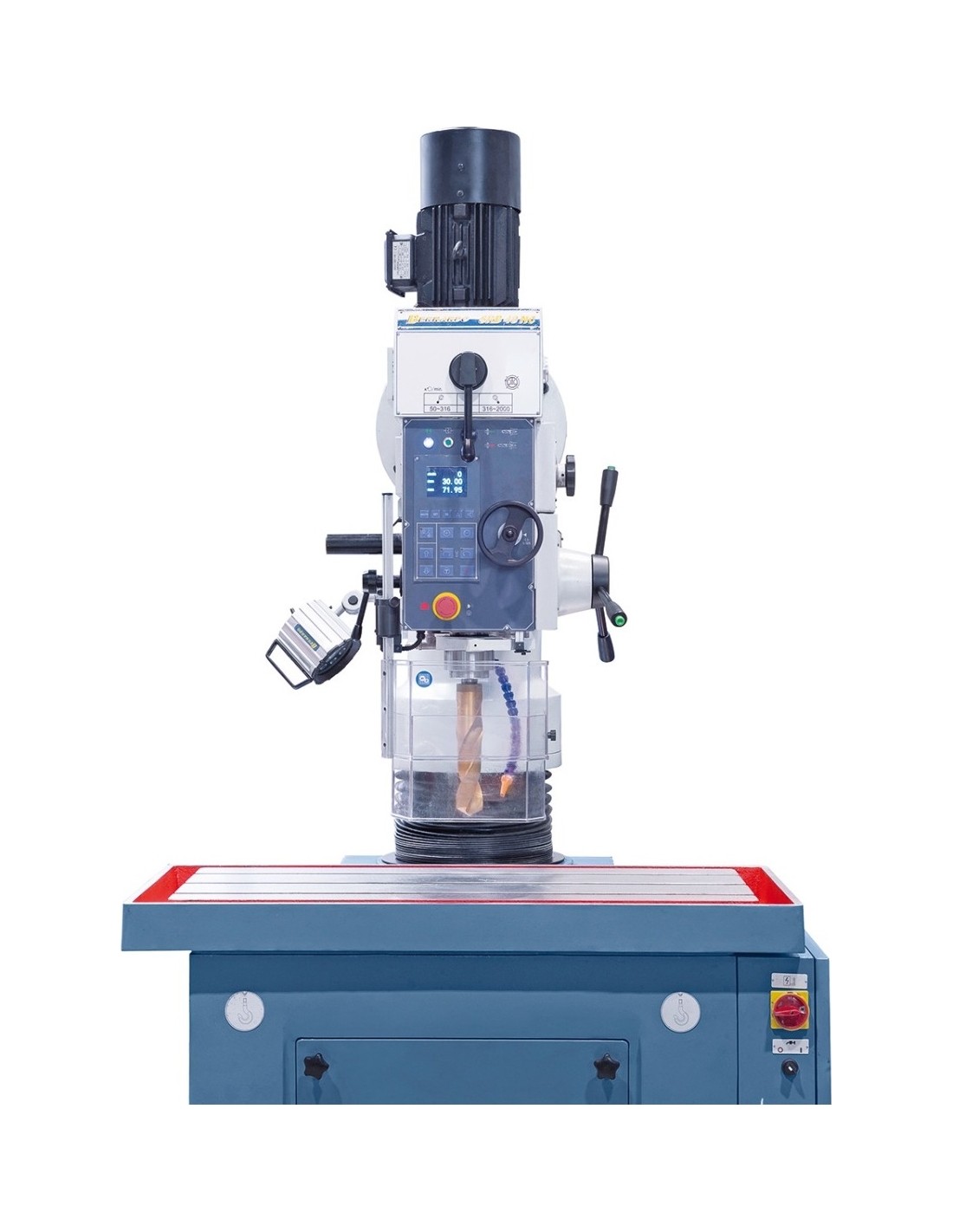

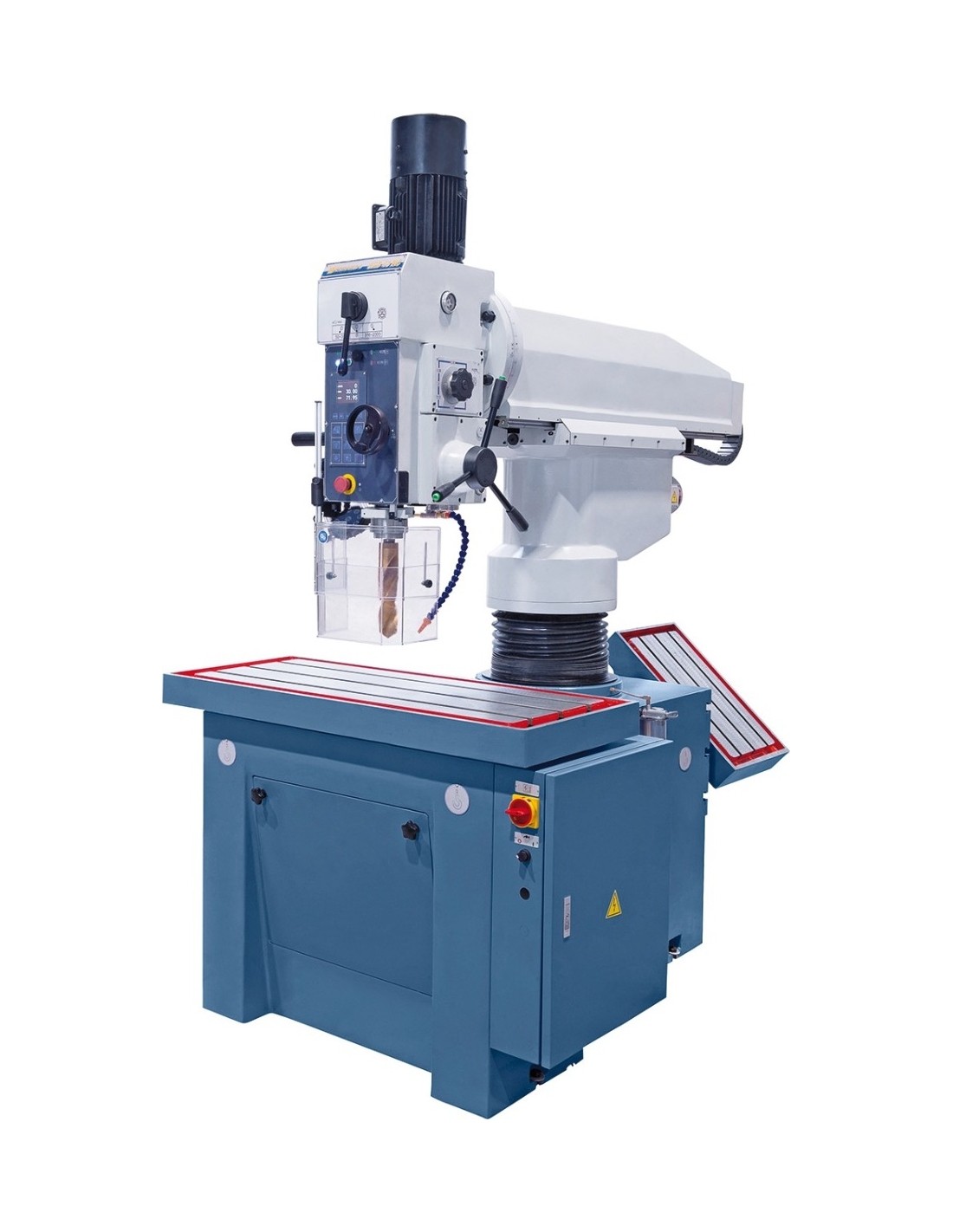

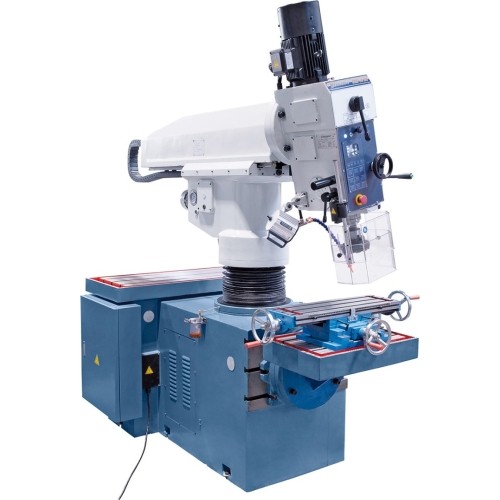

SRB 40 NC
1356373
Price
€48,450.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 2800 kg.
Description
Properties
- The construction allows a variety of clamping and processing possibilitiesÂ
- Electromotive height adjustment of drill head without changing drill position, ideal for deep hole drilling

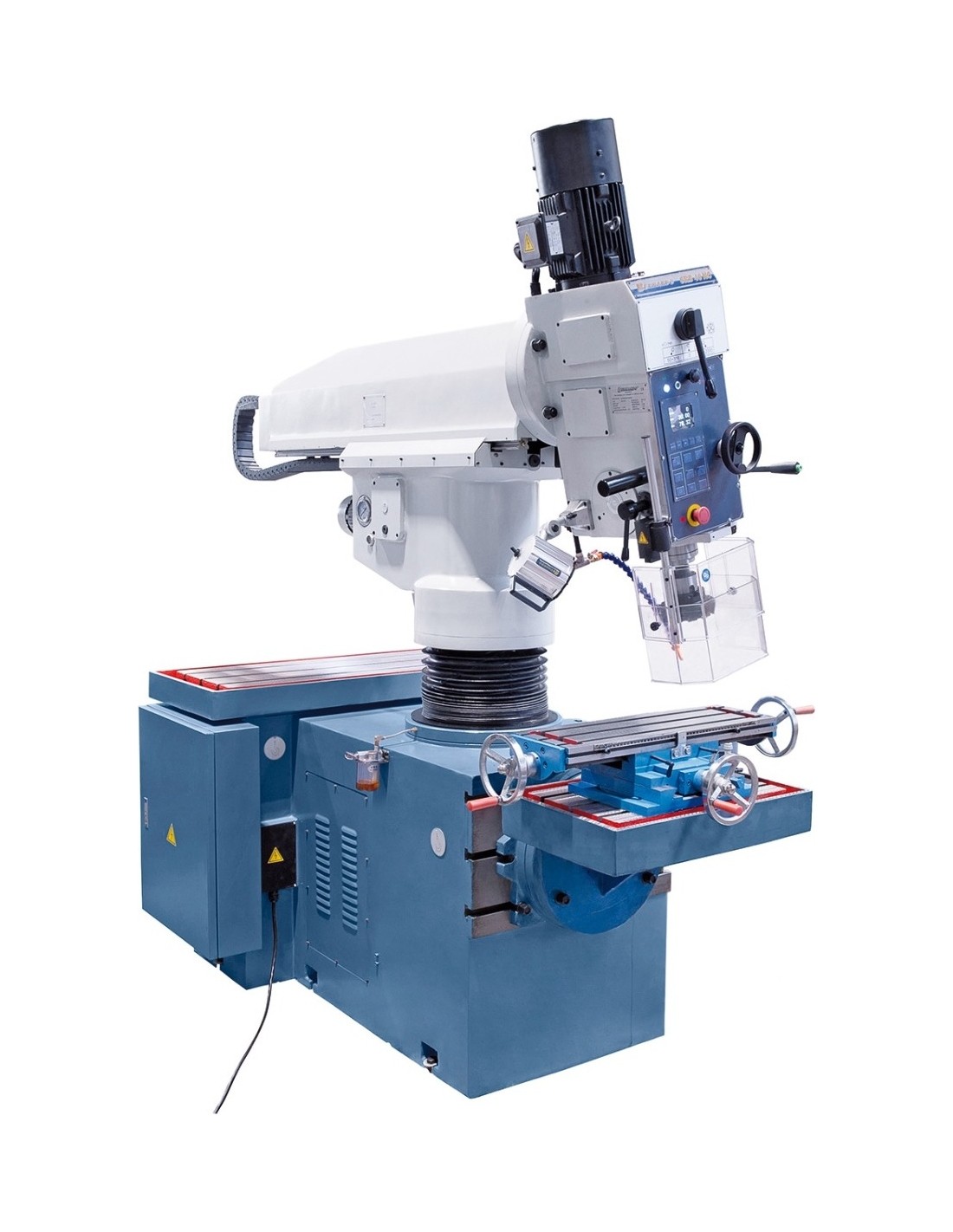

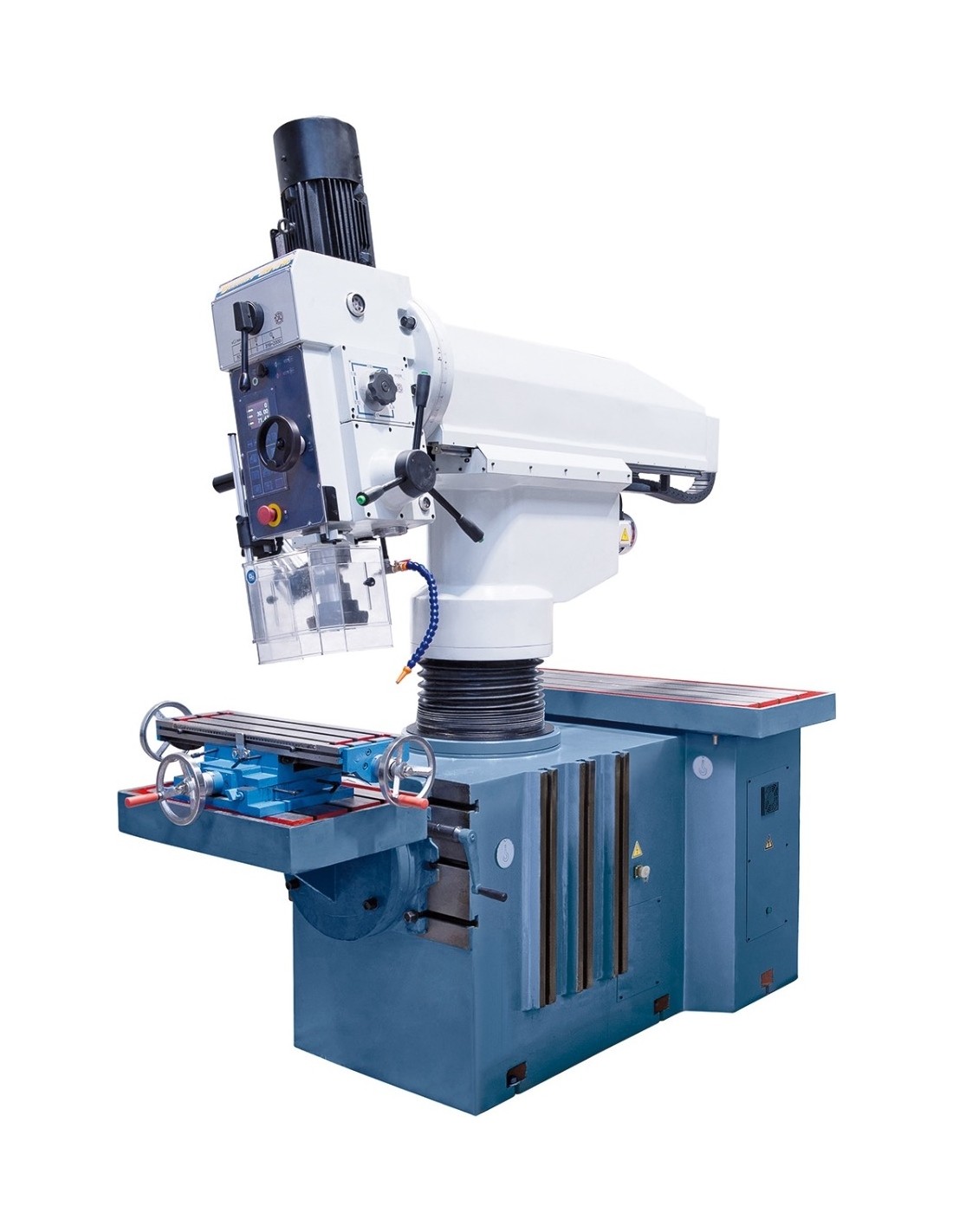

- Drill head tilts 180°, support tilts horizontal and can be moved forwards and backwardsÂ
- Thread cutting device and 6 automatic drill feeds as standard
- Large table size (1195 x 500 mm) for simultaneous mounting of several workpieces
- Solid construction eliminates vibrations
- Digital display of speed and drill depth included
- Quick adjustment of drill head to workpiece, hydraulic clamping
- Solidly designed column guarantees high rigidity of extension arm
- Electronic, stepless speed adjustment as standard
- Membrane keyboard ensures user-friendly operation
Standard accessories
- Electromagnetic spindle feed
- Digital readout of speeds
- Digital readout of drill depth

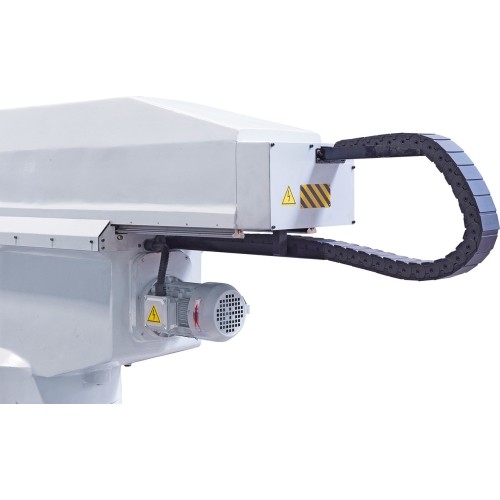

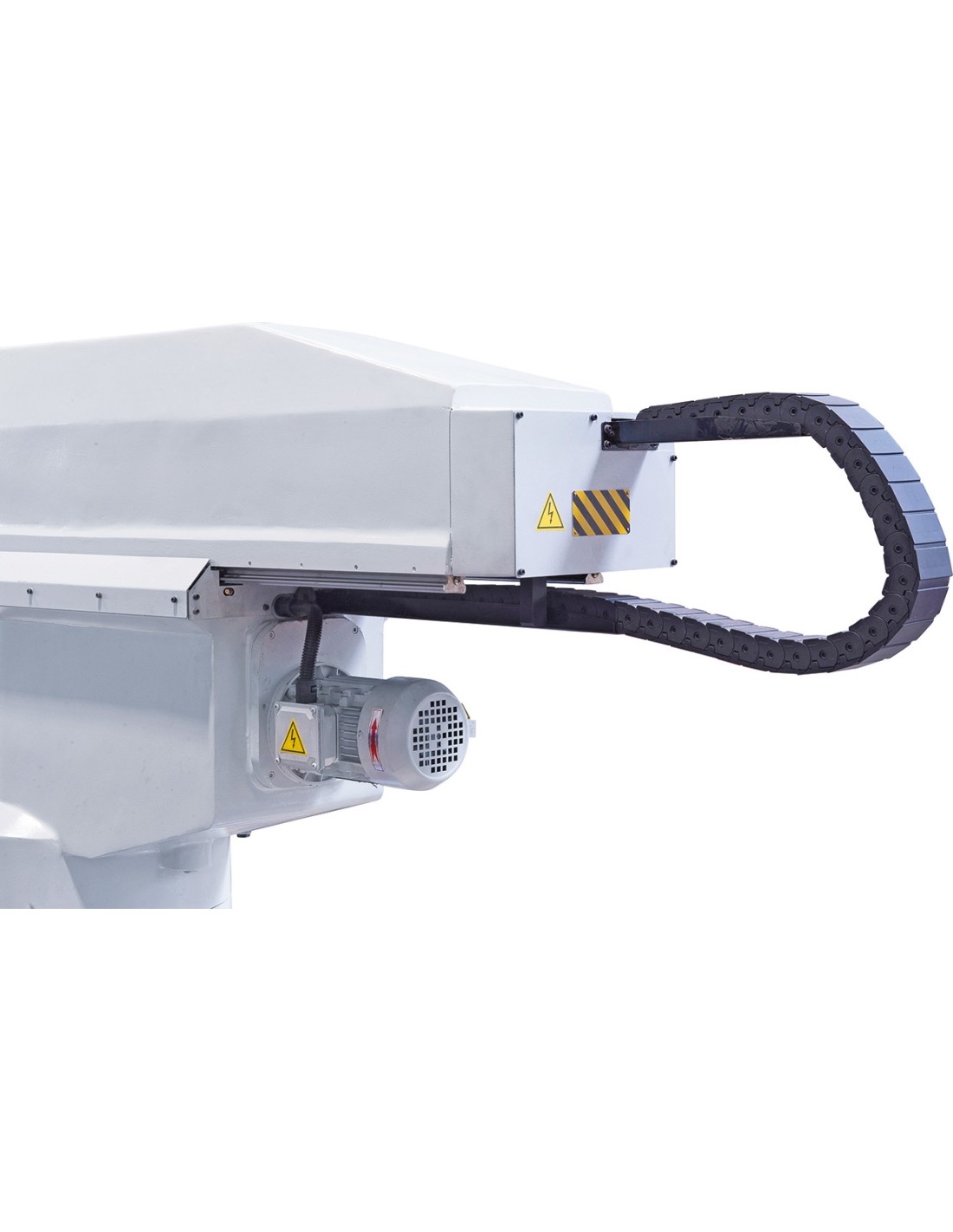

- Electromotive drill head adjustment
- Initial filling with Shell Tellus 46
- Keyless drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, 4 / 2, 3 / 1
- LED machine light
- Thread cutting device

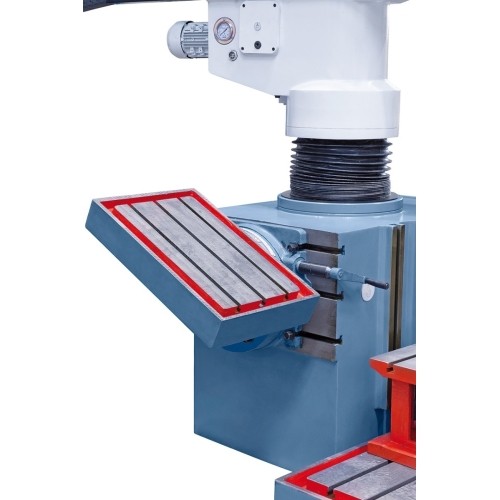

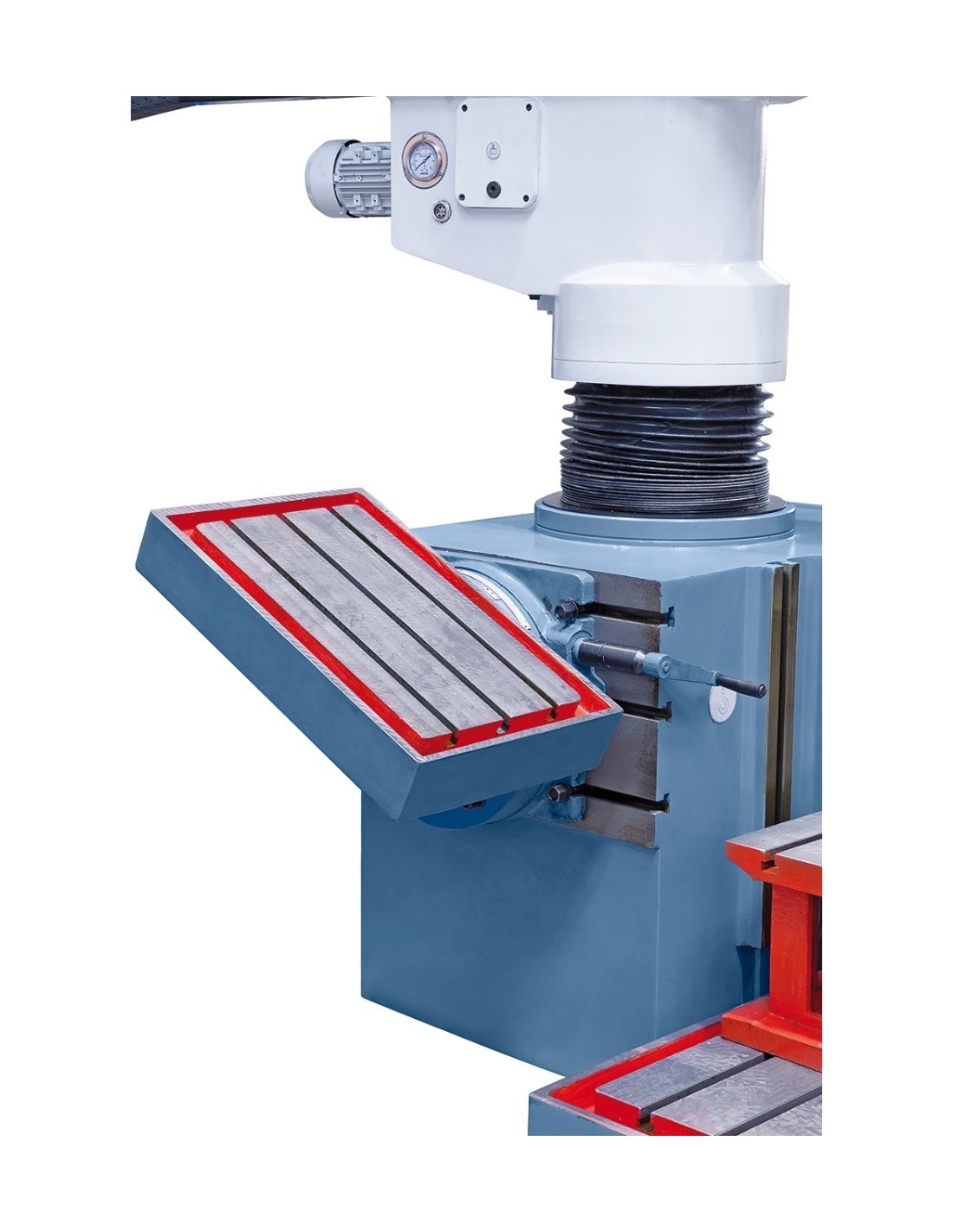

- Tiltable horizontal table 400 x 600 mm

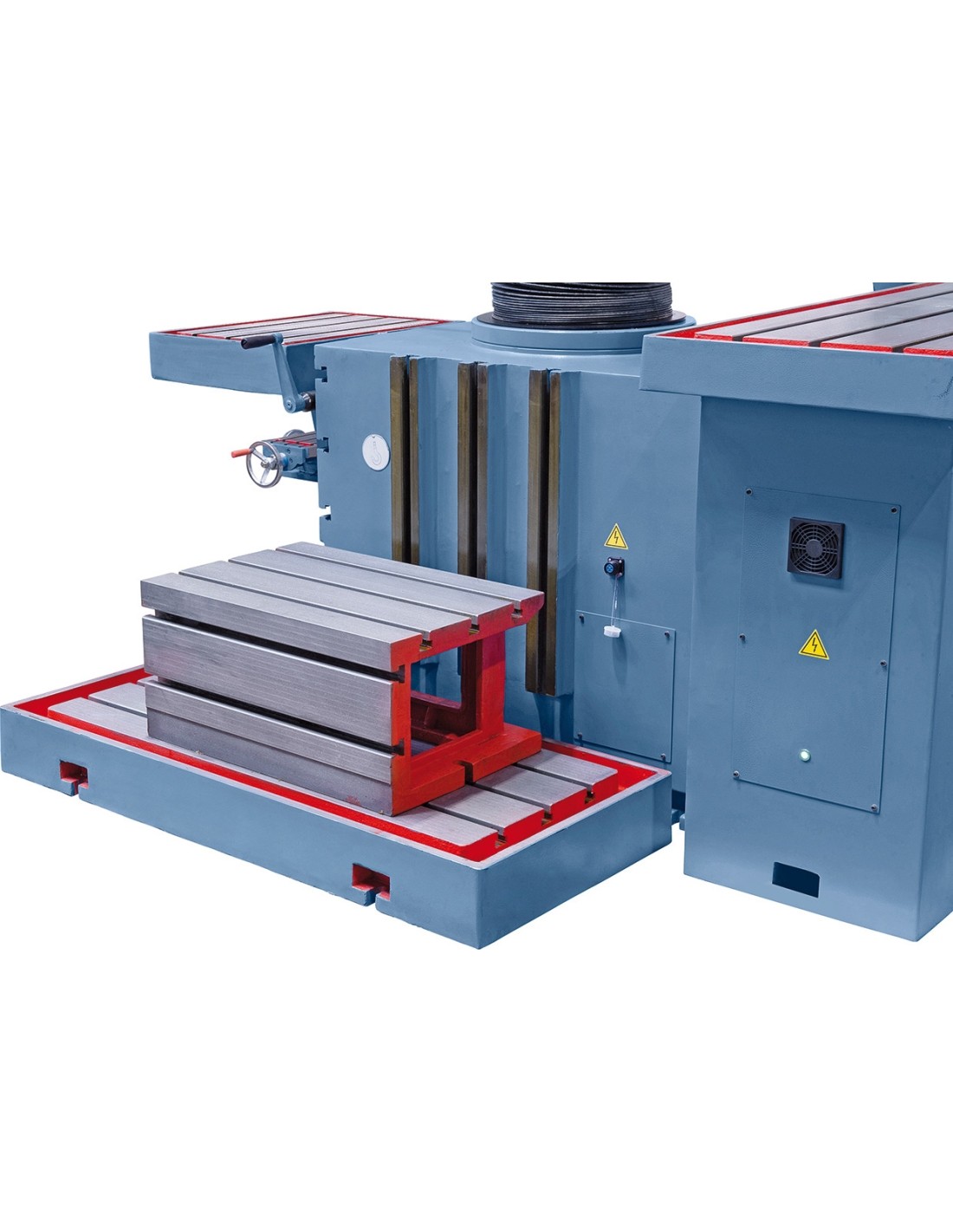

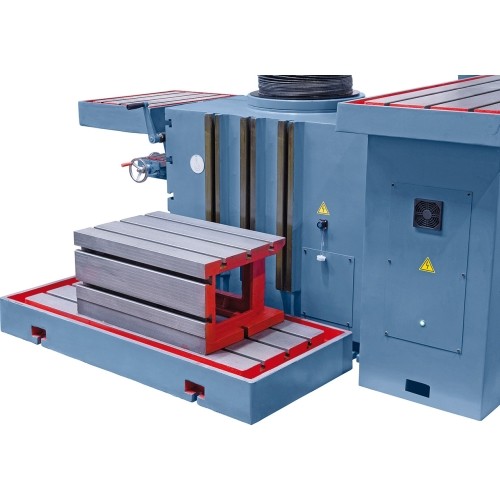

- Box table 420 x 600 x 300 mm
- Clamping plate 1200 x 550 mm
- Coolant pump
- Height adjustable protective cover
