Weight approx.
3800 kg
Motor power
4,0 kW
Machine dimension (W x D x H)
2490 x 1050 x 2780 mm
Spindle stroke
315 mm
Drilling capacity max.
60 mm
Thread cutting max.
M45
Distance spindle to column min./max.
350 - 1600 mm
Vertical movement of the support
585 mm
Travel of drill head (horizontally)
1250 mm
Morse taper
MT 5
Spindle speeds
38 – 275, 275 - 2000 rpm
Feed range
0 - 300 mm/min
Distance spindle to box table
165 - 750 mm
Distance spindle to base
665 - 1250 mm
Clamping area base
1740 x 980 mm
Box table (L x W x H)
750 x 500 x 500 mm

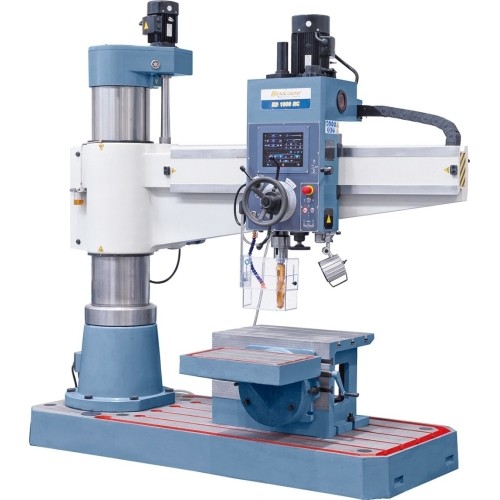

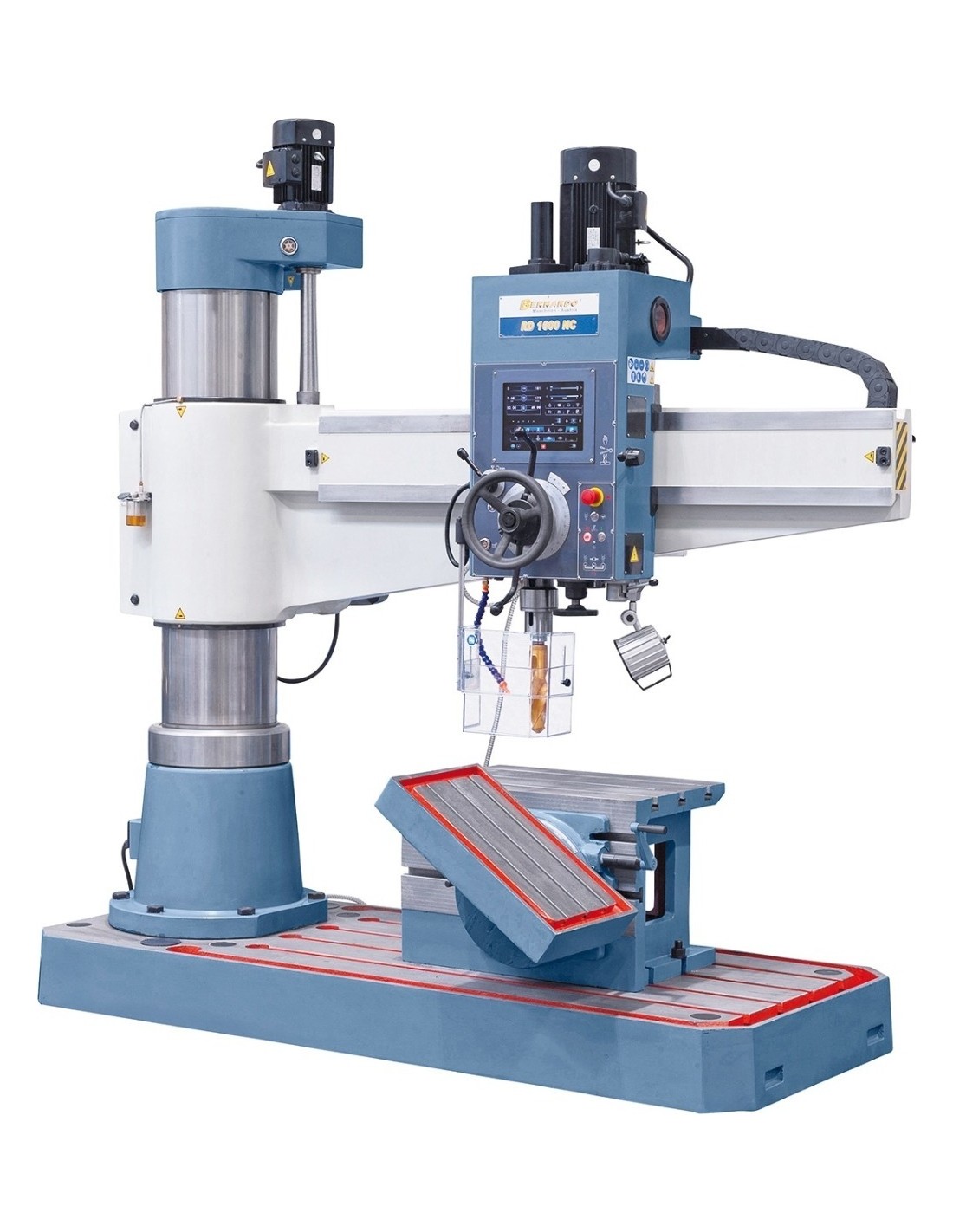

RD 1600 x 60 NC Vario

1092031
Price €43,296.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 3800 kg.

Description

Properties

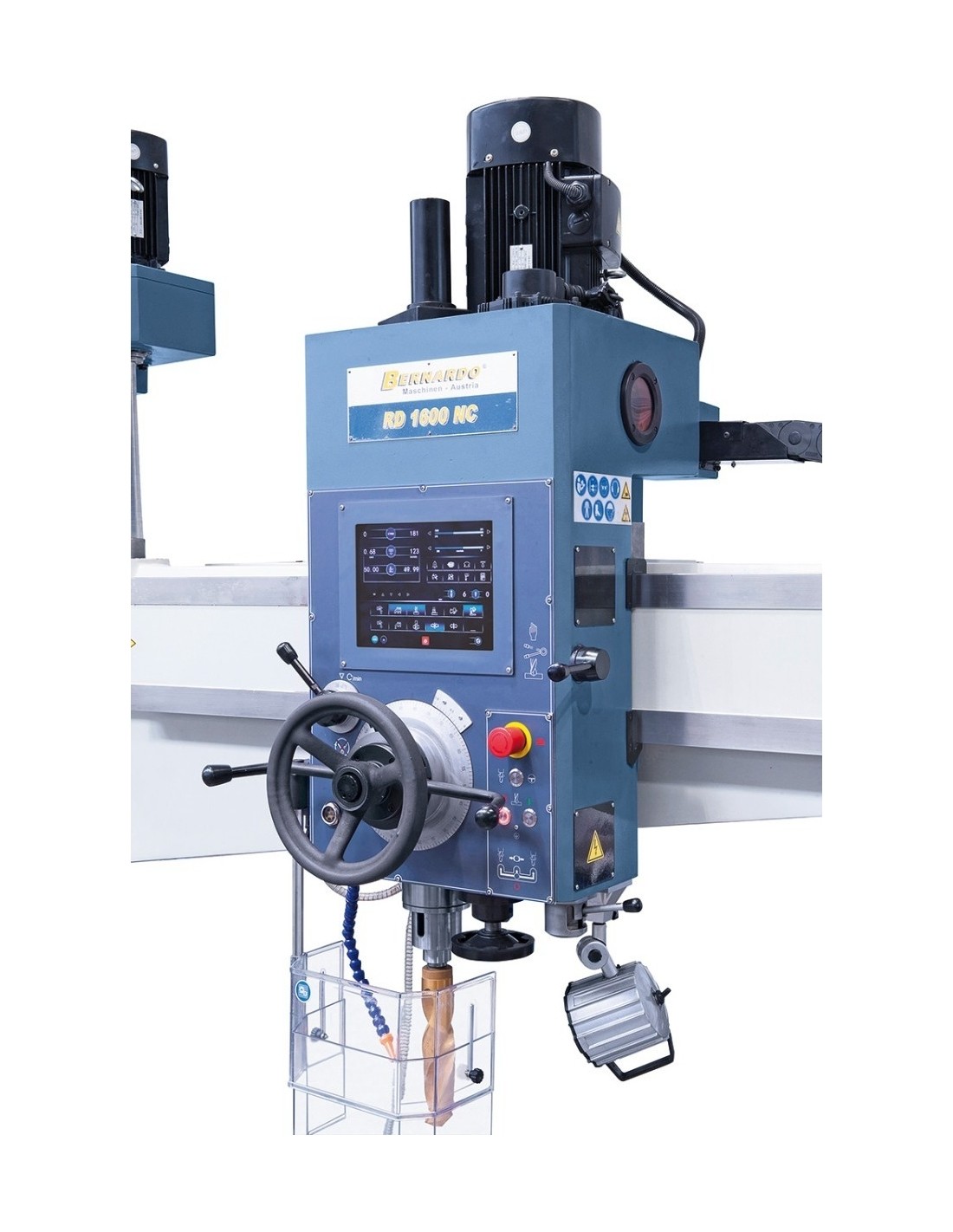

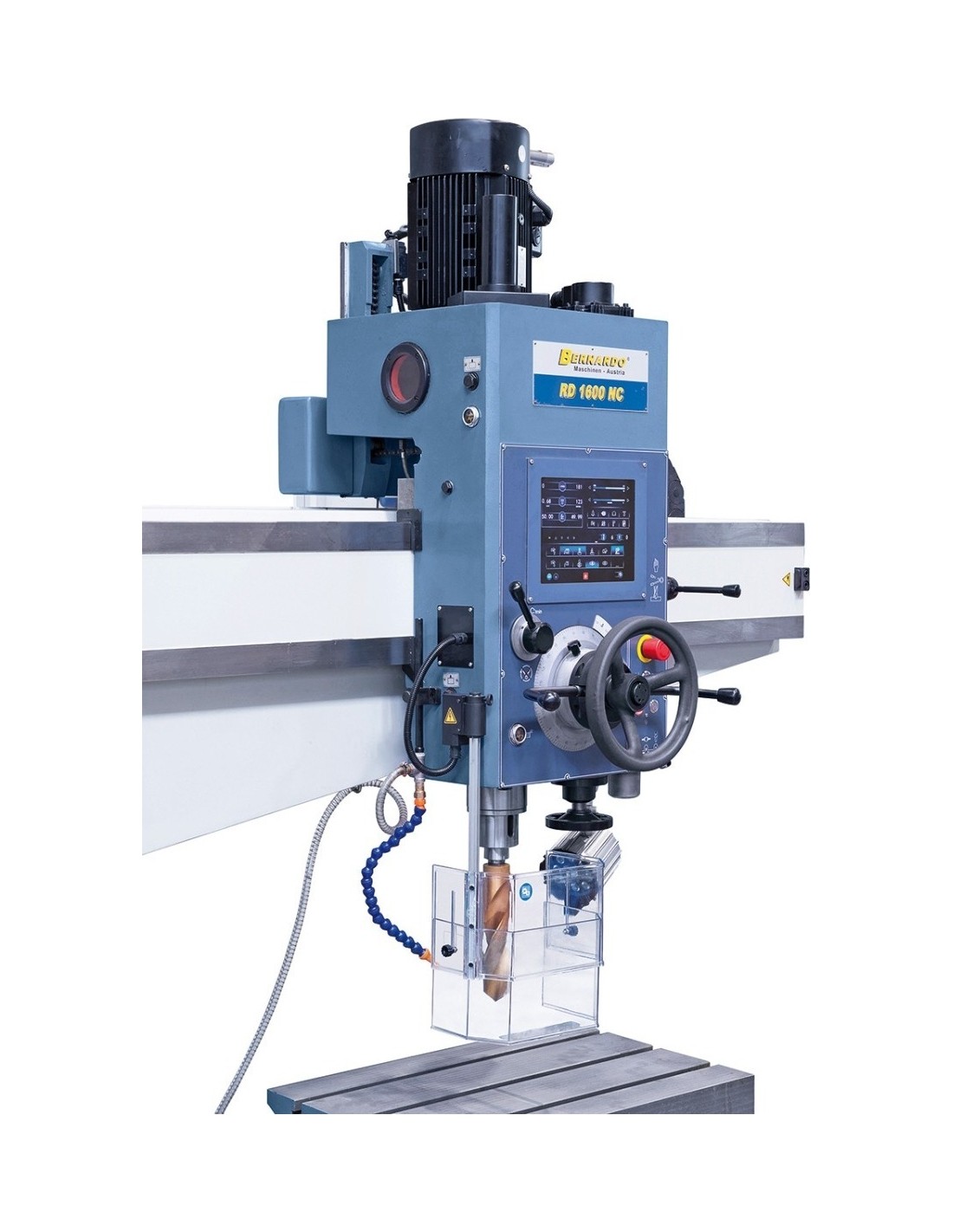

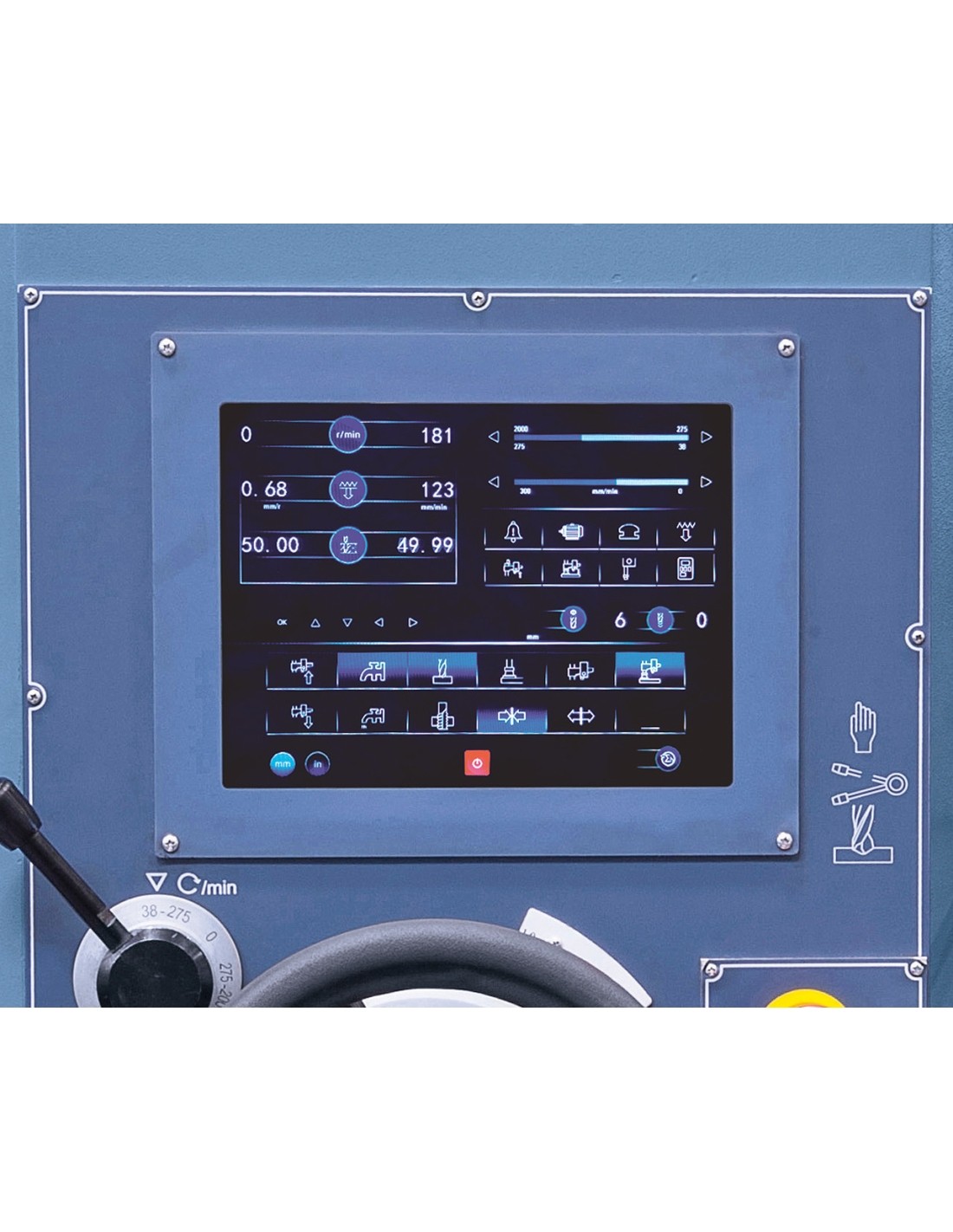

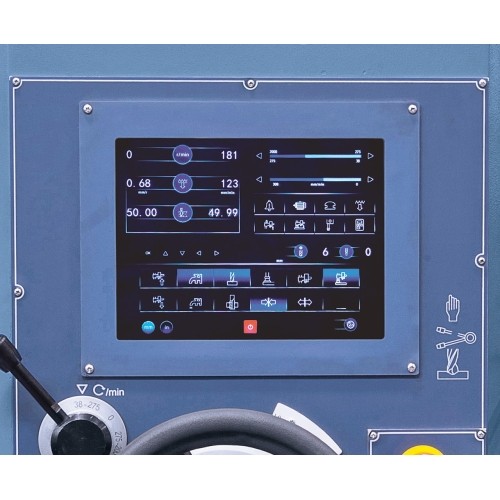

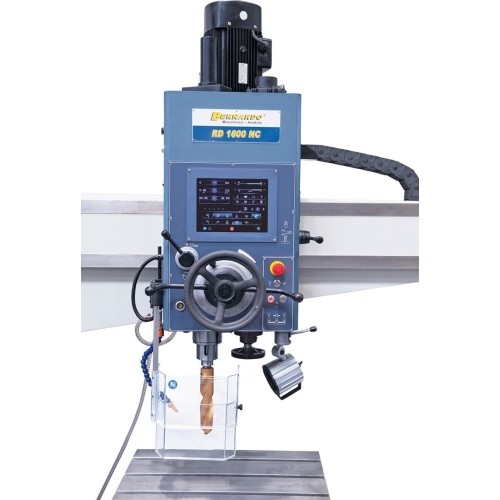

  • Large touchscreen for all settings, such as speed, drilling / thread cutting, height adjustment of support arm,…
  • The quill feed takes place by a high quality servo motor

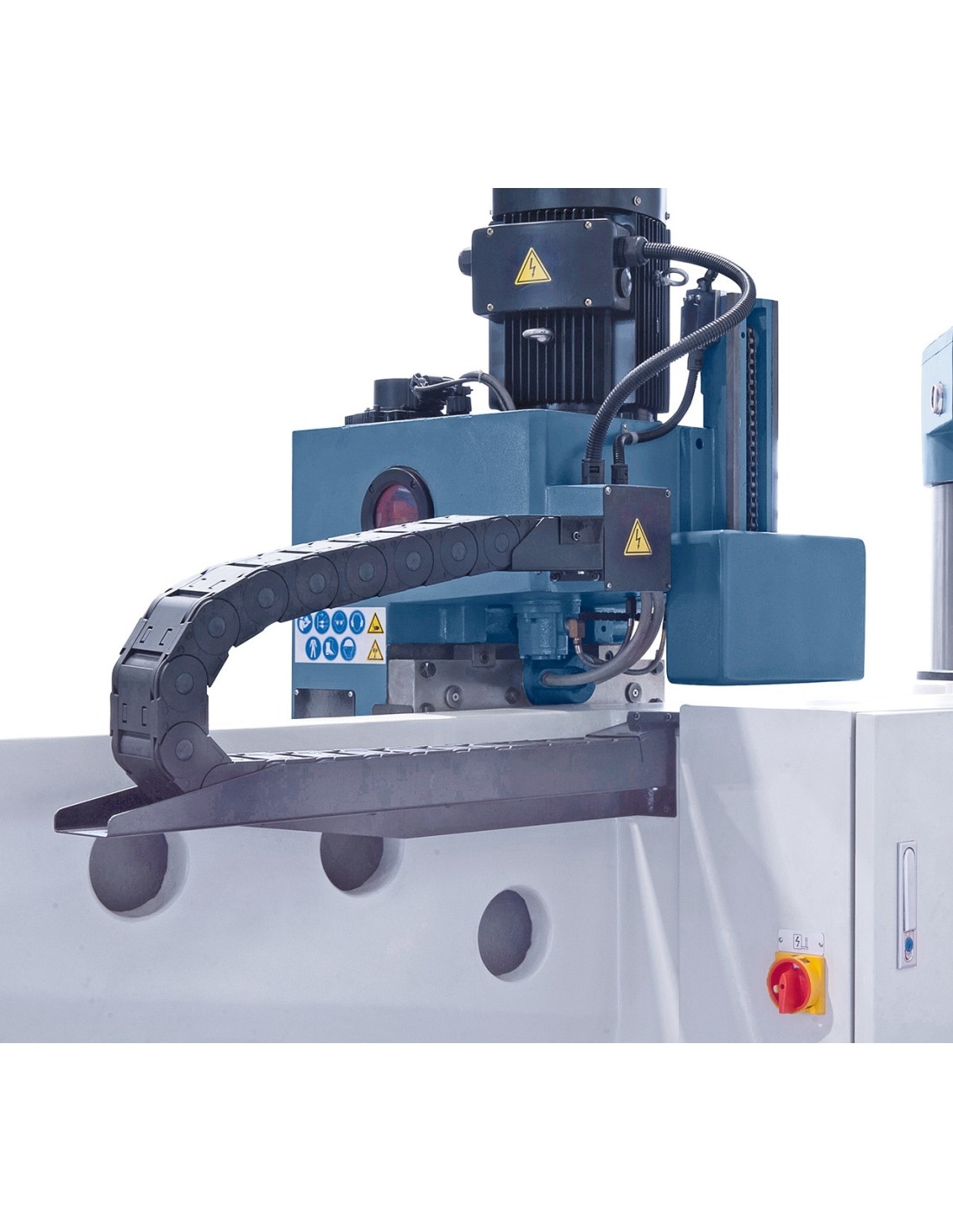

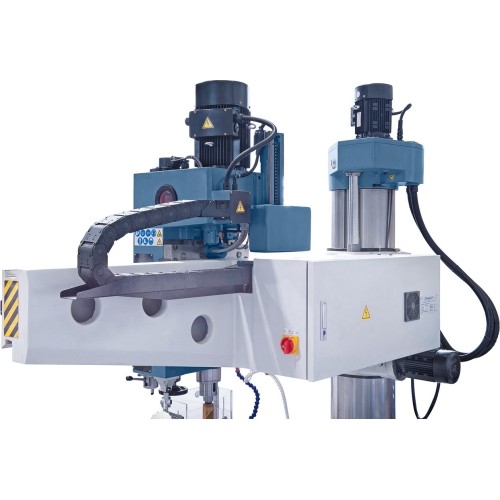

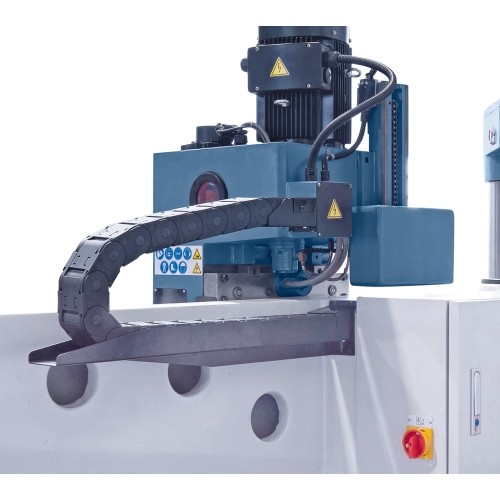

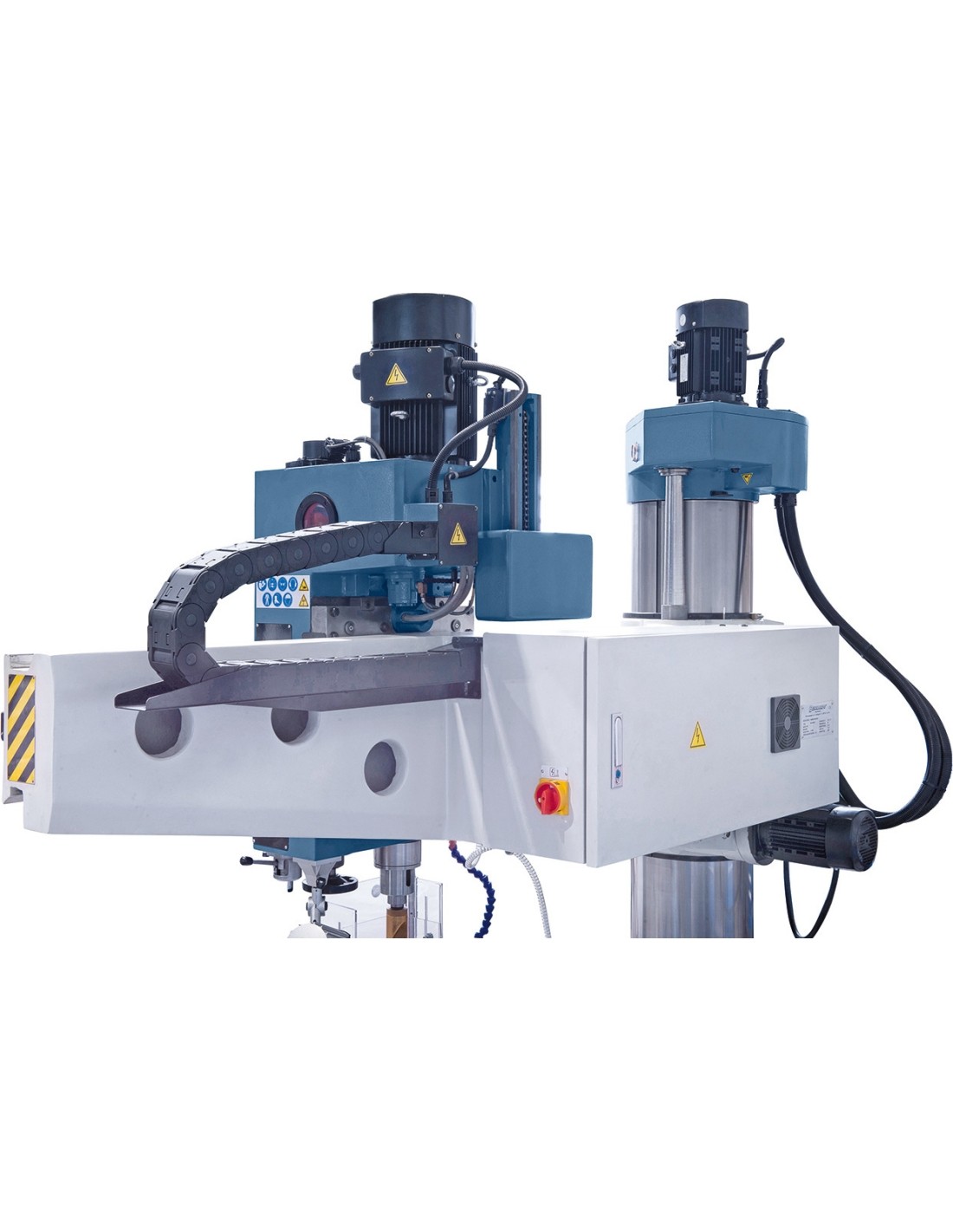

  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations
  • Electronically adjustable drill depth including checking of the input value
  • Complete with stepless speed, set speed is visible on digital display
  • Display of the measurements either mm or inch
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Standard accessories

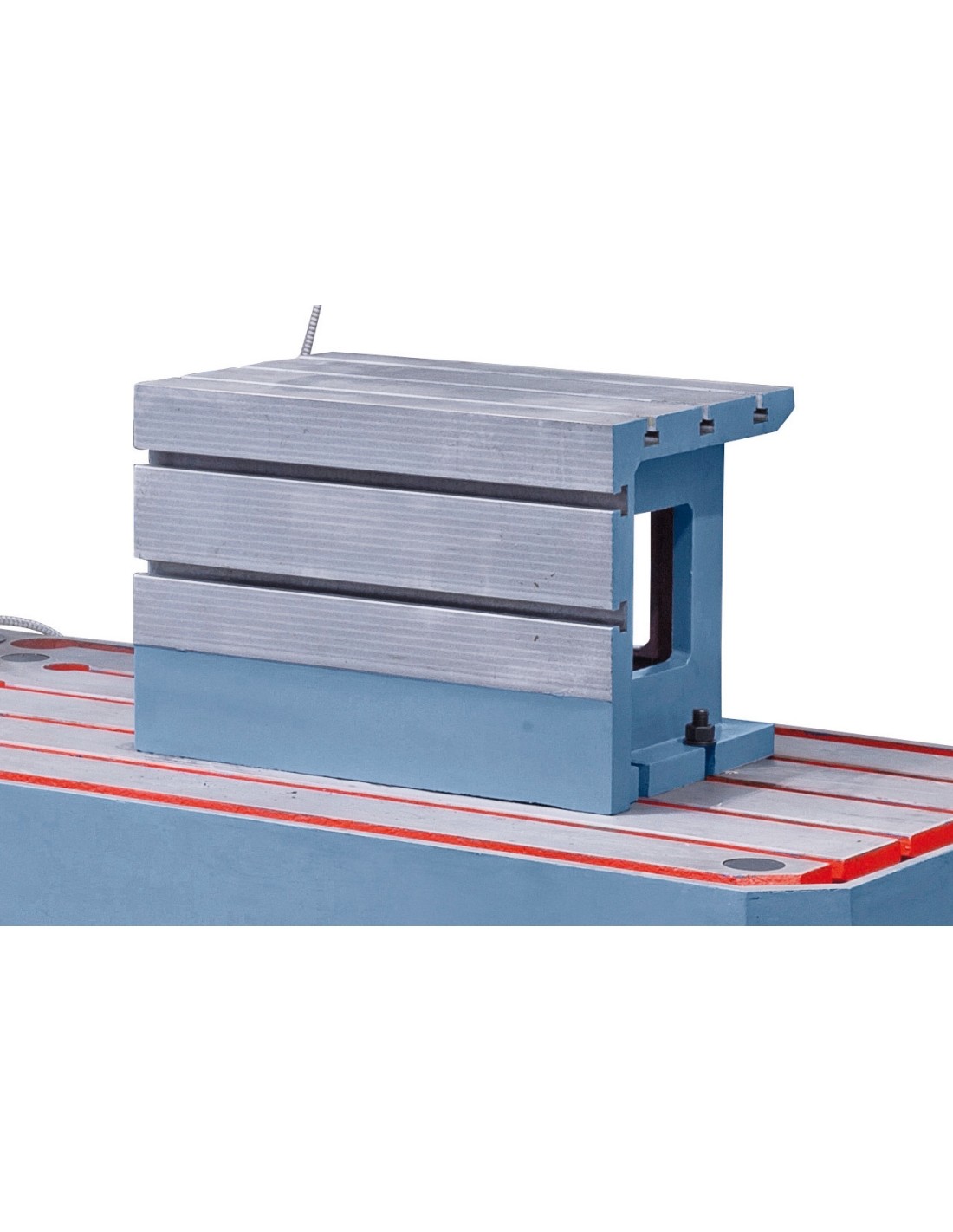

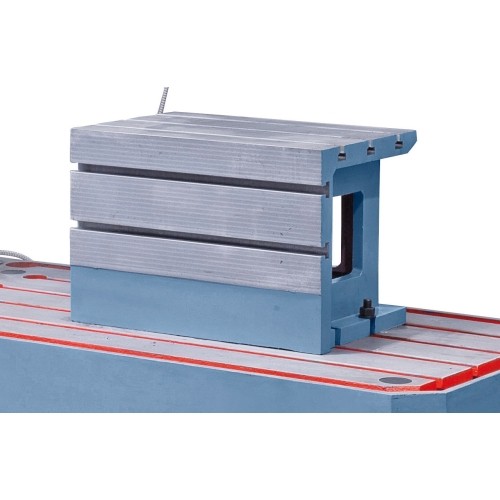

  • Box table
  • Drill chuck arbor
  • Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2

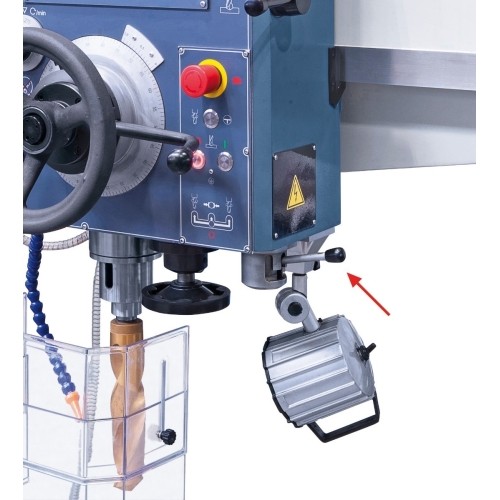

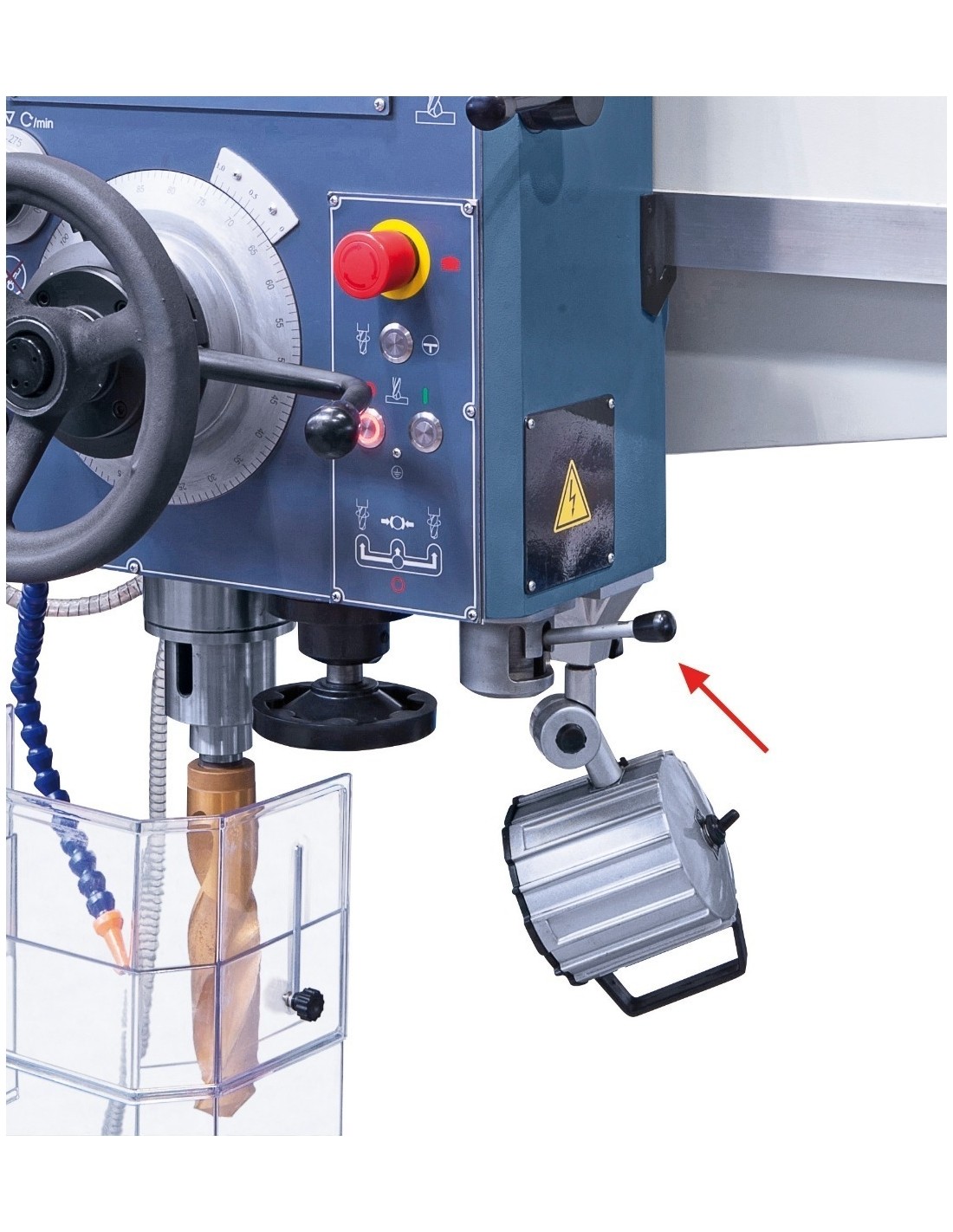

  • LED working light
  • Initial filling with Shell Tellus 46

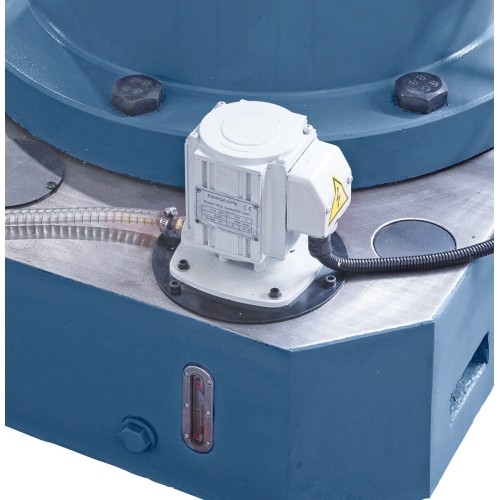

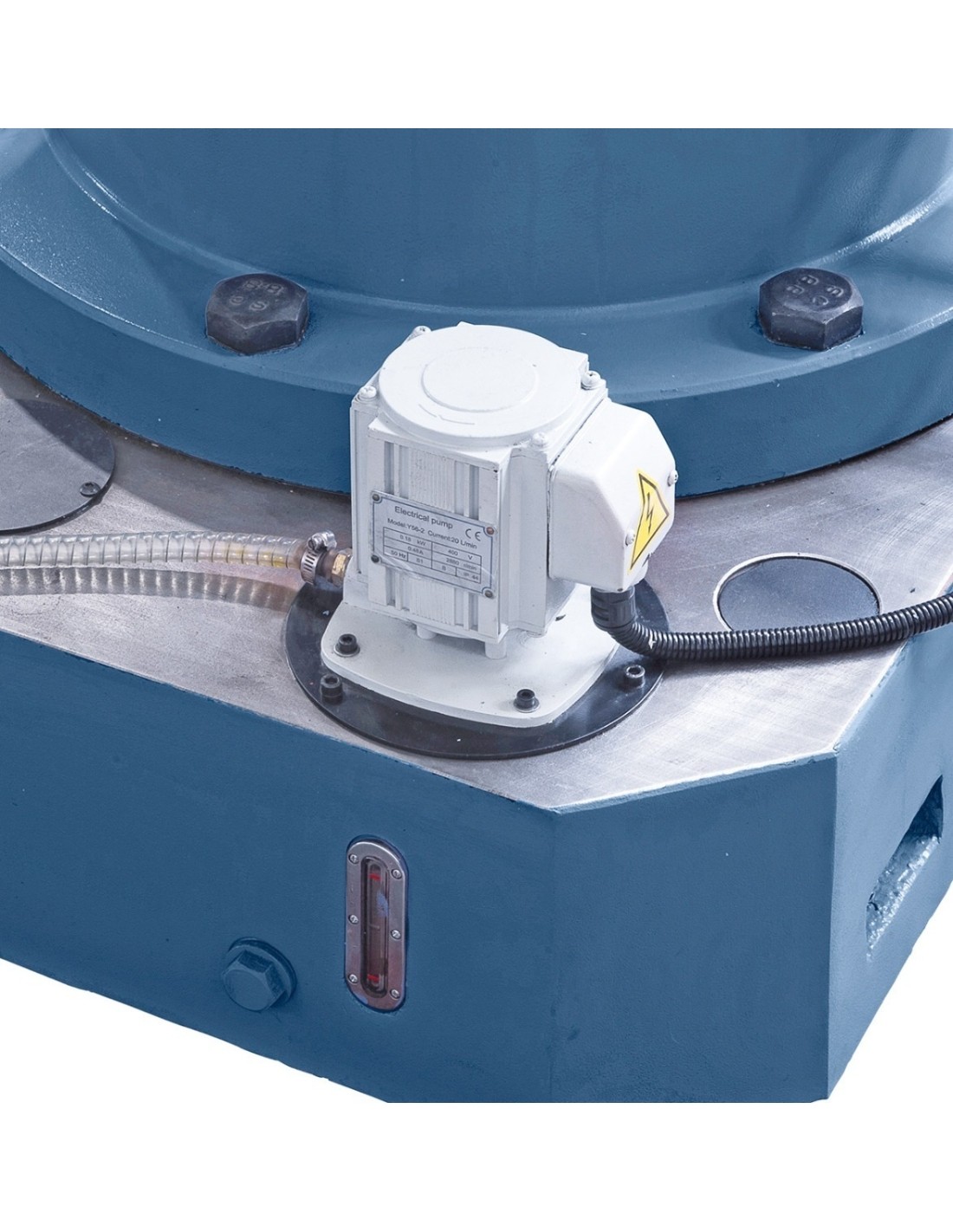

  • Coolant device
  • Touchscreen
  • Servomotor for spindle feed

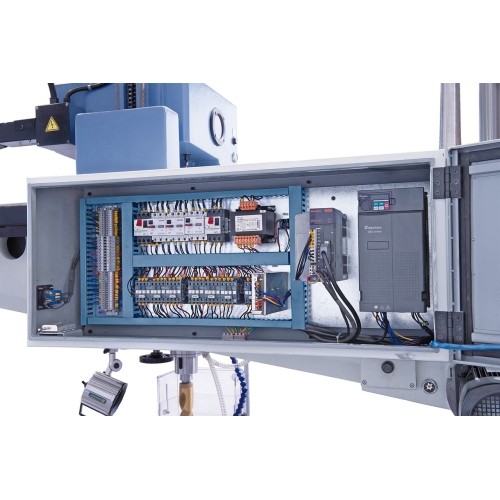

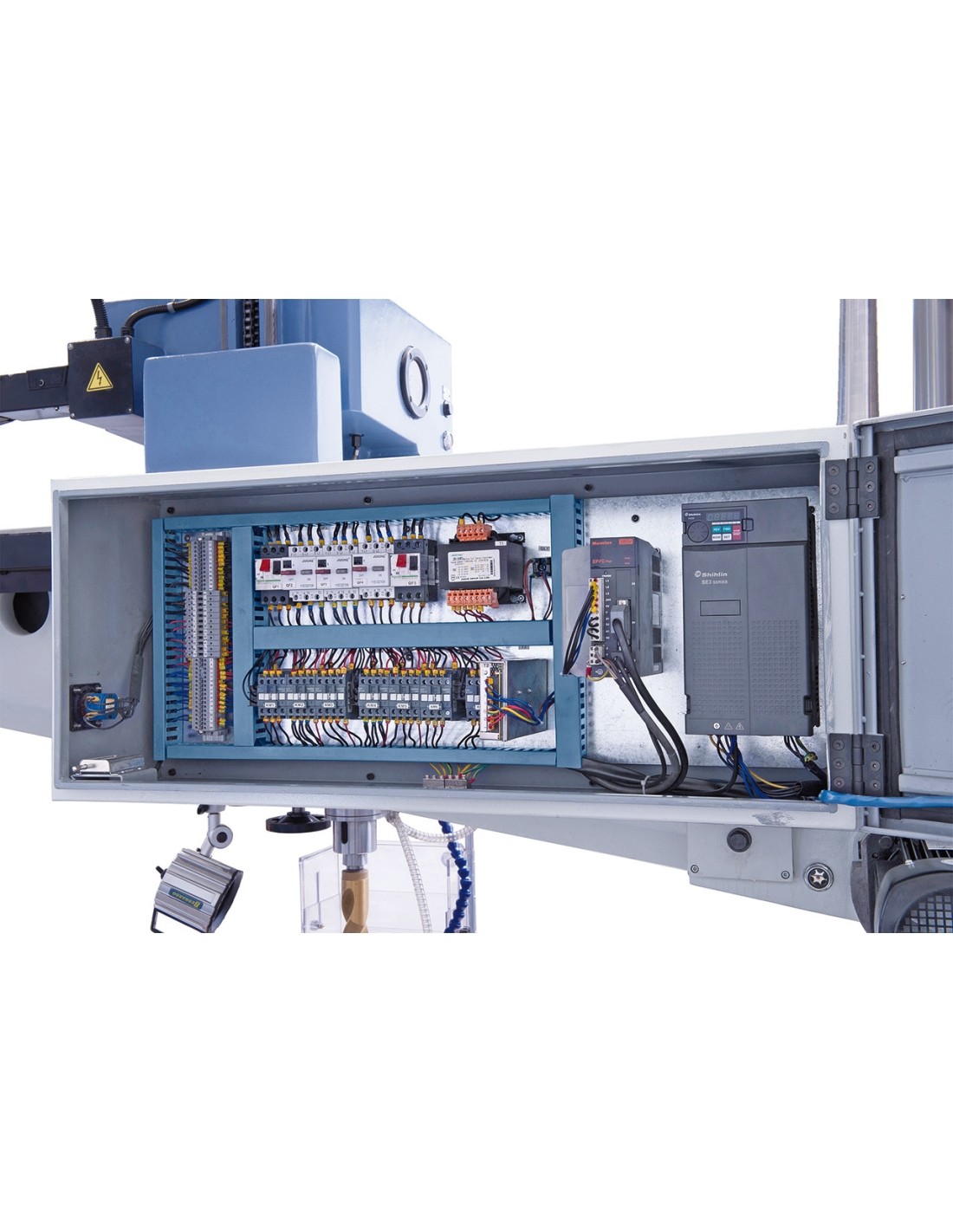

  • Frequency inverter

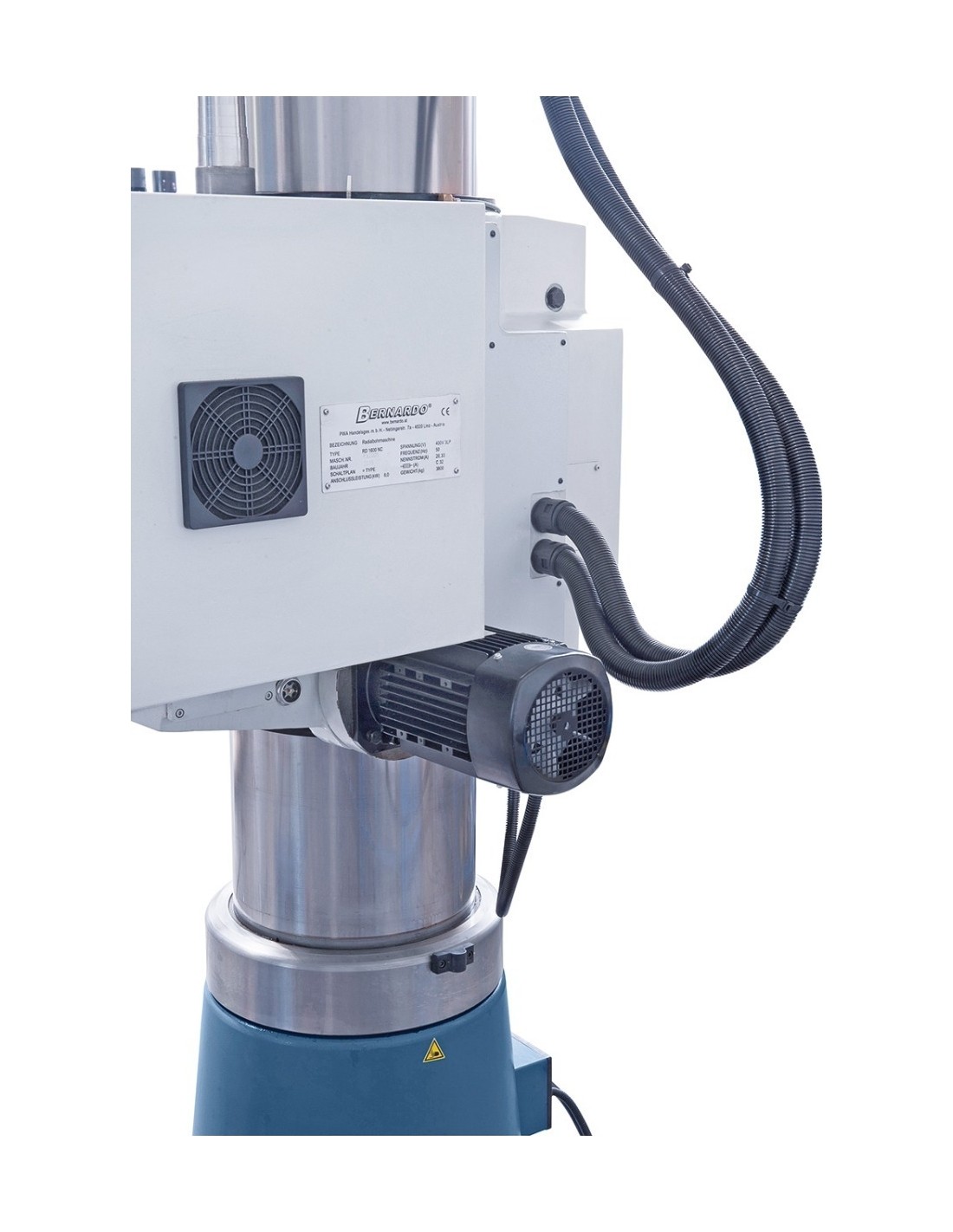

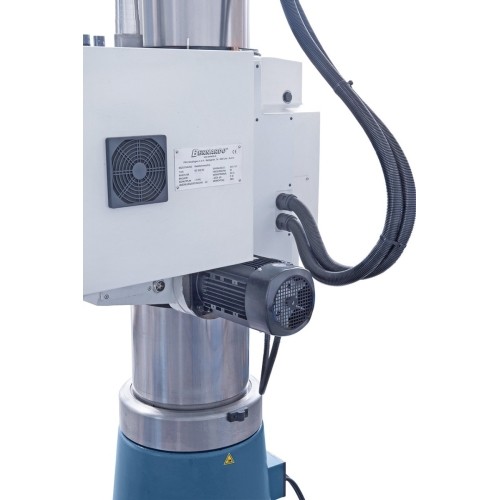

  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
