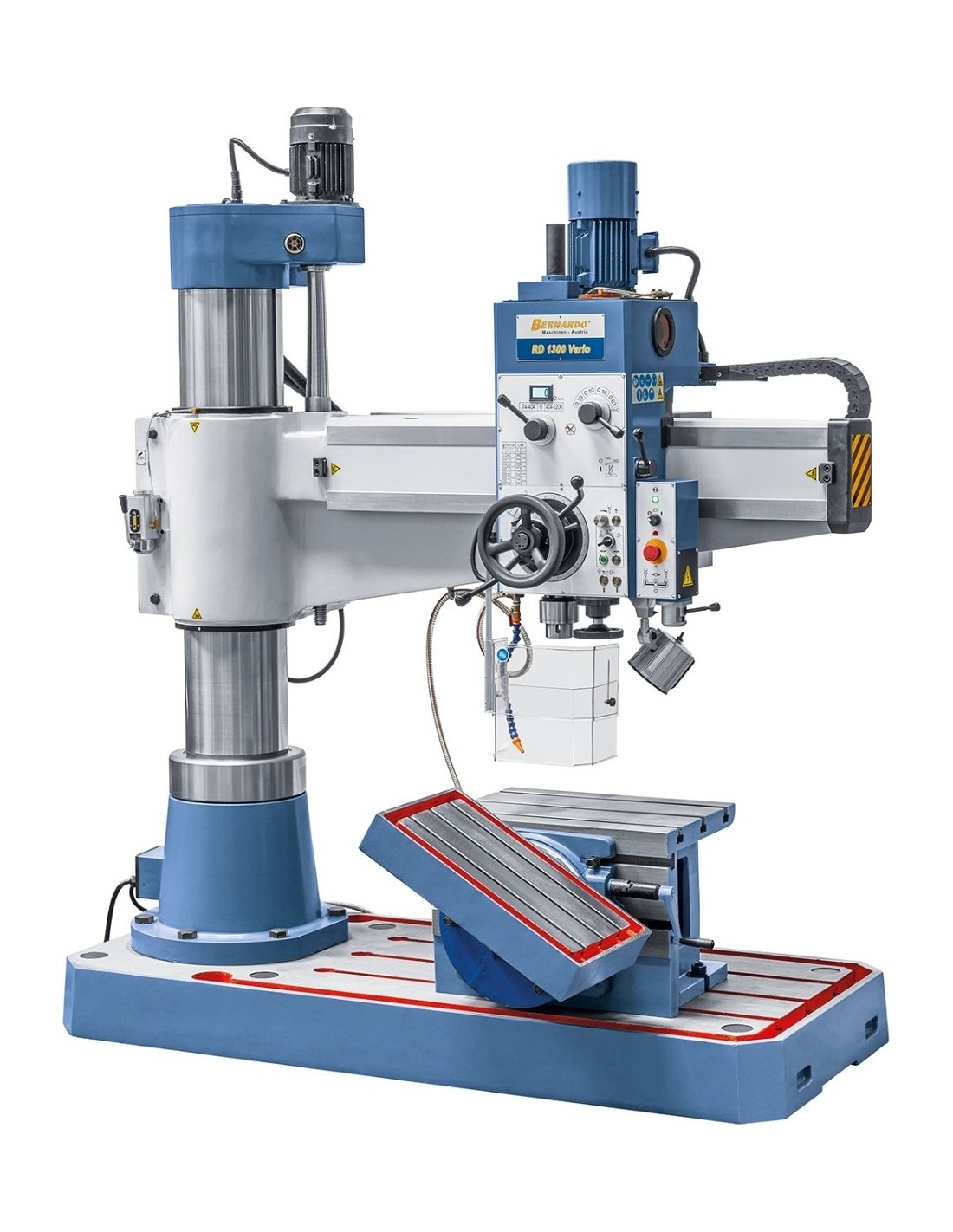

Weight approx.
2380 kg
Motor power
2,2 kW
Machine dimension (W x D x H)
2050 x 1050 x 2560 mm
Spindle stroke
290 mm
Drilling capacity max.
40 mm
Thread cutting max.
M40
Distance spindle to column min./max.
300 - 1300 mm
Vertical movement of the support
600 mm
Travel of drill head (horizontally)
1000 mm
Morse taper
MT 4
Spindle speeds
74 - 404 / 404 - 2200 rpm
Feed range
(4) 0,1 - 0,63 mm/rev.
Distance spindle to box table
100 - 700 mm
Distance spindle to base
570 - 1170 mm
Clamping area base
1220 x 900 mm
Box table (L x W x H)
640 x 450 x 450 mm

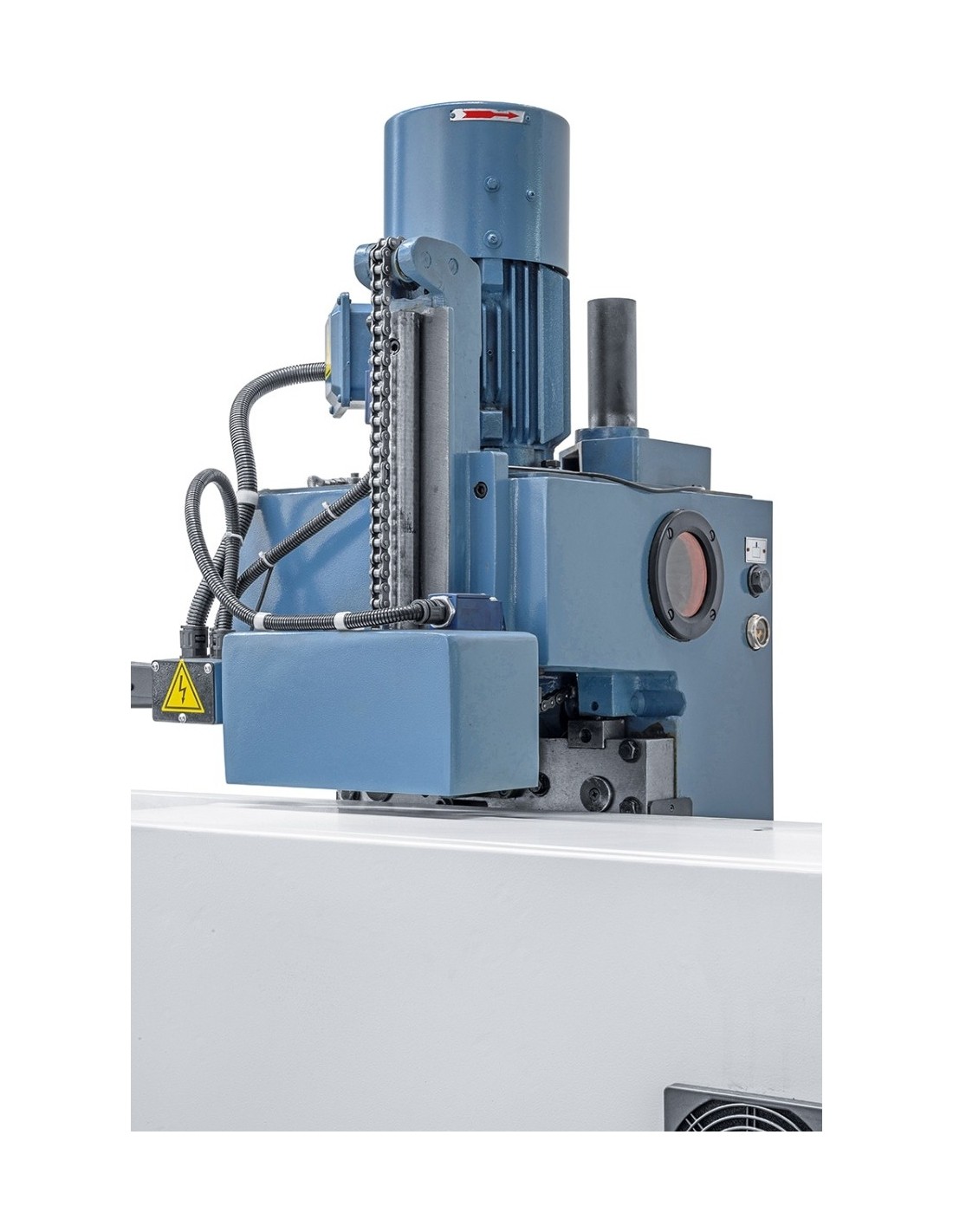

RD 1300 Vario

1366291
Price €26,789.00 VAT incl.

Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Manufacturer / Supplier warehouse
(10 pcs)
Delivery terms:
FREE pick up monday, november 2 d., in the store, Raudondvario pl. 141, Kaunas (€0.00)
Weight: 2380 kg.

Description

Properties

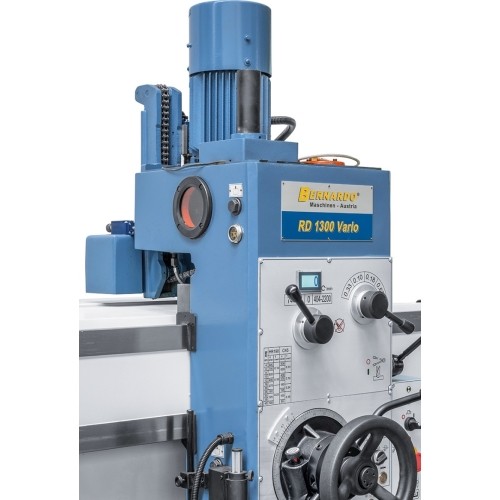

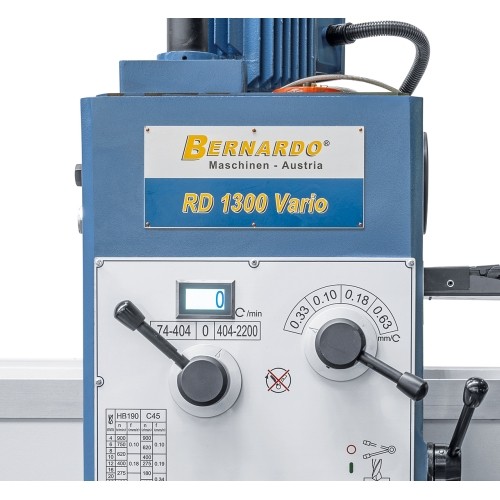

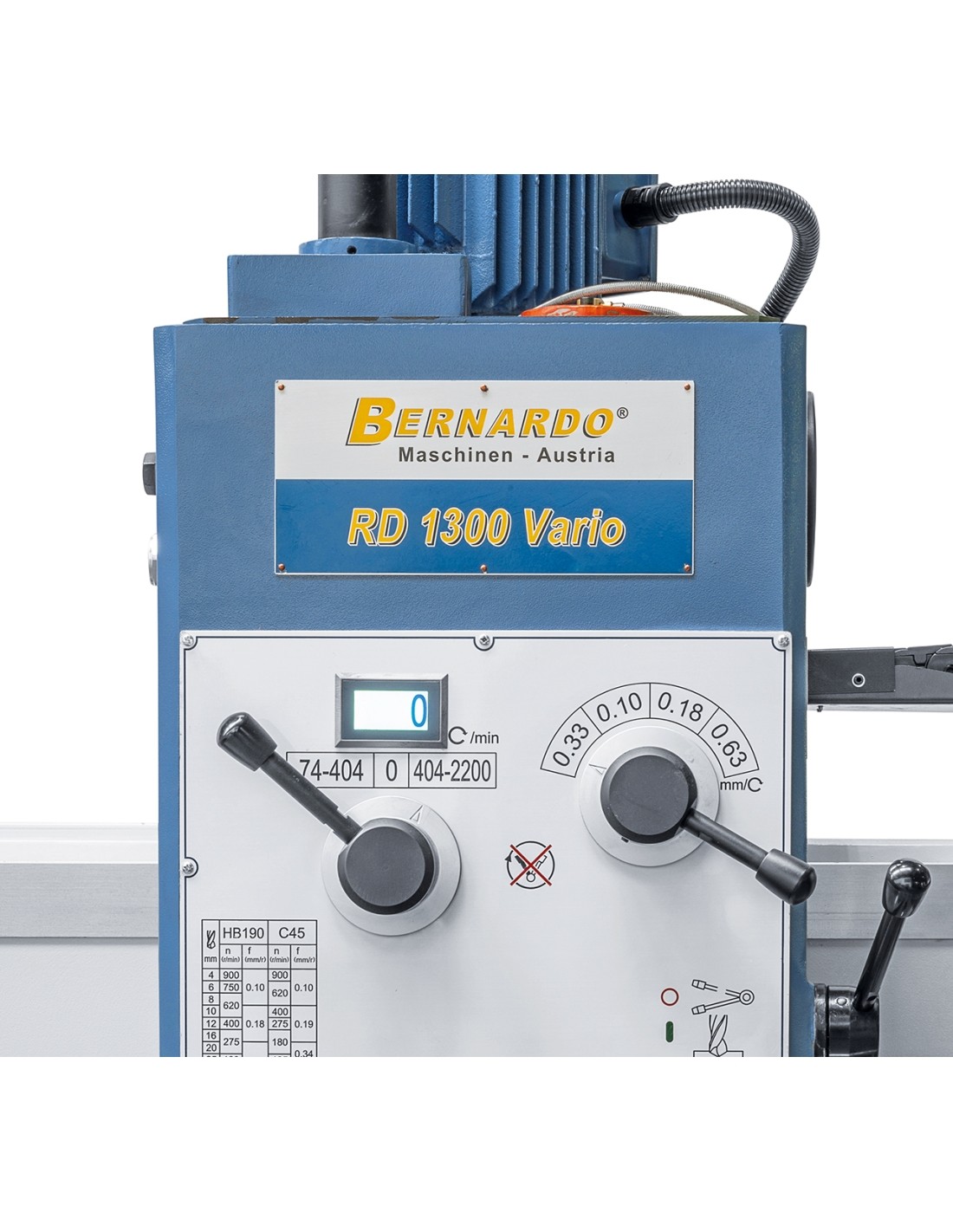

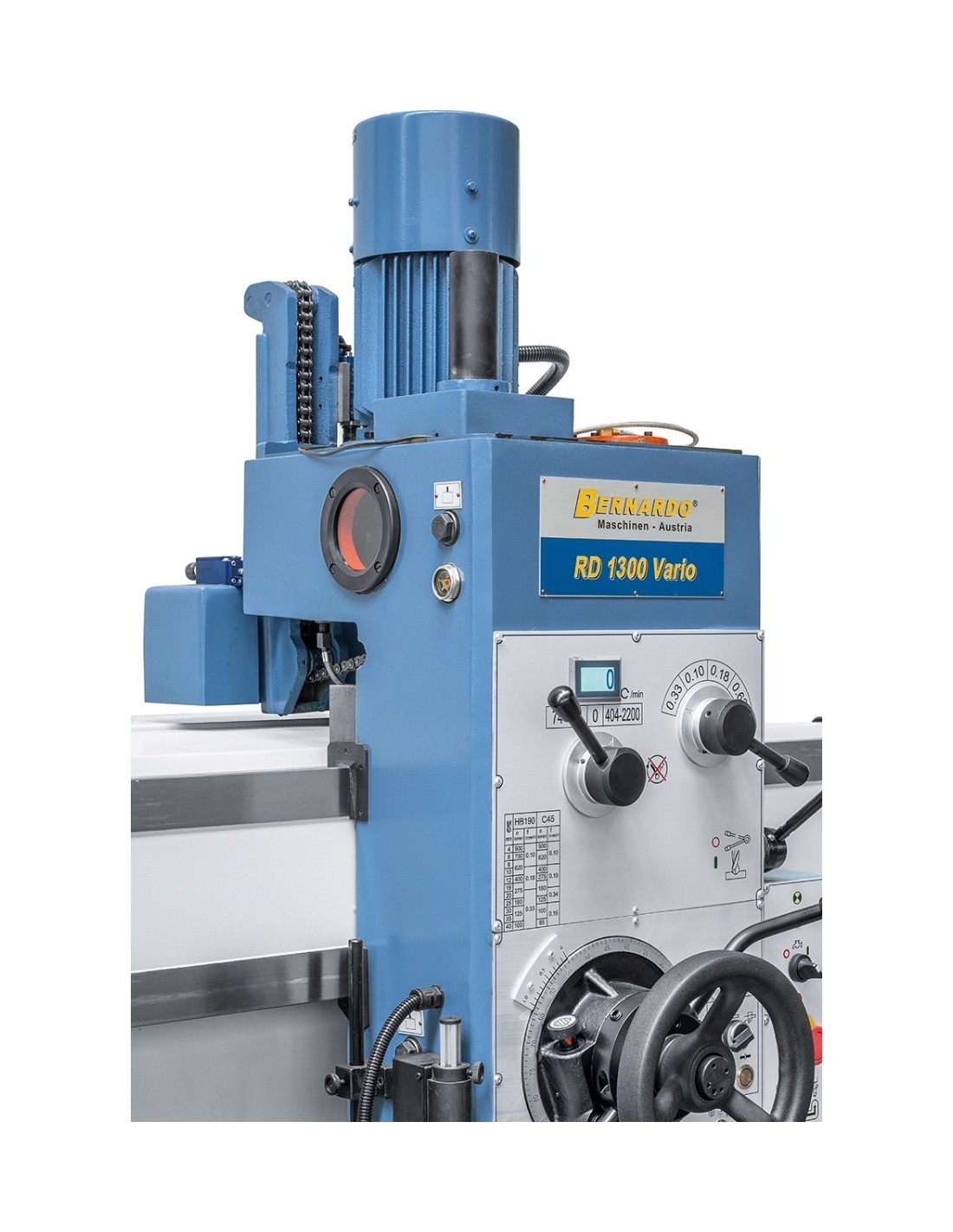

  • Complete with stepless speed, set speed is visible on digital display

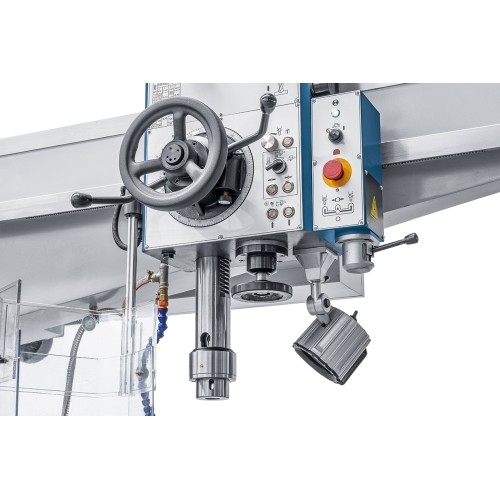

  • Spindle features high concentricity and automatic spindle brake
  • Radial arm, drill head and column each with hydraulic clamp

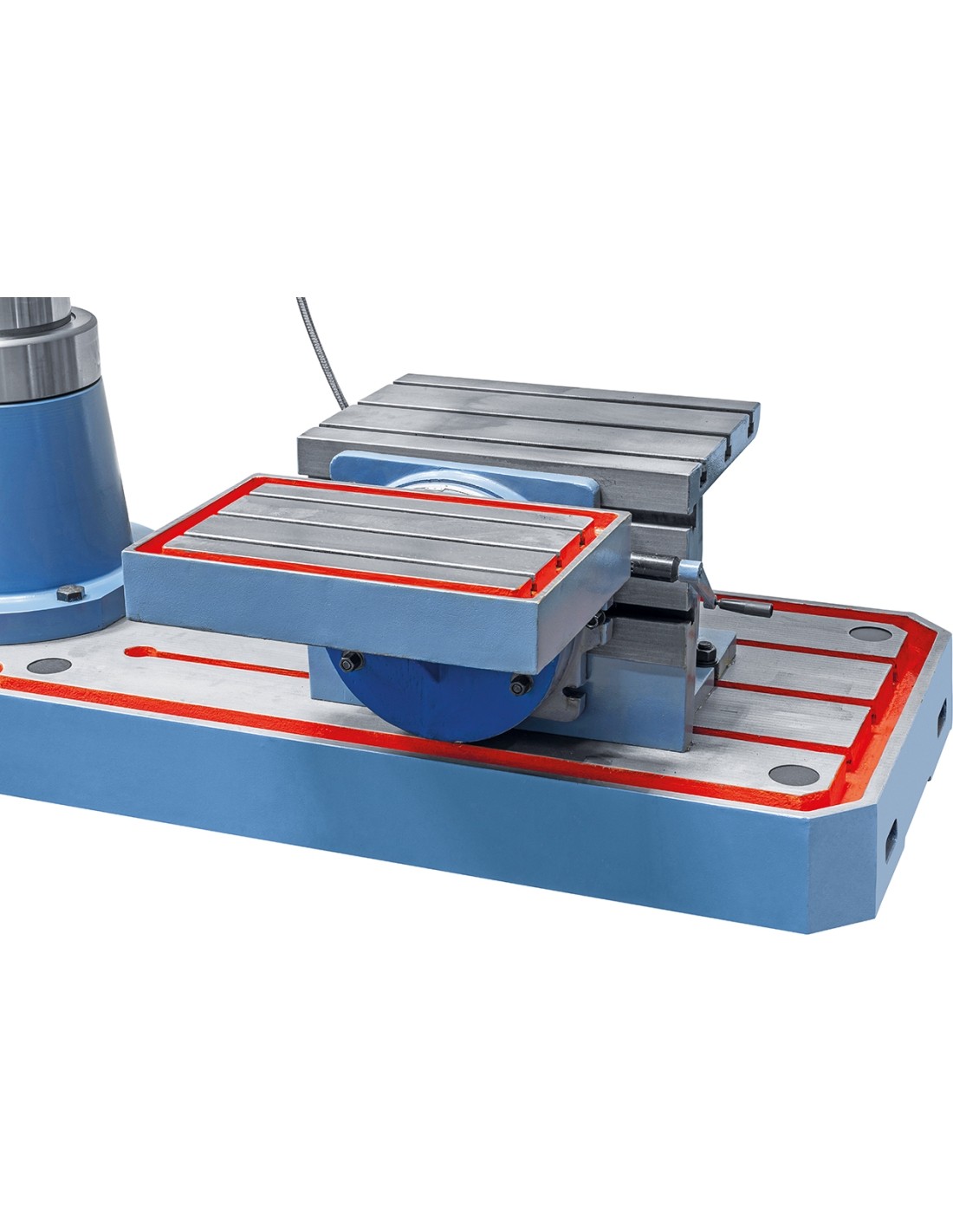

  • Large base plate, ideal for processing of oversize workpieces

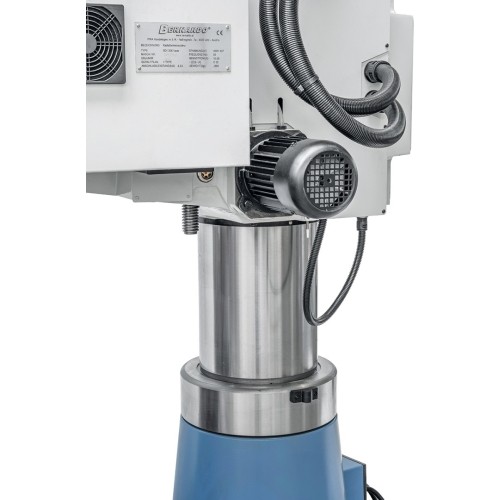

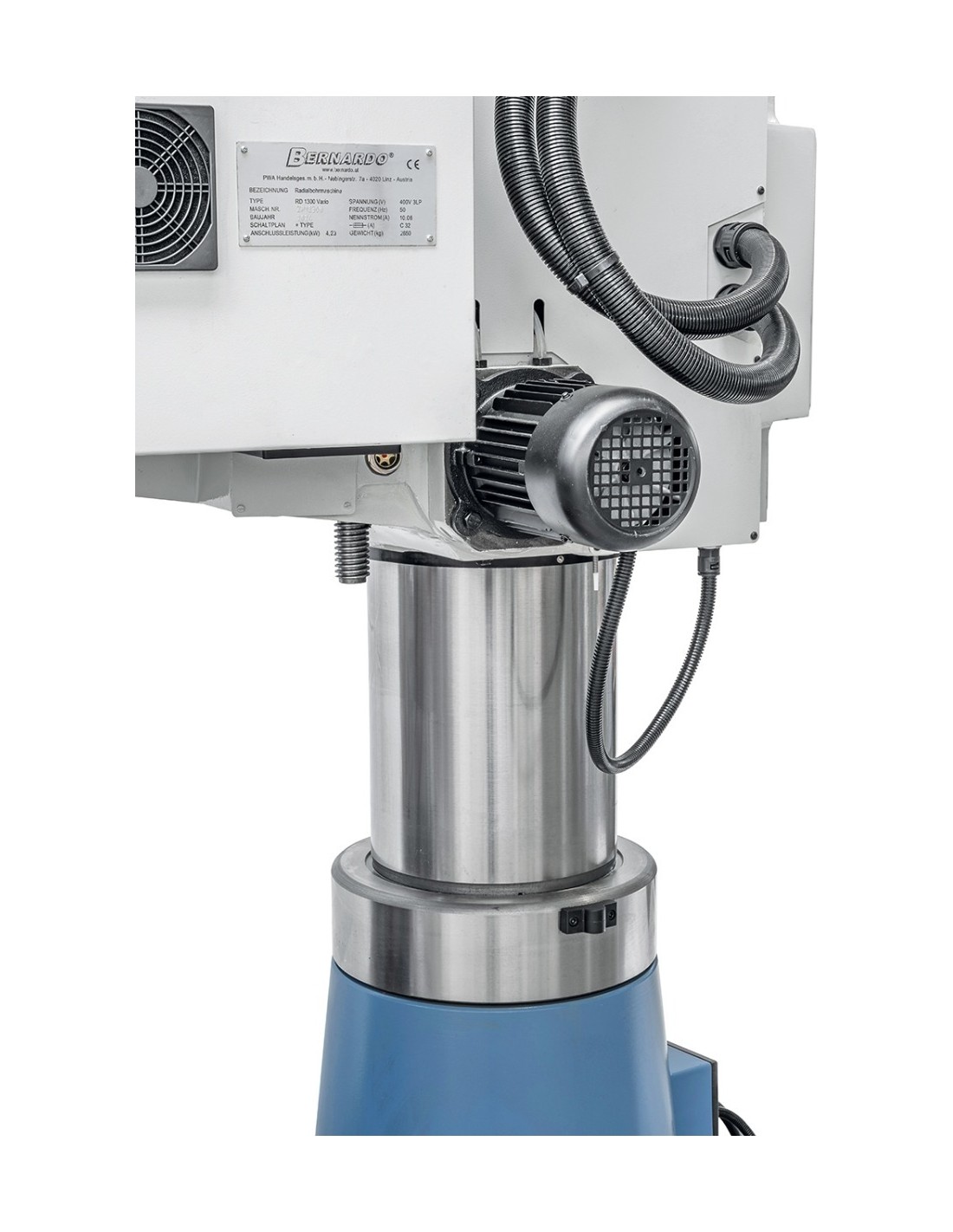

  • Torsion-free, polished column increases sliding capacity of radial arm

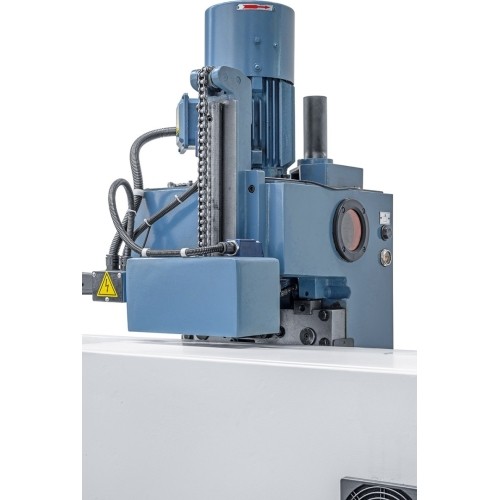

  • Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

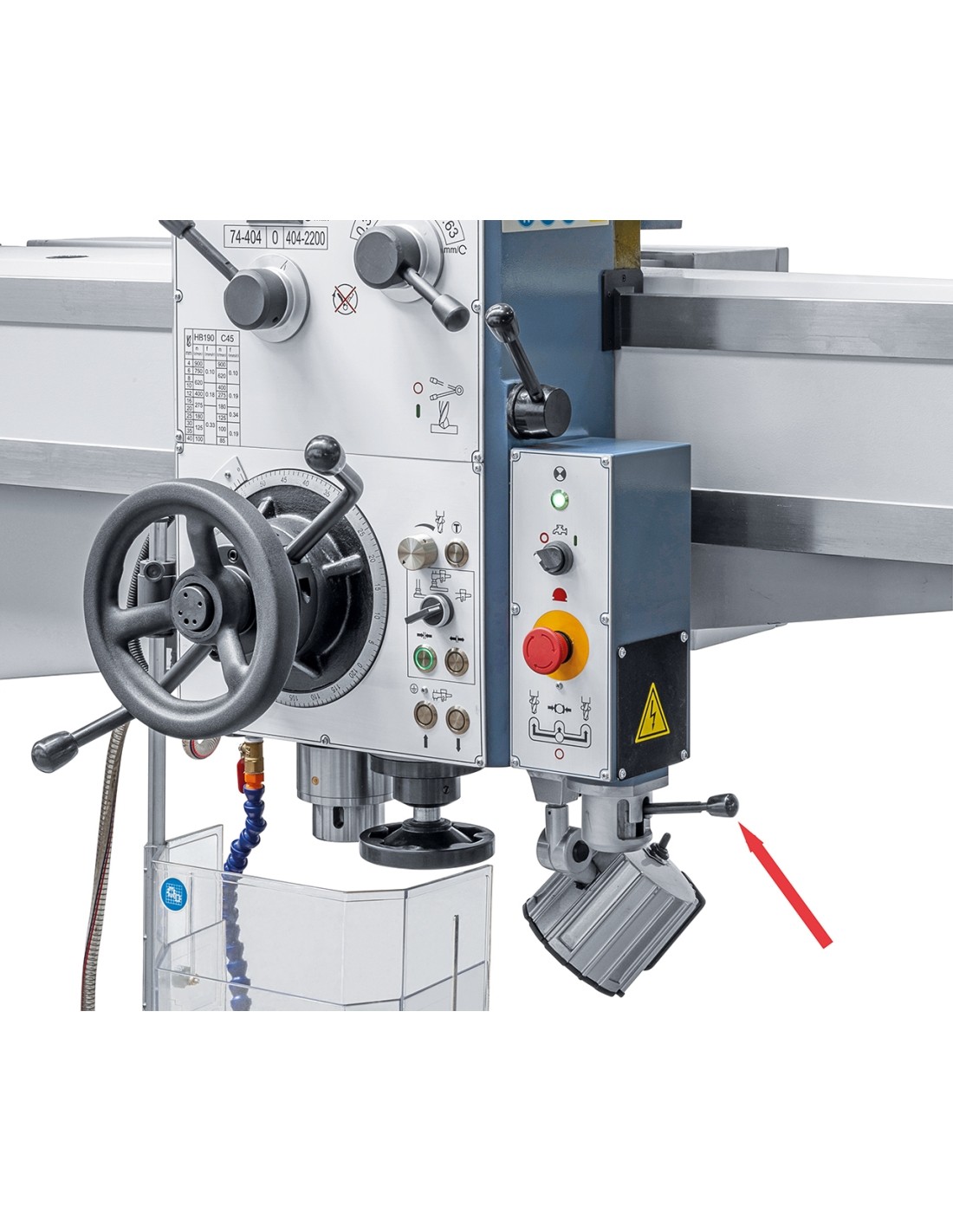

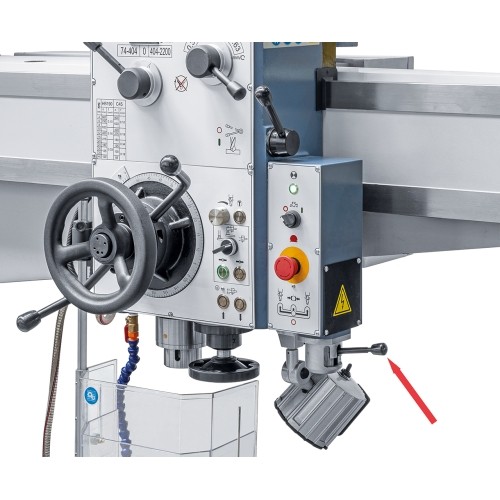

  • Control switch allows for individual clamping or unclamping of drill head and/or column
  • Guiderails on radial arm are hardened and polished
  • Counter weight on spindle to ensure optimal balance
  • Ideal for drilling, countersinking, reaming and tapping

Standard accessories

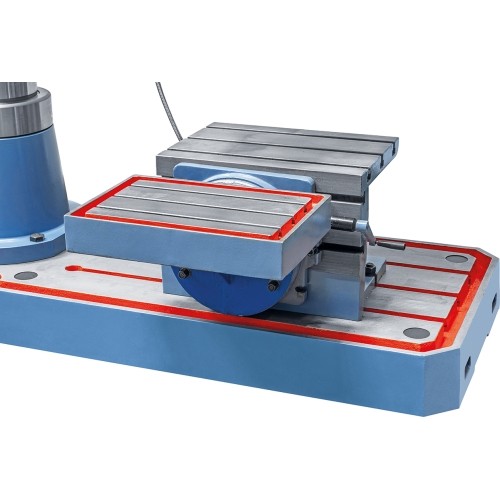

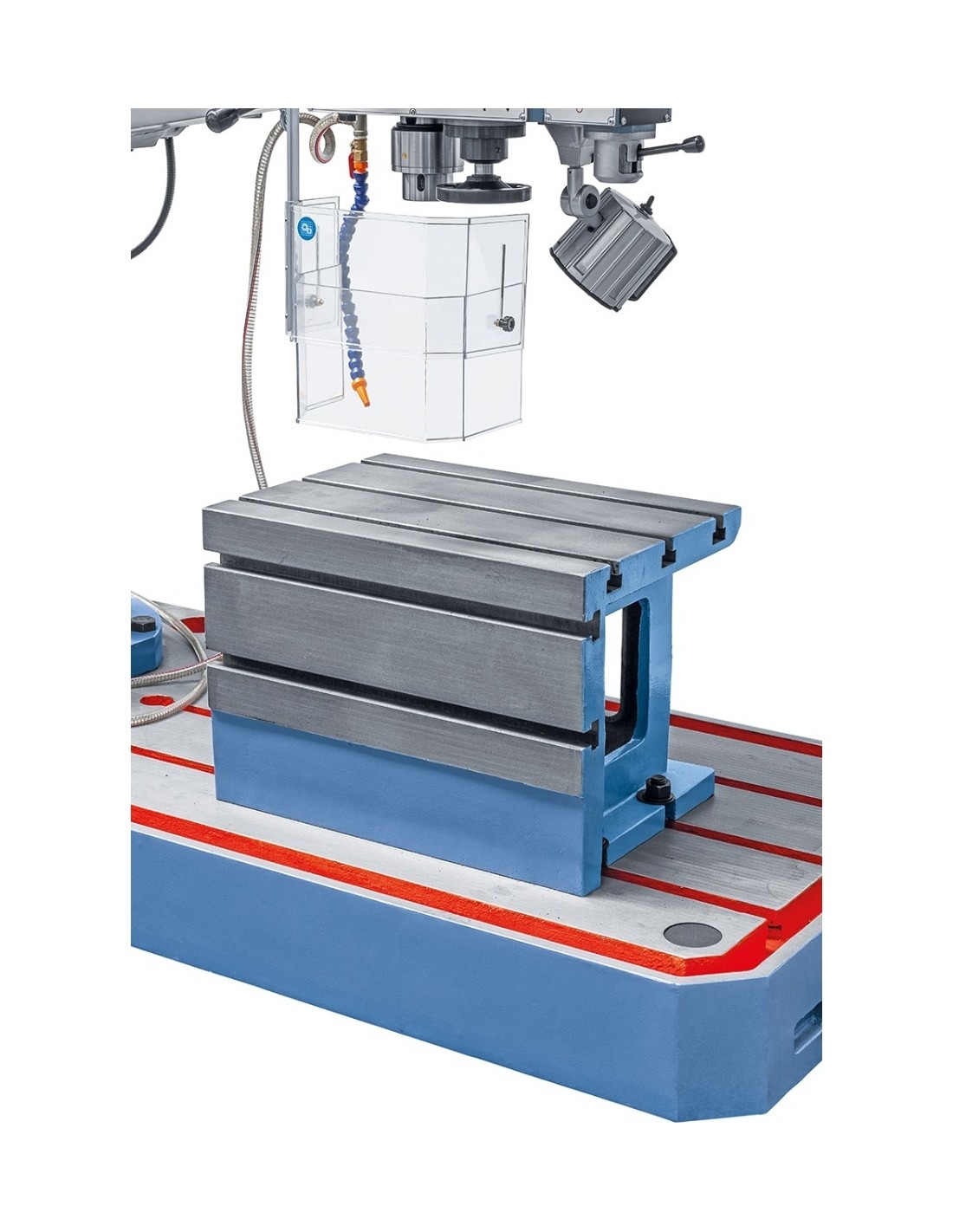

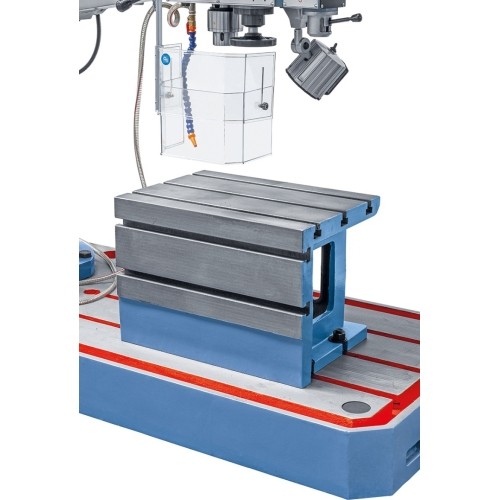

  • Box table
  • Drill chuck arbor
  • Morse taper drill sleeve

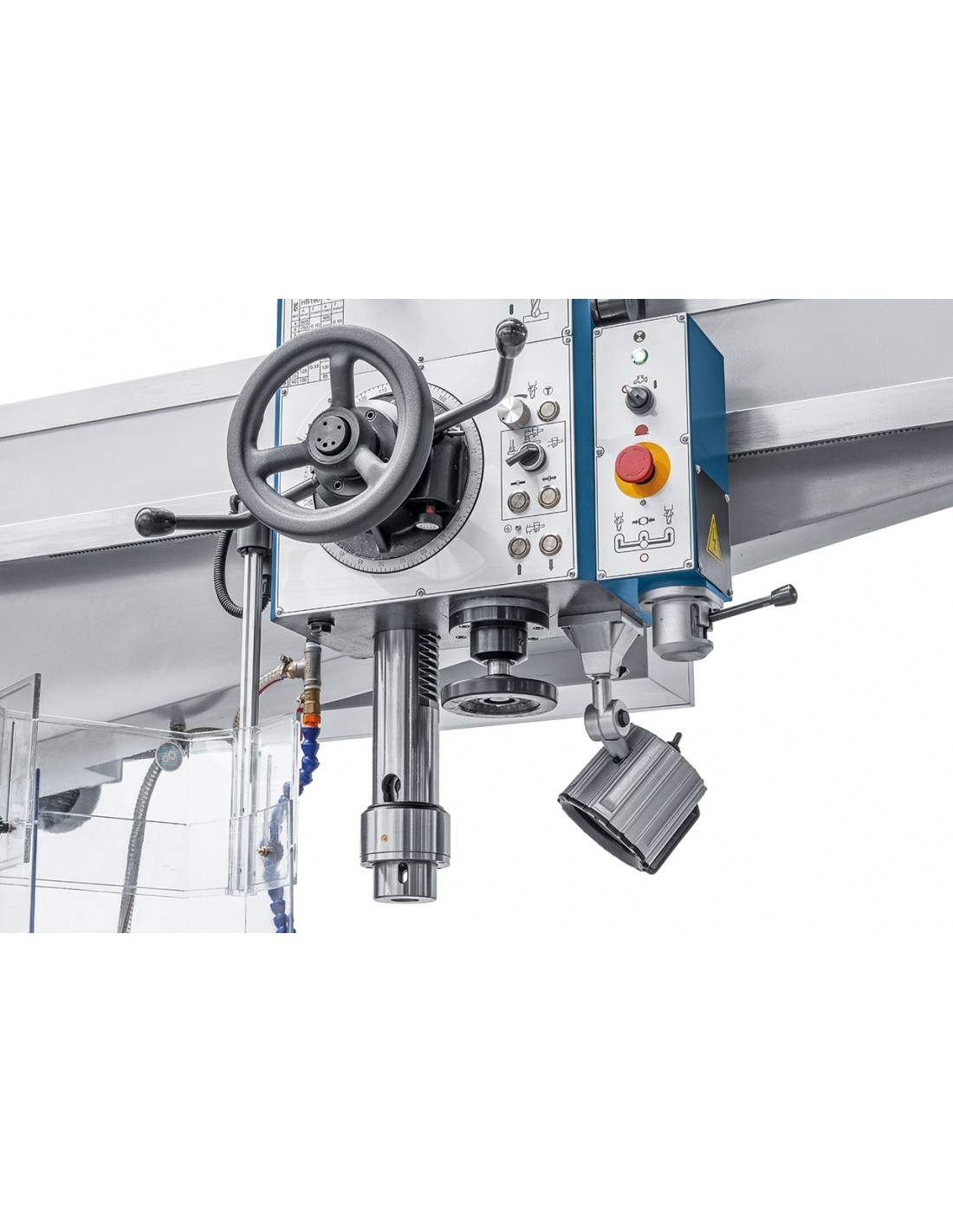

  • LED machine light
  • Initial filling with Shell Tellus 46

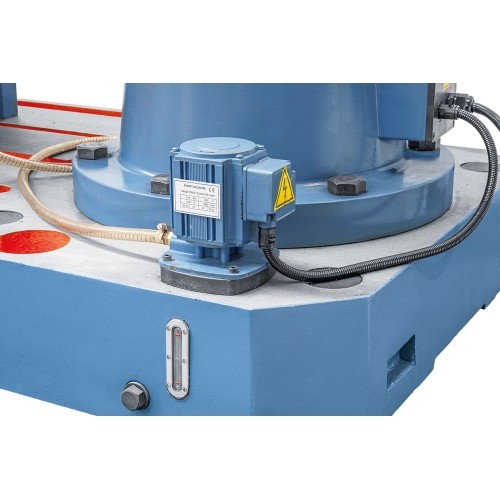

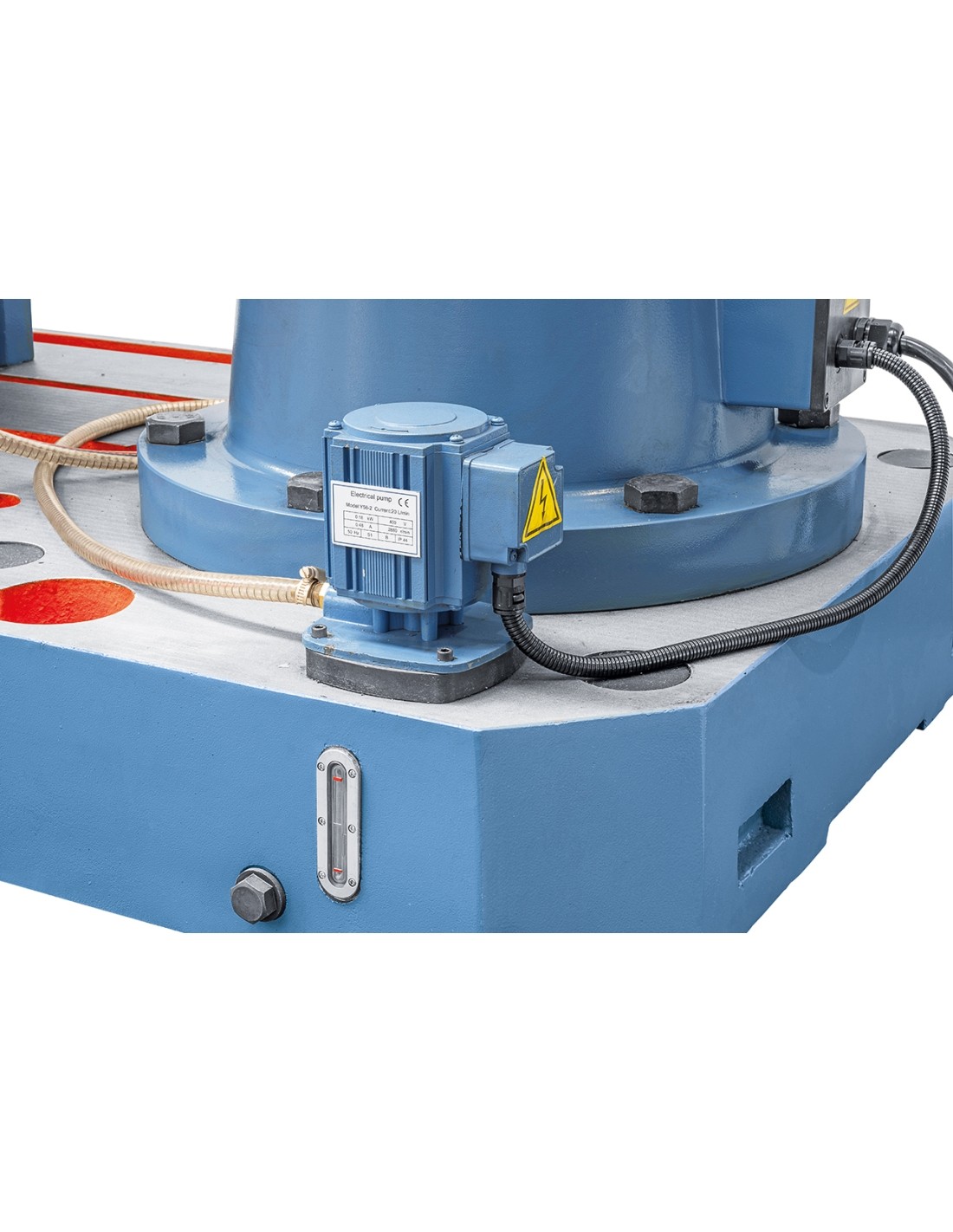

  • Coolant device

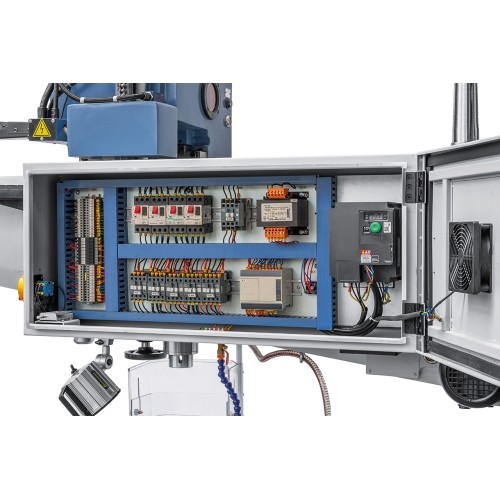

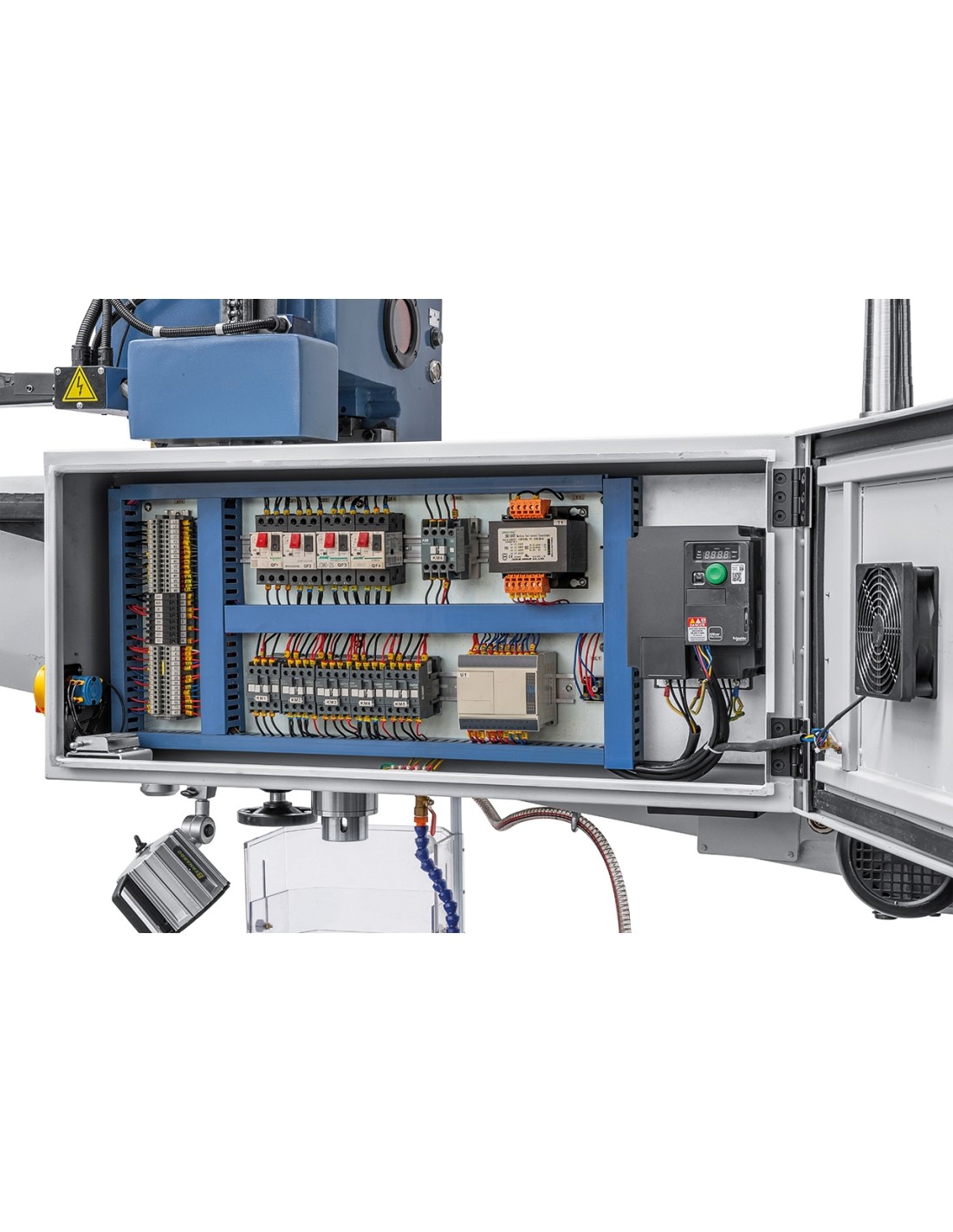

  • Frequency inverter
  • Digital readout of speeds

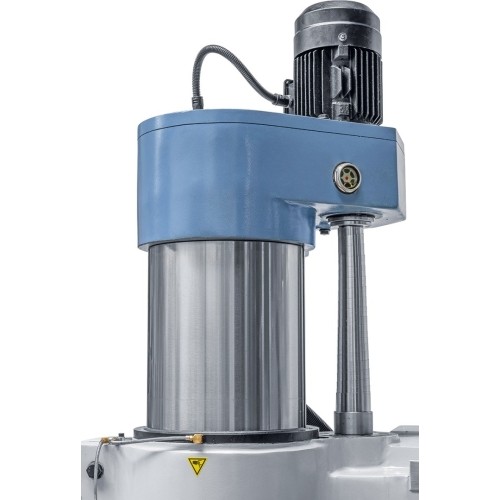

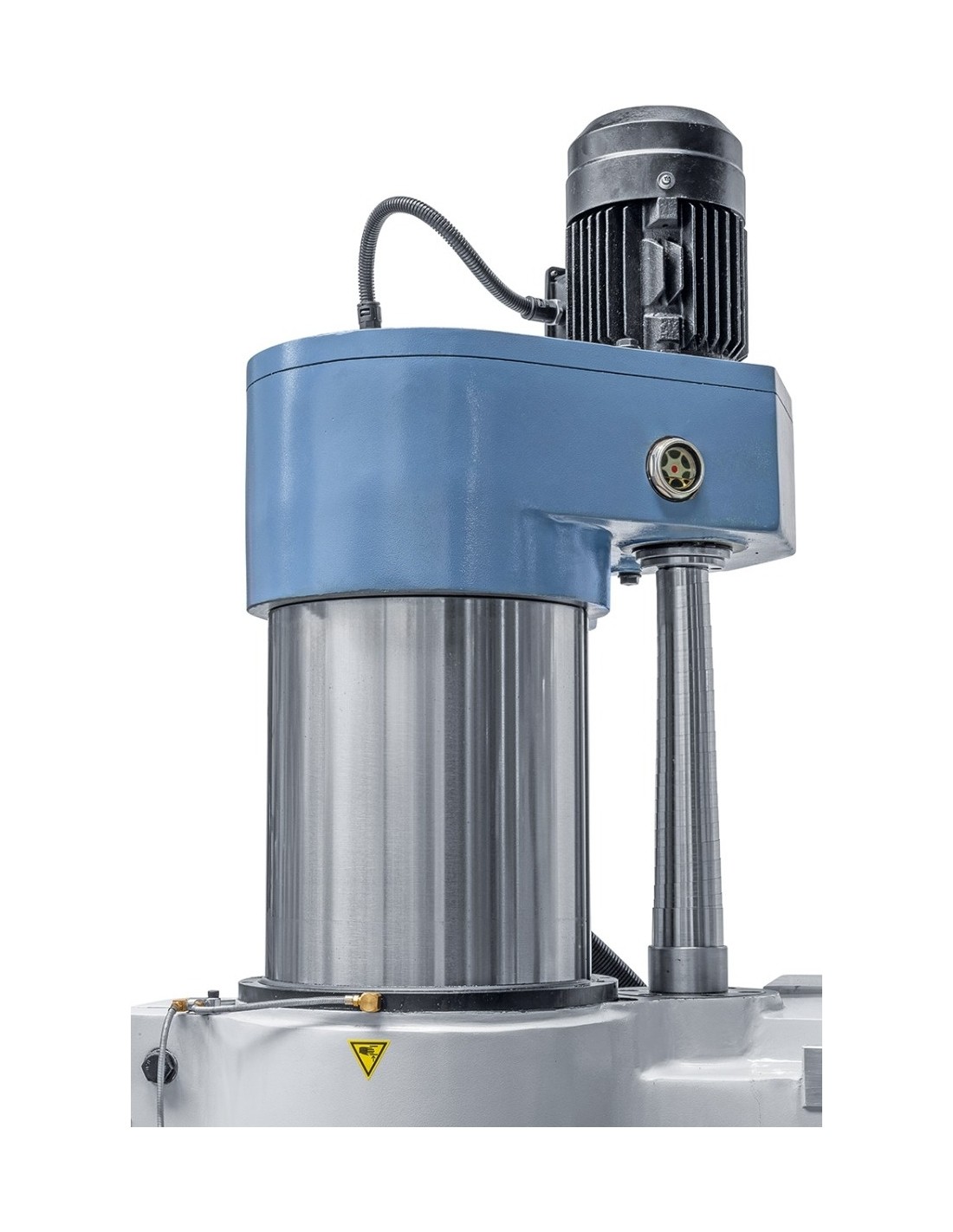

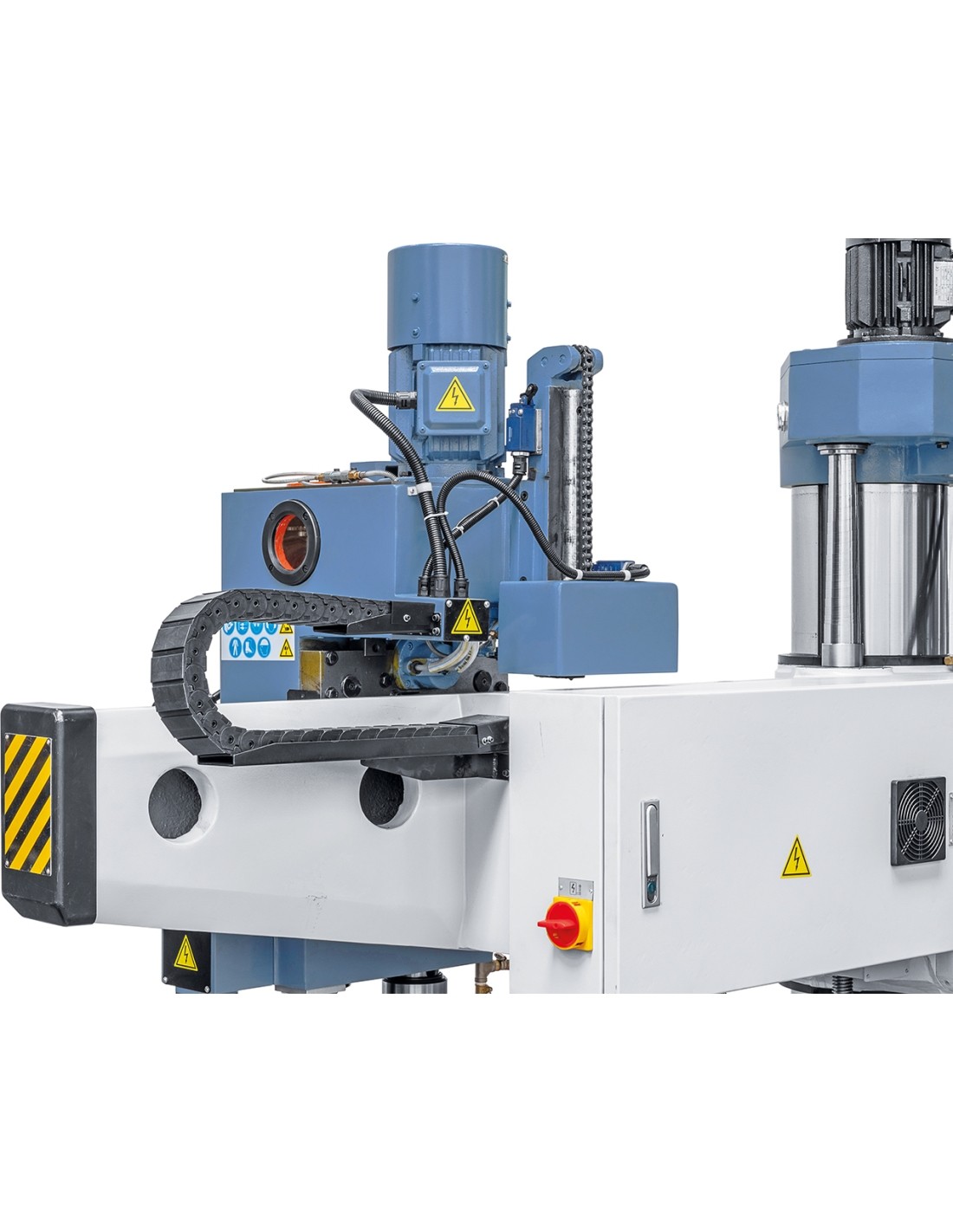

  • Lifting motor
  • Hydraulic motor
  • Height adjustable protective cover
  • Tools
