- Weight approx.
- 3200 kg
- Motor power
- 3,0 kW
- Machine dimension (W x D x H)
- 2300 x 1050 x 2720 mm
- Spindle stroke
- 300 mm
- Drilling capacity max.
- 50 mm
- Thread cutting max.
- M42
- Distance spindle to column min./max.
- 320 - 1400 mm
- Vertical movement of the support
- 565 mm

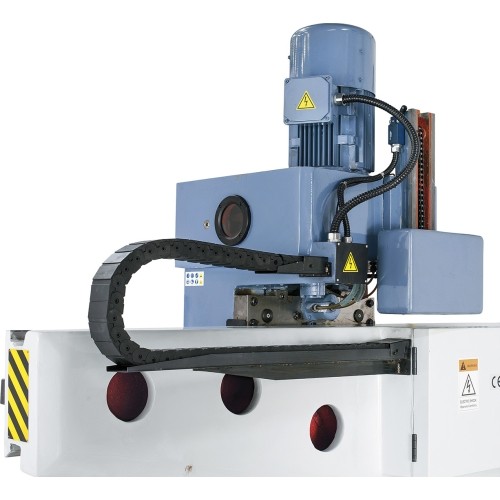

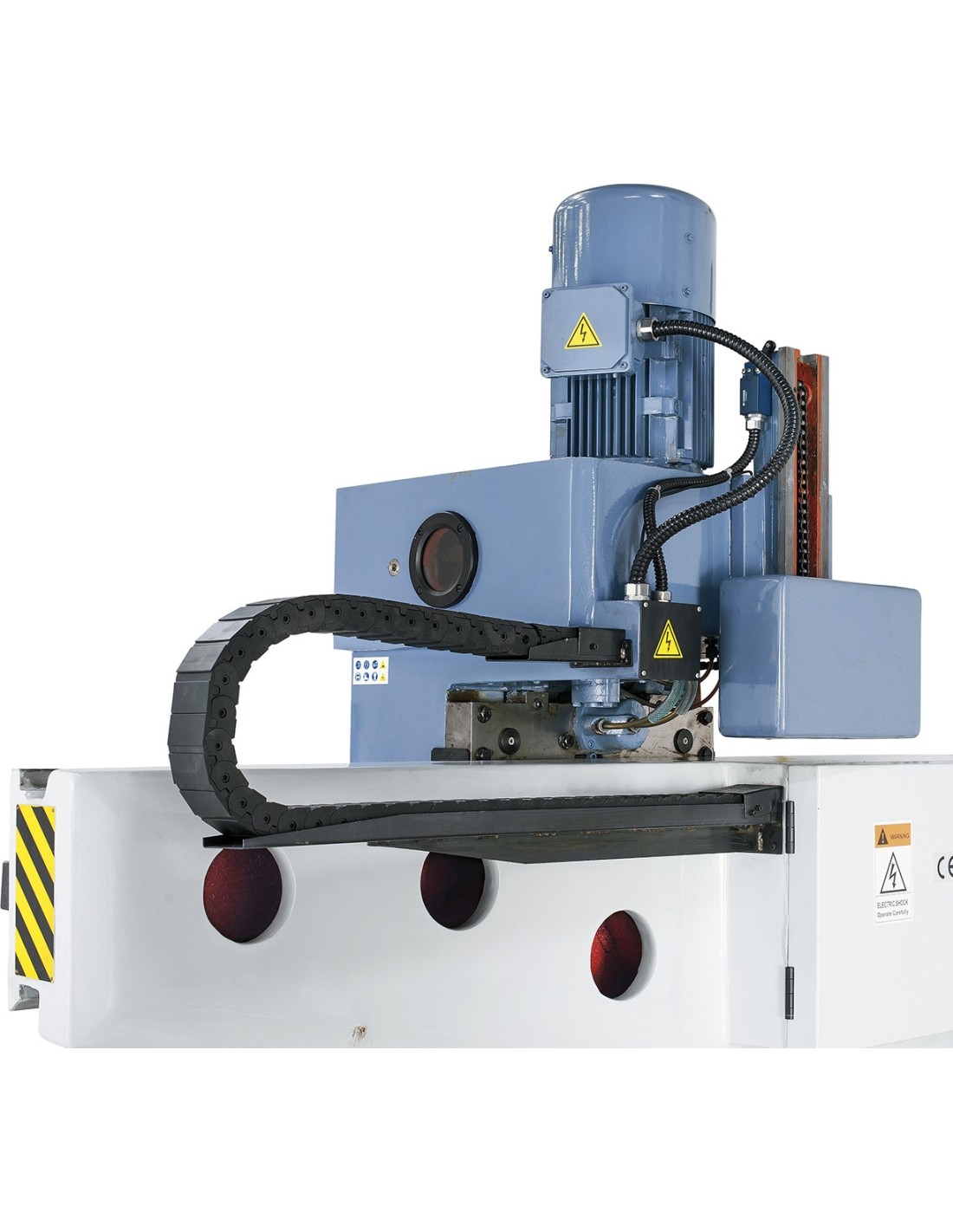

- Travel of drill head (horizontally)
- 1080 mm
- Morse taper
- MT 5
- Spindle speeds
- 38 – 275, 275 - 2000 rpm
- Feed range
- (6) 0,08 – 0,83 mm/rev.
- Distance spindle to box table
- 140 - 710 mm
- Distance spindle to base
- 640 - 1210 mm
- Clamping area base
- 1400 x 900 mm
- Box table (L x W x H)
- 750 x 500 x 500 mm

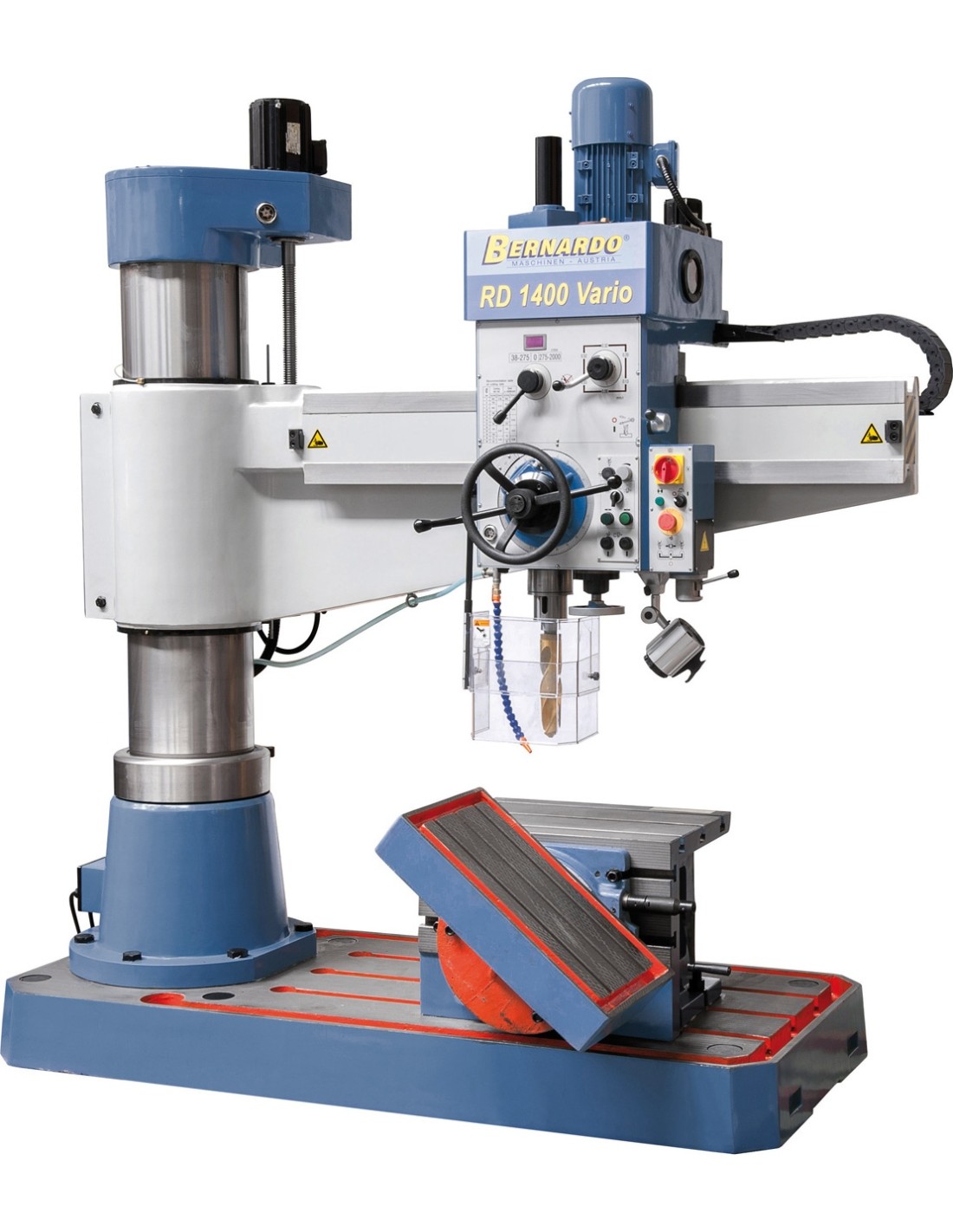

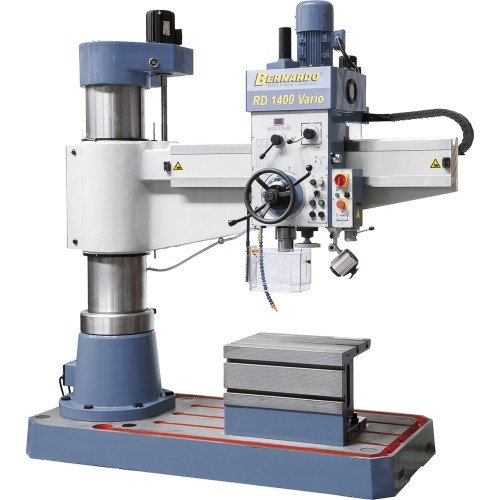

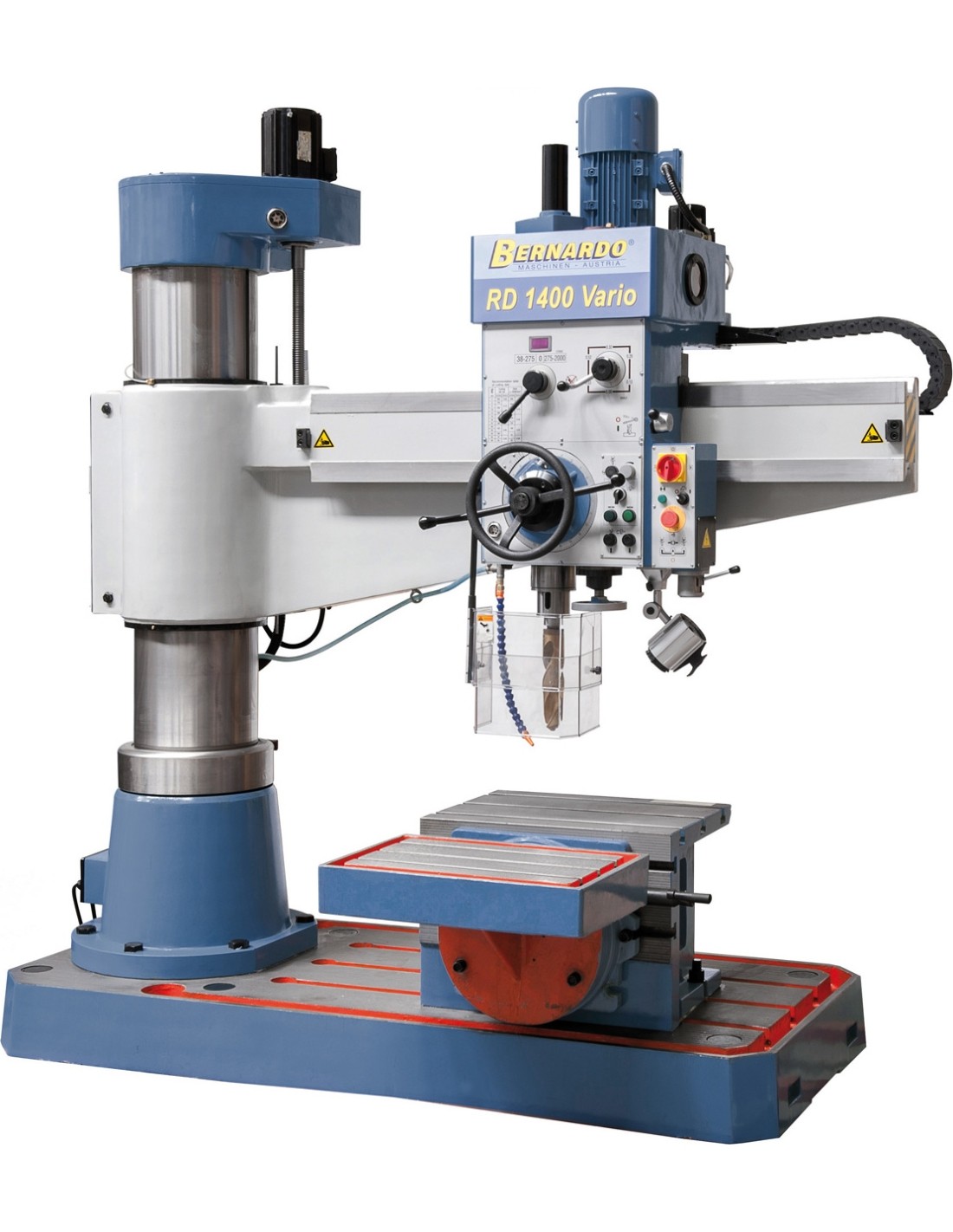

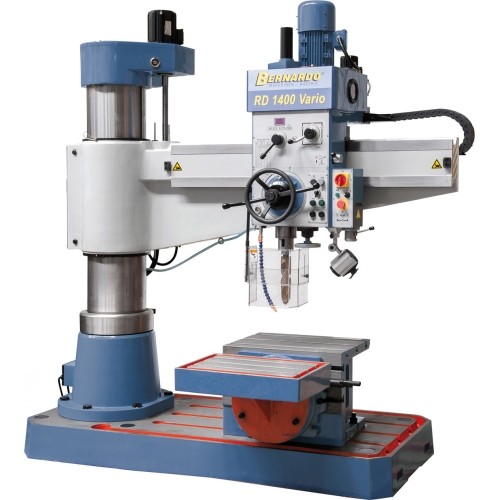

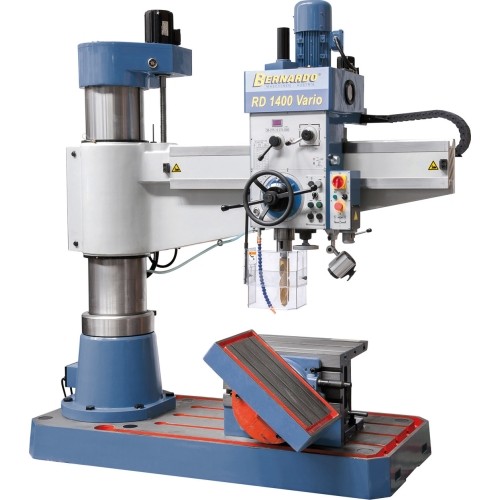

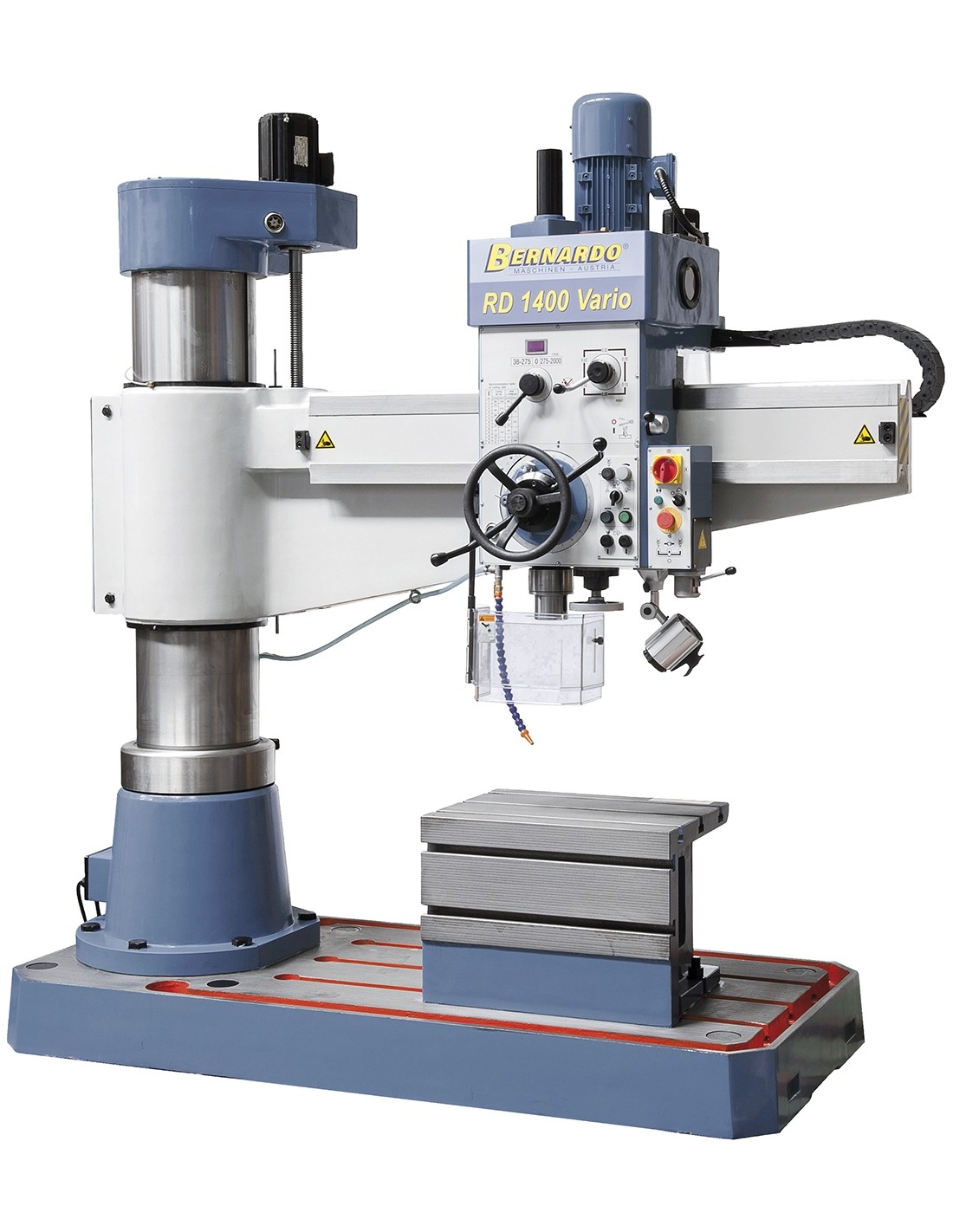

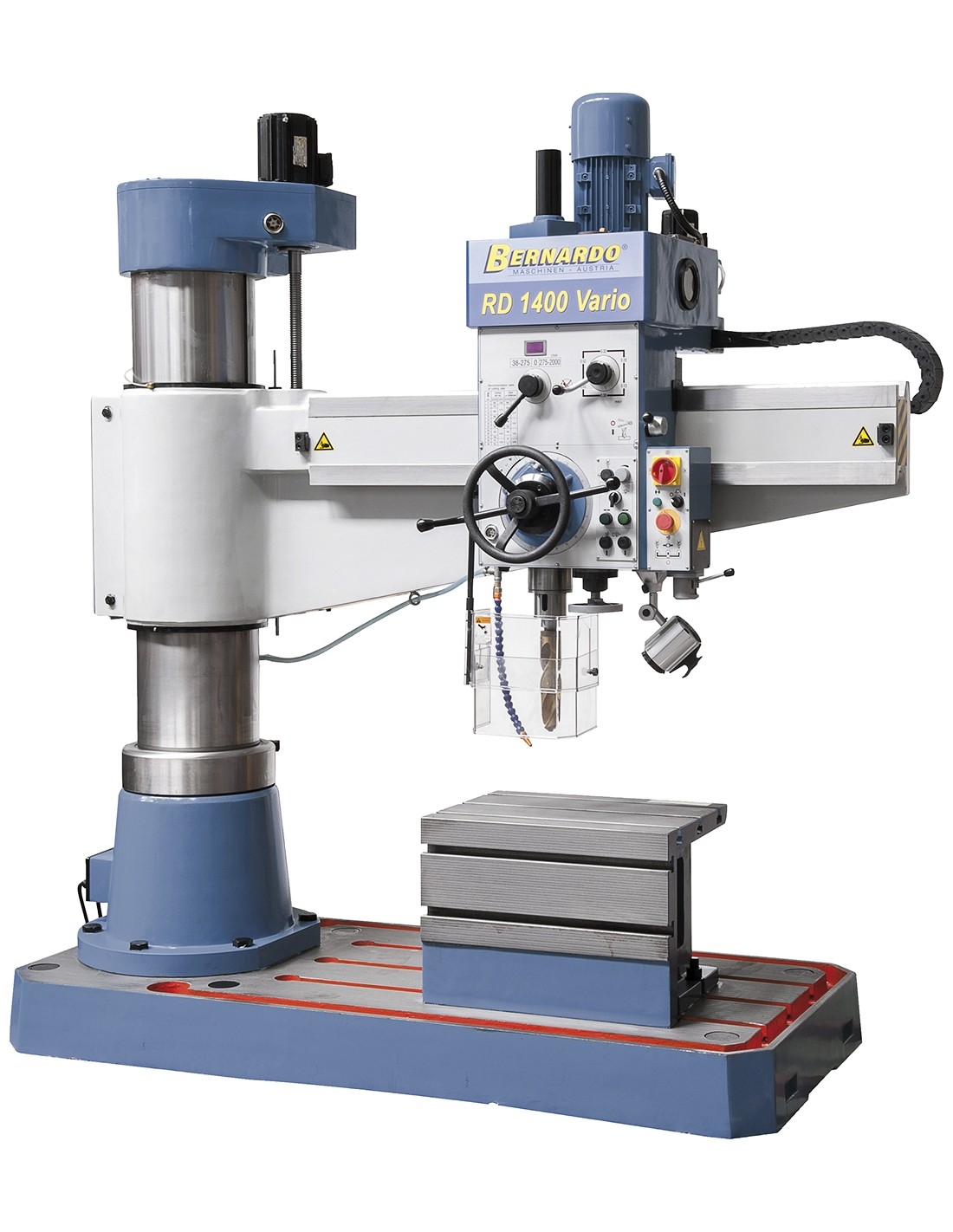

RD 1400 Vario
1356181
Price
€35,189.00
VAT incl.
Stock Quantity:
Kaunas Shop
not available
Central warehouse
not available
In Supplier store
(5+ pcs)
Delivery terms:
FREE pick up monday, may 4 d., in the store, Raudondvario pl. 141, Kaunas
(€0.00) Weight: 3200 kg.
Description
Properties

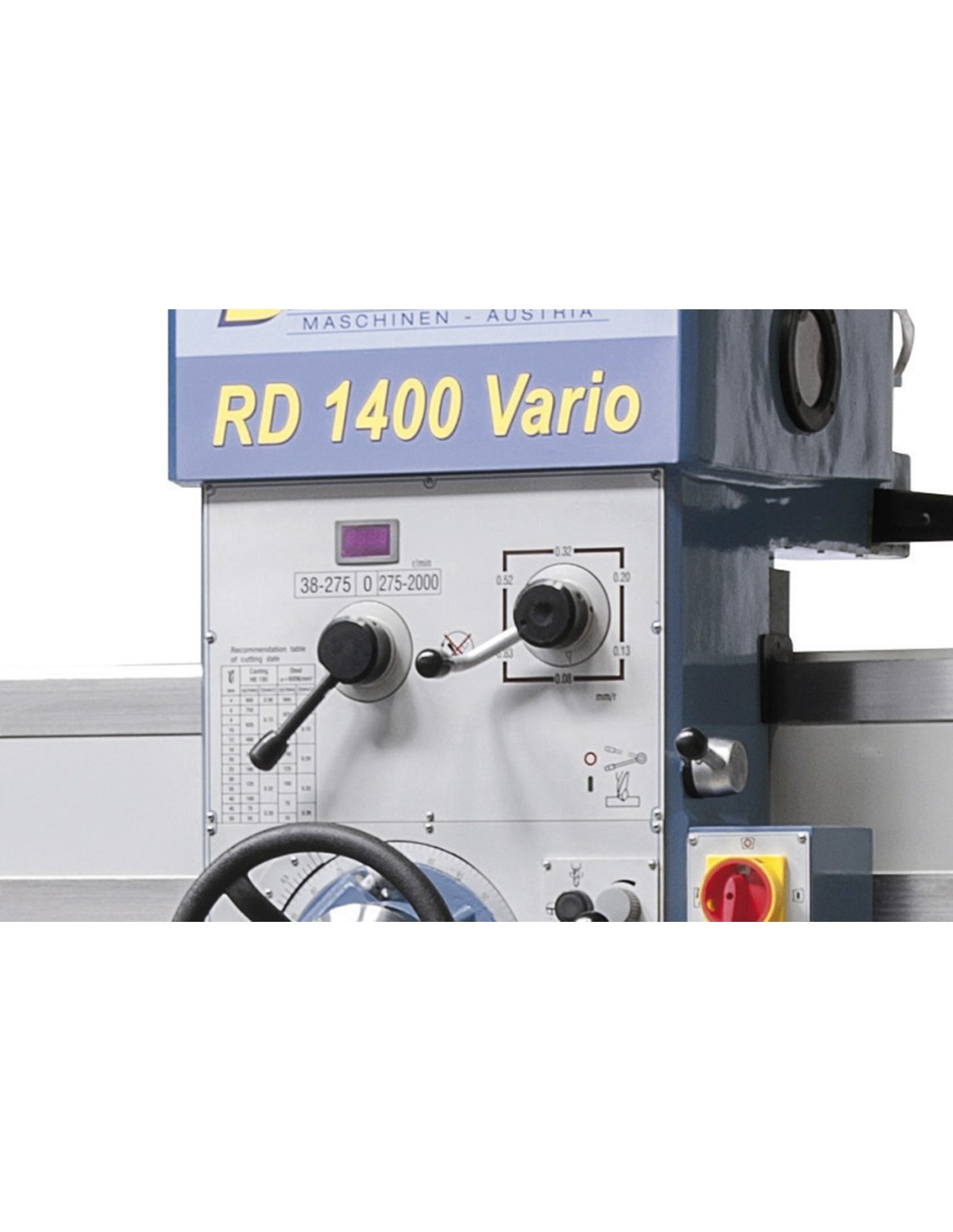

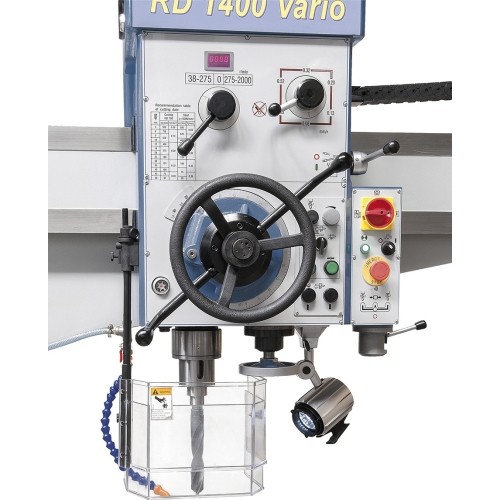

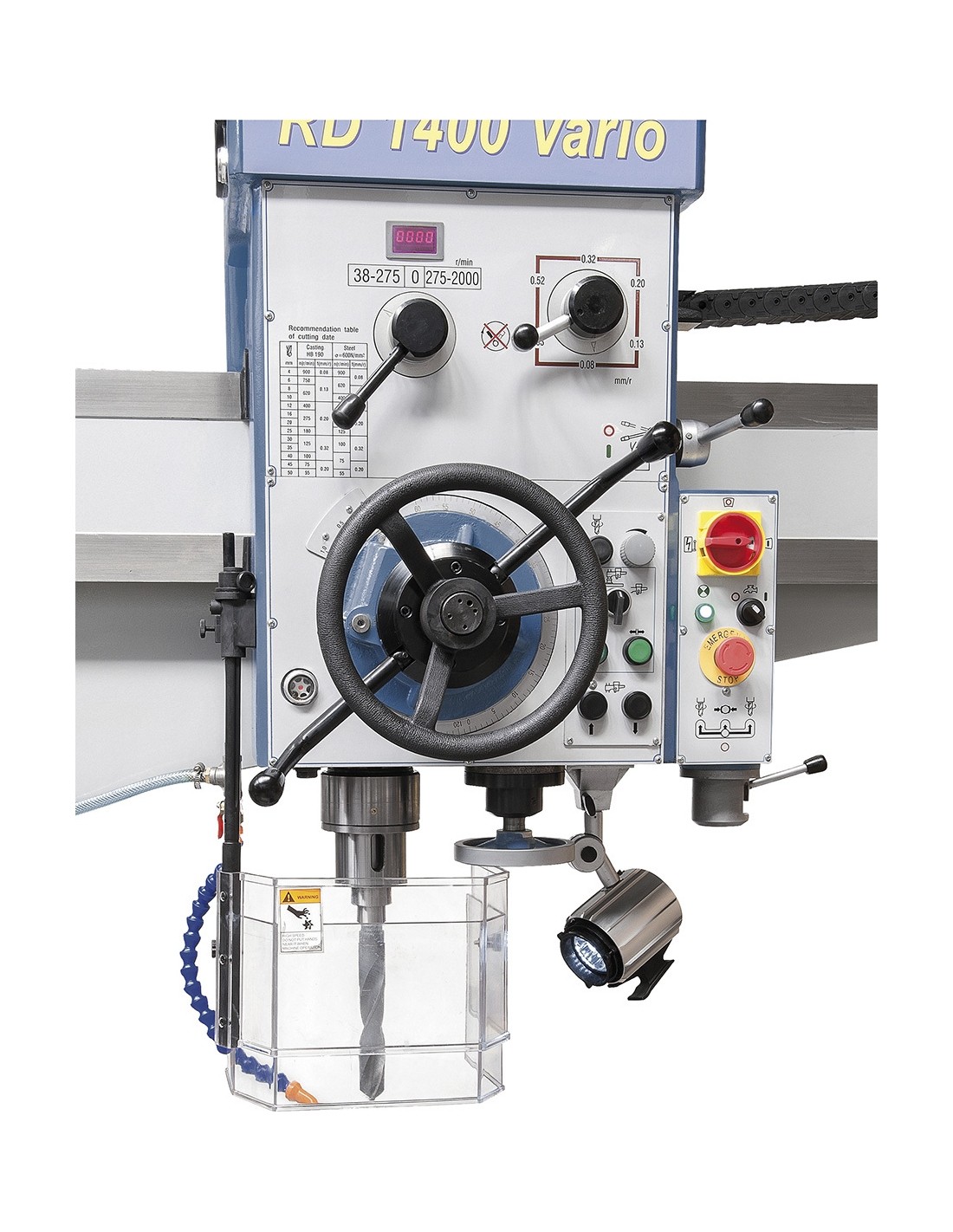

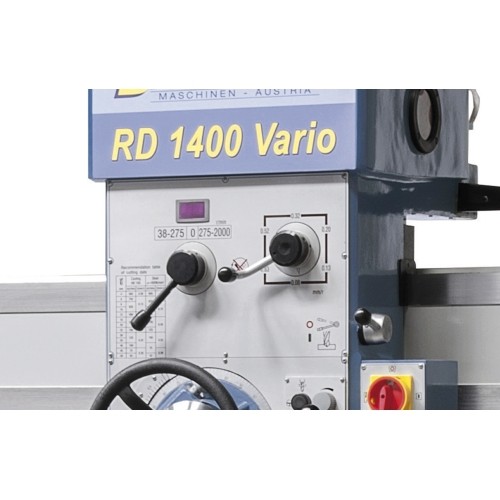

- Complete with stepless speed, set speed is visible on digital display
- Spindle features high concentricity and automatic spindle brake
- Radial arm, drill head and column each with hydraulic clamp
- Large base plate, ideal for processing of oversize workpieces
- Torsion-free, polished column increases sliding capacity of radial arm
- Lifting motor ensures easy height adjustment of radial arm keeping the spindle in position – ideal for repetitive operations

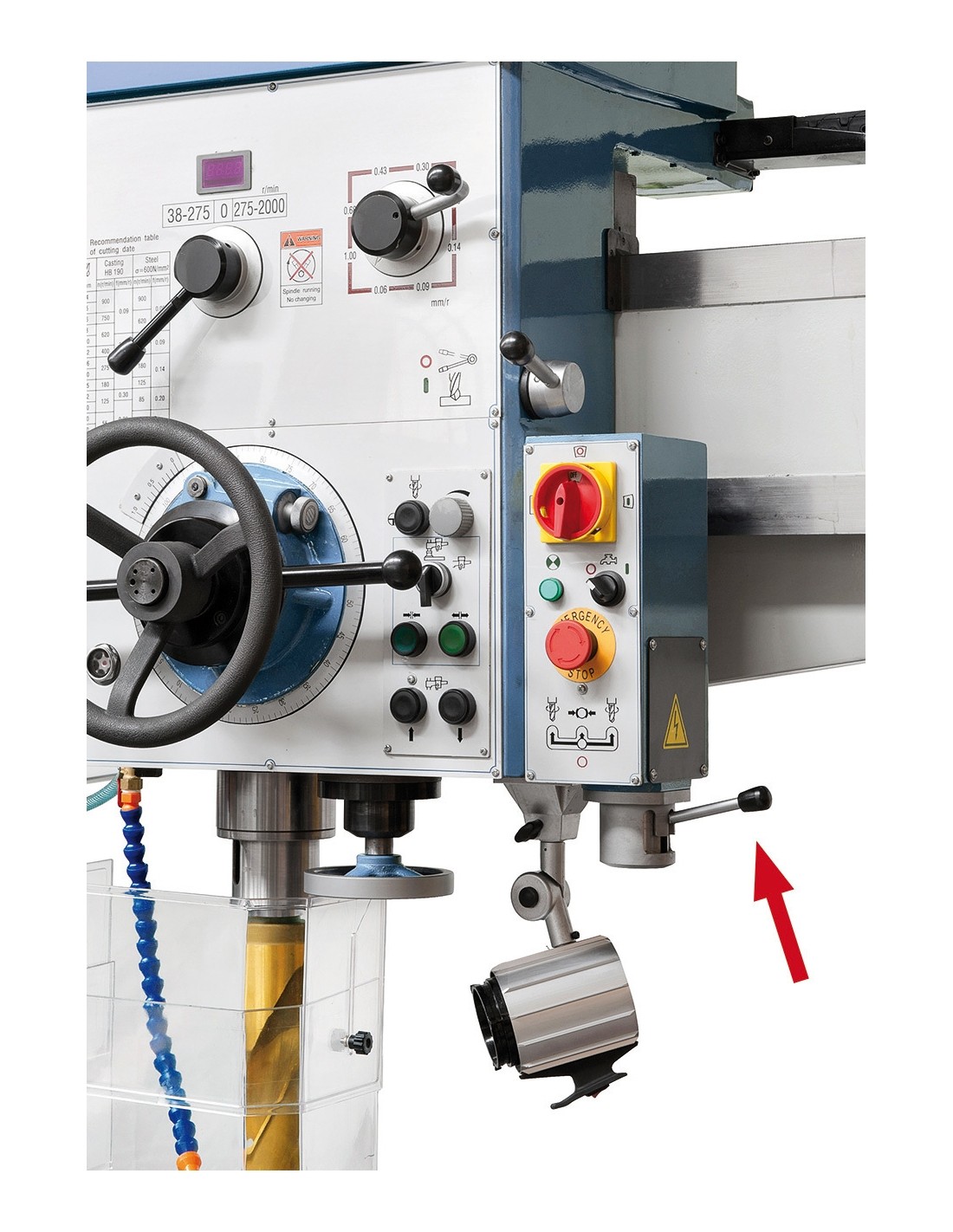

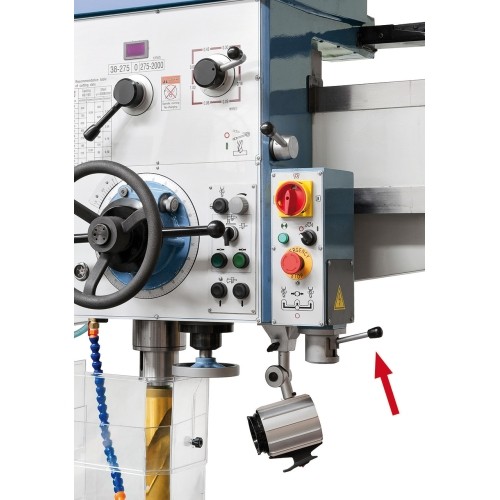

- Control switch allows for individual clamping or unclamping of drill head and/or column
- Guiderails on radial arm are hardened and polished
- Counter weight on spindle to ensure optimal balance
- Ideal for drilling, countersinking, reaming and tapping
Standard accessories
- Box table
- Drill chuck arbor MT 5 / B 16
- Morse taper drill sleeve MT 5/4, MT 4/3, MT 3/2
- LED machine light
- Initial filling with Shell Tellus 46
- Coolant device
- Frequency inverter
- Digital readout of speeds
- Lifting motor
- Hydraulic motor
- Height adjustable protective cover
- Tools
